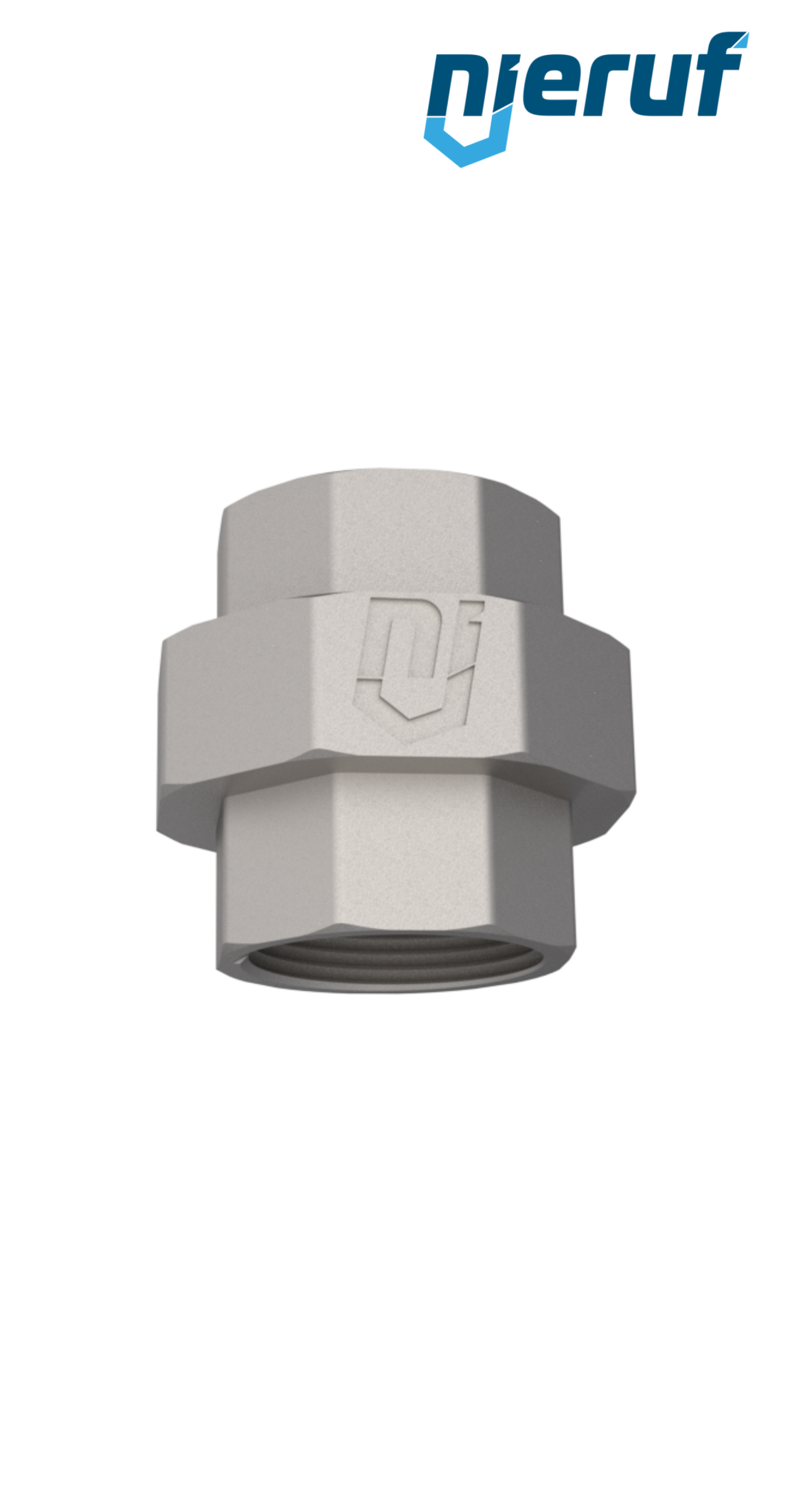

3/3 union GF01-4 with female thread 3/4" inch made of stainless steel 316 design flat-sealing
diameter:
DN20 - 3/4" inch
connection:
female thread
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
material:
stainless steel 316
3/3 union GF01-4 with female thread 1" inch made of stainless steel 316 design flat-sealing
diameter:
DN25 - 1" inch
connection:
female thread
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
material:
stainless steel 316

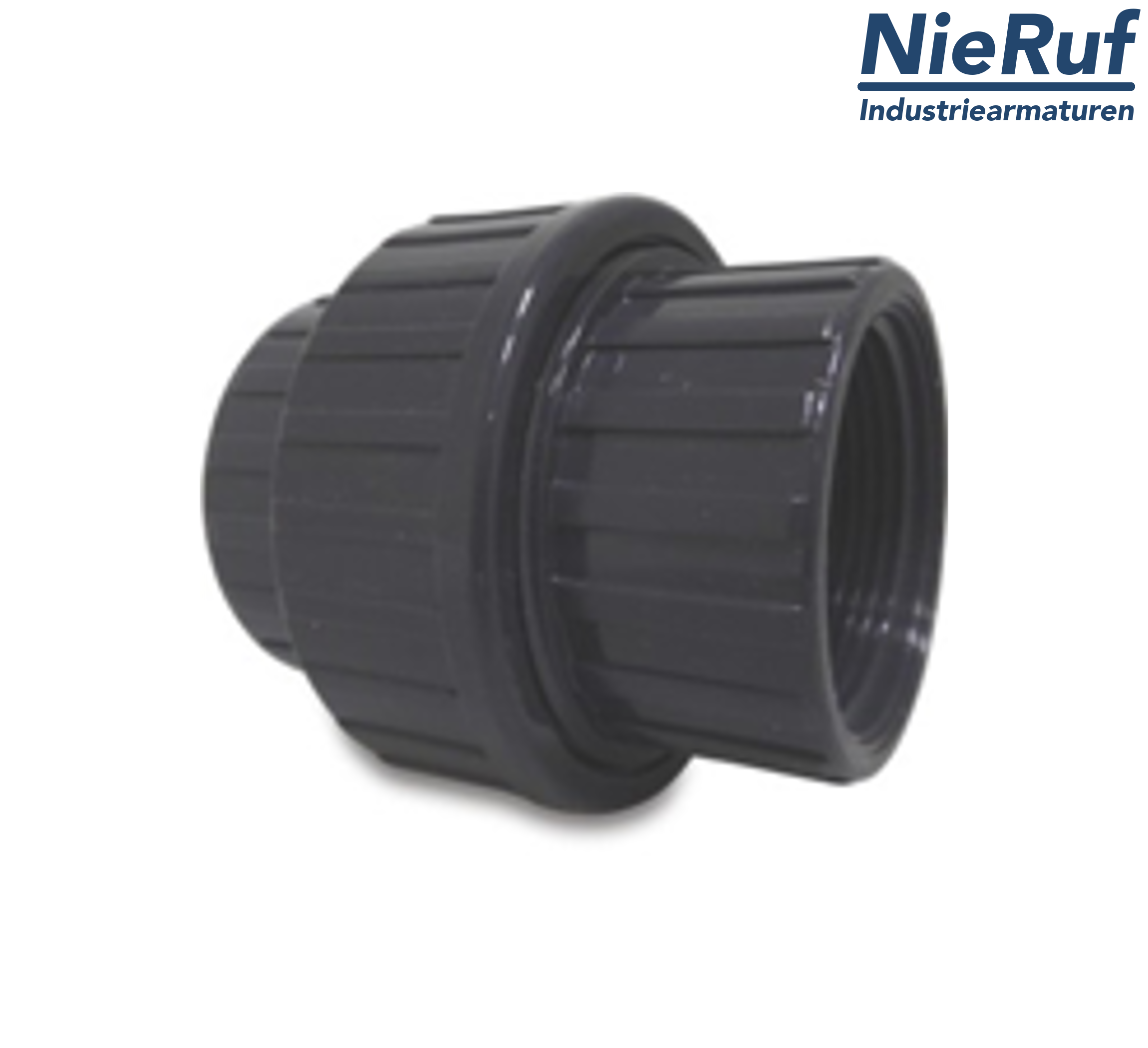

3/3 union GF03-4 with female thread 3/4" inch made of PVC-U
diameter:
DN20 - 3/4" inch
connection:
female thread
max. working pressure:
PN10
material:
PVC-U
3/3 union GF03-4 with female thread 1/2" inch made of PVC-U
diameter:
DN15 - 1/2" inch
connection:
female thread
max. working pressure:
PN10
material:
PVC-U
3/3 union GF03-4 with adhesive connection d 32 made of PVC-U
diameter:
d 32
connection:
adhesive connection
max. working pressure:
PN16
material:
PVC-U
3/3 union GF01-4 with female thread 1/8" inch made of stainless steel 316 design flat-sealing
diameter:
DN6 - 1/8" inch
connection:
female thread
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
material:
stainless steel 316
3/3 union GF03-4 with female thread 1" inch made of PVC-U
diameter:
DN25 - 1" inch
connection:
female thread
max. working pressure:
PN10
material:
PVC-U
3/3 union GF01-4 with female thread 1/4" inch made of stainless steel 316 design flat-sealing
diameter:
DN8 - 1/4" inch
connection:
female thread
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
material:
stainless steel 316
3/3 union GF03-4 with adhesive connection d 25 made of PVC-U
diameter:
d 25
connection:
adhesive connection
max. working pressure:
PN16
material:
PVC-U
3/3 union GF03-4 with female thread 2" inch made of PVC-U
diameter:
DN50 - 2" inch
connection:
female thread
max. working pressure:
PN10
material:
PVC-U
3/3 union GF03-4 with female thread 1 1/2" inch made of PVC-U
diameter:
DN40 - 1 1/2" inch
connection:
female thread
max. working pressure:
PN10
material:
PVC-U
3/3 union GF03-4 with adhesive connection d 63 made of PVC-U
diameter:
d 63
connection:
adhesive connection
max. working pressure:
PN16
material:
PVC-U
3/3 union GF03-4 with female thread 1 1/4" inch made of PVC-U
diameter:
DN32 - 1 1/4" inch
connection:
female thread
max. working pressure:
PN10
material:
PVC-U
3/3 union GF03-4 with adhesive connection d 40 made of PVC-U
diameter:
d 40
connection:
adhesive connection
max. working pressure:
PN16
material:
PVC-U
3/3 union GF01-4 with female thread 2" inch made of stainless steel 316 design flat-sealing
diameter:
DN50 - 2" inch
connection:
female thread
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
material:
stainless steel 316
3/3 union GF03-4 with adhesive connection d 20 made of PVC-U
diameter:
d 20
connection:
adhesive connection
max. working pressure:
PN16
material:
PVC-U
3/3 union GF01-4 with female thread 1 1/2" inch made of stainless steel 316 design flat-sealing
diameter:
DN40 - 1 1/2" inch
connection:
female thread
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
material:
stainless steel 316
3/3 union GF01-4 with female thread 4" inch made of stainless steel 316 design flat-sealing
diameter:
DN100 - 4" inch
connection:
female thread
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
material:
stainless steel 316
3/3 union GF01-4 with female thread 3/8" inch made of stainless steel 316 design flat-sealing
diameter:
DN10 - 3/8" inch
connection:
female thread
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
material:
stainless steel 316
3/3 union GF01-4 with female thread 3" inch made of stainless steel 316 design flat-sealing
diameter:
DN80 - 3" inch
connection:
female thread
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
material:
stainless steel 316
3/3 union GF01-4 with female thread 1/2" inch made of stainless steel 316 design flat-sealing
diameter:
DN15 - 1/2" inch
connection:
female thread
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
material:
stainless steel 316
3/3 union GF01-4 with female thread 2 1/2" inch made of stainless steel 316 design flat-sealing
diameter:
DN65 - 2 1/2" inch
connection:
female thread
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
material:
stainless steel 316
3/3 union GF01-4 with female thread 1 1/4" inch made of stainless steel 316 design flat-sealing
diameter:
DN32 - 1 1/4" inch
connection:
female thread
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
material:
stainless steel 316
