Stainless steel, brass and PVC-U reduction pieces
A reduction piece is used in order to reduce a pipe from a large diameter to a smaller one. You can see the various options below. The reduction pieces have an internal thread on one side and an external thread on the other. They are available in stainless steel 316, brass or PVC-U. They are frequently used in heating construction, in the chemical industry and the PVC option in pool construction.

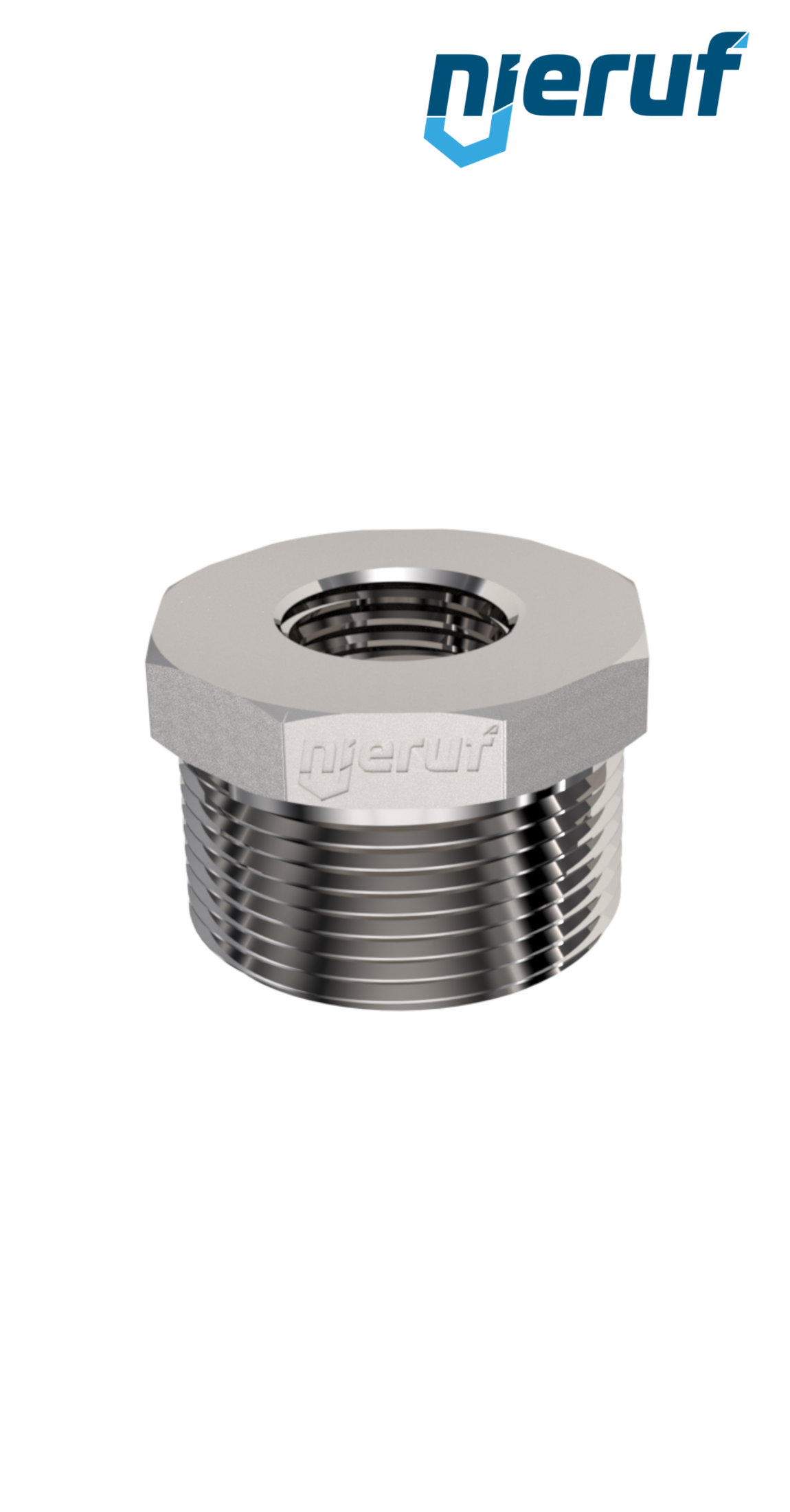

reducing piece GF01-6 male thread x female thread 1/4" x 1/8" inch made of stainless steel 316 for liquid and gaseous media
diameter:
1/4" x 1/8" inch
connection:
male x female
material:
stainless steel 316
thread:
acc. to DIN EN 10226-1
max. working pressure:
20 bar at +20°C
reducing piece GF01-6 male thread x female thread 1/2" x 1/4" inch made of stainless steel 316 for liquid and gaseous media
diameter:
1/2" x 1/4" inch
connection:
male x female
material:
stainless steel 316
thread:
acc. to DIN EN 10226-1
max. working pressure:
20 bar at +20°C
reducing piece GF01-6 male thread x female thread 1" x 1/4" inch made of stainless steel 316 for liquid and gaseous media
diameter:
1" x 1/4" inch
connection:
male x female
material:
stainless steel 316
thread:
acc. to DIN EN 10226-1
max. working pressure:
20 bar at +20°C
reducing piece GF01-6 male thread x female thread 1" x 3/4" inch made of stainless steel 316 for liquid and gaseous media
diameter:
1" x 3/4" inch
connection:
male x female
material:
stainless steel 316
thread:
acc. to DIN EN 10226-1
max. working pressure:
20 bar at +20°C
