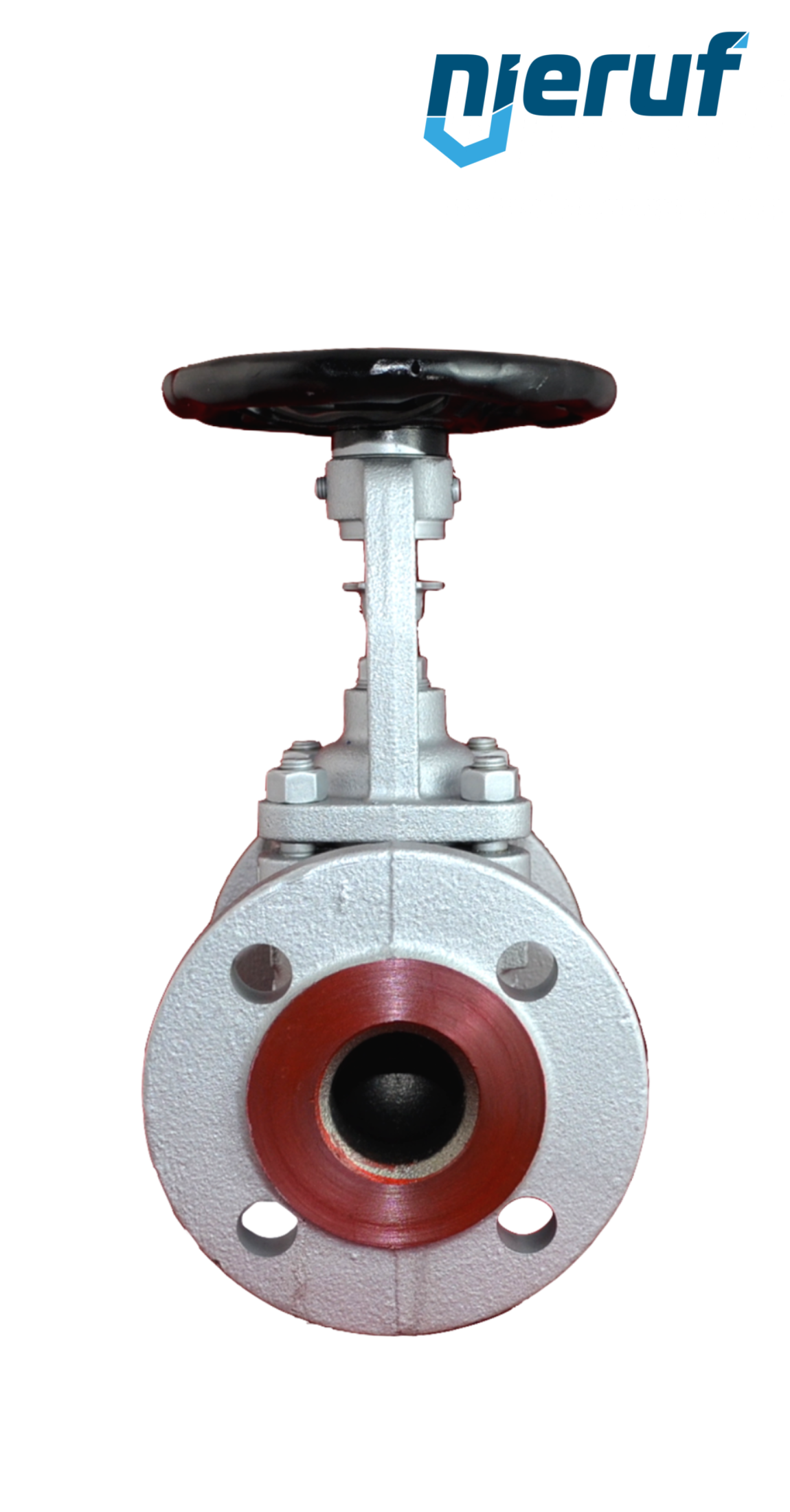

Globe valve DN 20 AV03 cast steel 1.0619+N regulation cone

AV03020004
quantity (pcs.):
277.20€ * 321.55€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Globe valve DN 20 AV03 cast steel 1.0619+N regulation cone
Globe valve DN 20 in straight through with bellow material cast steel 1.0619+N authorization TA-Luft regulation cone
diameter: DN 20
flange: flange acc. DIN EN 1092
pressure: PN40
seal: metal
media: liquid and gaseous media
temperature: to max +450°C - depending on working pressure
pressure range: max. 40 bar depending on operating temperature
design: straight through with bellow
body material: cast steel 1.0619+N
material spindel unit: cast steel 1.0619+N
handwheel: steel with cataphoretic-coating (non-rising)
plug: regulation cone
bellow: stainless steel 1.4571
length: acc DIN EN 558 series 1
approval: EN ISO 15848-1 / TA Luft TÜV-Prüf-Nr: TA 07 2016 C04
installation position: any position, spindle preferably vertical
product feature: Stop valve - straight through with flanges and bellows seal additionally with non-rotation lock, flat lubricating nipple and position indicator as standard - CLOSED / OPEN.
Globe valve DN 20 AV03 cast steel 1.0619+N regulation cone

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Globe valve DN 20 AV03 cast steel 1.0619+N regulation cone
