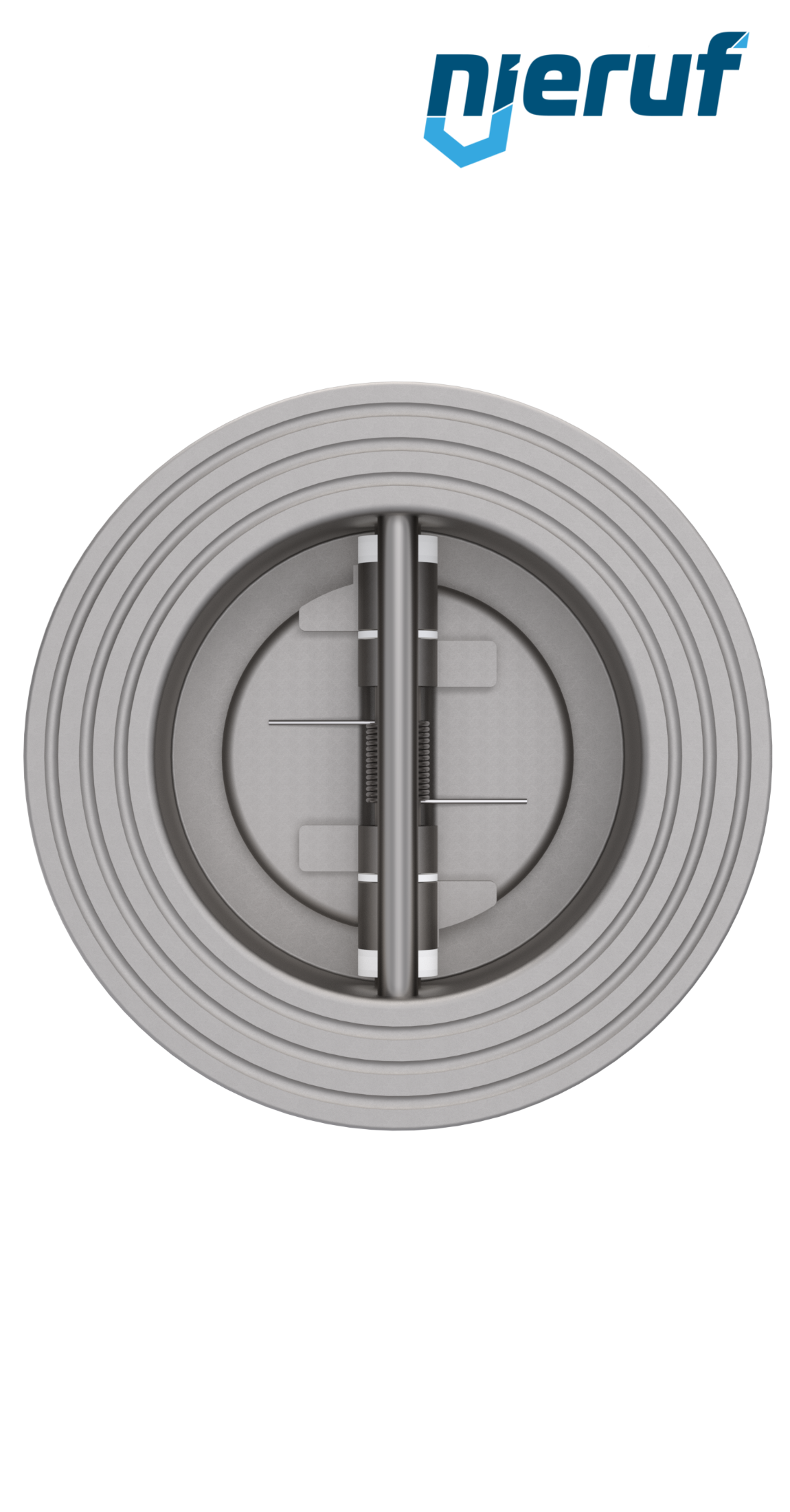

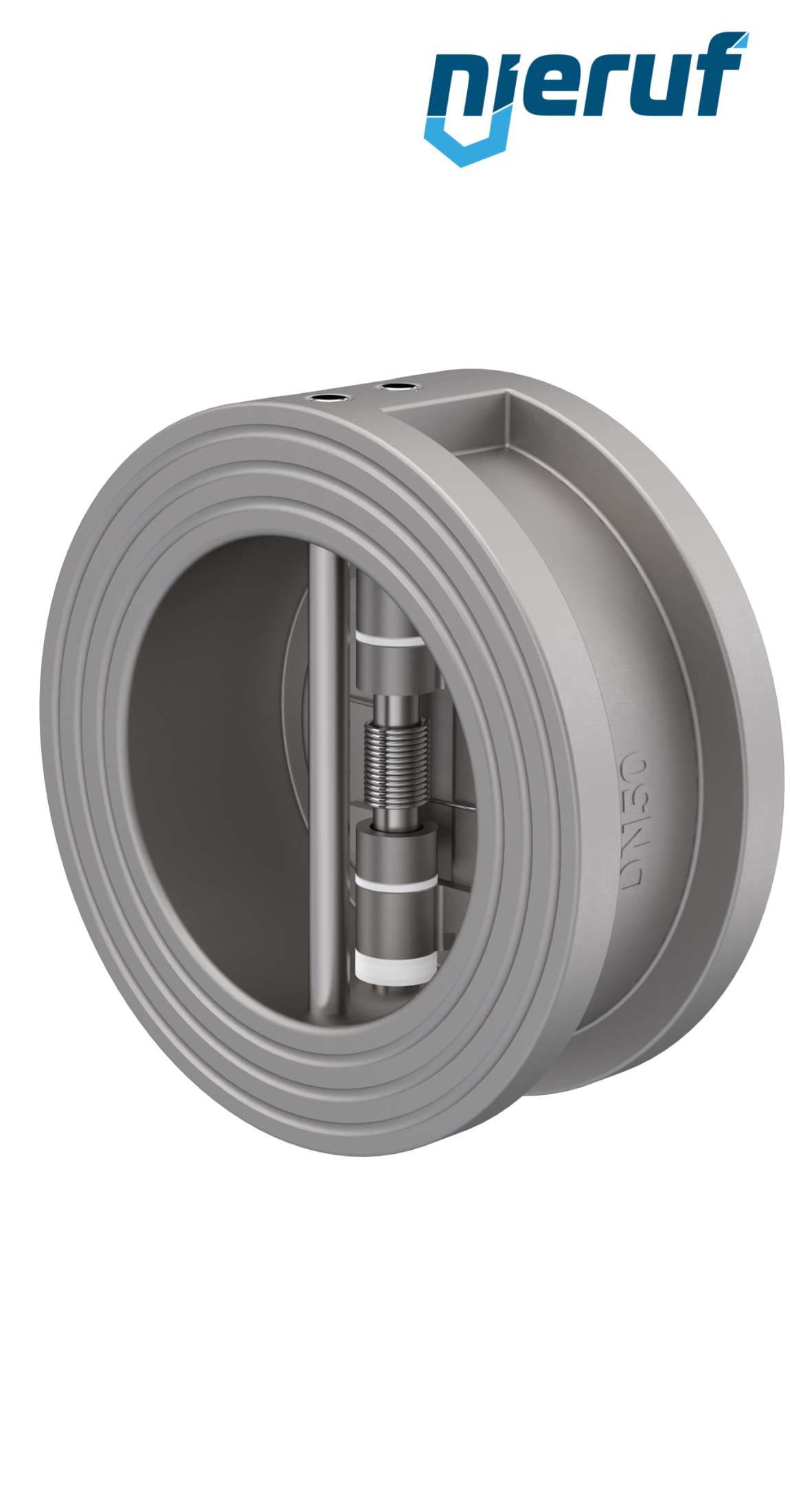

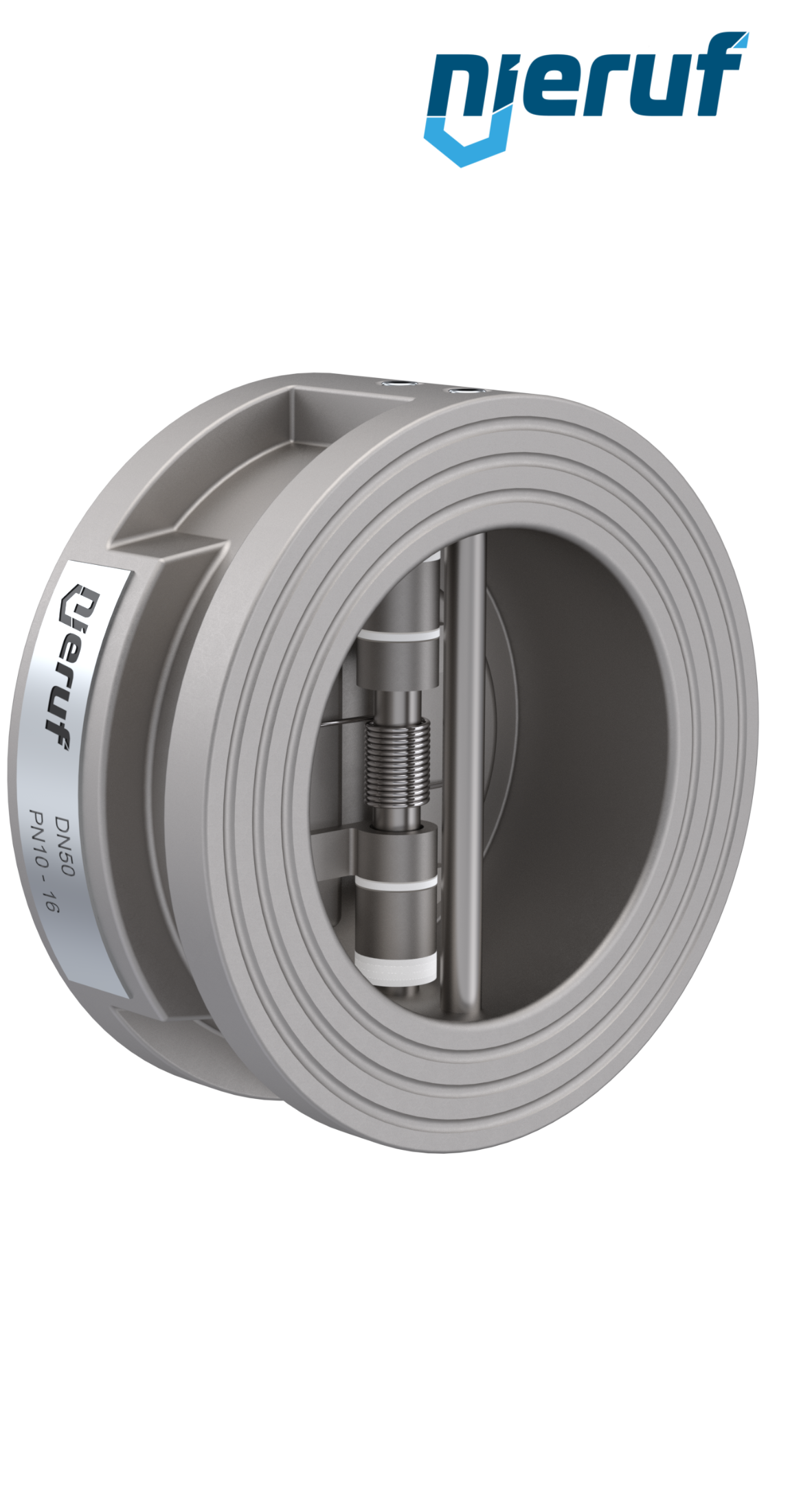

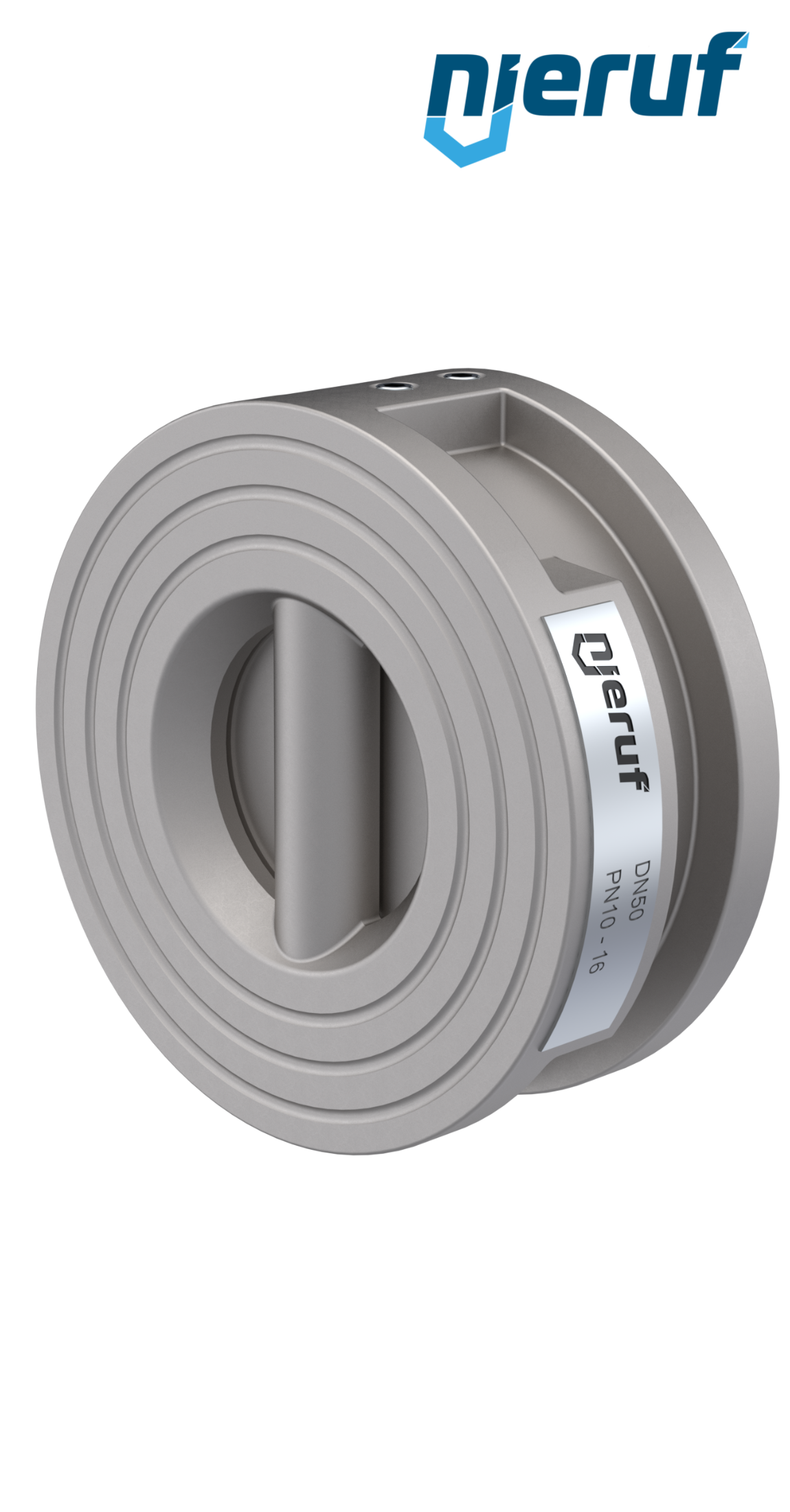

dual plate check valve DN50 DR03 stainless steel 1.4408 EPDM

DR03000108
quantity (pcs.):
126.80€ * 150.89€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
dual plate check valve DN50 DR03 stainless steel 1.4408 EPDM
dual plate check valve DN50 seal EPDM PN 10/16/25/40 DIN EN 1092-1 Form B, body made of stainless steel 1.4408, wings made of stainless steel 1.4408
design: dual plate check valve
diameter: DN50
body material: stainless steel 1.4408
disc material: stainless steel 1.4408
seal: EPDM
temperature: up to +120°C
connection: flange
flange: PN 10/16/25/40 DIN EN 1092-1 Form B
pressure range: 0 - 16 bar
media: liquid and gaseous media
tightness acc. to DIN EN 12266: leak rate A
option: with spring made of stainless steel
installation position: direction of flow horizontal, vertical from below - up to DN150 also from above
product feature: face to face according DIN EN 558-1 row 16
dual plate check valve DN50 DR03 stainless steel 1.4408 EPDM

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

dual plate check valve DN50 DR03 stainless steel 1.4408 EPDM
