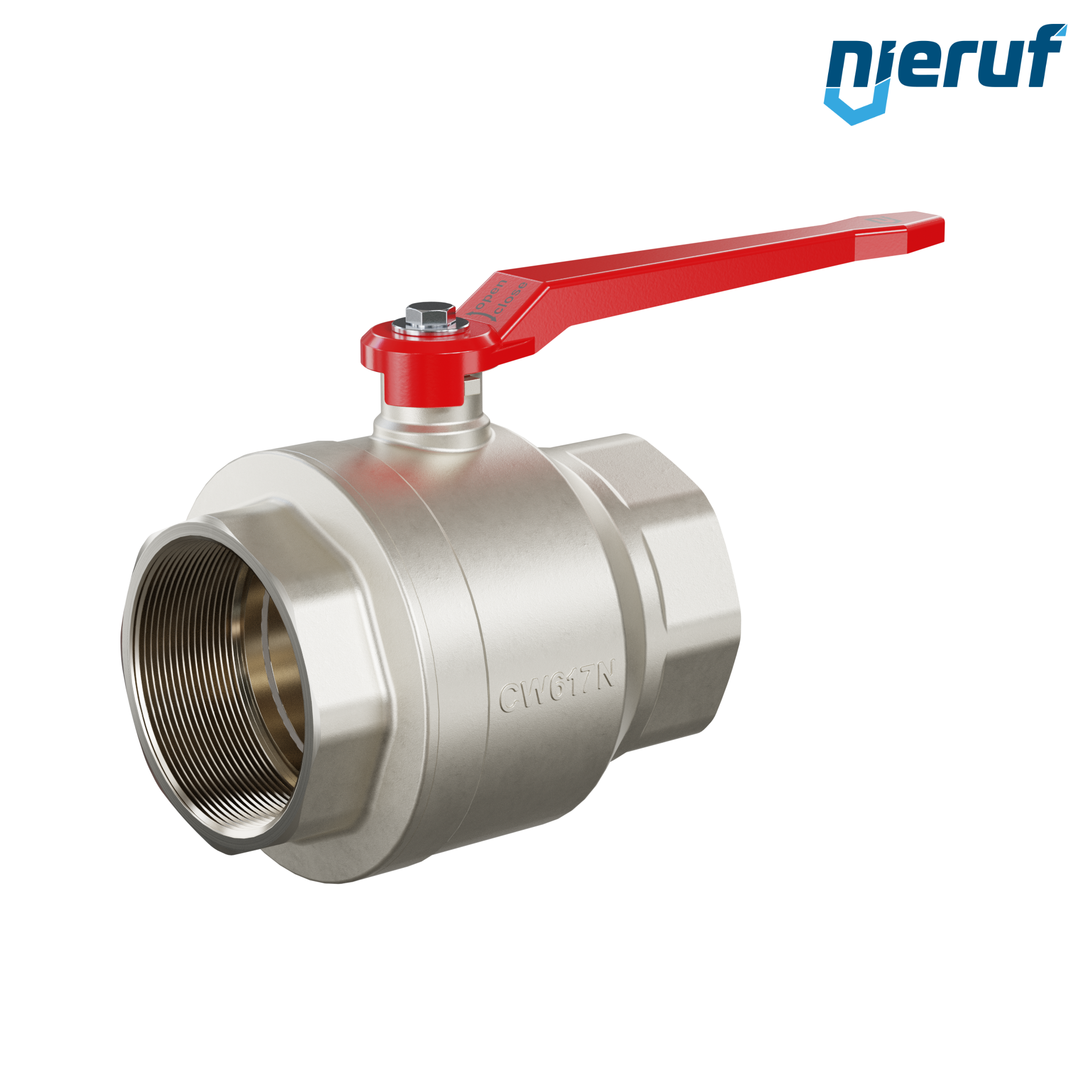

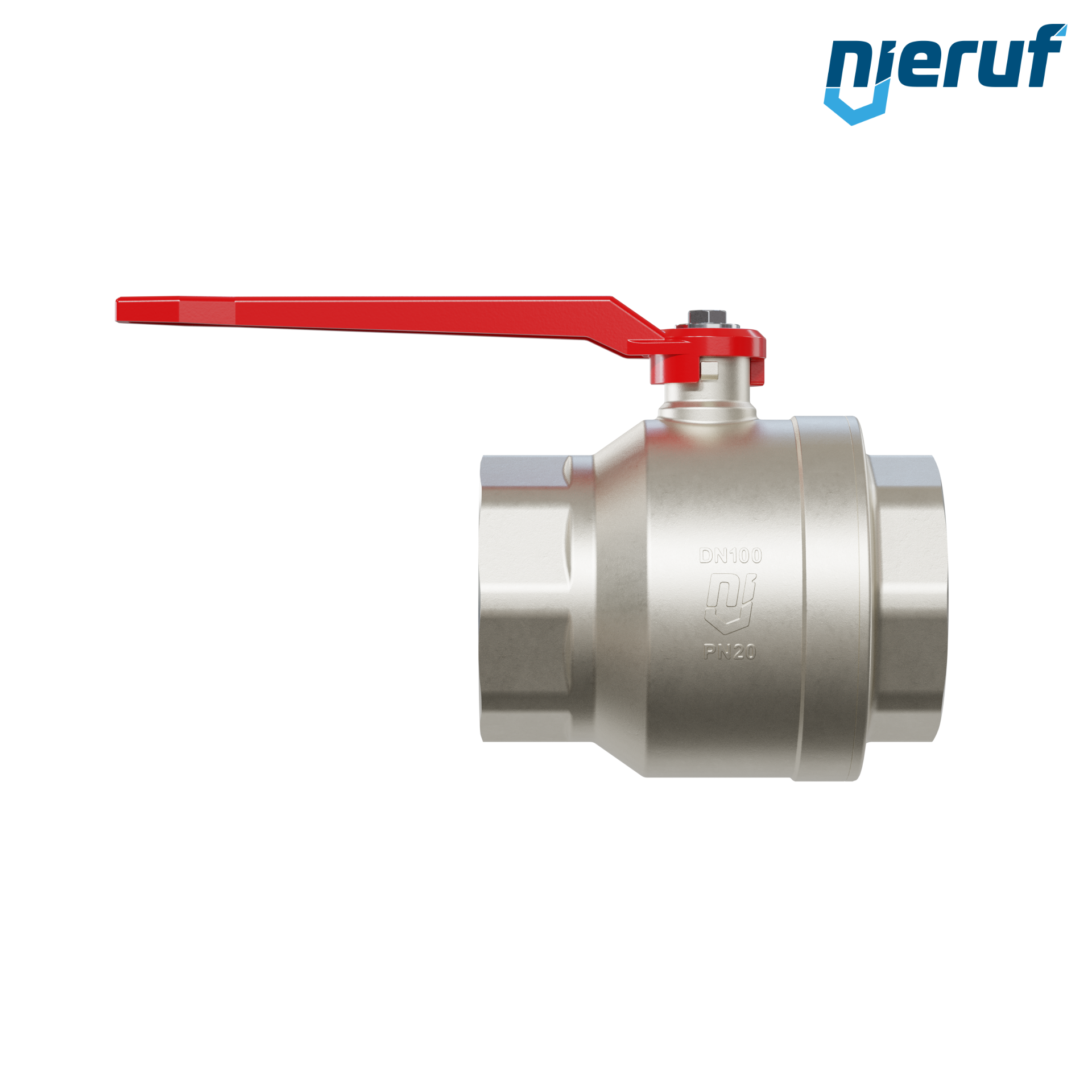

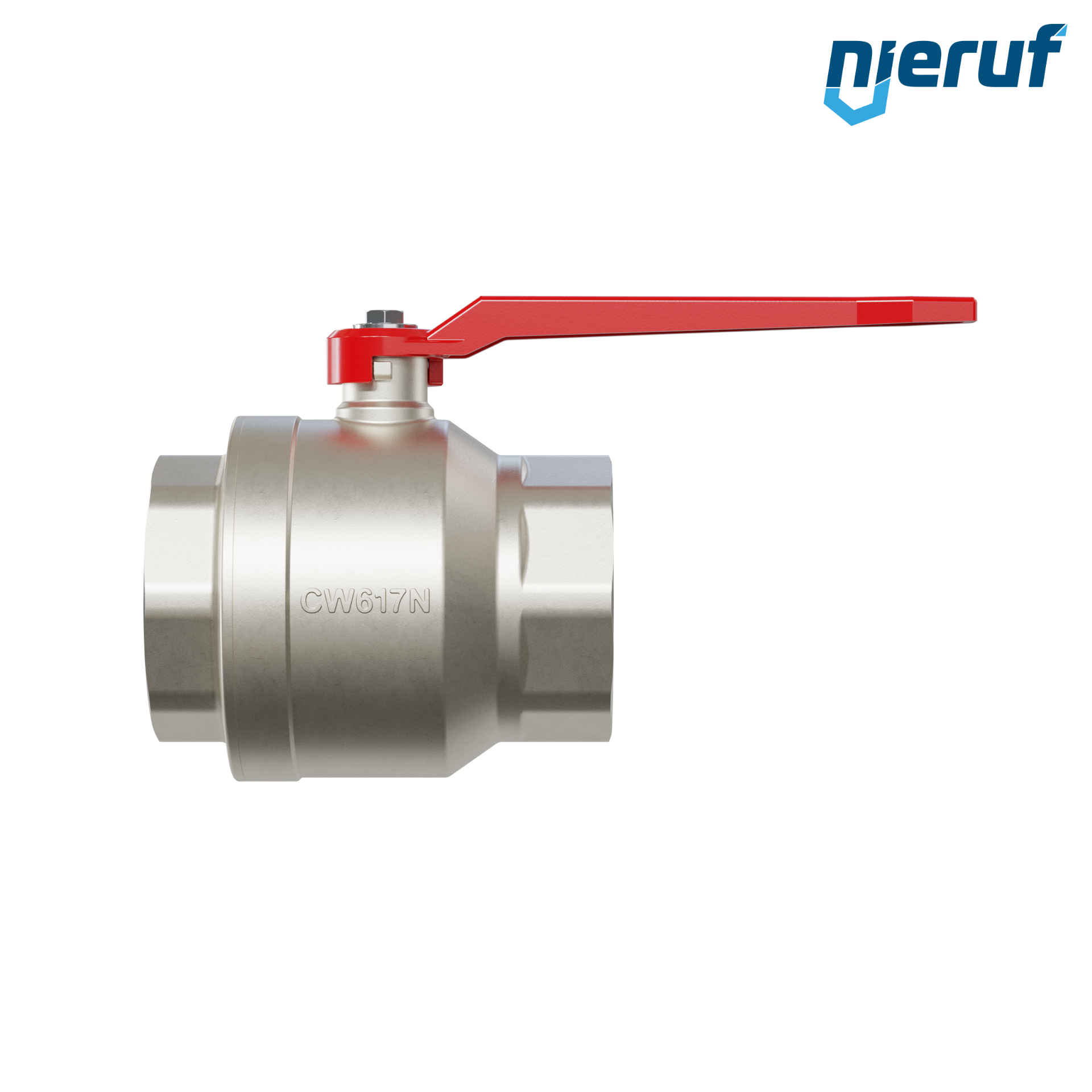

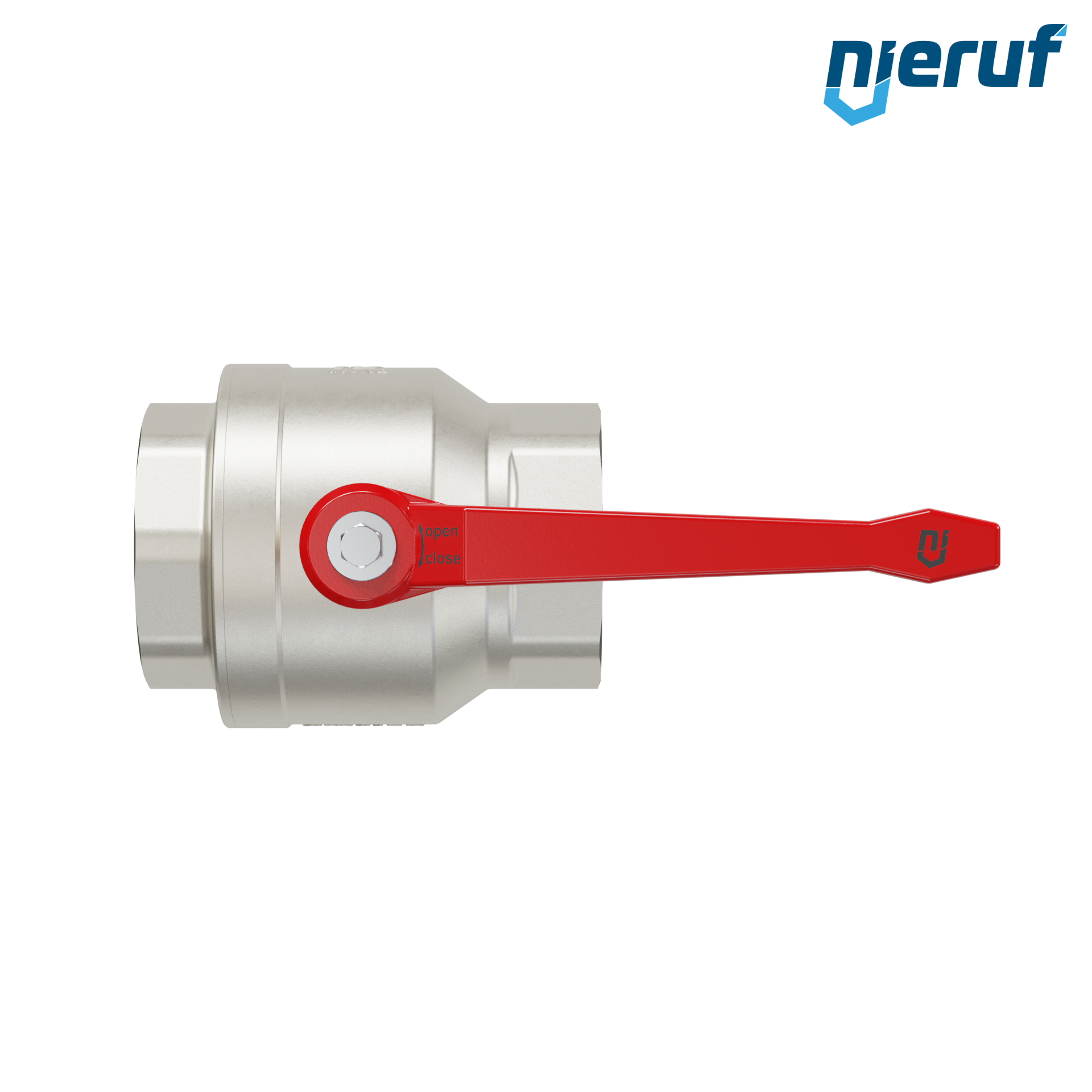

2 way ball valve DN100 - 4" inch GK01 female thread

GK01000011
quantity (pcs.):
275.50€ * 319.58€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
2 way ball valve DN100 - 4" inch GK01 female thread
2 way ball valve DN100 - 4" inch full port design seal made of PTFE for liquid and gaseous media
diameter: DN100 - 4" inch
connection: female thread
Seal steam: PTFE
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN20
design: full port design
body material: brass nickel plated (CW617N)
ball material: brass chrome plated (CW614N)
ball seal: PTFE
length: 207mm
actuator: lever handle made of Aluminium, painted red
installation position: any position
product description: strength of valve body and cap acc. to EN 331
2 way ball valve DN100 - 4" inch GK01 female thread

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

2 way ball valve DN100 - 4" inch GK01 female thread
