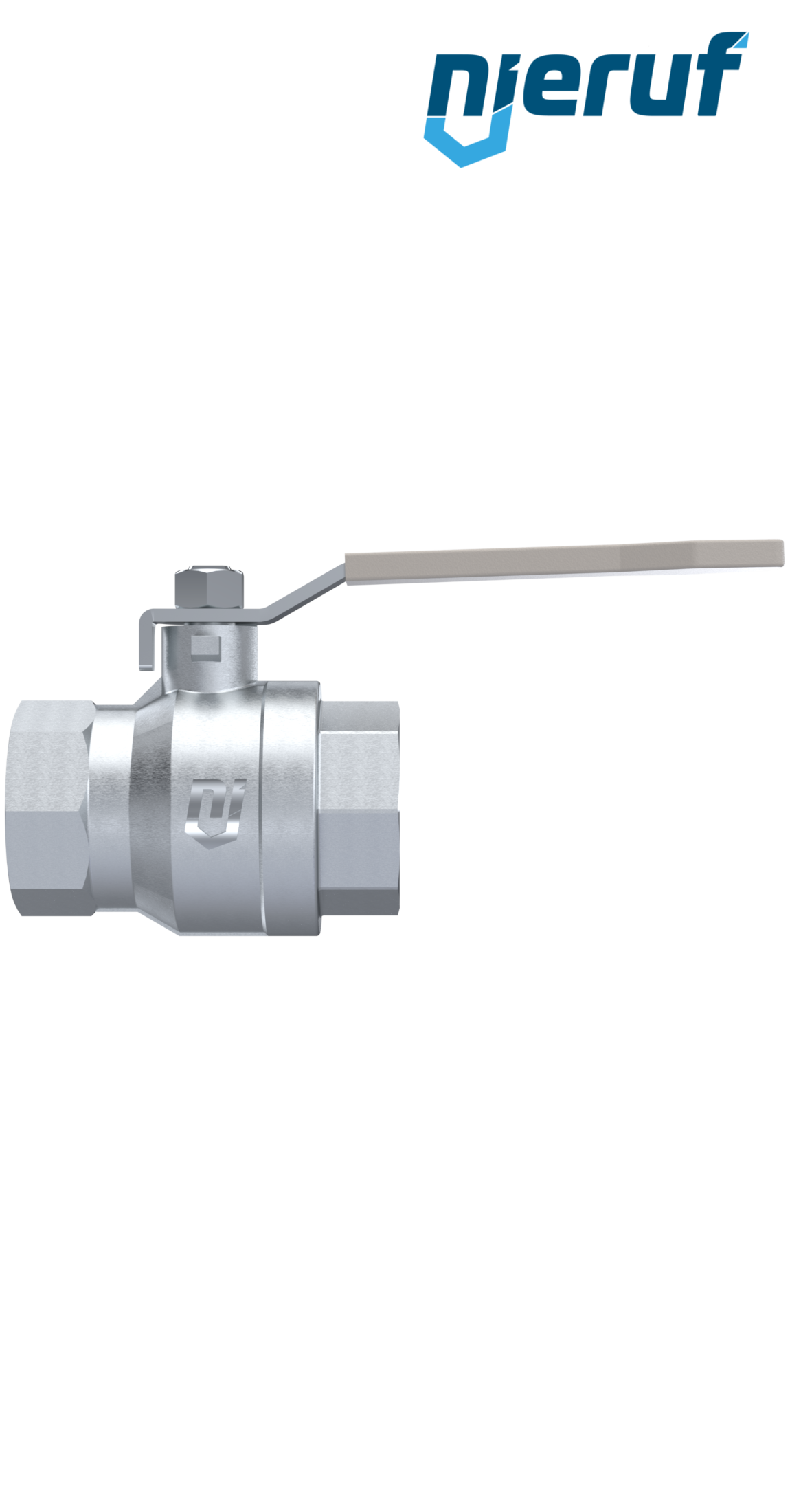

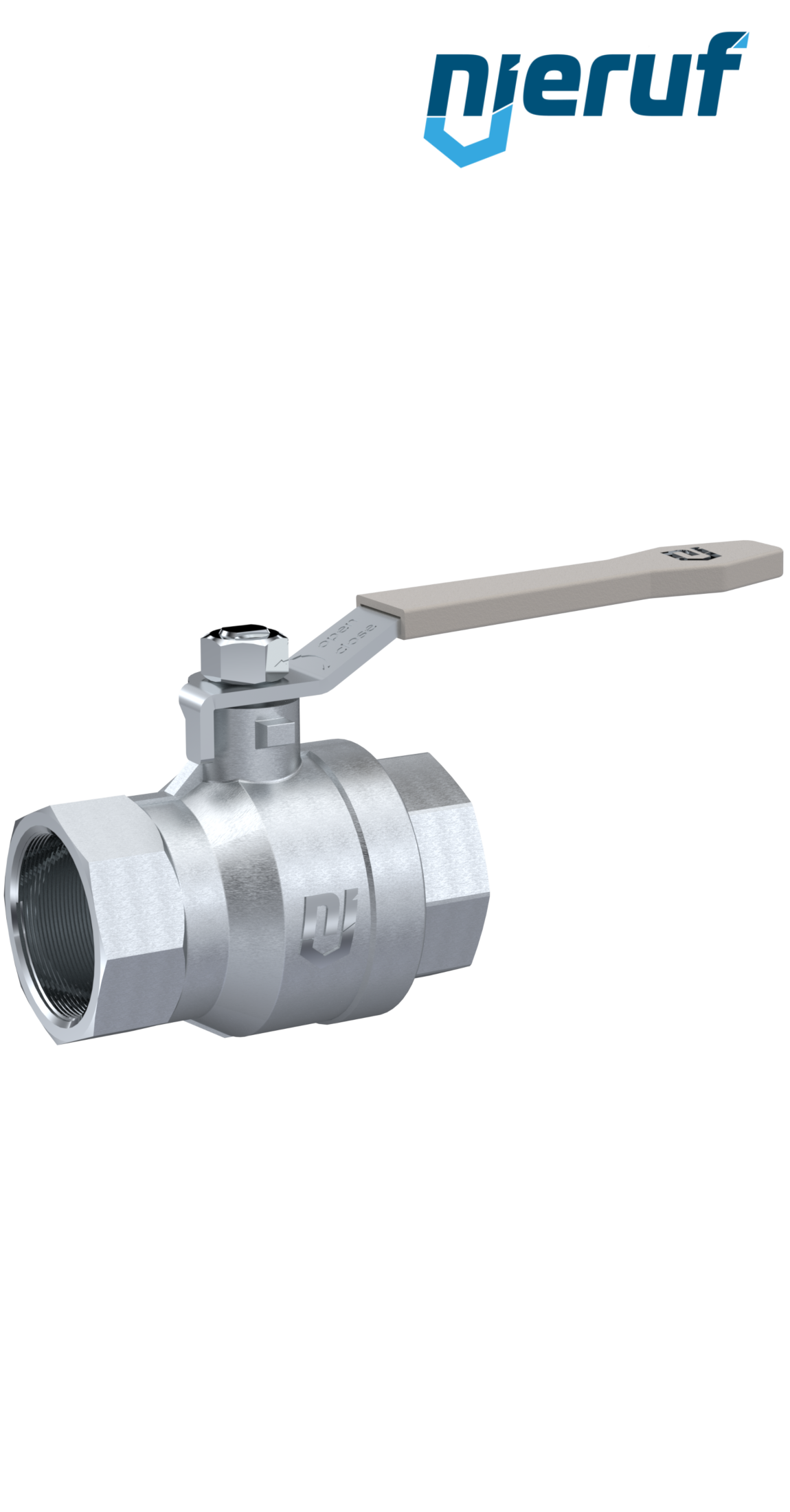

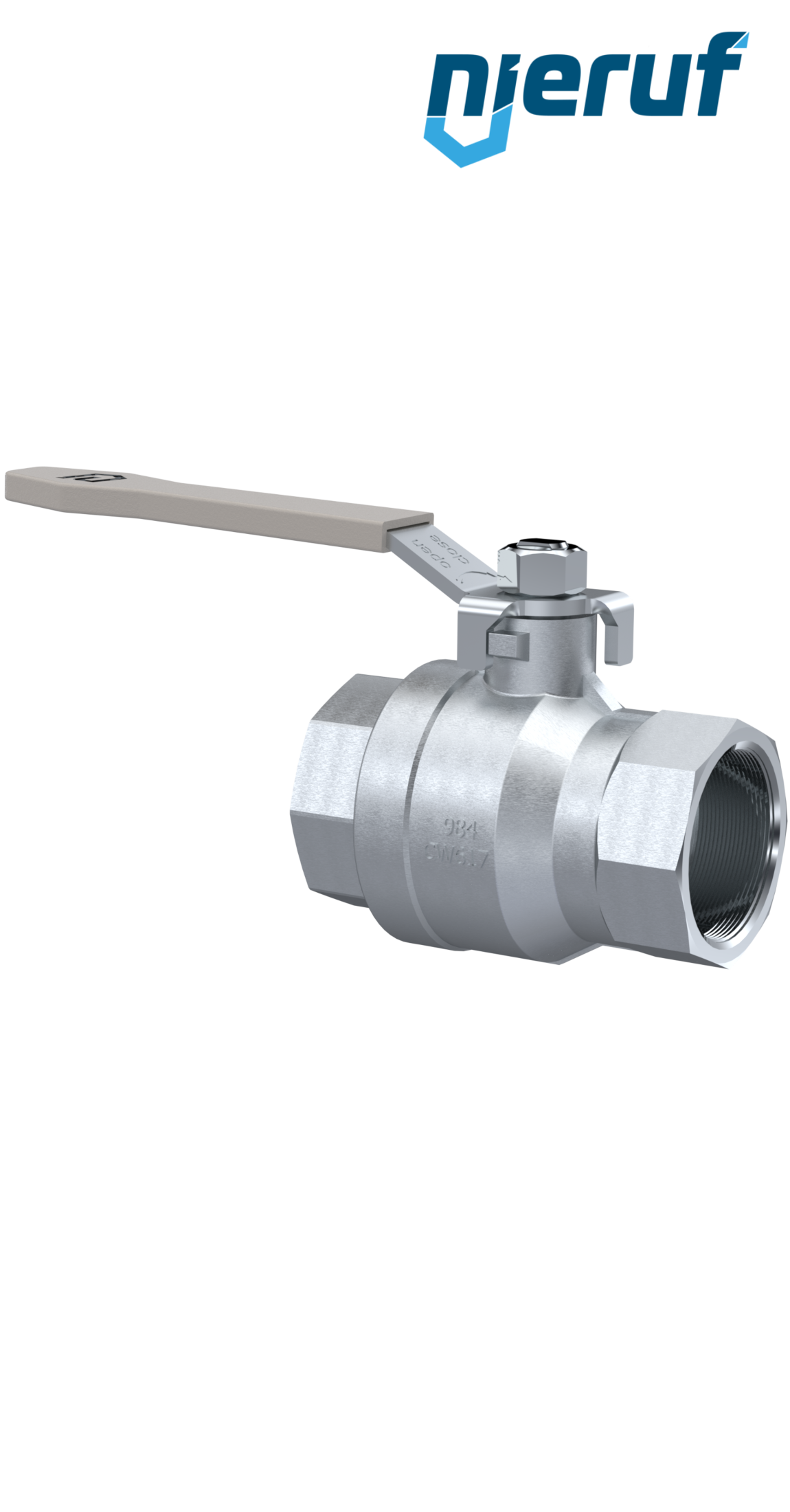

ball valve made of brass DN40 - 1 1/2" inch GK02 female thread

GK02010007
quantity (pcs.):
32.60€ * 37.82€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
ball valve made of brass DN40 - 1 1/2" inch GK02 female thread
ball valve made of brass DN40 - 1 1/2" inch full port design seal made of 2xO-ring FKM for liquid and gaseous media
diameter: DN40 - 1 1/2" inch
connection: female thread
Seal steam: 2xO-ring FKM
media: liquid and gaseous media
temperature: -20°C up to +170°C - depending on working pressure and media
max. pressure: PN40
design: full port design
body material: CW617N chrome plated
ball material: CW617N chrome plated
ball seal: PTFE
length: 115,5mm
actuator: lever handle made of steel
installation position: any position
product description: This high quality brass ball valve is suitable for drinking water and is authorized for DVGW-G and DVGW-W
ball valve made of brass DN40 - 1 1/2" inch GK02 female thread

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

ball valve made of brass DN40 - 1 1/2" inch GK02 female thread
