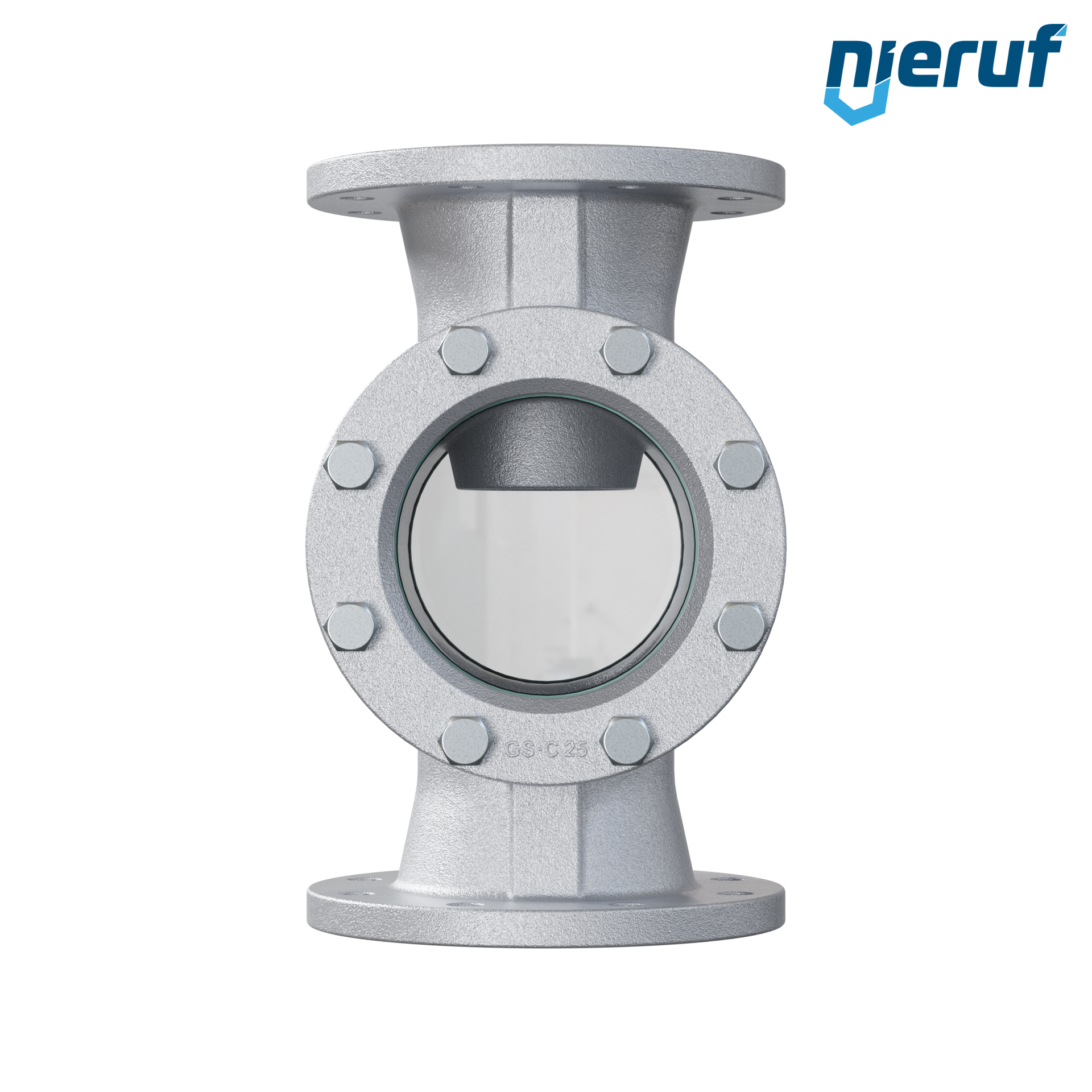

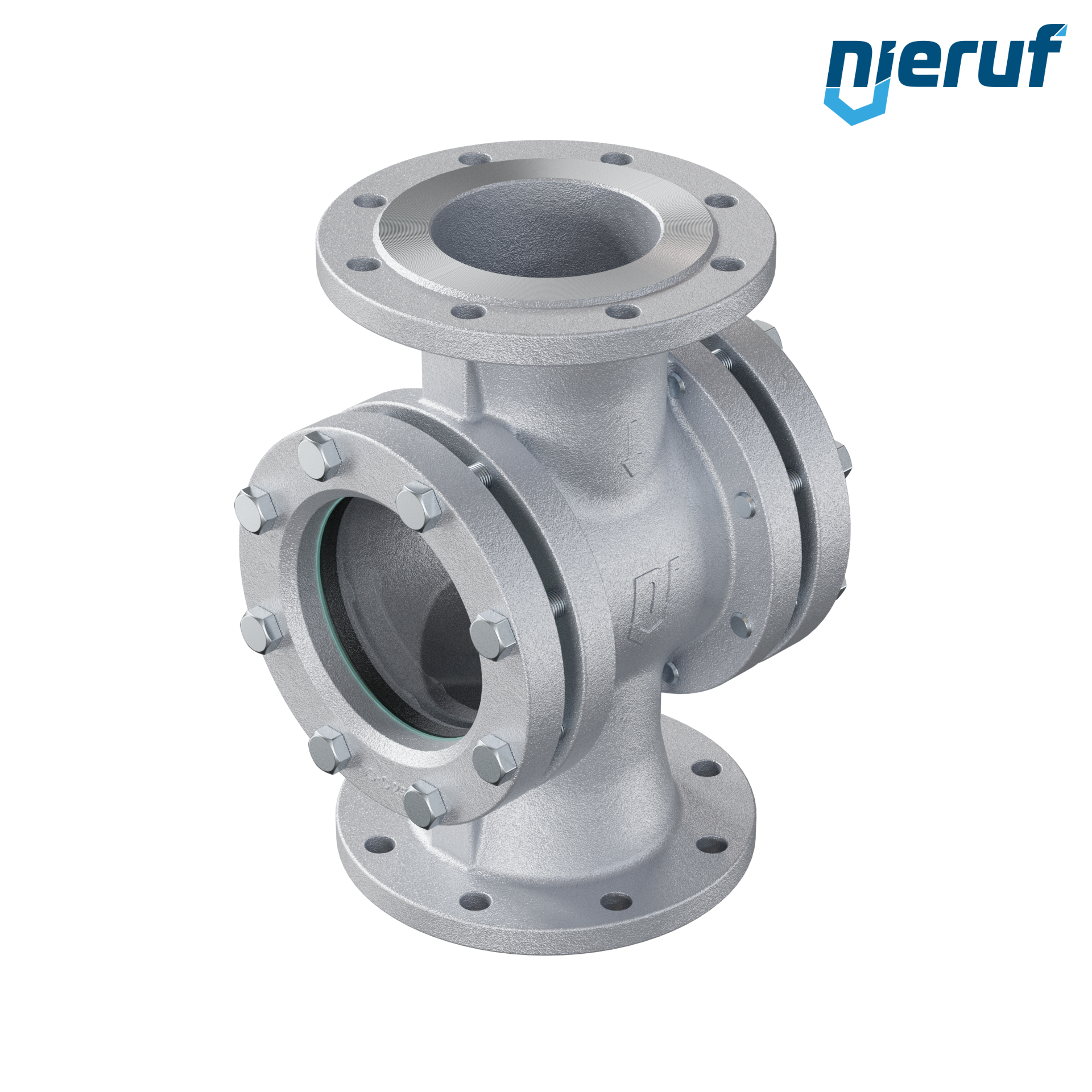

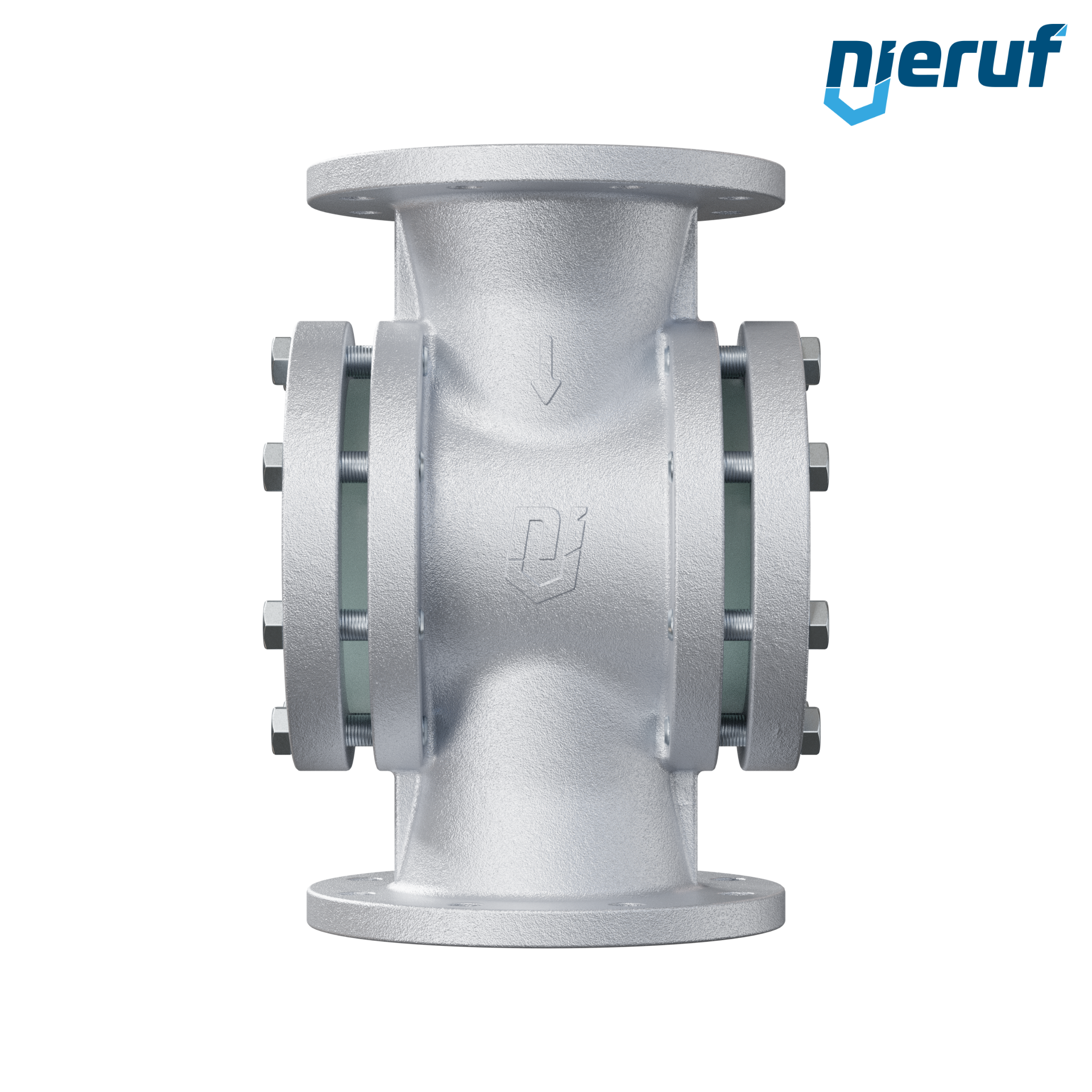

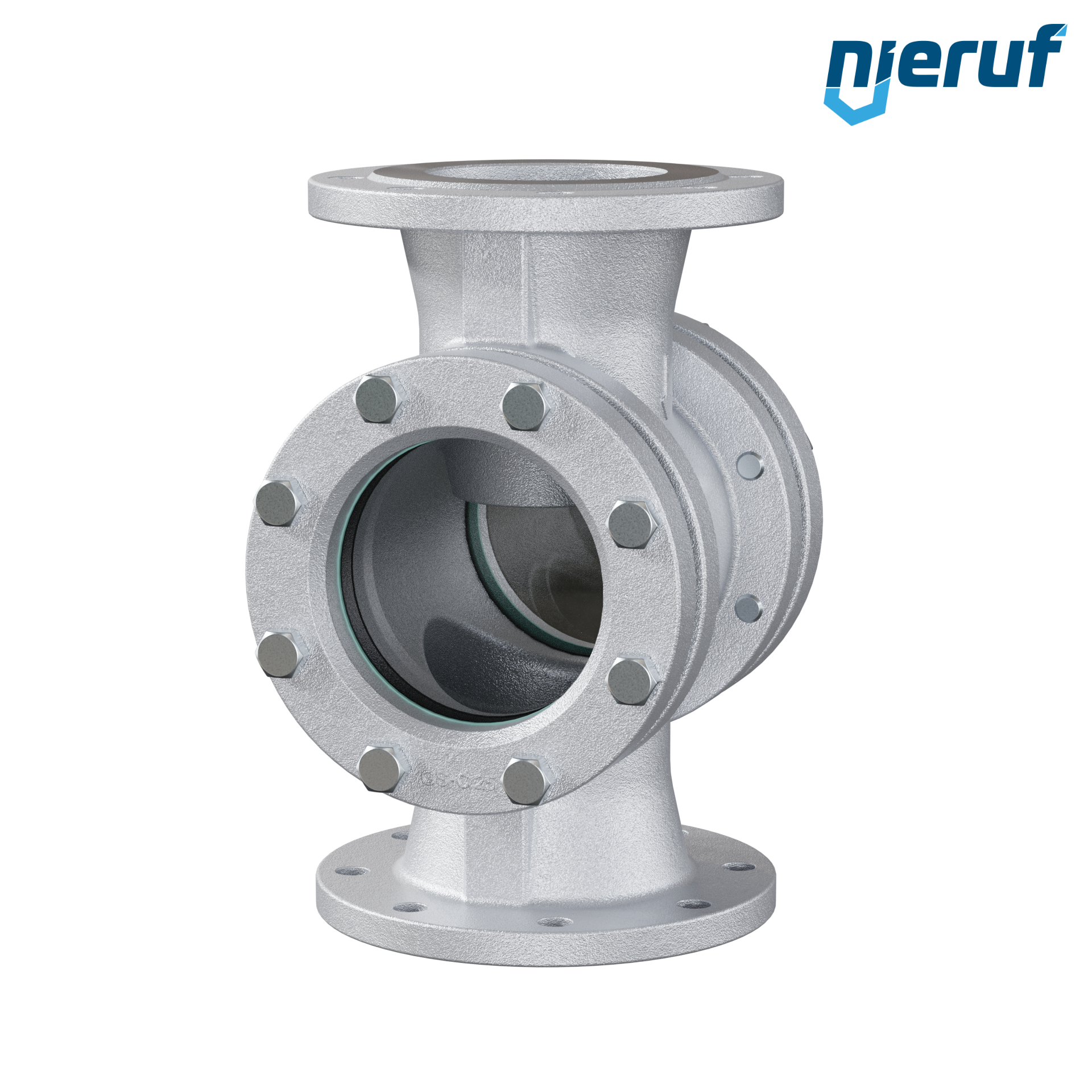

flange sight flow indicator DN150 - 6" Inch GS - C25 soda lime glass

FS02010013
Preview: swing check valve DN150 ZR02 stainless steel CF8M EPDM 4 Preview: swing check valve DN250 ZR02 stainless steel CF8M EPDM 1 Preview: swing check valve DN250 ZR02 stainless steel CF8M EPDM 2 Preview: swing check valve DN250 ZR02 stainless steel CF8M EPDM 3
swing check valve DN150 ZR02 stainless steel CF8M EPDM 4
swing check valve DN250 ZR02 stainless steel CF8M EPDM 1
swing check valve DN250 ZR02 stainless steel CF8M EPDM 2
swing check valve DN250 ZR02 stainless steel CF8M EPDM 3

quantity (pcs.):
1,366.80€ * 1,626.49€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

Downloads:
datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Description Announcement Downloads
Description
more
Close menu
flange sight flow indicator DN150 - 6" Inch GS - C25 soda lime glass
flange sight flow indicator DN150 Typ FS02 GS - C25 soda lime glass graphit max 10 bar
design: straightway form
diameter: DN150 - 6" Inch
connection: flange PN16
body material: GS - C25
cover material: GS - C25
glass: soda lime glass
seal: graphit
media: liquid and gaseous media
temperature: min -10°C up to max + 150°C
max. working pressure: max 10 bar
requirements: DIN 3237
installation position: any position
