FL01020113

Flange DN150 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€65.20*

€77.59 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

VS01010113

joint set flange/flange DN150 - 6" Inch for flange PN10/16/25 steel

€20.80*

€24.75 VAT included.


FD01000113

flange seal DN150 PN10/16 169x218x2 Klingersil C 4400

€7.10*

€8.45 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: FL01020113

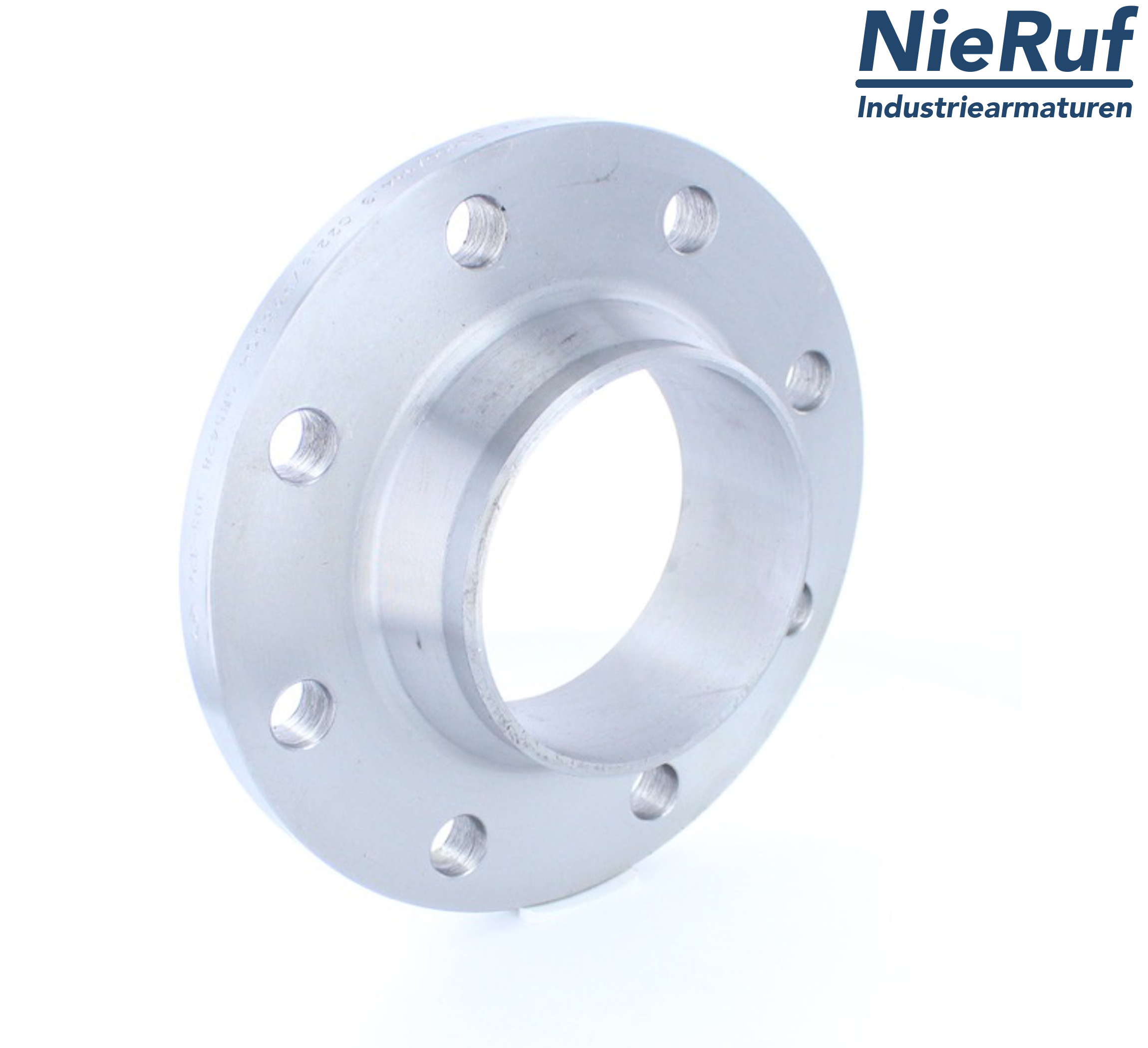

Flange DN150 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

Flange made of steel C22.8 / P250GH bare DN150 flange according DIN PN10/16 EN1092-1 Typ 11 B1

product: Flange
type: FL01
manufacturer: NieRuf
diameter: DN150
connection: PN10/16
material: steel
material nr.: C22.8 / P250GH bare
norm: EN1092-1
norm-type: 11
surface: B1
Design: Welding neck flange
Ø A: 168,3
D: 285
C2: 22
K: 240
H2: 55
N1: 184
S: 4,5
R1: 10
d1: 212
f1: 3
screw: M20
Qty. Screws: 8
L: 22

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Flange DN150 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

Article no. : FL01020113
product: Flange
type: FL01
manufacturer: NieRuf
diameter: DN150
connection: PN10/16
material: steel
material nr.: C22.8 / P250GH bare
norm: EN1092-1
norm-type: 11
surface: B1
Design: Welding neck flange
Ø A: 168,3
D: 285
C2: 22
K: 240
H2: 55
N1: 184
S: 4,5
R1: 10
d1: 212
f1: 3
screw: M20
Qty. Screws: 8
L: 22
