SF04000111

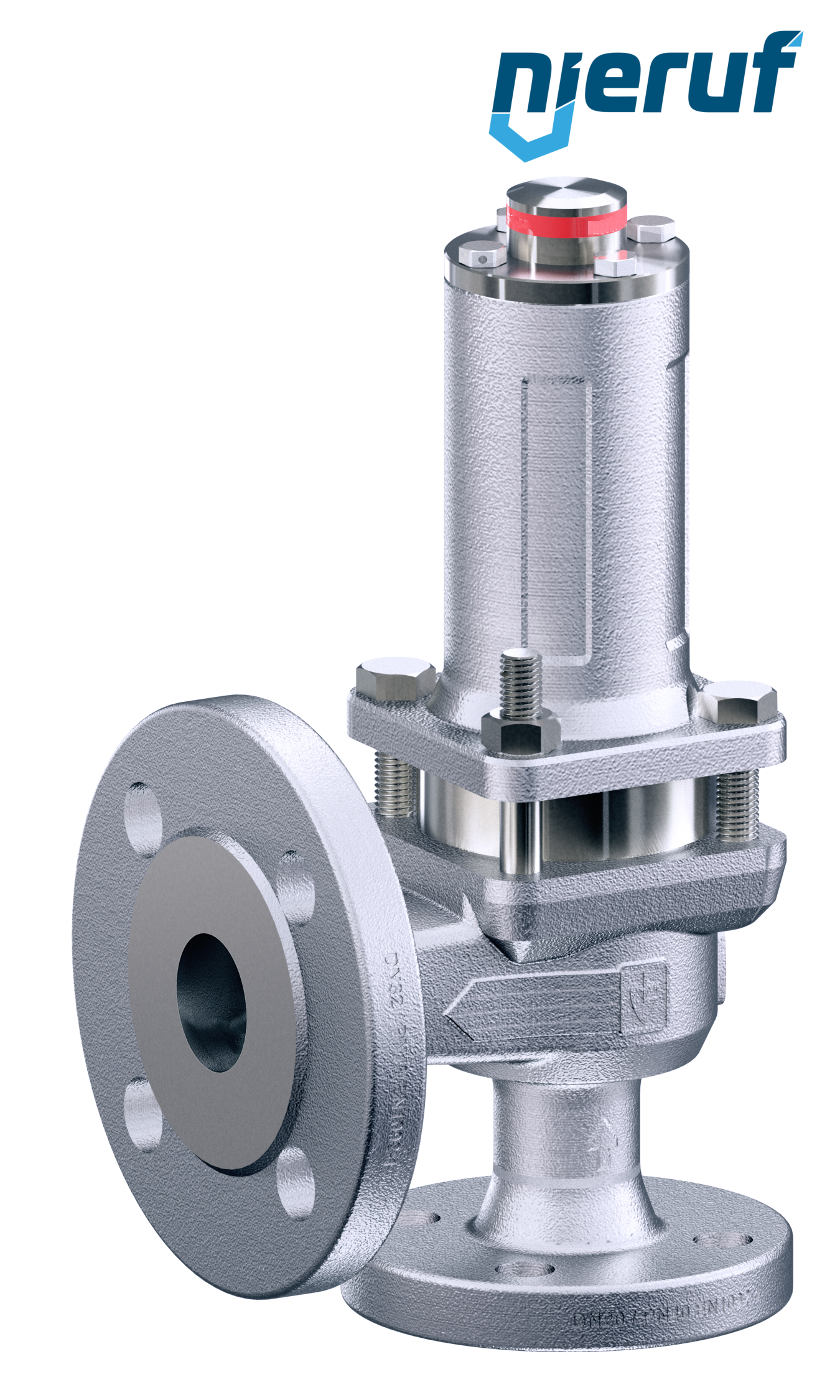

flange-safety valve DN100/DN150 SF04, stainless steel EPDM, without lifting device
- Lead time
- 3 - 5 working days
Equipment
flange seal DN150 PN10/16 169x218x2 Klingersil C 4400
€9.28 VAT included.
joint set flange/flange DN150 - 6" Inch for flange PN10/16/25 stainless steel
€25.70 VAT included.
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
€4.88 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
€16.18 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
flange-safety valve DN100/DN150 SF04, stainless steel EPDM, without lifting device
flange-safety valve DN100/DN150 SF04 for liquid and gaseous media made of stainless steel seal EPDM set pressure 0,2 - 20,0 bar without lifting device
| product | flange-safety valve |
|---|---|
| type | SF04 |
| manufacturer | NieRuf |
| diameter | DN100/DN150 |
| d0 | 90,0 mm |
| connection | flange acc. to DIN EN 1092-1 inlet PN40 / outlet PN16 |
| seal | EPDM |
| media | liquid and gaseous media |
| temperature | -40°C up to +170°C |
| set pressure | 0,2 - 20,0 bar |
| design | angle-type |
| material | stainless steel 1.4408 / CF8M |
| lifting | without lifting device |
| type test approval | TUV-SV-2094-D/G/F |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | Full-lift safety valve as D/G valve | Normal-lift safety valve as F valve |
| product feature 2 | gastight cap, the environment is protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN100/DN150 SF04, stainless steel EPDM, without lifting device
Article no.
: SF04000111
product:
flange-safety valve
type:
SF04
manufacturer:
NieRuf
diameter:
DN100/DN150
d0:
90,0 mm
connection:
flange acc. to DIN EN 1092-1 inlet PN40 / outlet PN16
seal:
EPDM
media:
liquid and gaseous media
temperature:
-40°C up to +170°C
set pressure:
0,2 - 20,0 bar
design:
angle-type
material:
stainless steel 1.4408 / CF8M
lifting:
without lifting device
type test approval:
TUV-SV-2094-D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
Full-lift safety valve as D/G valve | Normal-lift safety valve as F valve
product feature 2:
gastight cap, the environment is protected from being affected by the medium.
Equipment
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
Lead time: in stock
flange seal DN150 PN10/16 169x218x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
Lead time: in stock
joint set flange/flange DN150 - 6" Inch for flange PN10/16/25 stainless steel
Lead time: 3 - 5 working days
reducing bush (welded) 139,7 x 2,9 to 60,3 x 2,0 stainless steel 1.4571
Lead time: in stock
