FL01010113

Flange DN150 PN10/16 EN1092-1 11 B1 1.4571

€142.10*

€169.10 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

VS01000113

joint set flange/flange DN150 - 6" Inch for flange PN10/16/25 stainless steel

€17.60*

€20.94 VAT included.


FD01000113

flange seal DN150 PN10/16 169x218x2 Klingersil C 4400

€7.10*

€8.45 VAT included.


Our employee <strong>Daniel Beck</strong><br />will be happy to help you

Questions about the article?

Our employee Daniel Beck
will be happy to help you

Tel: +49714396669-04

E-Mail: beck@nieruf.com

Certified

Certified

Product number: FL01010113

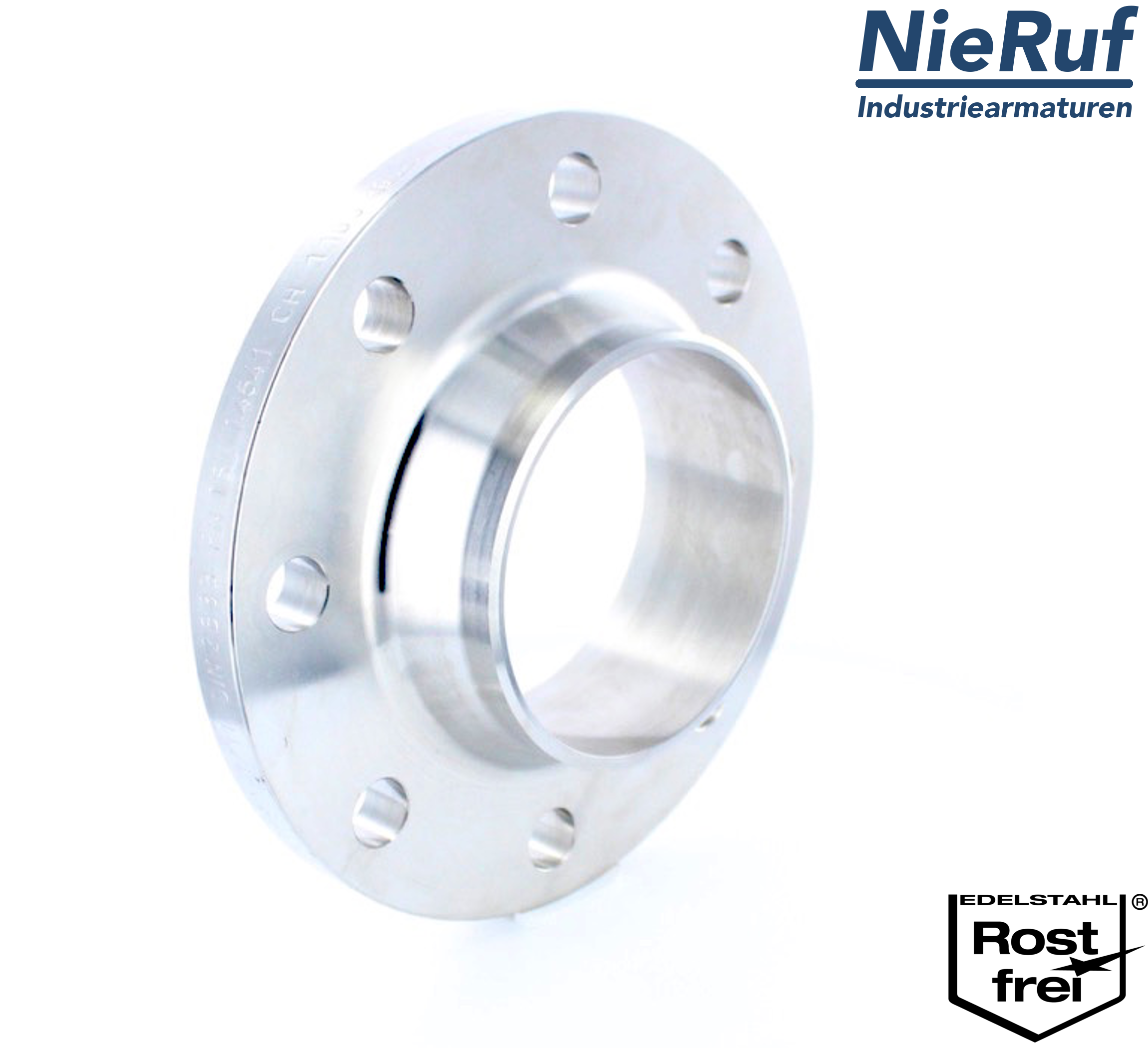

Flange DN150 PN10/16 EN1092-1 11 B1 1.4571

high quality Flange DN150 flange acc. DIN PN10/16 EN1092-1 Typ 11 B1 made of stainless steel 1.4571

product: Flange
type: FL01
manufacturer: NieRuf
diameter: DN150
connection: PN10/16
material: stainless steel
material nr.: 1.4571
norm: EN1092-1
norm-type: 11
surface: B1

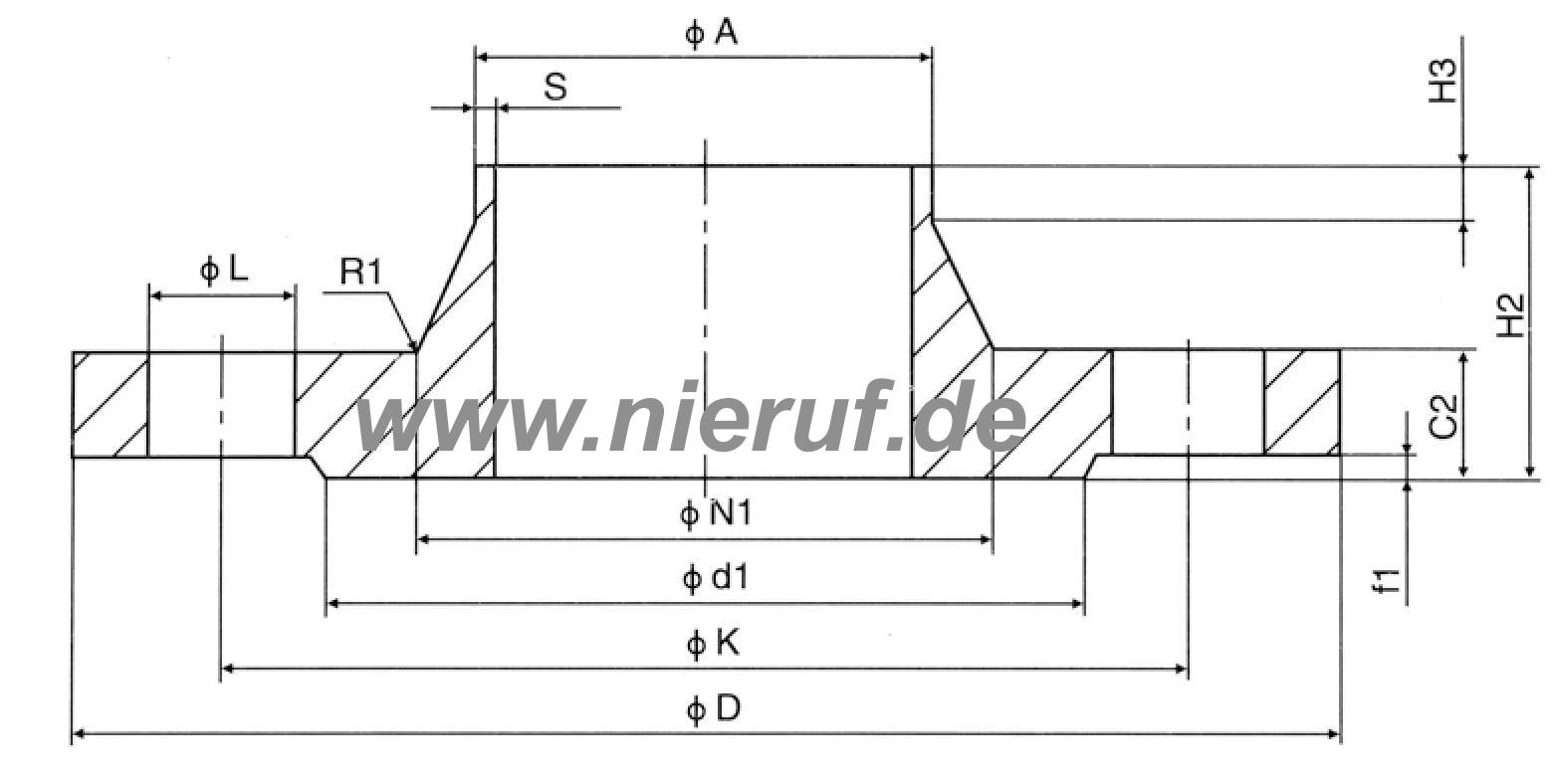

Design: Welding neck flange
Ø A: 168,3
D: 285
C2: 22
K: 240
H2: 55
N1: 184
S: 4,5
R1: 10
d1: 212
f1: 3
screw: M20
Qty. Screws: 8
L: 22

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Flange DN150 PN10/16 EN1092-1 11 B1 1.4571

Article no. : FL01010113
product: Flange
type: FL01
manufacturer: NieRuf
diameter: DN150
connection: PN10/16
material: stainless steel
material nr.: 1.4571
norm: EN1092-1
norm-type: 11
surface: B1
Design: Welding neck flange
Ø A: 168,3
D: 285
C2: 22
K: 240
H2: 55
N1: 184
S: 4,5
R1: 10
d1: 212
f1: 3
screw: M20
Qty. Screws: 8
L: 22
