RV02100214

check valve DN 200 cast steel 1.0619 FKM PN 10 to 16 (+ASME B16.5 / ANSI 150)

€956.30*

€1,138.00 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

FD01000414

flange seal DN200 PN40 220x290x2 Klingersil C 4400

€26.20*

€31.18 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

Certified

Downloads

3D model

Datasheet

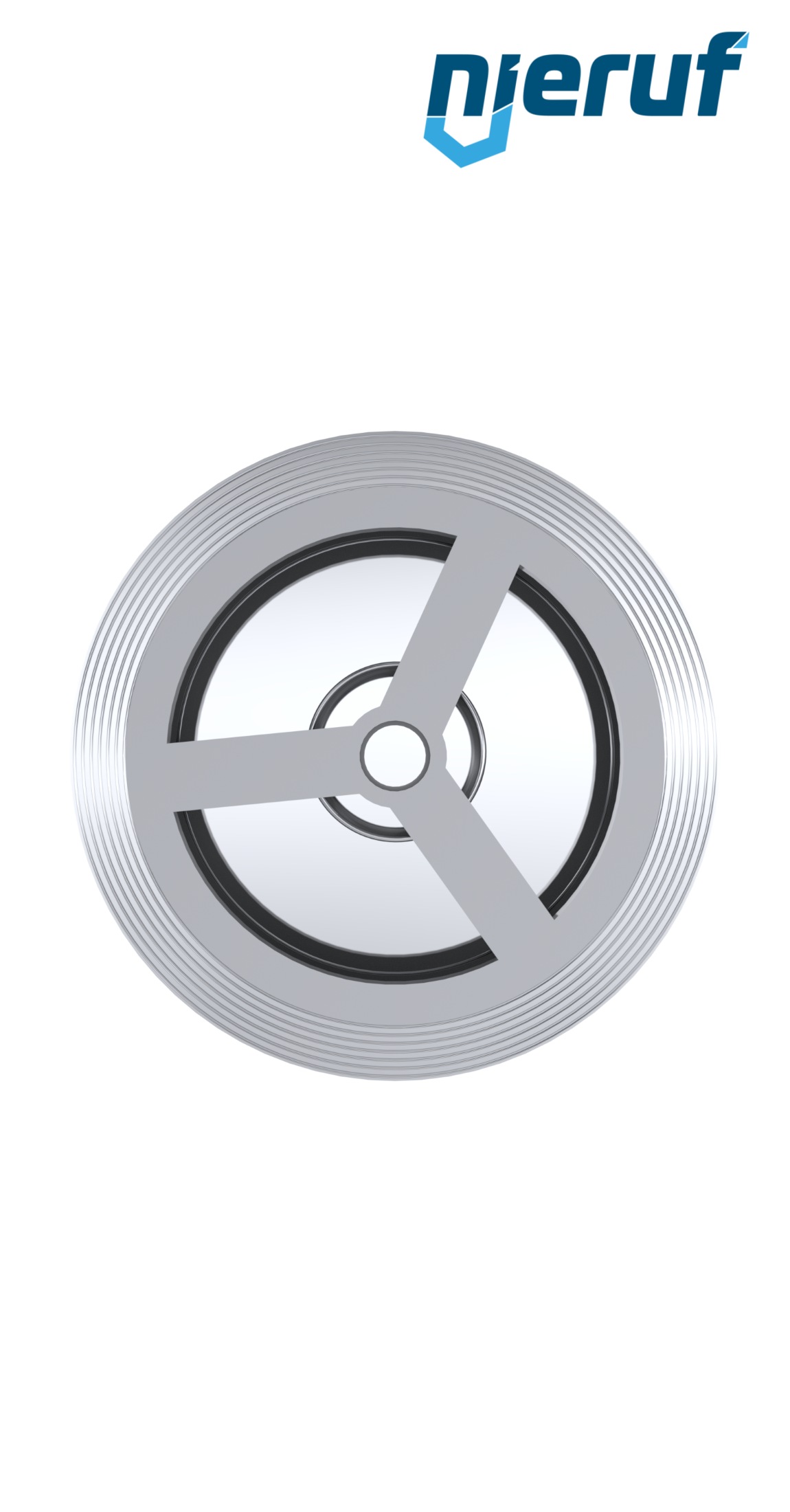

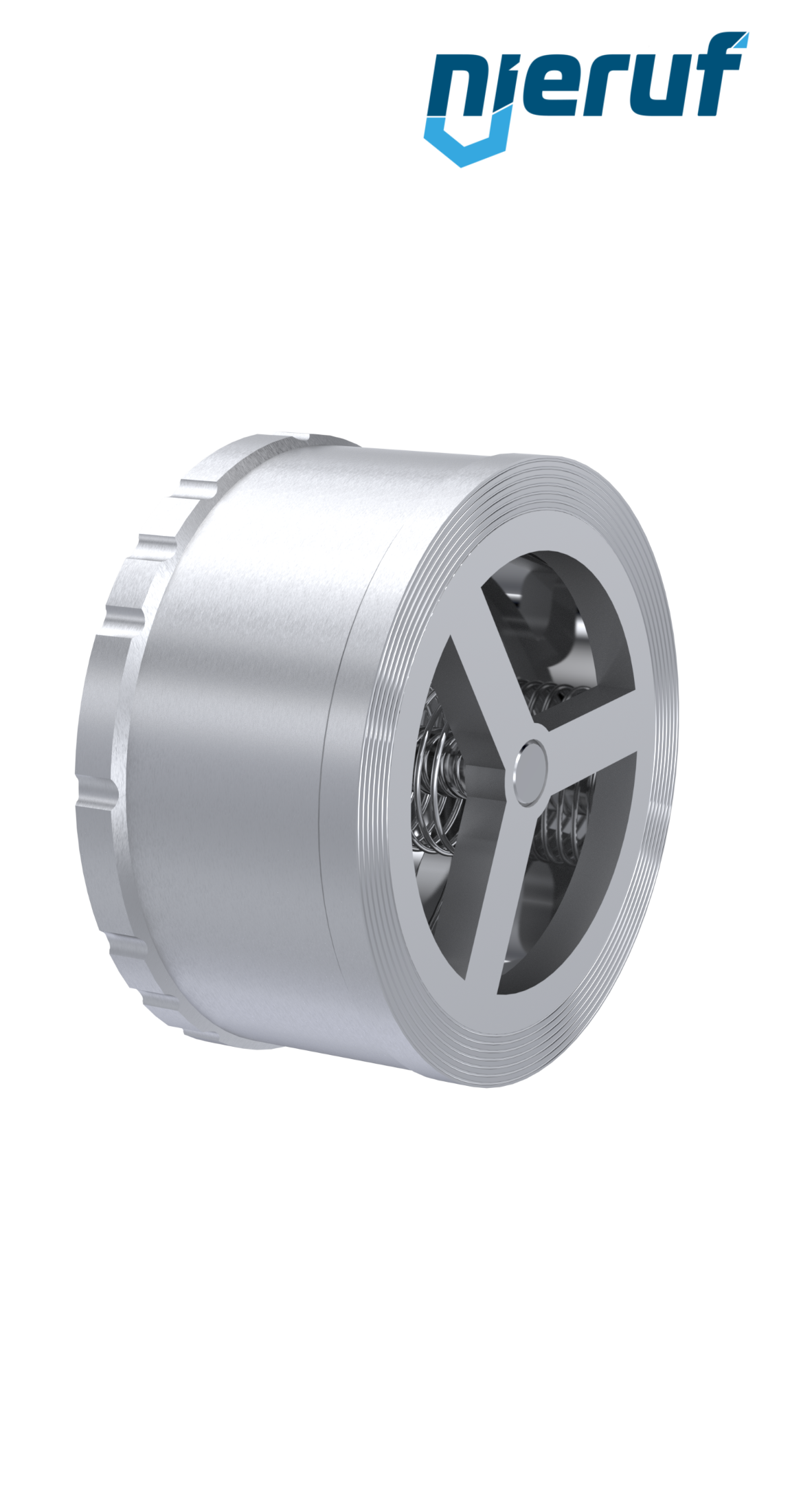

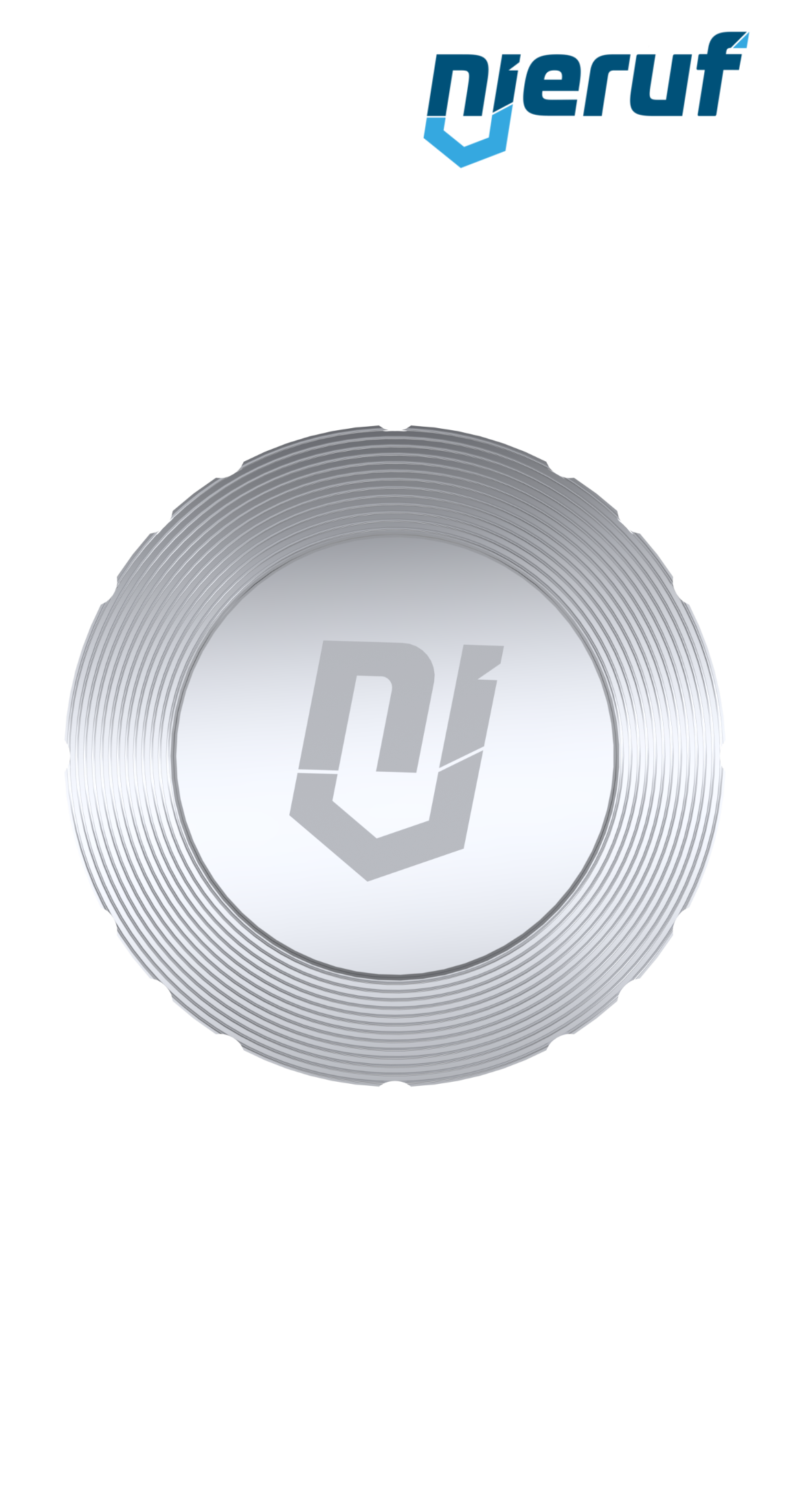

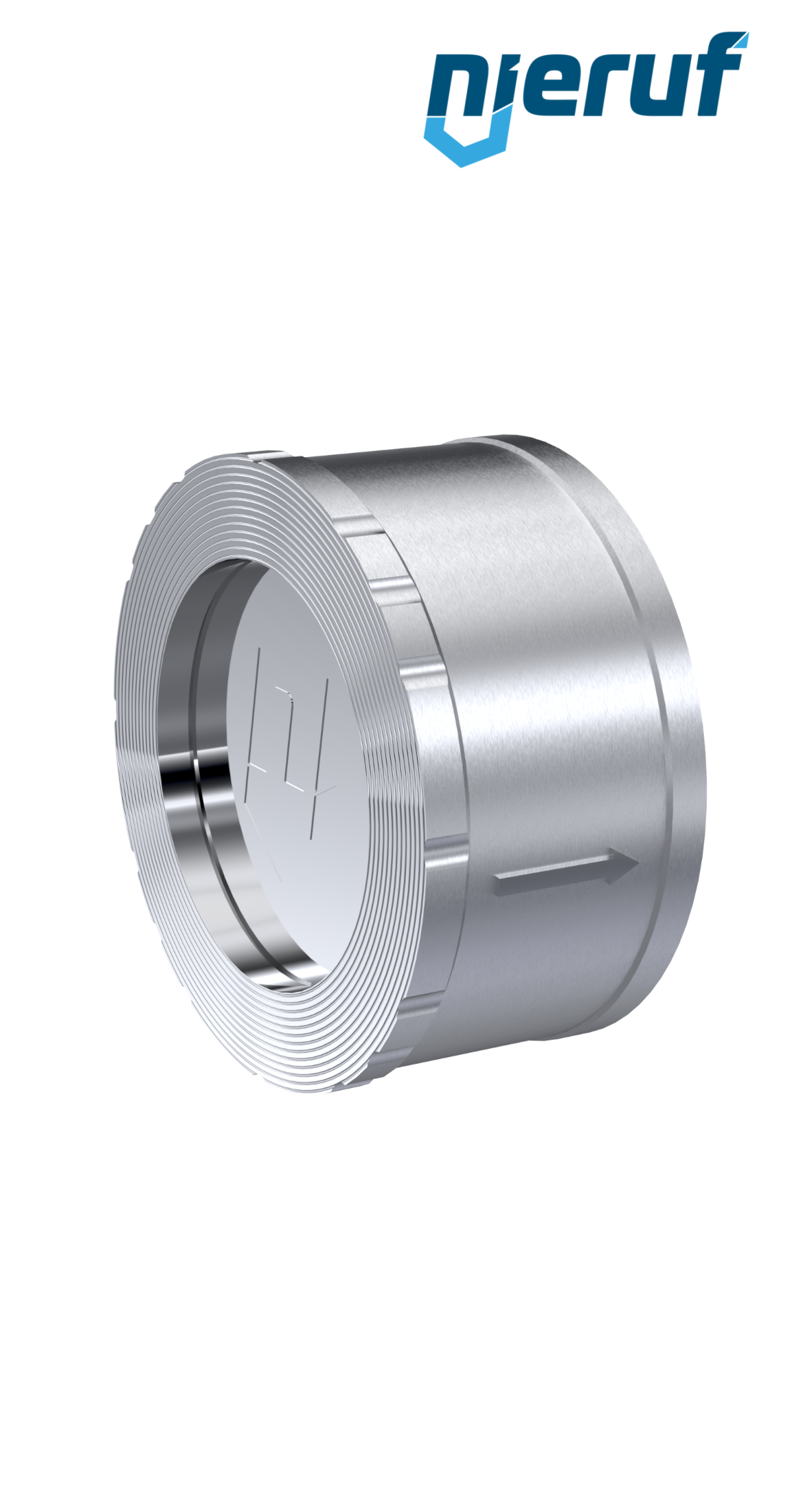

check valve DN 200 cast steel 1.0619 FKM PN 10 to 16 (+ASME B16.5 / ANSI 150)

disco check valve DN 200 made of cast steel 1.0619 seal FKM for liquid and gaseous media PN 10 to 16 (+ASME B16.5 / ANSI 150)

product	check valve
type	RV02
manufacturer	NieRuf
design	disco check valve
diameter	DN 200
body material	cast steel 1.0619
disc material	stainless steel 1.4408 / CF8M
seal	FKM
tightness acc. to DIN EN 12266	leak rate A
temperature	-10°C up to +230°C
flange	PN 10 to 16 (+ASME B16.5 / ANSI 150)
pressure range	0 - 50 bar
Kv-value in m3/h	553,00
spring material	stainless steel 1.4571 / AISI 316Ti
media	liquid and gaseous media
installation position	any position
product feature	face to face according DIN EN 558-1 row 49

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

check valve DN 200 cast steel 1.0619 FKM PN 10 to 16 (+ASME B16.5 / ANSI 150)

Article no. : RV02100214
product: check valve
type: RV02
manufacturer: NieRuf
design: disco check valve
diameter: DN 200
body material: cast steel 1.0619
disc material: stainless steel 1.4408 / CF8M
seal: FKM
tightness acc. to DIN EN 12266: leak rate A
temperature: -10°C up to +230°C
flange: PN 10 to 16 (+ASME B16.5 / ANSI 150)
pressure range: 0 - 50 bar
Kv-value in m3/h: 553,00
spring material: stainless steel 1.4571 / AISI 316Ti
media: liquid and gaseous media
installation position: any position
product feature: face to face according DIN EN 558-1 row 49
