FL01020114

Flange DN200 PN10 EN1092-1 11 B1 C22.8 / P250GH bare

€85.20*

€101.39 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

VS01010114

joint set flange/flange DN200 - 8" Inch for flange PN10 steel

€23.20*

€27.61 VAT included.


FD01000114

flange seal DN200 PN10/16 220x273x2 Klingersil C 4400

€21.30*

€25.35 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: FL01020114

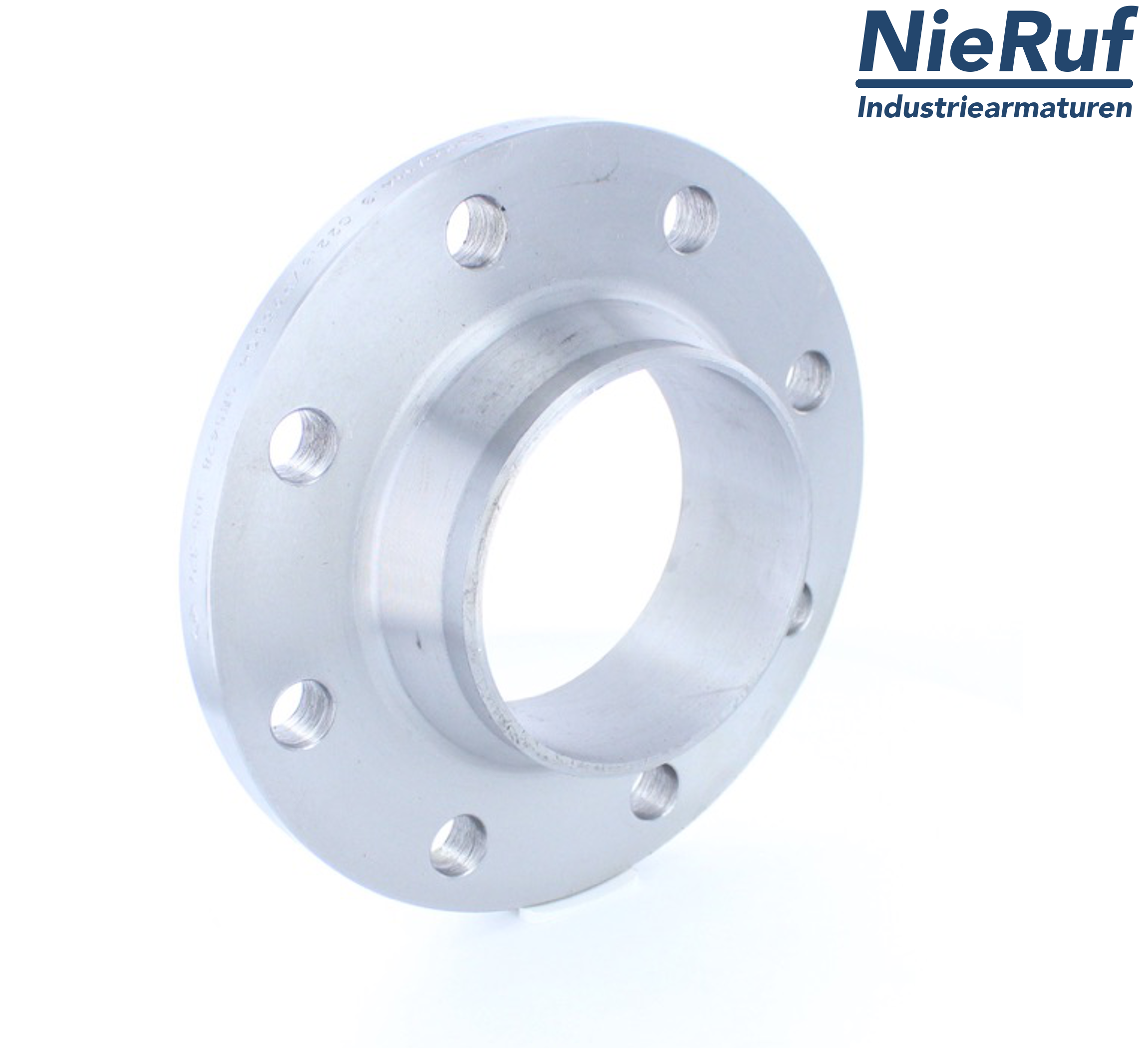

Flange DN200 PN10 EN1092-1 11 B1 C22.8 / P250GH bare

Flange made of steel C22.8 / P250GH bare DN200 flange according DIN PN10 EN1092-1 Typ 11 B1

product: Flange
type: FL01
manufacturer: NieRuf
diameter: DN200
connection: PN10
material: steel
material nr.: C22.8 / P250GH bare
norm: EN1092-1
norm-type: 11
surface: B1
Design: Welding neck flange
Ø A: 219,1
D: 340
C2: 24
K: 295
H2: 62
N1: 234
S: 6,3
R1: 10
d1: 268
f1: 3
screw: M20
Qty. Screws: 8
L: 22

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Flange DN200 PN10 EN1092-1 11 B1 C22.8 / P250GH bare

Article no. : FL01020114
product: Flange
type: FL01
manufacturer: NieRuf
diameter: DN200
connection: PN10
material: steel
material nr.: C22.8 / P250GH bare
norm: EN1092-1
norm-type: 11
surface: B1
Design: Welding neck flange
Ø A: 219,1
D: 340
C2: 24
K: 295
H2: 62
N1: 234
S: 6,3
R1: 10
d1: 268
f1: 3
screw: M20
Qty. Screws: 8
L: 22
