flange seal DN200 PN40 220x290x2 Klingersil C 4400

quantity (pcs.):
15.80€ * 18.80€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Monday, 19. April
Guaranteed delivery until Tuesday, 20. April, 12 Uhr:
order within 1 Tag & 16 hours & 38 minutes via express shipping
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
technical details
flange seal DN200 PN40 220x290x2 Klingersil C 4400
flange seal DN200 290x220x2 PN40 made of Klingersil C 4400 acc. rule EN1514-1 IBC
diameter: DN200
connection: PN40
material: Klingersil C 4400
norm: EN1514-1
form: IBC
Design: flange seal

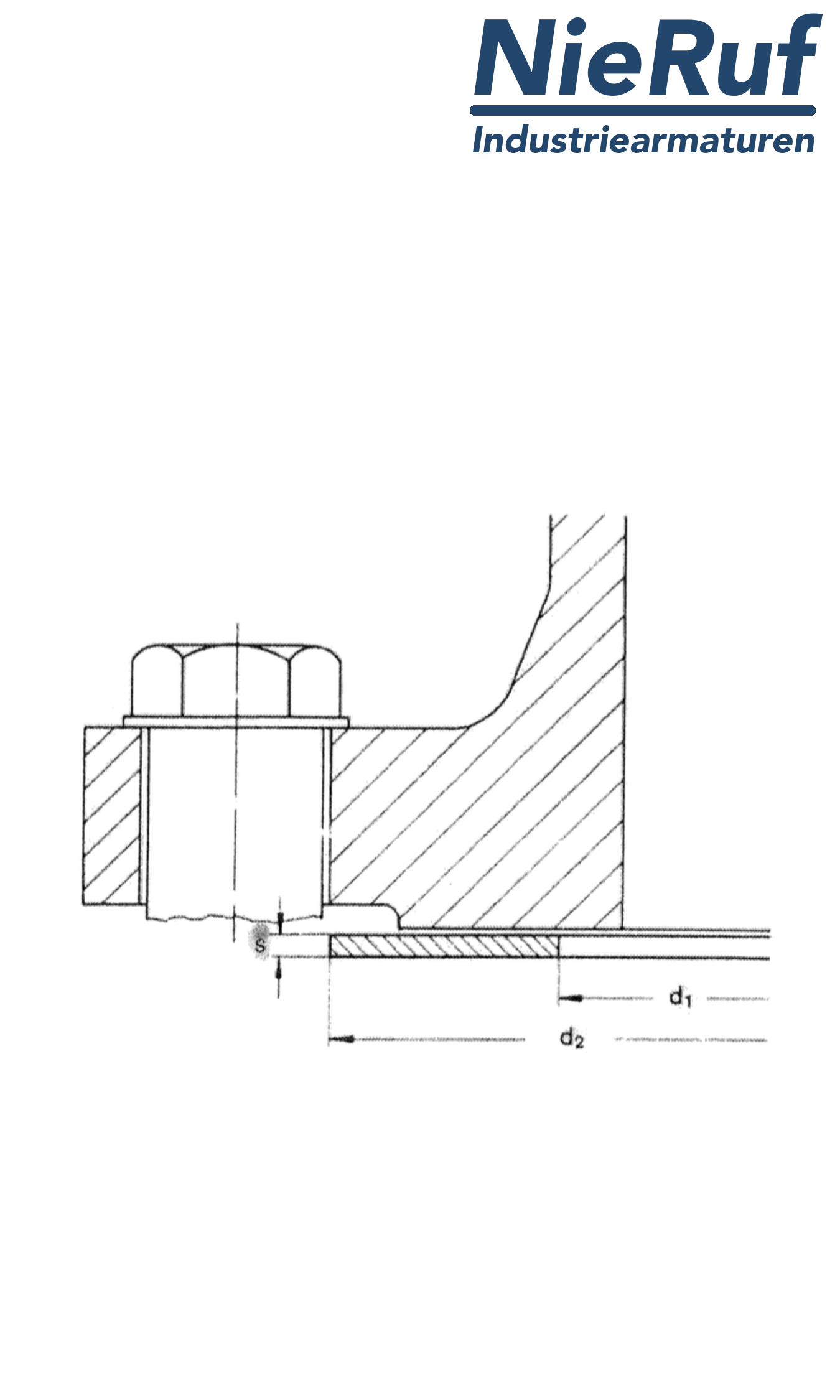

d1: 220
d2: 290
S: 2
Dimension tolerance: acc. DIN ISO 2768-1 m, dimensions up to 6 mm +/- 0,15 mm
temerature: -100°C up to +160°C, max. +400°C with 0 bar pressure
approval: DVGW, BAM, TA-Luft, ÖVGW, SVGW
suitable for: oil, gas, steam
flange seal DN200 PN40 220x290x2 Klingersil C 4400
