RV02000512
check valve DN 125 Stainless steel CF8M metall PN 10 to 40 (+ASME B16.5 / ANSI 150)
- Lead time
- 3 - 5 working days
Equipment
joint set check valve/flange DN125 - 5" Inch for flange PN25/40 stainless steel
€84.73 VAT included.
flange seal DN125 PN25/40 141x194x2 Klingersil C 4400
€9.64 VAT included.
Welding neck flange DN125 PN25/40 EN1092-1 11 B1 1.4541
€157.68 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

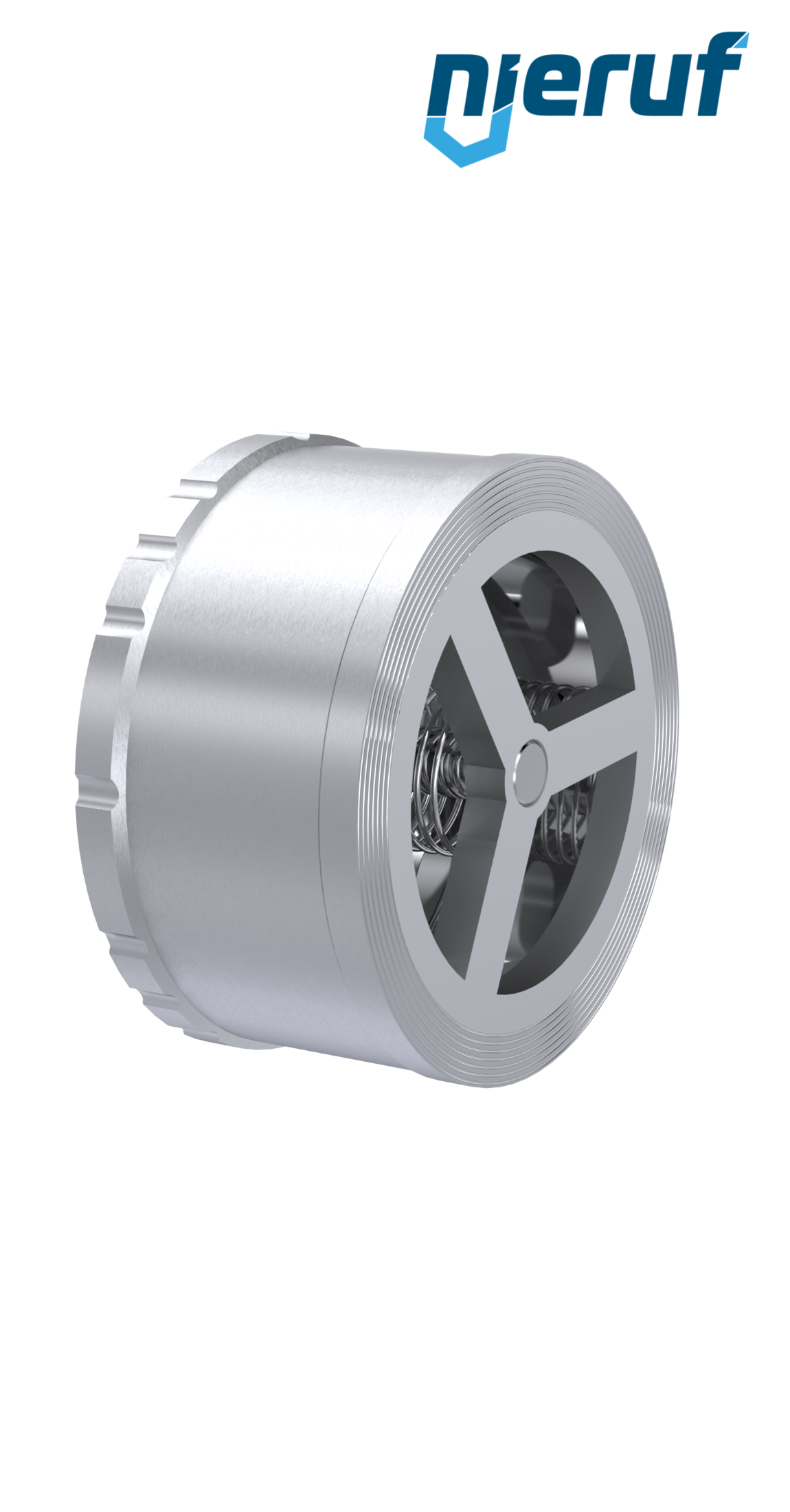

check valve DN 125 Stainless steel CF8M metall PN 10 to 40 (+ASME B16.5 / ANSI 150)
disco check valve DN 125 made of Stainless steel CF8M seal metall for liquid and gaseous media PN 10 to 40 (+ASME B16.5 / ANSI 150)
| product | check valve |
|---|---|
| type | RV02 |
| manufacturer | NieRuf |
| design | disco check valve |
| diameter | DN 125 |
| body material | stainless steel 1.4408 / CF8M |
| disc material | stainless steel 1.4408 / CF8M |
| seal | metall |
| tightness acc. to DIN EN 12266 | leak rate ≥ G |
| temperature | -196°C up to +300°C |
| flange | PN 10 to 40 (+ASME B16.5 / ANSI 150) |
| pressure range | 0 - 50 bar |
| Kv-value in m3/h | 201,00 |
| spring material | stainless steel 1.4571 / AISI 316Ti |
| media | liquid and gaseous media |
| installation position | any position |
| product feature | face to face according DIN EN 558-1 row 49 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
check valve DN 125 Stainless steel CF8M metall PN 10 to 40 (+ASME B16.5 / ANSI 150)
Article no.
: RV02000512
product:
check valve
type:
RV02
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN 125
body material:
stainless steel 1.4408 / CF8M
disc material:
stainless steel 1.4408 / CF8M
seal:
metall
tightness acc. to DIN EN 12266:
leak rate ≥ G
temperature:
-196°C up to +300°C
flange:
PN 10 to 40 (+ASME B16.5 / ANSI 150)
pressure range:
0 - 50 bar
Kv-value in m3/h:
201,00
spring material:
stainless steel 1.4571 / AISI 316Ti
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according DIN EN 558-1 row 49
Equipment
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
Lead time: in stock
flange seal DN125 PN25/40 141x194x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN125 PN10/16 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set check valve/flange DN125 - 5" Inch for flange PN25/40 stainless steel
Lead time: in stock
