FD01000212
flange seal DN125 PN25/40 141x194x2 Klingersil C 4400
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Friday, 16. October
Guaranteed delivery until Monday, 19. October, 12 o'clock
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange seal DN125 PN25/40 141x194x2 Klingersil C 4400
flange seal DN125 194x141x2 PN25/40 made of Klingersil C 4400 acc. rule EN1514-1 IBC
| product | flange seal |
|---|---|
| type | FD01 |
| manufacturer | NieRuf |
| diameter | DN125 |
| connection | PN25/40 |
| material | Klingersil C 4400 |
| norm | EN1514-1 |
| form | IBC |
| Design | flange seal |

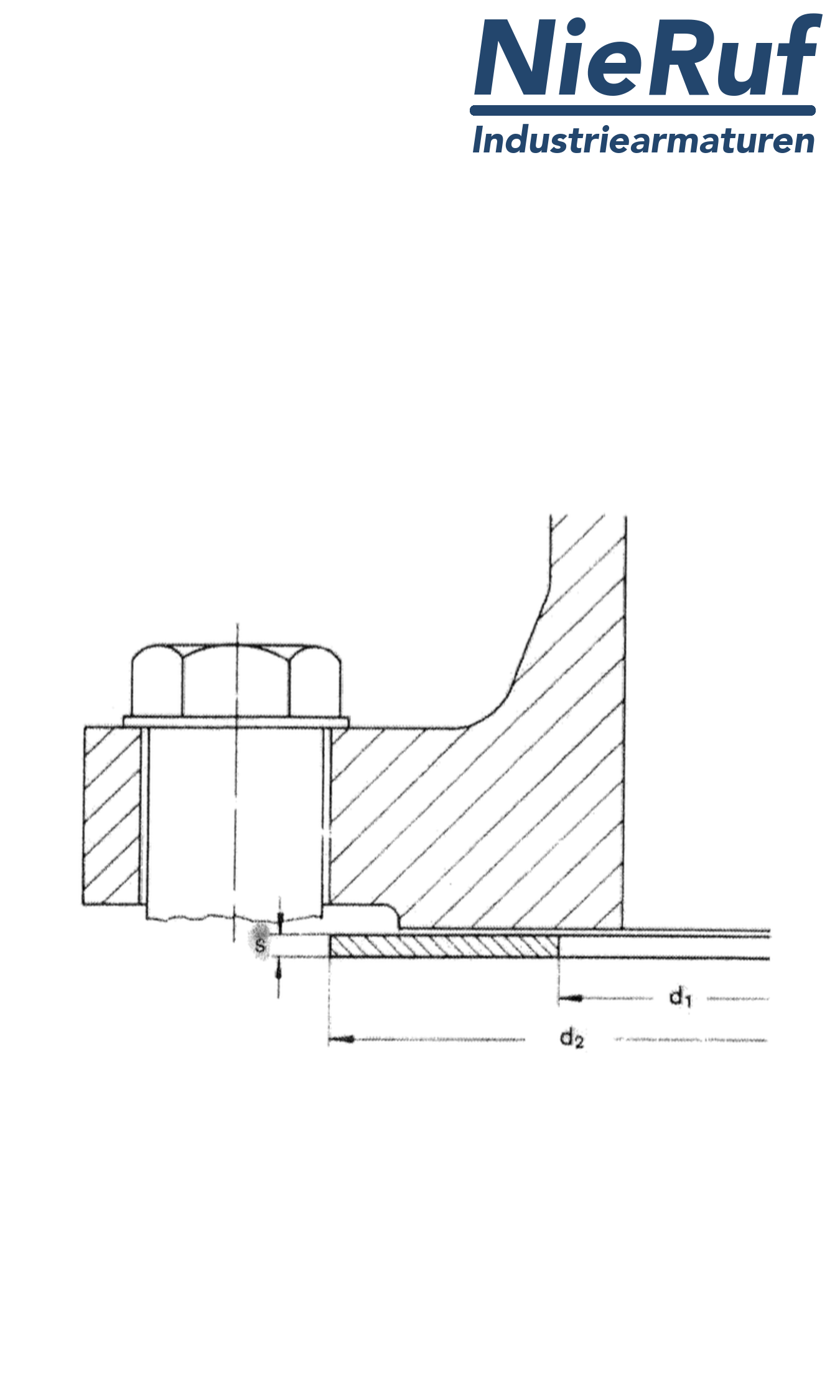

| d1 | 141 |
| d2 | 194 |
| S | 2 |
| Dimension tolerance | acc. DIN ISO 2768-1 m, dimensions up to 6 mm +/- 0,15 mm |
| temerature | -100°C up to +160°C, max. +400°C with 0 bar pressure |
| approval | DVGW, BAM, TA-Luft, ÖVGW, SVGW |
| suitable for | oil, gas, steam |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange seal DN125 PN25/40 141x194x2 Klingersil C 4400
Article no.
: FD01000212
product:
flange seal
type:
FD01
manufacturer:
NieRuf
diameter:
DN125
connection:
PN25/40
material:
Klingersil C 4400
norm:
EN1514-1
form:
IBC
Design:
flange seal
d1:
141
d2:
194
S:
2
Dimension tolerance:
acc. DIN ISO 2768-1 m, dimensions up to 6 mm +/- 0,15 mm
temerature:
-100°C up to +160°C, max. +400°C with 0 bar pressure
approval:
DVGW, BAM, TA-Luft, ÖVGW, SVGW
suitable for:
oil, gas, steam
