AK01100413

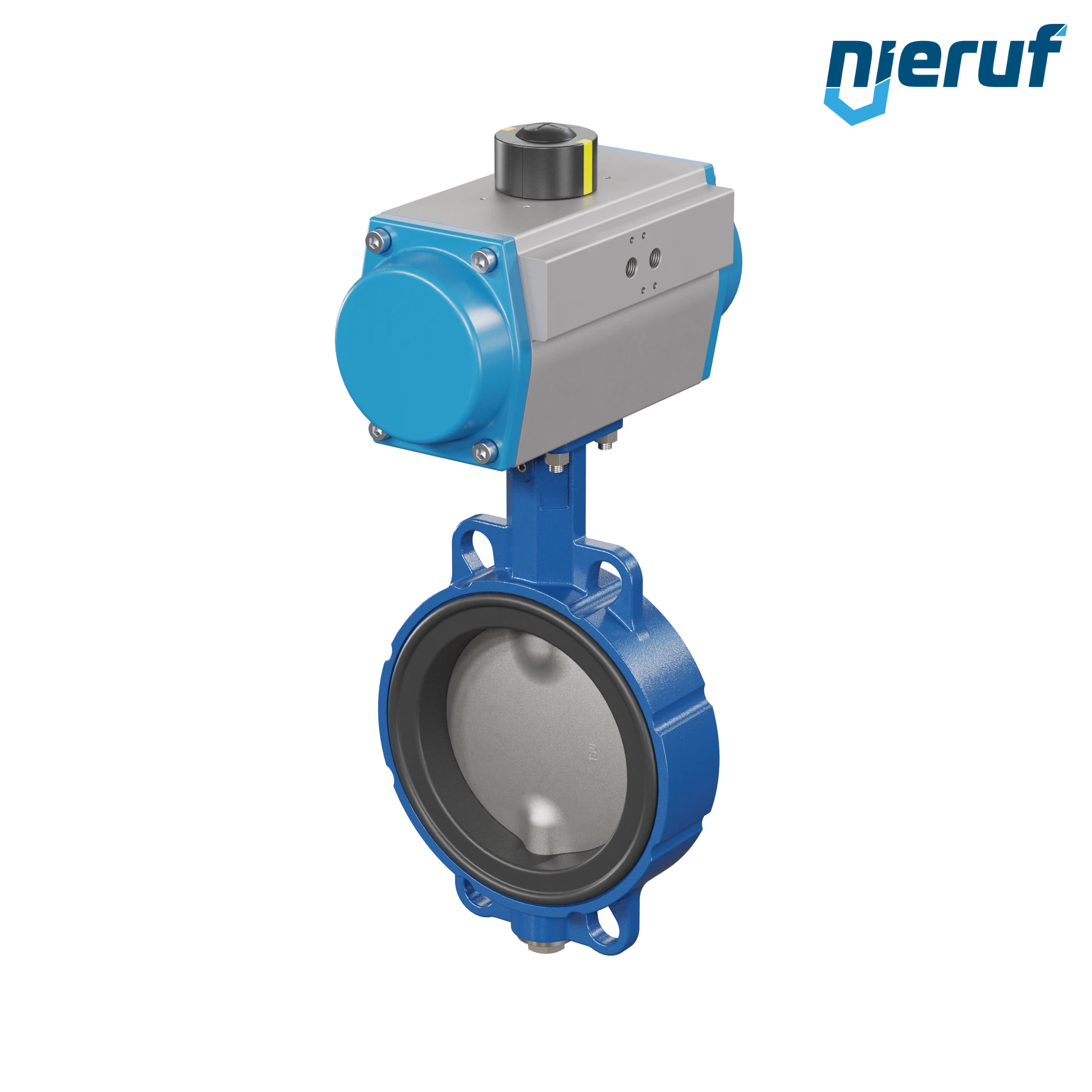

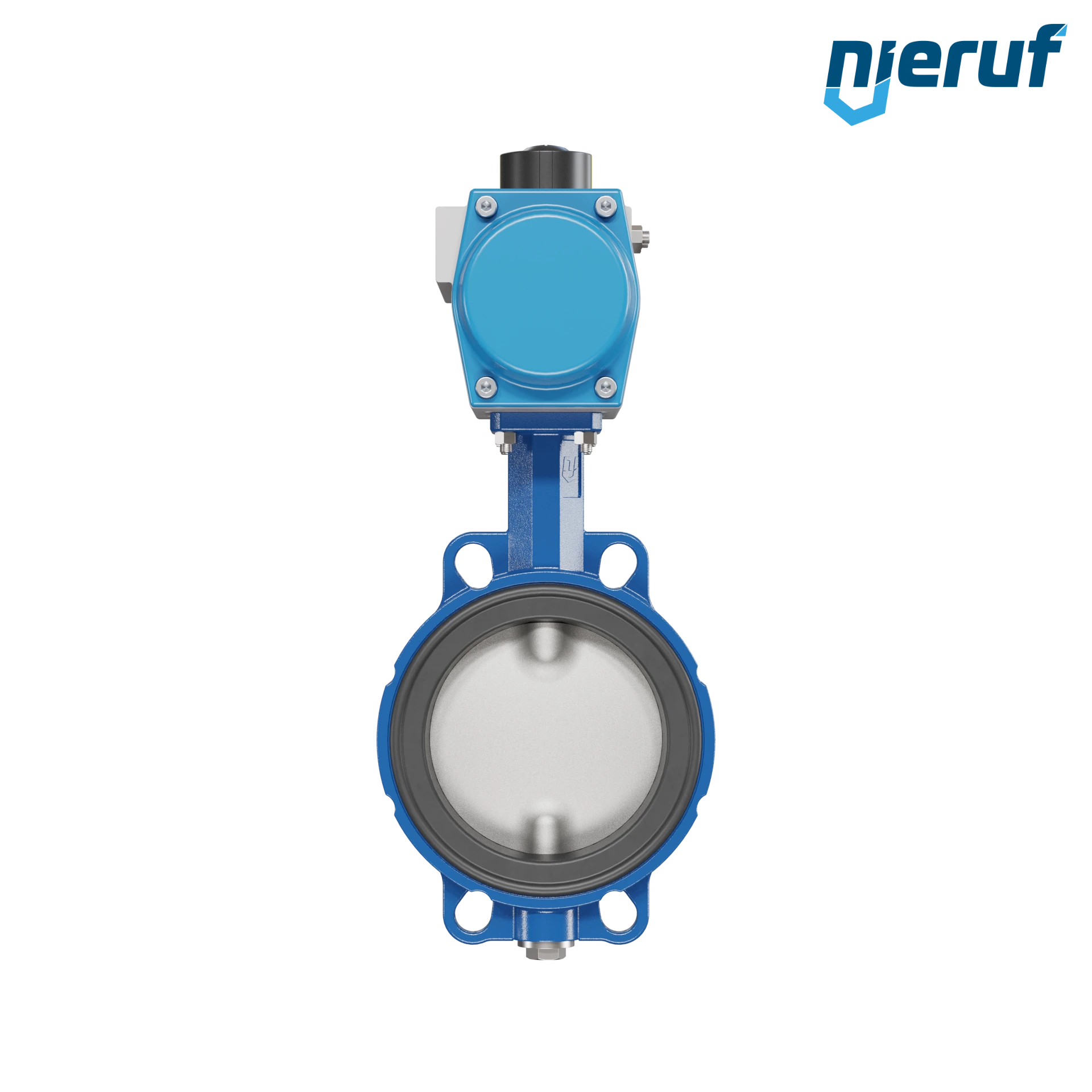

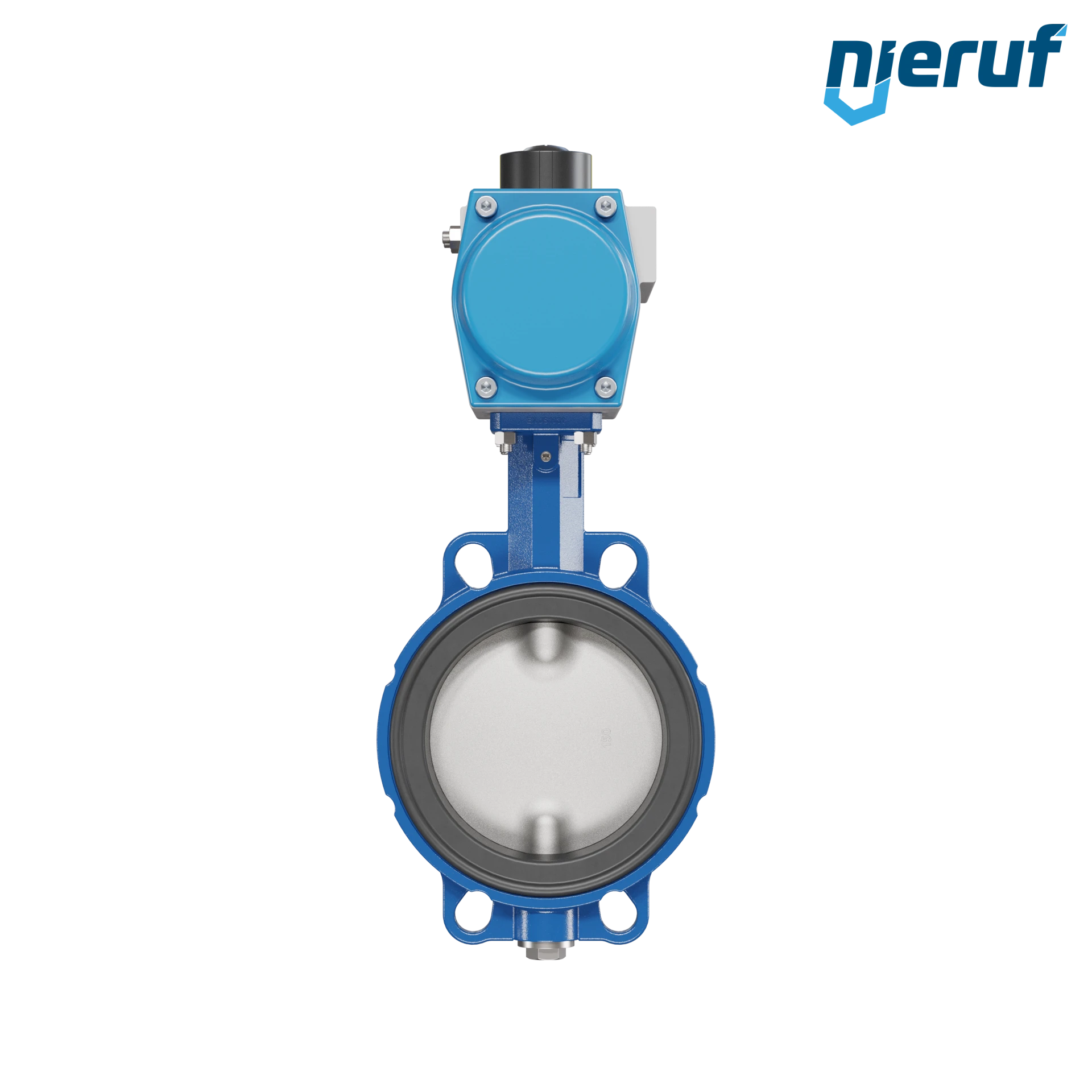

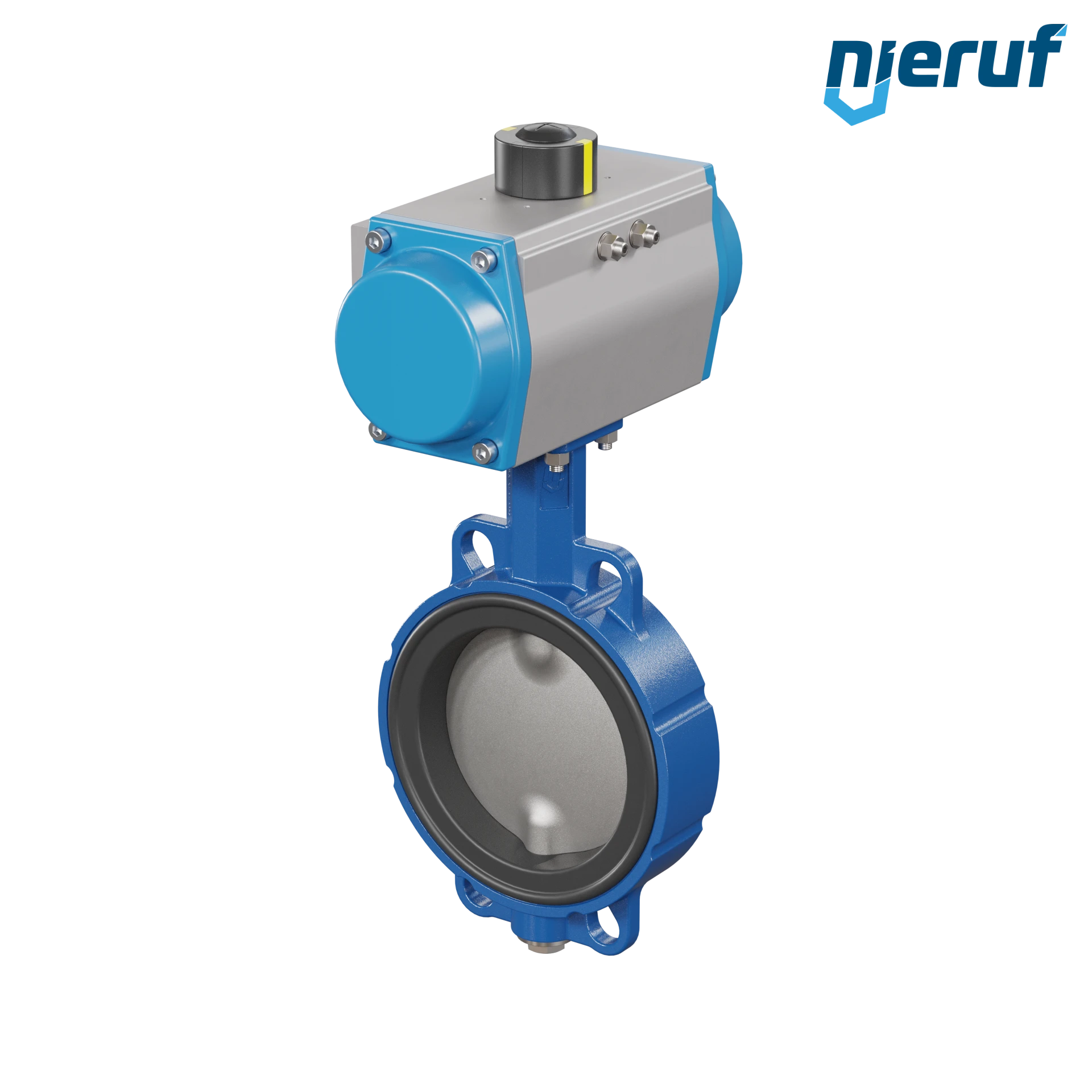

Butterfly valve DN 150 AK01 EPDM DVGW drinking water, WRAS, ACS, W270 pneumatic actuator double acting

€547.70*

€651.76 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Friday, 19. April

Guaranteed delivery until Monday, 22. April, 12 o'clock

Order in within by express delivery


Equipment

NA02010001

5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC

€40.00*

€47.60 VAT included.


PR02000000

Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black

€67.30*

€80.09 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: AK01100413
Butterfly valve DN 150 AK01 EPDM DVGW drinking water, WRAS, ACS, W270 pneumatic actuator double acting

Butterfly valve DN 150 Wafer type body made of GGG40 with pneumatic actuator double acting seal EPDM DVGW drinking water, WRAS, ACS, W270 industry design

product: Butterfly valve
type: AK01
manufacturer: NieRuf
diameter: DN 150
nominal pressure: PN6-PN10-PN16 & ANSI150
max. working pressure: 16 bar
sleeves: EPDM DVGW drinking water, WRAS, ACS, W270
media: liquid and gaseous media
temperature: Butterfly valve: -20°C up to +90°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design: Wafer type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: pneumatic actuator double acting
actuator: Pneumatic actuator AN02 GD-105 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa).
approval: EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve DN 150 AK01 EPDM DVGW drinking water, WRAS, ACS, W270 pneumatic actuator double acting

Article no. : AK01100413
product: Butterfly valve
type: AK01
manufacturer: NieRuf
diameter: DN 150
nominal pressure: PN6-PN10-PN16 & ANSI150
max. working pressure: 16 bar
sleeves: EPDM DVGW drinking water, WRAS, ACS, W270
media: liquid and gaseous media
temperature: Butterfly valve: -20°C up to +90°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design: Wafer type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: pneumatic actuator double acting
actuator: Pneumatic actuator AN02 GD-105 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa).
approval: EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
