AK02110213

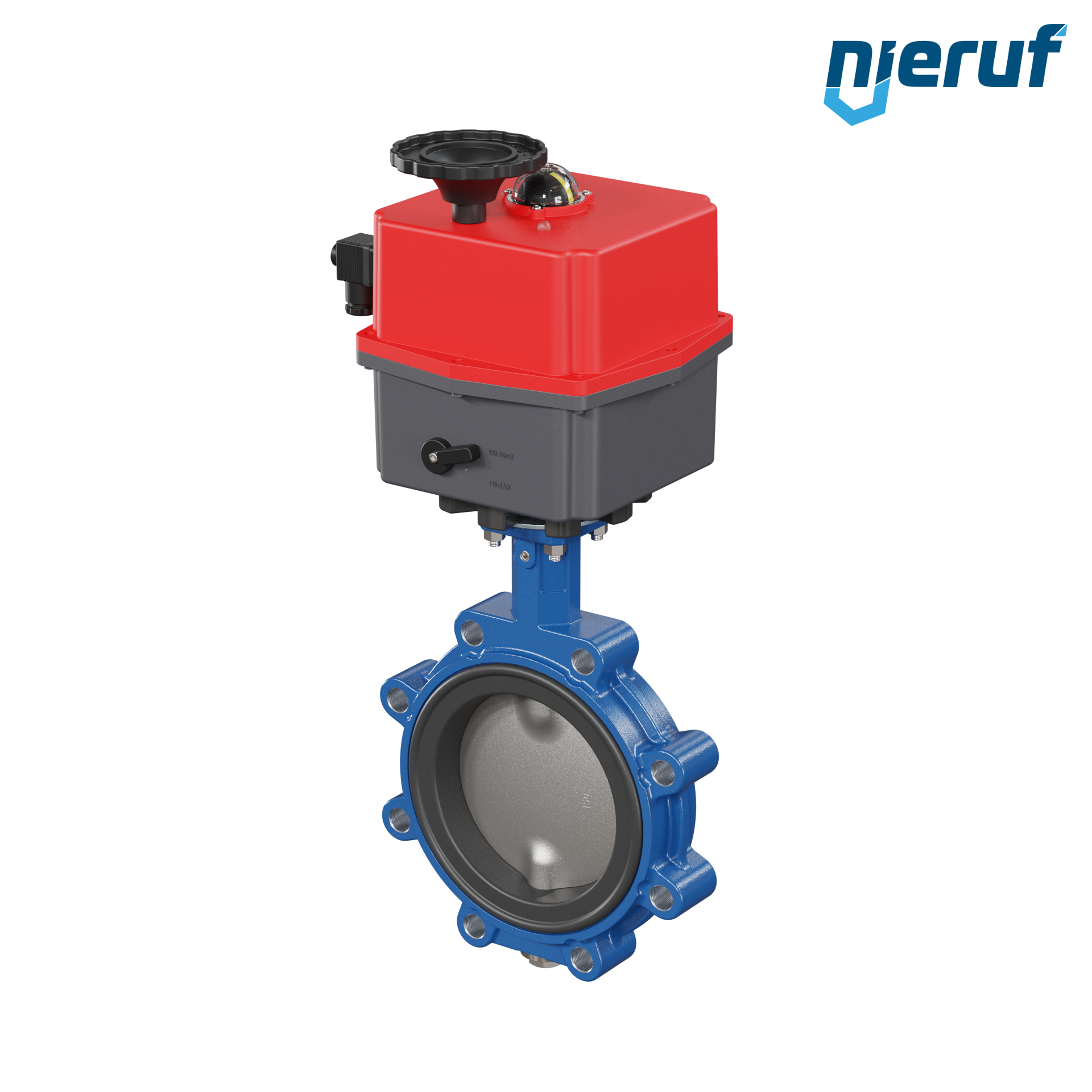

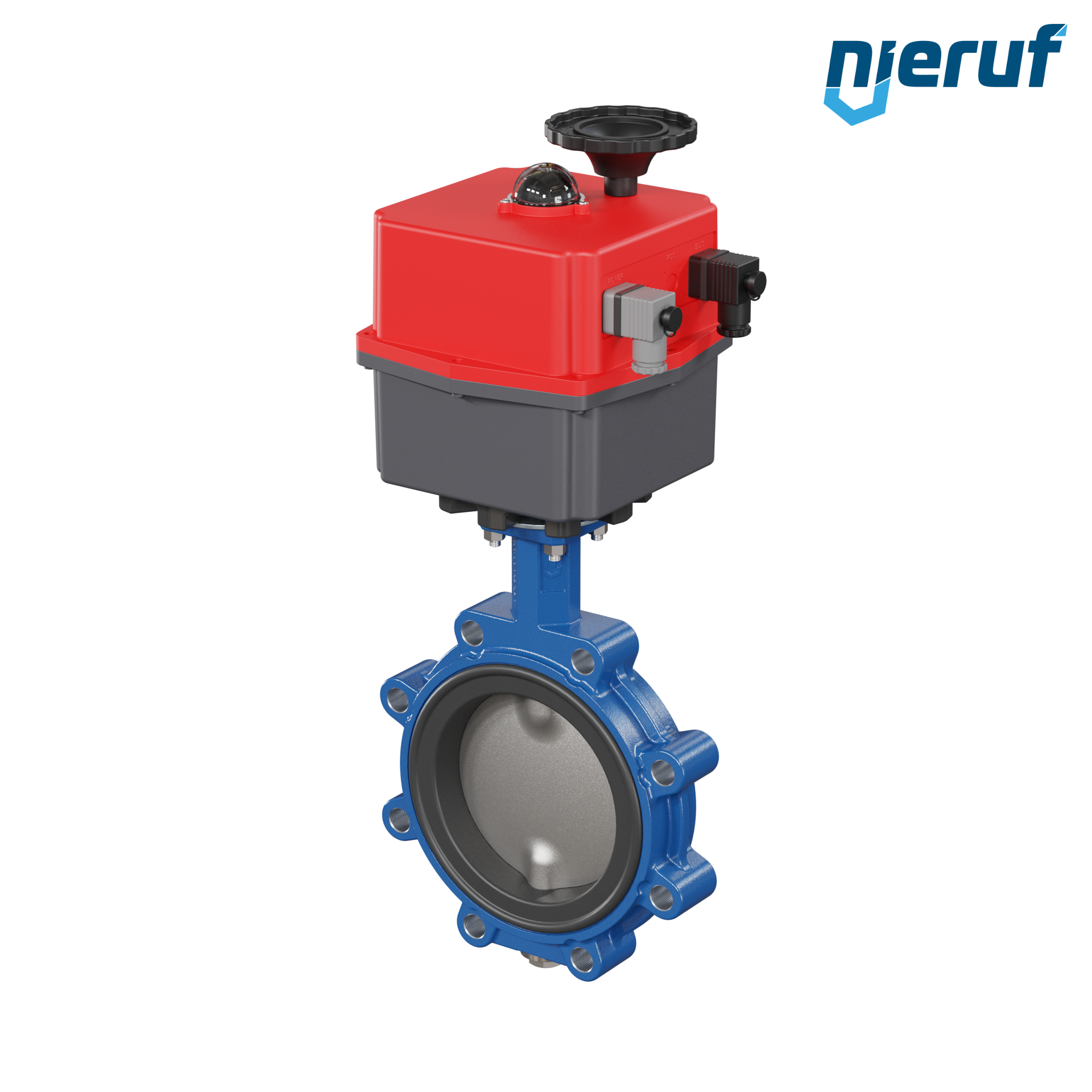

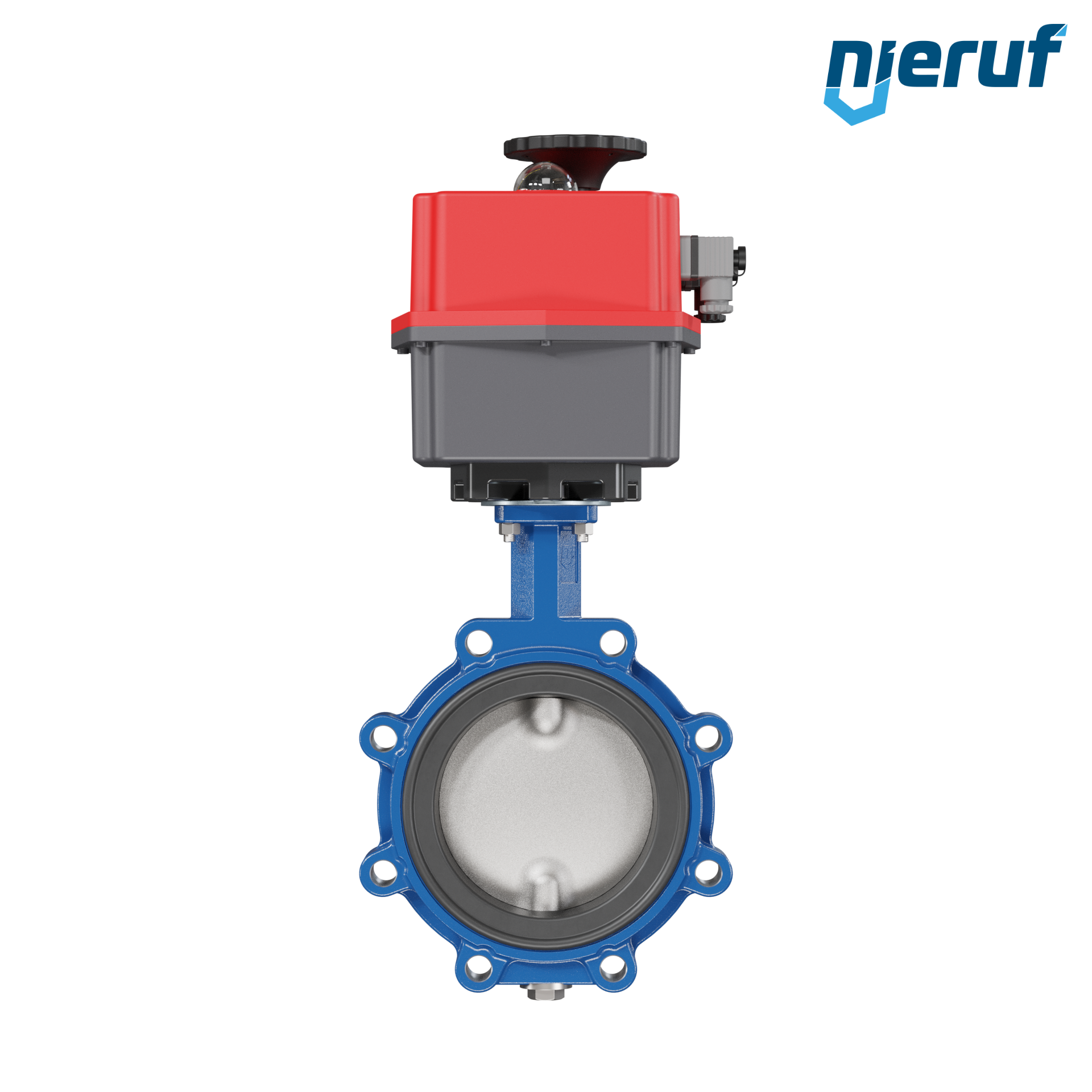

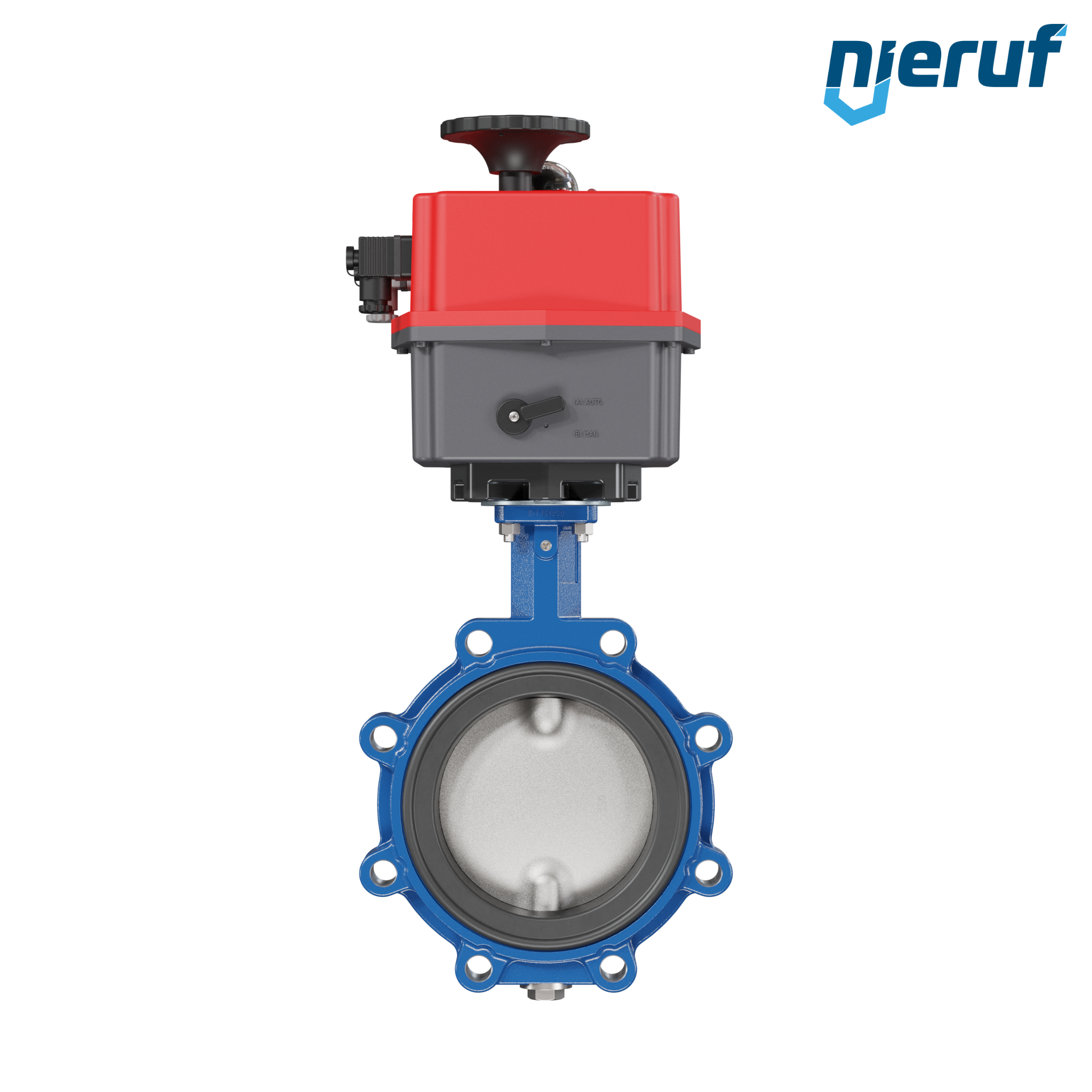

Butterfly valve DN 150 Lug type electric actuator 24-240V DVGW gas

€1,019.00*

€1,212.61 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: in stock

Delivery information

Express delivery*:

Shipping on: Thursday, 07. November

Guaranteed delivery until Friday, 08. November, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

AKKUPACK02

AkkuPack BSR for S140-S300

€424.00*

€504.56 VAT included.


DPSKIT02

Digital Positioning System for S140-S300

€409.20*

€486.95 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: AK02110213
Butterfly valve DN 150 Lug type electric actuator 24-240V DVGW gas

Butterfly valve DN 150 PN10-PN16 Lug type body made of GGG40 with electric actuator 24-240V AC/DC seal NBR-70-black DVGW gas industry design

product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 150
nominal pressure: PN10-PN16
max. working pressure: 16 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: Butterfly valve: -10°C up to +60°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: electric actuator 24-240V AC/DC
actuator: Electronic actuator AN01 S140 duty cycle 75%, with automatic voltage detection, integrated limit switches, switch compartment heating and manual override, protection class IP67 24-240V AC/DC.
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can optionally be extended with a digital positioning system 0-10V or 4-20mA or with a battery pack NC or NO.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve DN 150 Lug type electric actuator 24-240V DVGW gas

Article no. : AK02110213
product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 150
nominal pressure: PN10-PN16
max. working pressure: 16 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: Butterfly valve: -10°C up to +60°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: electric actuator 24-240V AC/DC
actuator: Electronic actuator AN01 S140 duty cycle 75%, with automatic voltage detection, integrated limit switches, switch compartment heating and manual override, protection class IP67 24-240V AC/DC.
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can optionally be extended with a digital positioning system 0-10V or 4-20mA or with a battery pack NC or NO.
