AK02110512

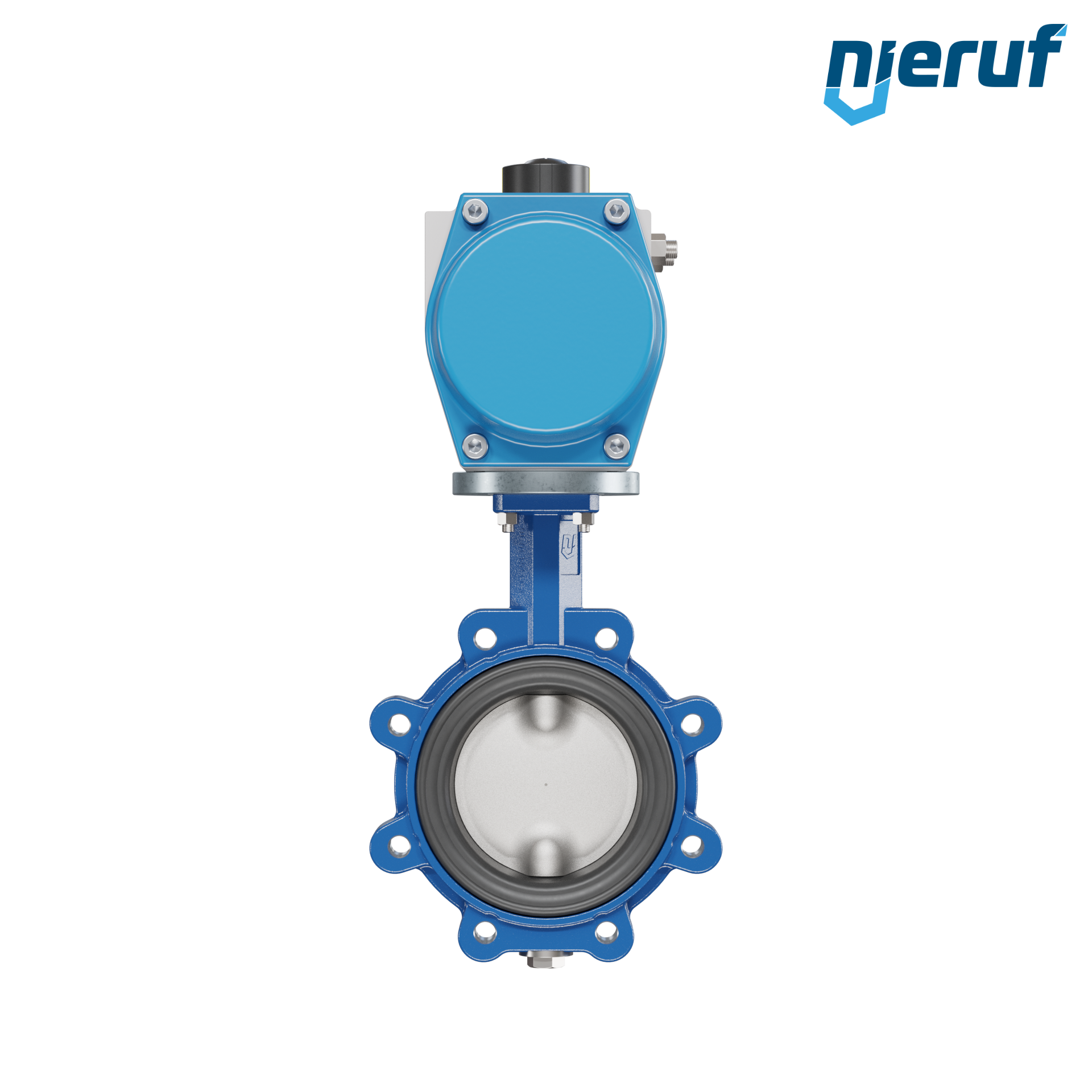

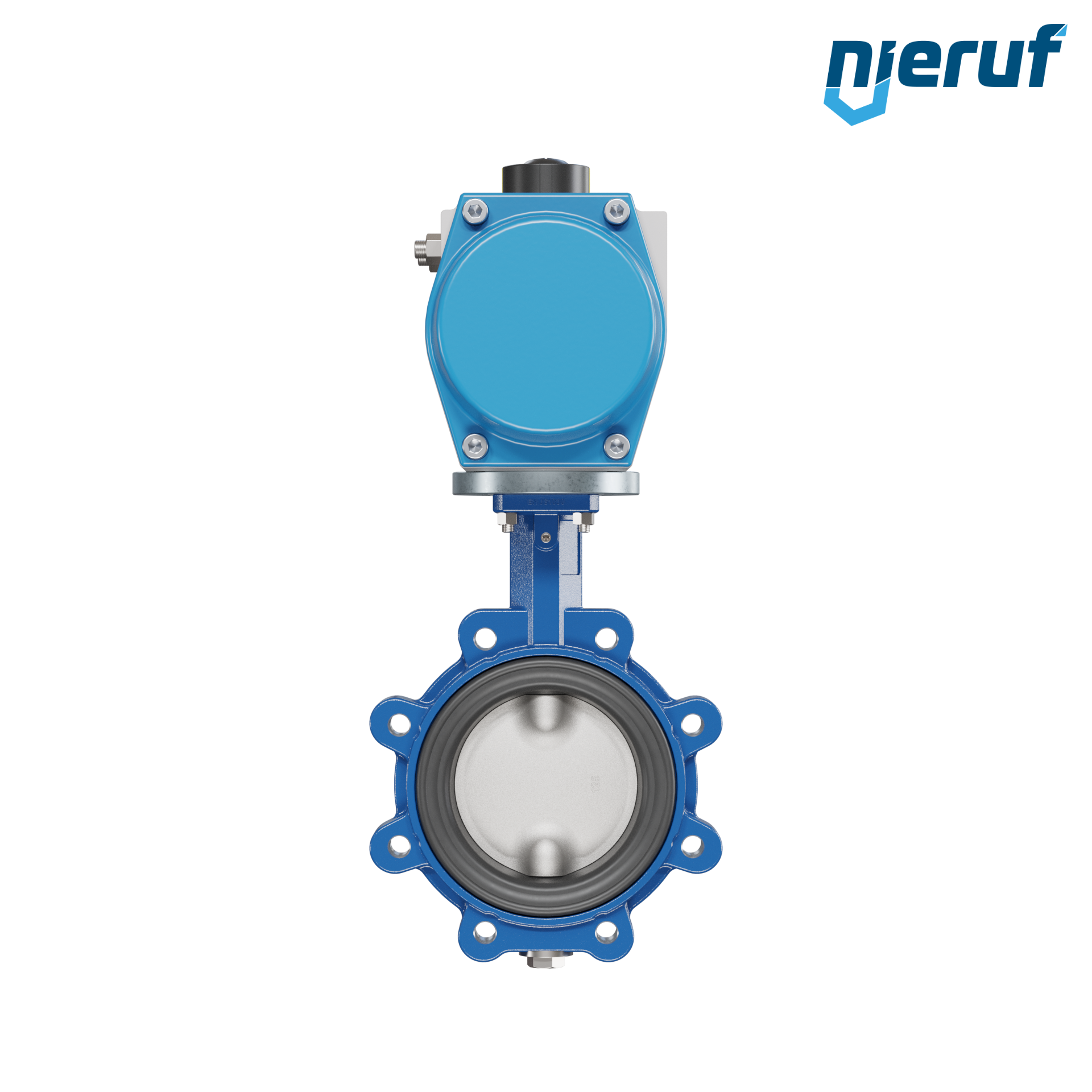

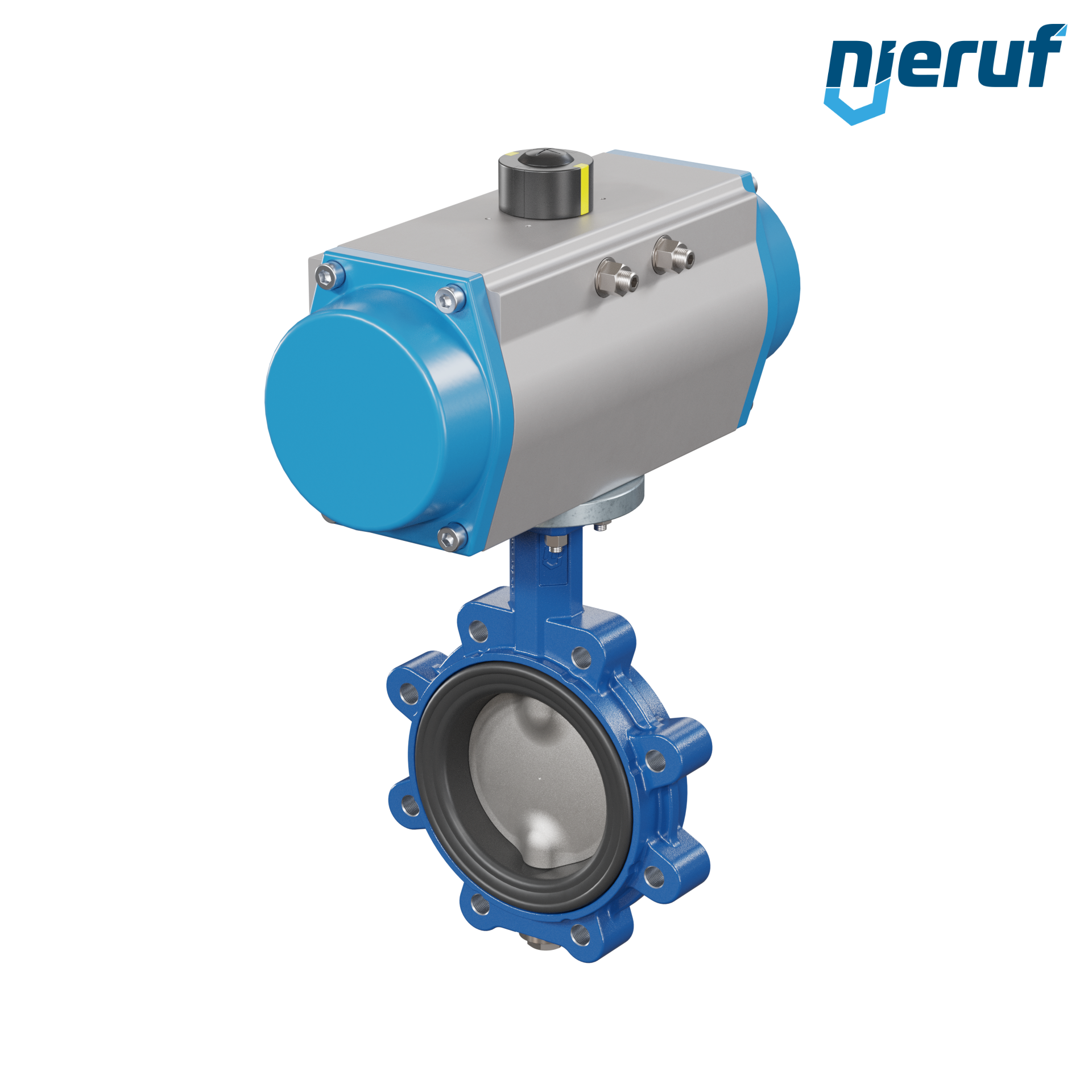

Butterfly valve DN 125 AK02 NBR-70-black DVGW gas pneumatic actuator single acting

€899.90*

€1,070.88 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: 2 - 3 weeks

Delivery information

Equipment

NA01010001

3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC

€40.00*

€47.60 VAT included.


EF01000106

Straight male adaptor EF01 brass NBR G1/4" D6mm

€1.00*

€1.19 VAT included.


FL01020112

Flange DN125 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€52.60*

€62.59 VAT included.


NA01000001

3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 230V 50Hz

€38.80*

€46.17 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: AK02110512
Butterfly valve DN 125 AK02 NBR-70-black DVGW gas pneumatic actuator single acting

Butterfly valve DN 125 Lug type body made of GGG40 with pneumatic actuator single acting seal NBR-70-black DVGW gas industry design

product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 125
nominal pressure: PN10-PN16
max. working pressure: 16 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: Butterfly valve: -10°C up to +60°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: pneumatic actuator single acting
actuator: Pneumatic actuator AN02 GS-140 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closens)
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve DN 125 AK02 NBR-70-black DVGW gas pneumatic actuator single acting

Article no. : AK02110512
product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 125
nominal pressure: PN10-PN16
max. working pressure: 16 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: Butterfly valve: -10°C up to +60°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: pneumatic actuator single acting
actuator: Pneumatic actuator AN02 GS-140 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closens)
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
