PS01010001
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
- Lead time
- 2 - 3 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you

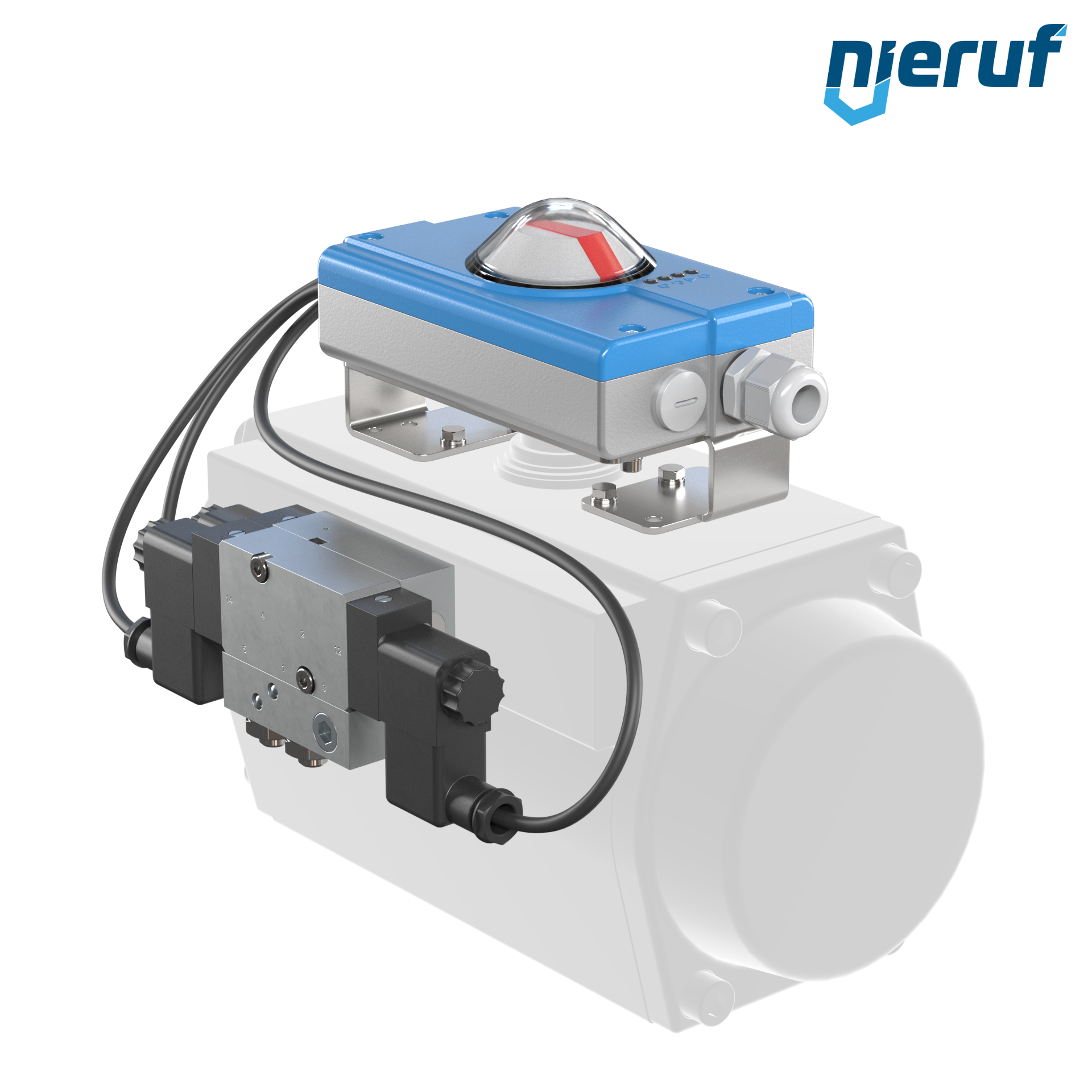

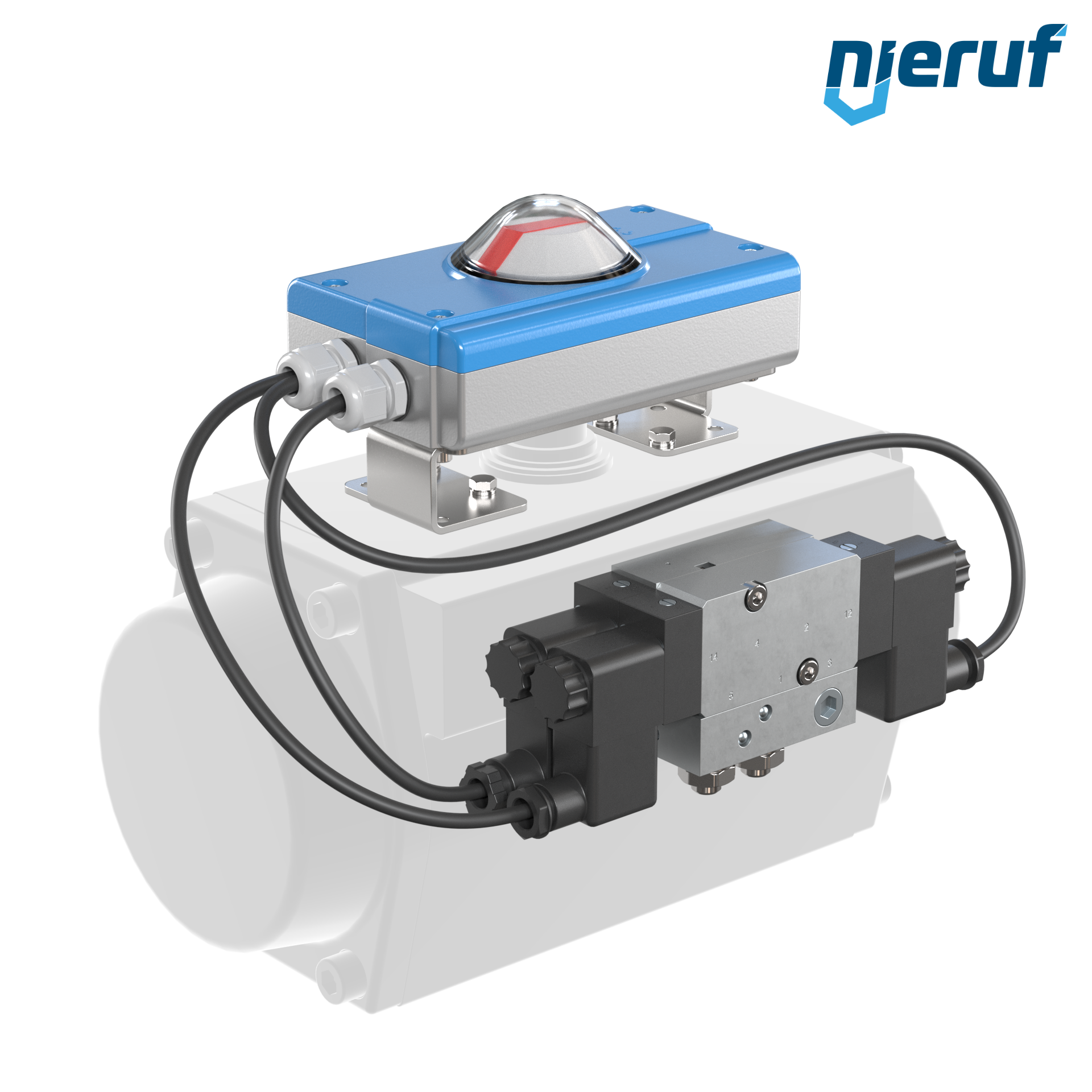

Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l per double stroke mit 24V DC & control pressure 2,5 - 8,0 bar
| product | Positioner |
|---|---|
| type | PS01 |
| manufacturer | NieRuf |
| function | single acting |
| application | for pneumatic actuators |
| version | air volume more than 5 l per double stroke |
| mounting bracket | 130 x 30 x 30 mm |
| protection class | IP65 |
| voltage | 24V DC |
| temperature | - 10°C up to +50°C |
| body material | Aluminium die casting GD - AISi 10Mg |
| swivel angle | 180° |
| control pressure | 2,5 - 8,0 bar |
| signal type | 4-20 mA or 0-10 V |
| flange image | according to VDI/VDE 3845 |
| flow rate | 1250 l / min |
| control medium | filtered air according to DIN ISO 8573-1: 2010 [7:-:4] |
| product description | Positioner for adjustment and control as well as for precise positioning of pneumatic actuators. Change between positioning & 3-position mode possible. Compatible mounting bracket, solenoid valve group and cable connections included in the scope of delivery. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
Article no.
: PS01010001
product:
Positioner
type:
PS01
manufacturer:
NieRuf
function:
single acting
application:
for pneumatic actuators
version:
air volume more than 5 l per double stroke
mounting bracket:
130 x 30 x 30 mm
protection class:
IP65
voltage:
24V DC
temperature:
- 10°C up to +50°C
body material:
Aluminium die casting GD - AISi 10Mg
swivel angle:
180°
control pressure:
2,5 - 8,0 bar
signal type:
4-20 mA or 0-10 V
flange image:
according to VDI/VDE 3845
flow rate:
1250 l / min
control medium:
filtered air according to DIN ISO 8573-1: 2010 [7:-:4]
product description:
Positioner for adjustment and control as well as for precise positioning of pneumatic actuators. Change between positioning & 3-position mode possible. Compatible mounting bracket, solenoid valve group and cable connections included in the scope of delivery.
