MV06340003

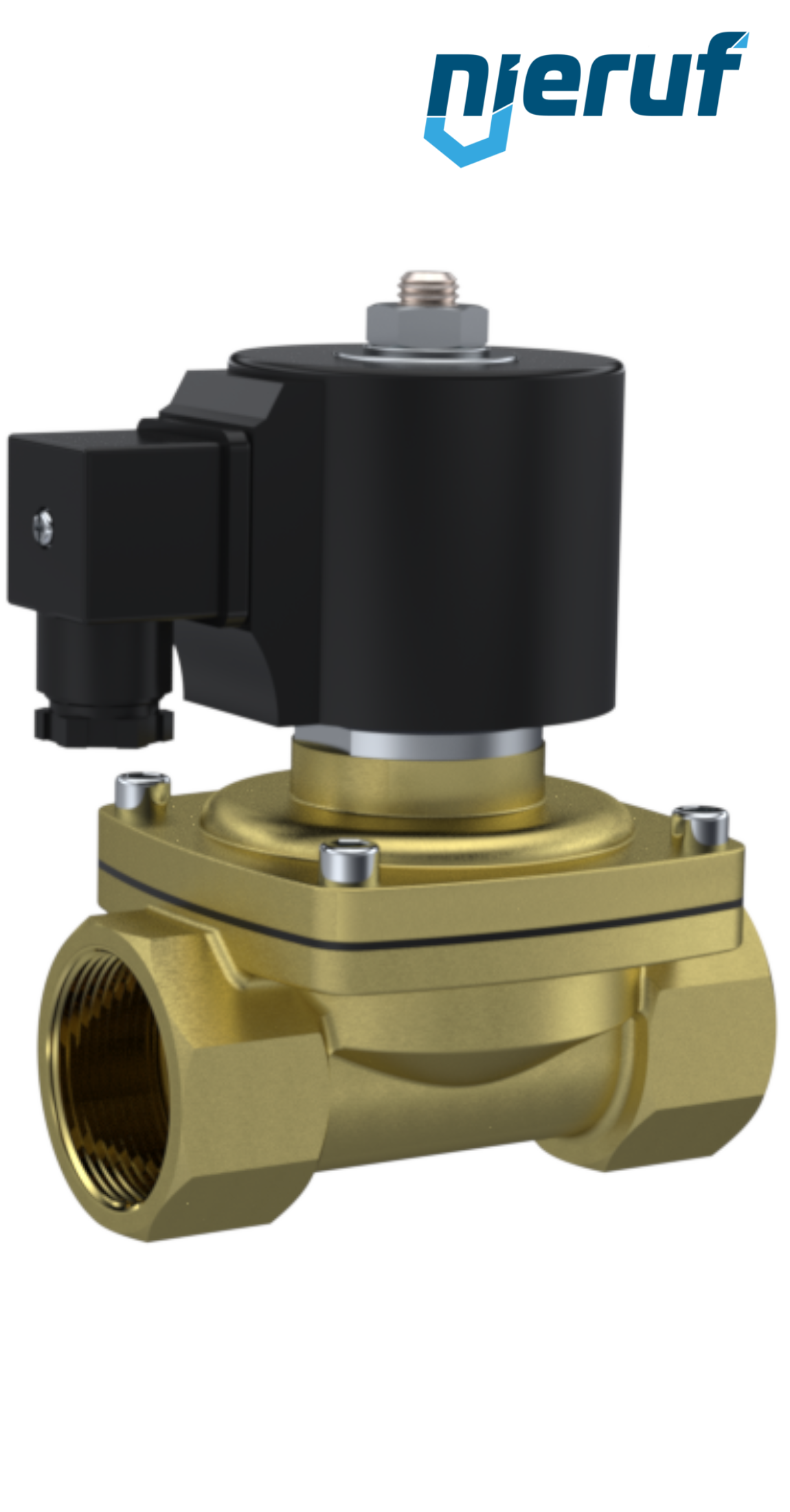

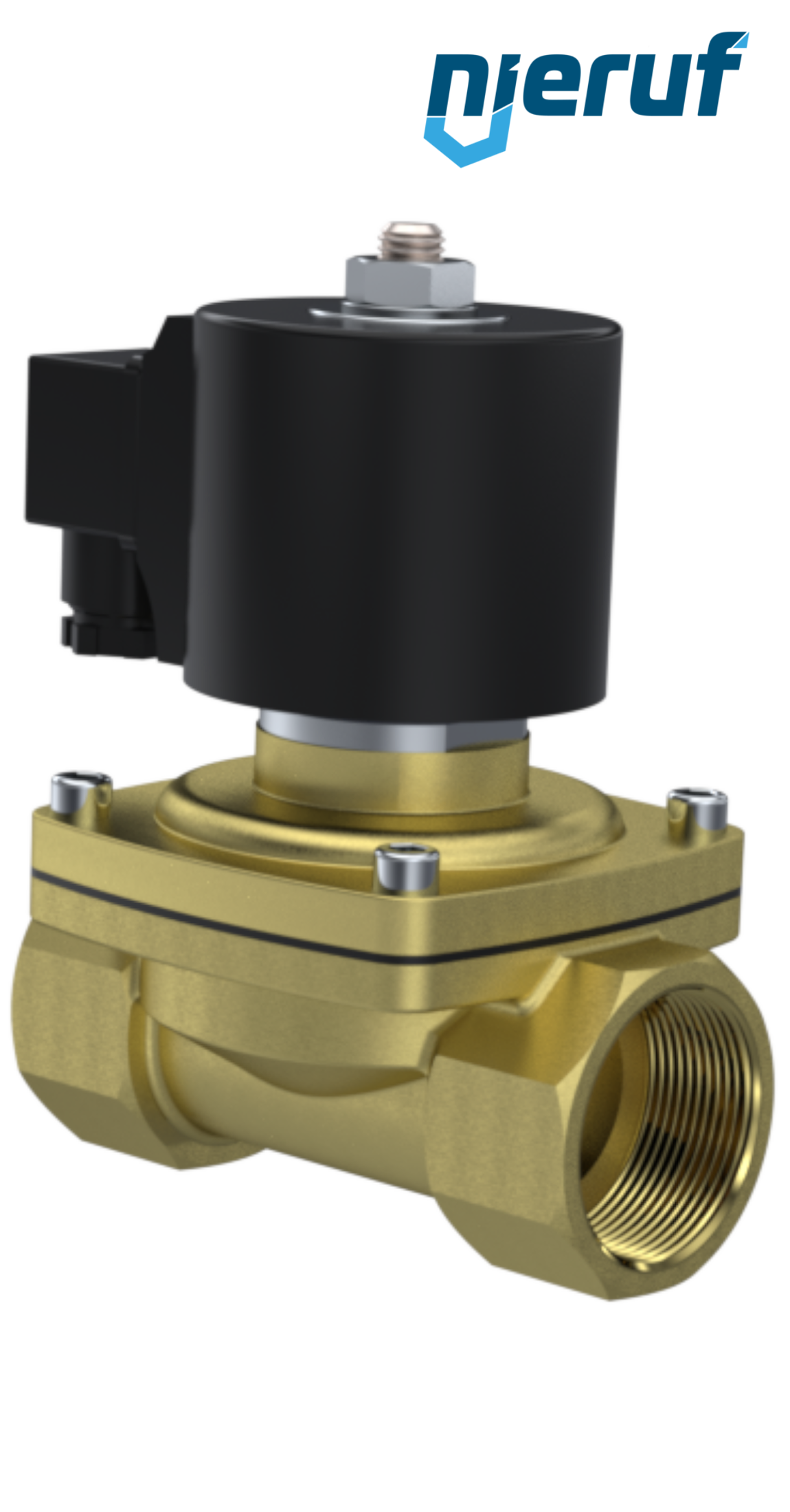

Solenoid valve DN16 G 1/2" Inch NBR 110V brass
- Lead time
- 3 - 5 working days
Equipment
hexagon nipple 1/2" inch male stainless steel 316
€2.26 VAT included.
hose nozzle 1/2" 12.7 mm stainless steel 1.4408 ST01
€3.45 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Solenoid valve DN16 G 1/2" Inch NBR 110V brass
110V Solenoid valve DN16 G 1/2" Inch NBR Type MV06 NC - normally closed brass liquid and gaseous media
| product | Solenoid valve |
|---|---|
| type | MV06 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN16 |
| connection | G 1/2" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 2.9 m³/h |
| function | NC - normally closed |
| control | force pilot operated |
| material | brass |
| seal | NBR |
| voltage | 110V 50Hz |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 20 VA |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | non-flammable, neutral gases and liquids |
| temperature media | -10°C up to +90°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0.0 - 8 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve DN16 G 1/2" Inch NBR 110V brass
Article no.
: MV06340003
product:
Solenoid valve
type:
MV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN16
connection:
G 1/2" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
2.9 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
brass
seal:
NBR
voltage:
110V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
20 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
non-flammable, neutral gases and liquids
temperature media:
-10°C up to +90°C
temperature ambiente:
max up to +50°C
max. pressure:
0.0 - 8 bar
Outlet pressure:
0 bar (no counter pressure)
installation position:
any position, solenoid preferably standing
Equipment
hose nozzle 1/2" 12.7 mm stainless steel 1.4408 ST01
Lead time: in stock
pipe bend (welded) 90° 21,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 26,9 x 2,0 to 21,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
