Technical advice +497143/96669-00

strainer 1/2" inch brass type SZ02

Flange-Butterfly valve DN 300 PN16 AK04 NBR Worm gear 1
quantity (pcs.):
2.70€ * 3.21€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Tuesday, 18. May
Guaranteed delivery until Wednesday, 19. May, 12 Uhr:
order within 16 hours & 39 minutes via express shipping
datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
technical details

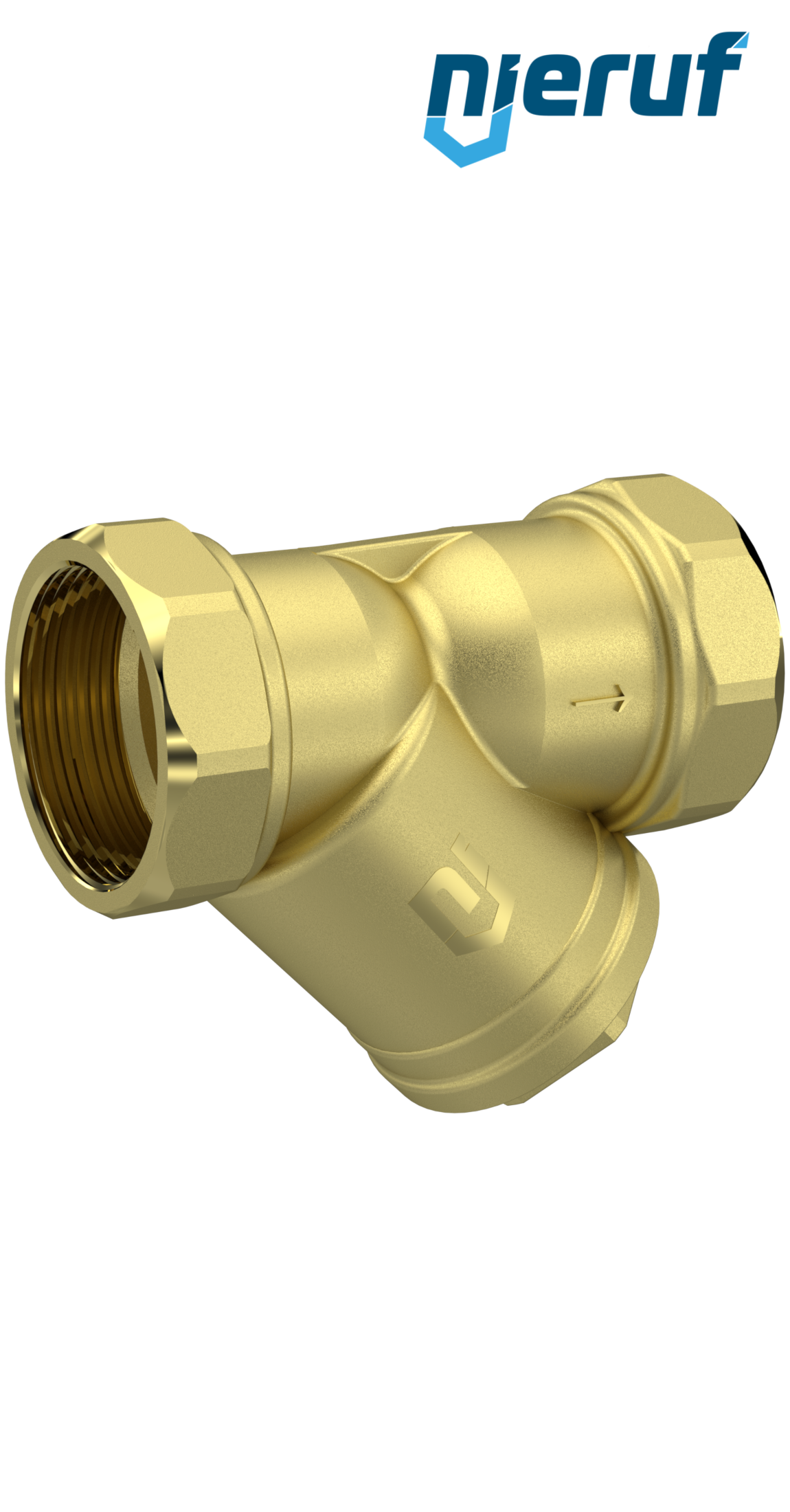

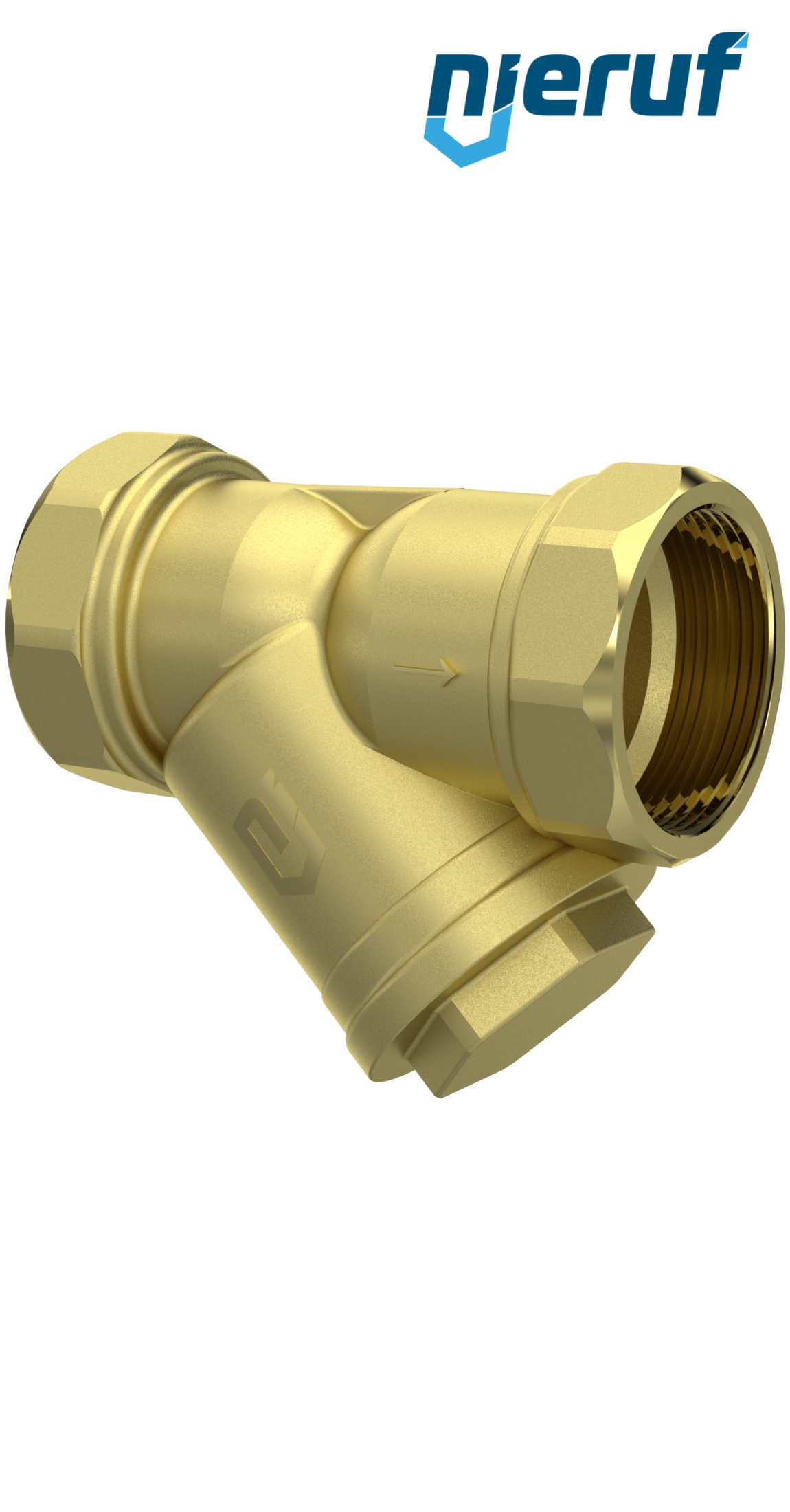

strainer 1/2" inch brass type SZ02
brass-strainer with 1/2" inch female thread BSP with EPDM-seal PN16 for liquid media from -10°C up to +120°C
design: Y-strainer
diameter: 1/2" inch
connection: female thread BSP
pressure: PN16
material: brass CW 617N
mesh-material: stainless steel 1.4301
cap material: brass CW 617N
seal: EPDM
media: liquid media
temperature: -10°C up to +120°C
norm: Directive 97/23/CE: product excluded from directive
mesh: 0,85 mm
installation position: horizontal or vertical position with descendant fluid
product feature: Y-strainer made of brass, thread with removable stainless steel filter, horizontal or vertical position.
strainer 1/2" inch brass type SZ02

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

strainer 1/2" inch brass type SZ02

datasheet 3D model
