FK03000012
Compact ball valve DN125 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4308
- Lead time
- 3 - 5 working days
Equipment
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
€6.55 VAT included.
joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 steel
€16.18 VAT included.
Flange DN125 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€62.59 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

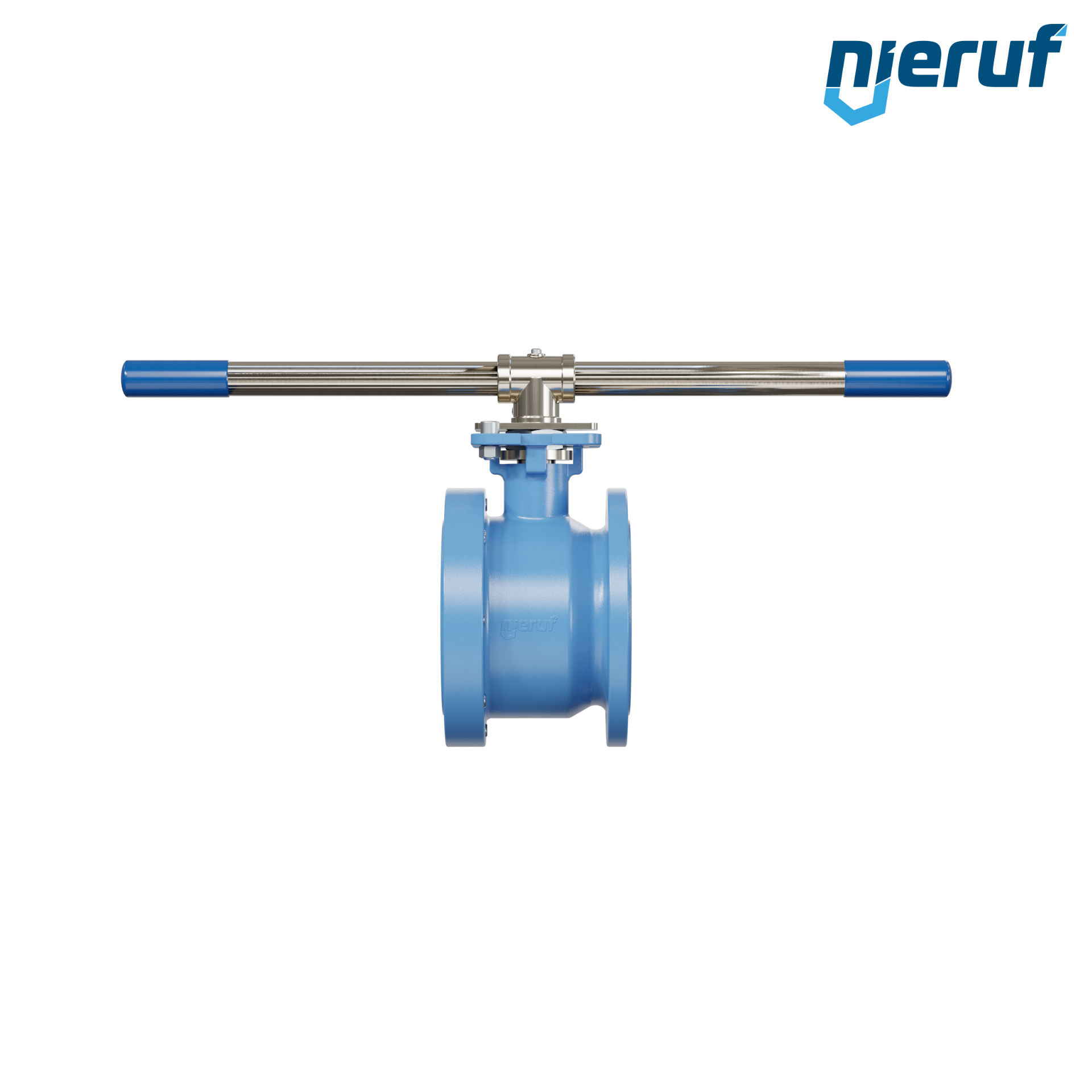

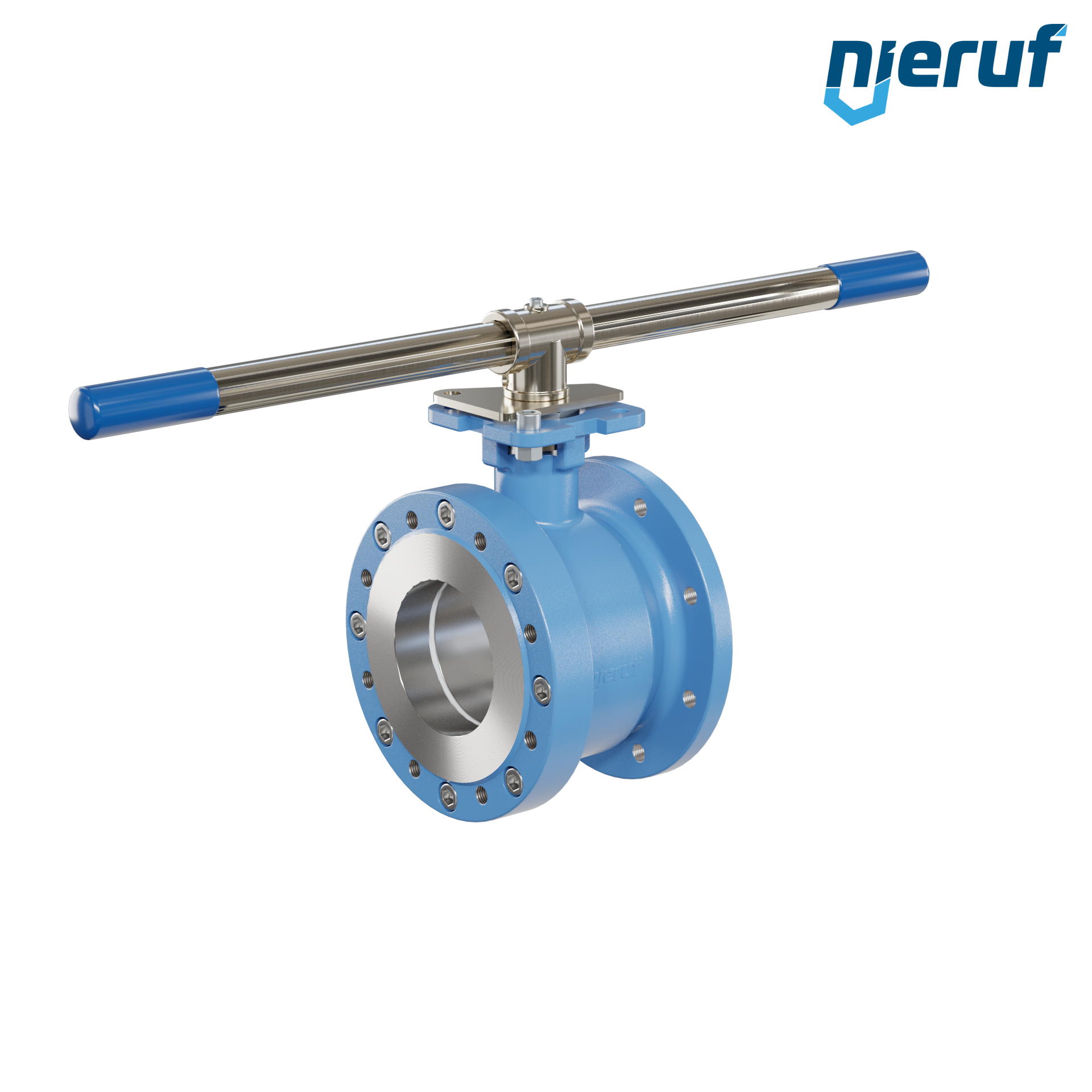

Compact ball valve DN125 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4308
Compact ball valve DN125 PN16 FK03 body carbon steel 1.0619 ball stainless steel 1.4308 seal PTFE / TFM for liquid and gaseous media
| product | Compact ball valve |
|---|---|
| type | FK03 |
| manufacturer | NieRuf |
| diameter | DN125 |
| connection | flange dimensions acc. DIN EN 1092-1 |
| Seal steam | O-ring FKM/FPM (Viton) |
| body seal | PTFE |
| ball seal | PTFE / TFM 1600 |
| media | liquid and gaseous media |
| temperature | -10°C up to +200°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | full port design |
| body material | carbon steel 1.0619 |
| ball material | stainless steel 1.4308 / CF-8 |
| length | 180mm |
| actuator | hand lever made of stainless steel 1.4310 with blue cover |
| installation position | any position |
| authorized for | TA Luft, Fire-safe API 607/4 |
| product description | This high quality steel ball valve in the compact version consists of a 1-piece body with screw-in part. Full bore, ISO 5211 mounting flange and flange connection on both sides in accordance with EN 1092-1. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Compact ball valve DN125 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4308
Article no.
: FK03000012
product:
Compact ball valve
type:
FK03
manufacturer:
NieRuf
diameter:
DN125
connection:
flange dimensions acc. DIN EN 1092-1
Seal steam:
O-ring FKM/FPM (Viton)
body seal:
PTFE
ball seal:
PTFE / TFM 1600
media:
liquid and gaseous media
temperature:
-10°C up to +200°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4308 / CF-8
length:
180mm
actuator:
hand lever made of stainless steel 1.4310 with blue cover
installation position:
any position
authorized for:
TA Luft, Fire-safe API 607/4
product description:
This high quality steel ball valve in the compact version consists of a 1-piece body with screw-in part. Full bore, ISO 5211 mounting flange and flange connection on both sides in accordance with EN 1092-1.
Equipment
Flange DN125 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 steel
Lead time: in stock
