SF04020010
safety valve bellow & gastight cap DN80/DN125 SF04, without lifting device
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 stainless steel
€16.18 VAT included.
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
€6.55 VAT included.
joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 stainless steel
€16.18 VAT included.
flange seal DN80 PN10/16/25/40 89x142x2 Klingersil C 4400
€5.24 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

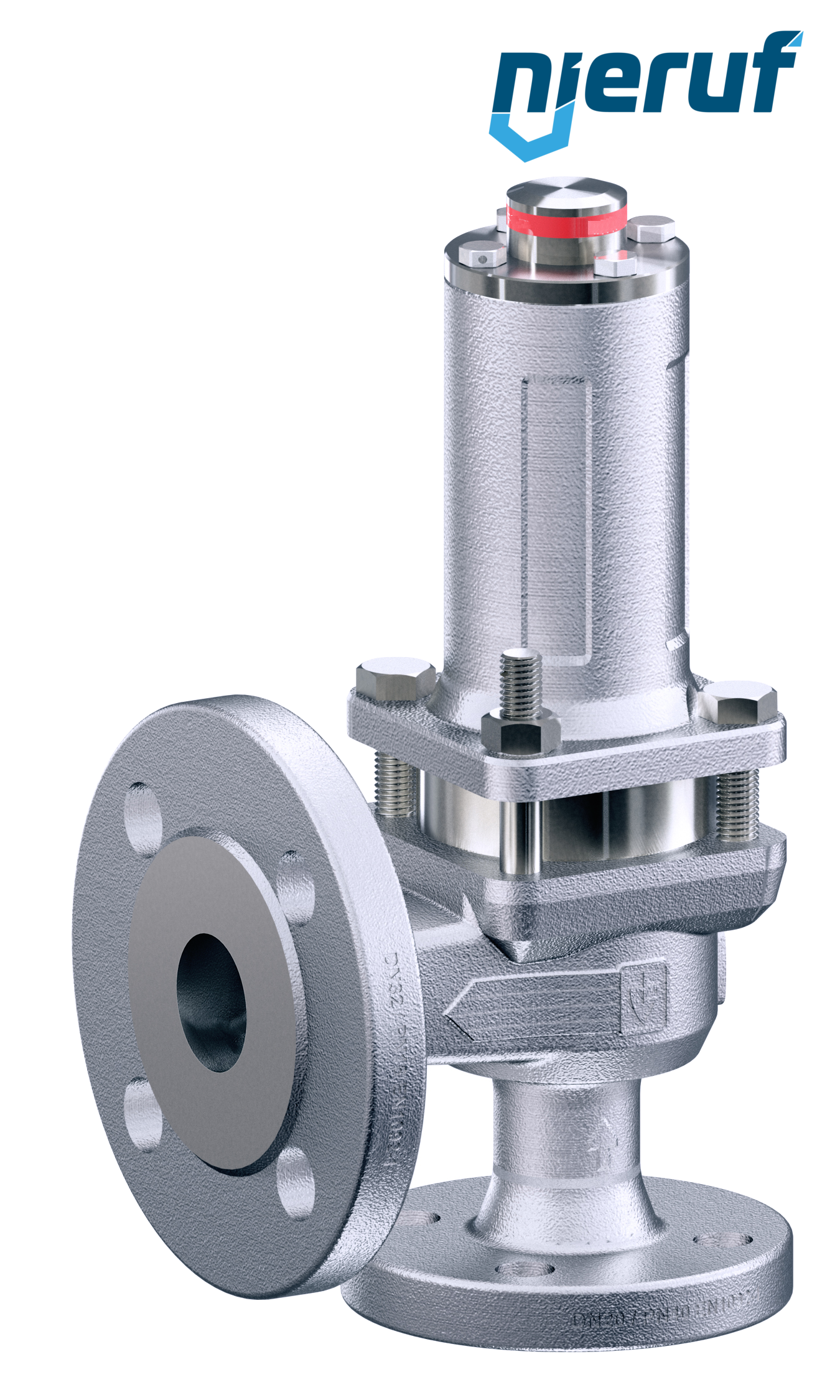

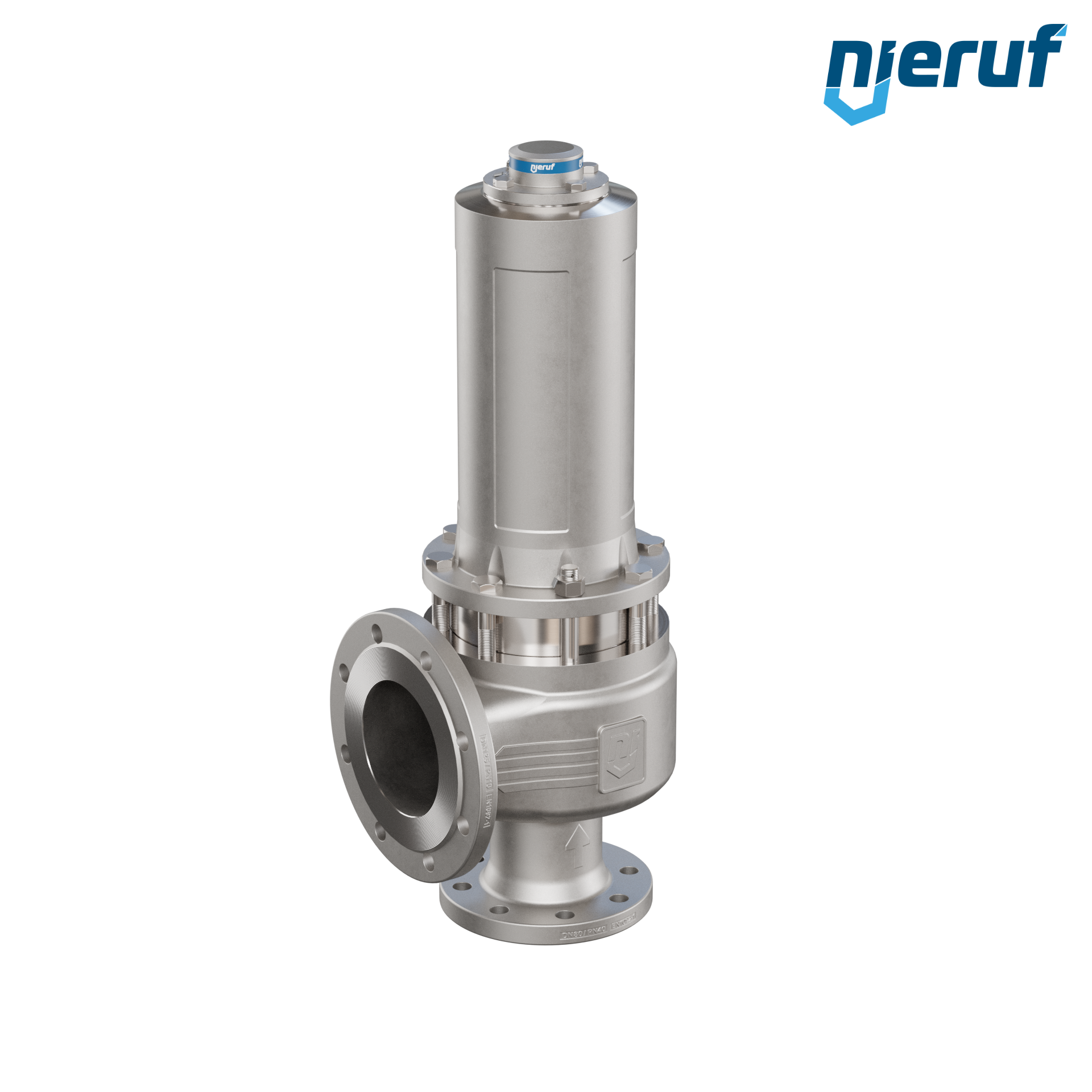

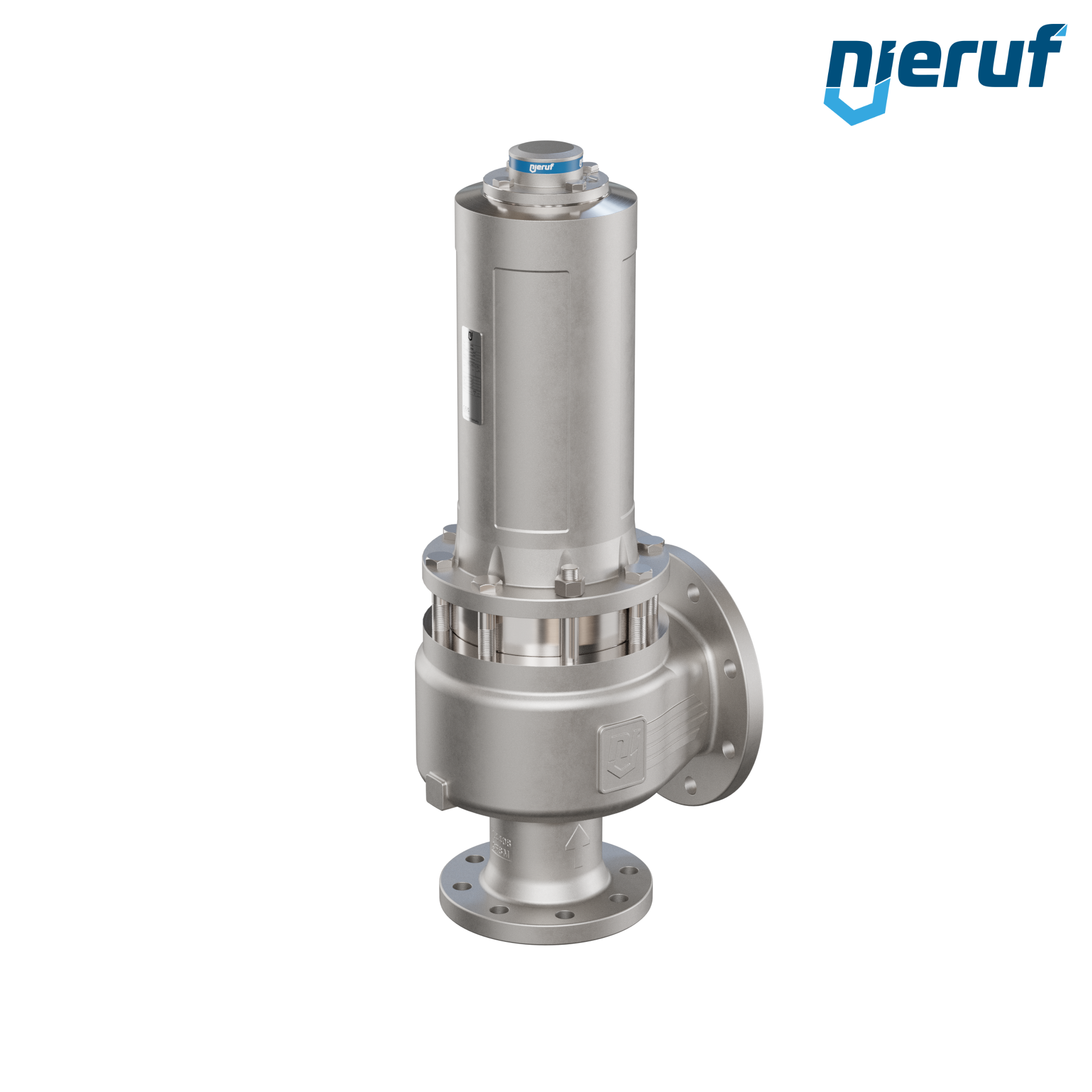

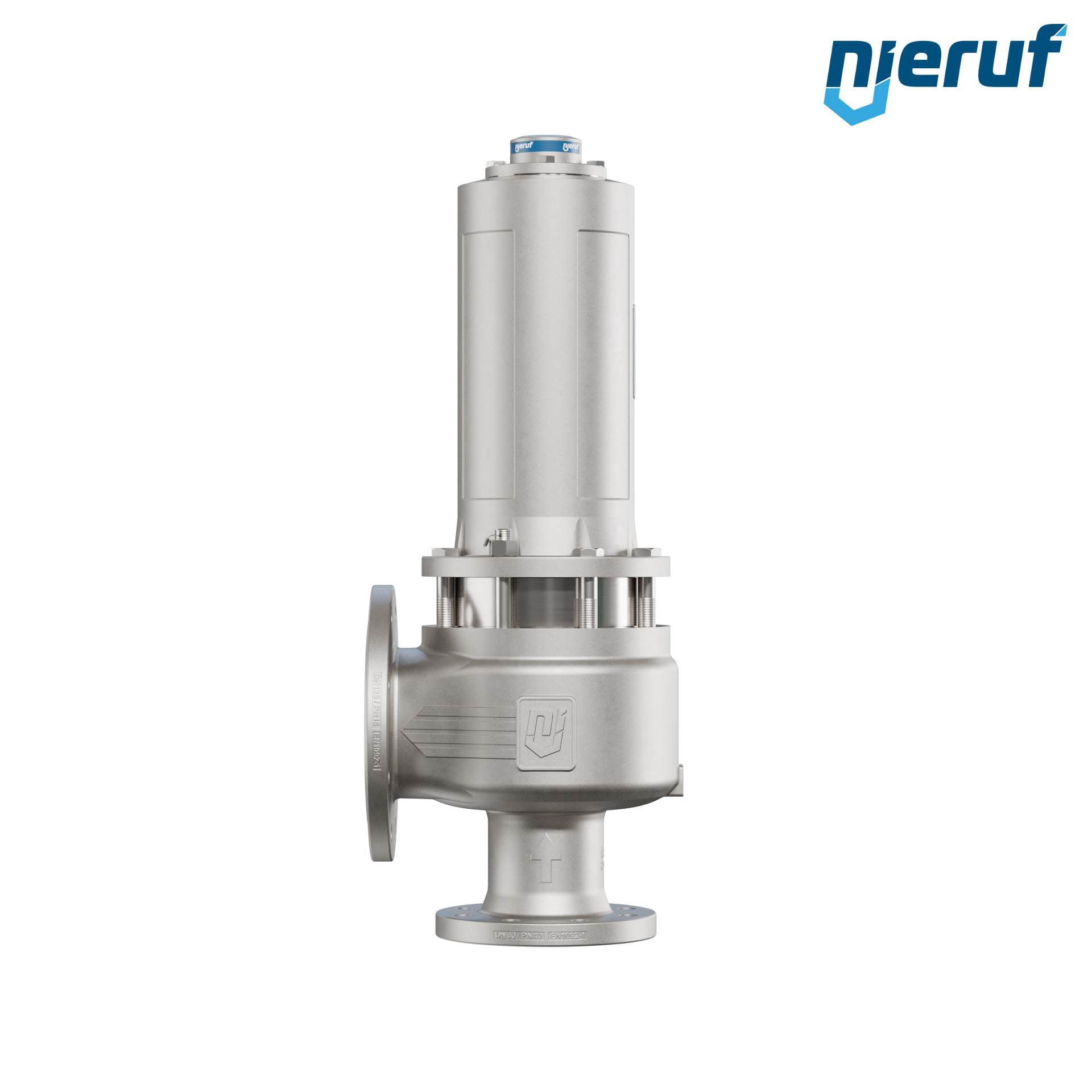

safety valve bellow & gastight cap DN80/DN125 SF04, without lifting device
safety valve DN80/DN125 SF04 with an bellow & gastight cap, made of stainless steel seal metal pressure 0,2 - 29,0 bar
| product | flange-safety valve |
|---|---|
| type | SF04 |
| manufacturer | NieRuf |
| diameter | DN80/DN125 |
| d0 | 72,0 mm |
| connection | flange acc. to DIN EN 1092-1 inlet PN40 / outlet PN16 |
| seal | metal |
| media | liquid and gaseous media |
| temperature | -60°C up to +400°C |
| set pressure | 0,2 - 29,0 bar |
| design | angle-type with bellow & gastight cap |
| material | stainless steel 1.4408 / CF8M |
| lifting | without lifting device |
| type test approval | TUV-SV-2094-D/G/F |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | Full-lift safety valve as D/G valve | Normal-lift safety valve as F valve |
| product feature 2 | for neutral and non-neutral media and /or counter-pressure. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve bellow & gastight cap DN80/DN125 SF04, without lifting device
Article no.
: SF04020010
product:
flange-safety valve
type:
SF04
manufacturer:
NieRuf
diameter:
DN80/DN125
d0:
72,0 mm
connection:
flange acc. to DIN EN 1092-1 inlet PN40 / outlet PN16
seal:
metal
media:
liquid and gaseous media
temperature:
-60°C up to +400°C
set pressure:
0,2 - 29,0 bar
design:
angle-type with bellow & gastight cap
material:
stainless steel 1.4408 / CF8M
lifting:
without lifting device
type test approval:
TUV-SV-2094-D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
Full-lift safety valve as D/G valve | Normal-lift safety valve as F valve
product feature 2:
for neutral and non-neutral media and /or counter-pressure. Spring, moving parts and the environment are protected from being affected by the medium.
