UV13040103

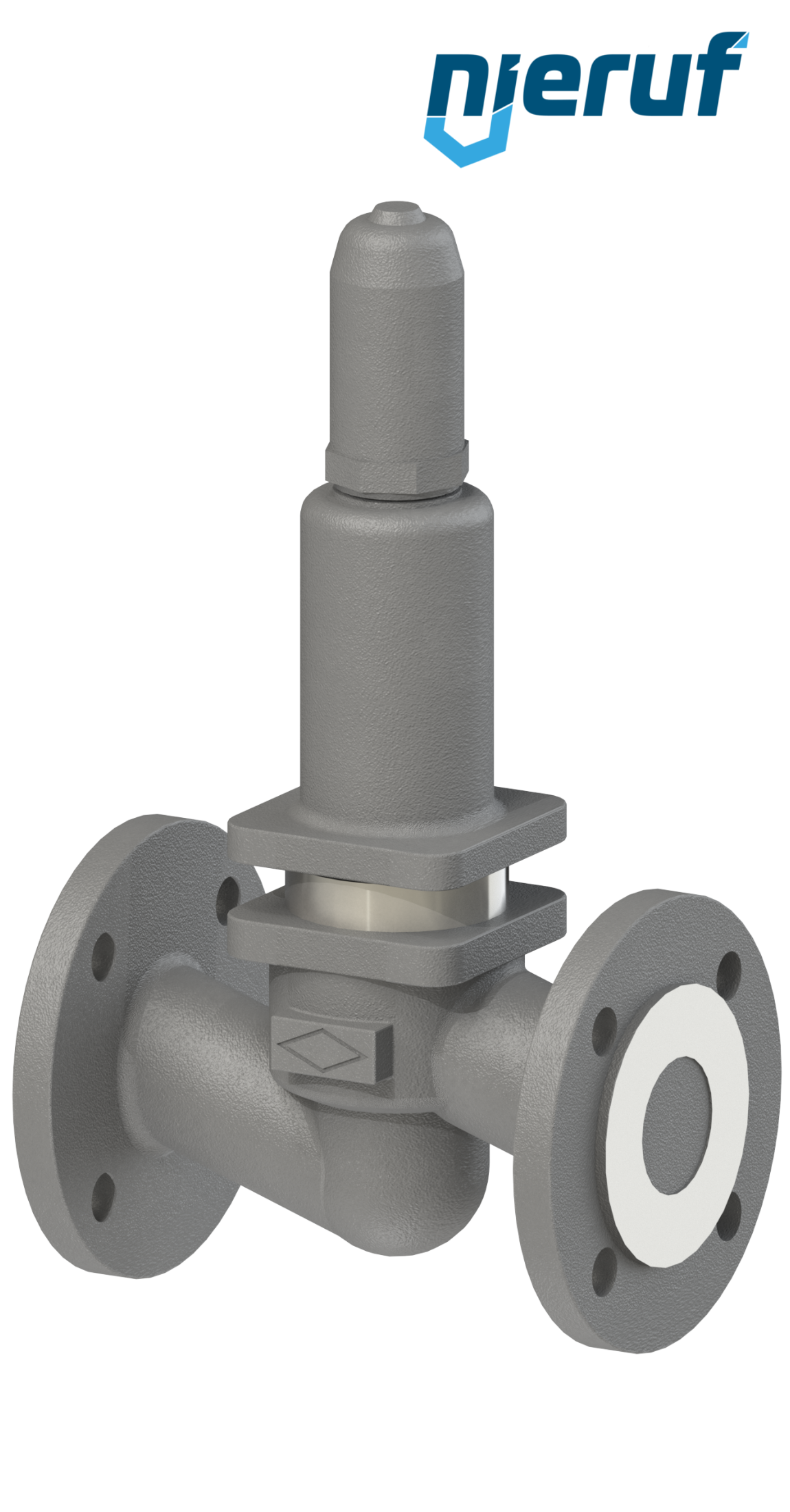

piston overflow valve DN 15 UV13 grey cast iron EN-JL1040 4,0 - 10,0 bar
- Lead time
- 1 - 2 weeks
Equipment
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 16,0 bar
€12.61 VAT included.
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Flange DN15 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€11.19 VAT included.
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
€2.38 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
piston overflow valve DN 15 UV13 grey cast iron EN-JL1040 4,0 - 10,0 bar
piston overflow valve DN 15 type UV13 made of grey cast iron EN-JL1040 pressure range 4,0 - 10,0 bar seal metall for liquid and gaseous media
| product | piston overflow valve |
|---|---|
| type | UV13 |
| manufacturer | NieRuf |
| diameter | DN 15 |
| connection | flange connection DIN 1092-2 PN16 |
| seal | metall |
| media | liquid and gaseous media |
| temperature | -10°C to +300°C |
| range of adjustment | 4,0 - 10,0 bar |
| design | straight through, spring loaded |
| material | grey cast iron EN-JL1040 |
| plug unit | 1.4201+QT |
| approval | TA - Air TÜV-Test-No. 922-9241371 |
| installation position | upright, bonnet showing upwards |
| product feature | Spring operated Overflow valve with proportional operating characteristics. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
piston overflow valve DN 15 UV13 grey cast iron EN-JL1040 4,0 - 10,0 bar
Article no.
: UV13040103
product:
piston overflow valve
type:
UV13
manufacturer:
NieRuf
diameter:
DN 15
connection:
flange connection DIN 1092-2 PN16
seal:
metall
media:
liquid and gaseous media
temperature:
-10°C to +300°C
range of adjustment:
4,0 - 10,0 bar
design:
straight through, spring loaded
material:
grey cast iron EN-JL1040
plug unit:
1.4201+QT
approval:
TA - Air TÜV-Test-No. 922-9241371
installation position:
upright, bonnet showing upwards
product feature:
Spring operated Overflow valve with proportional operating characteristics.
