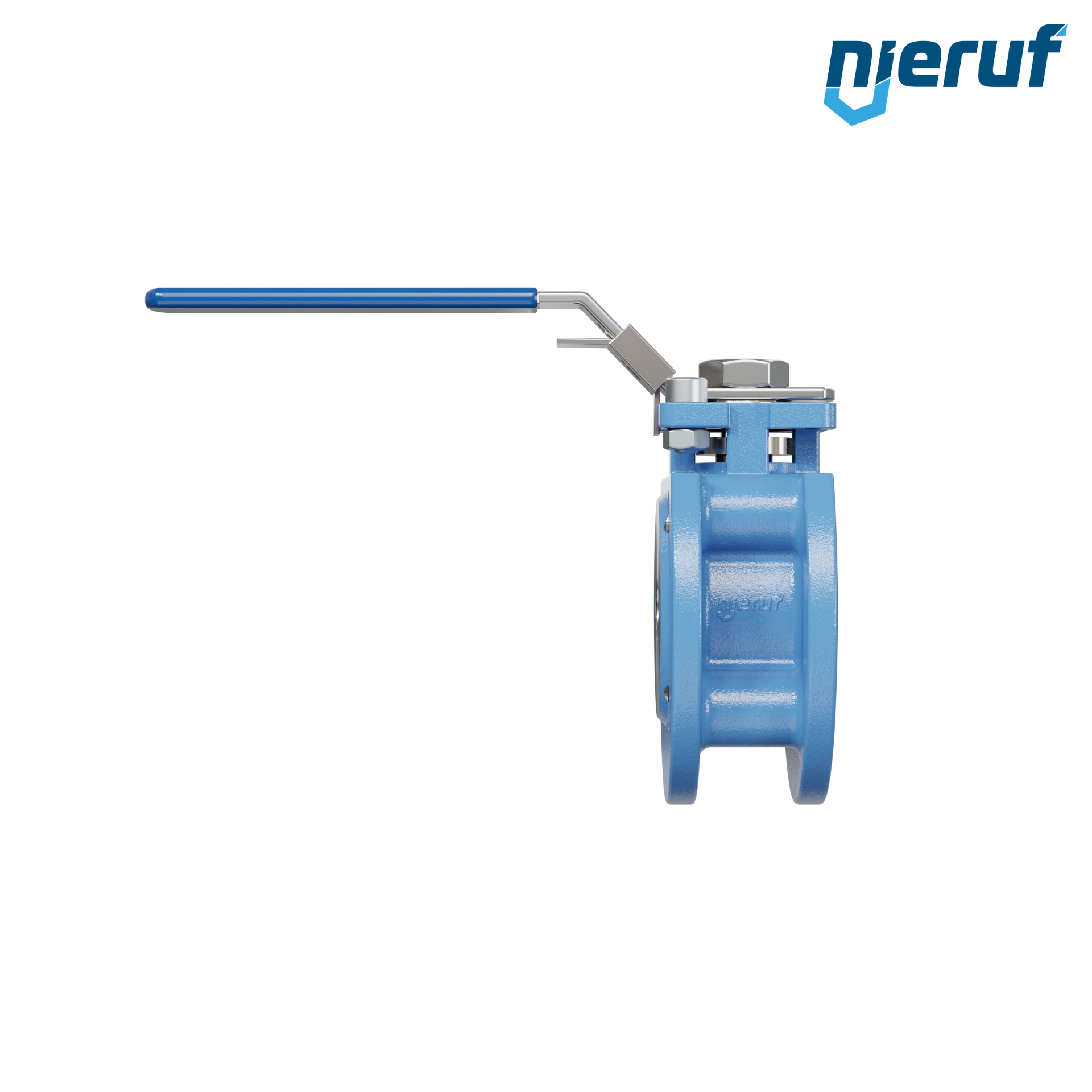

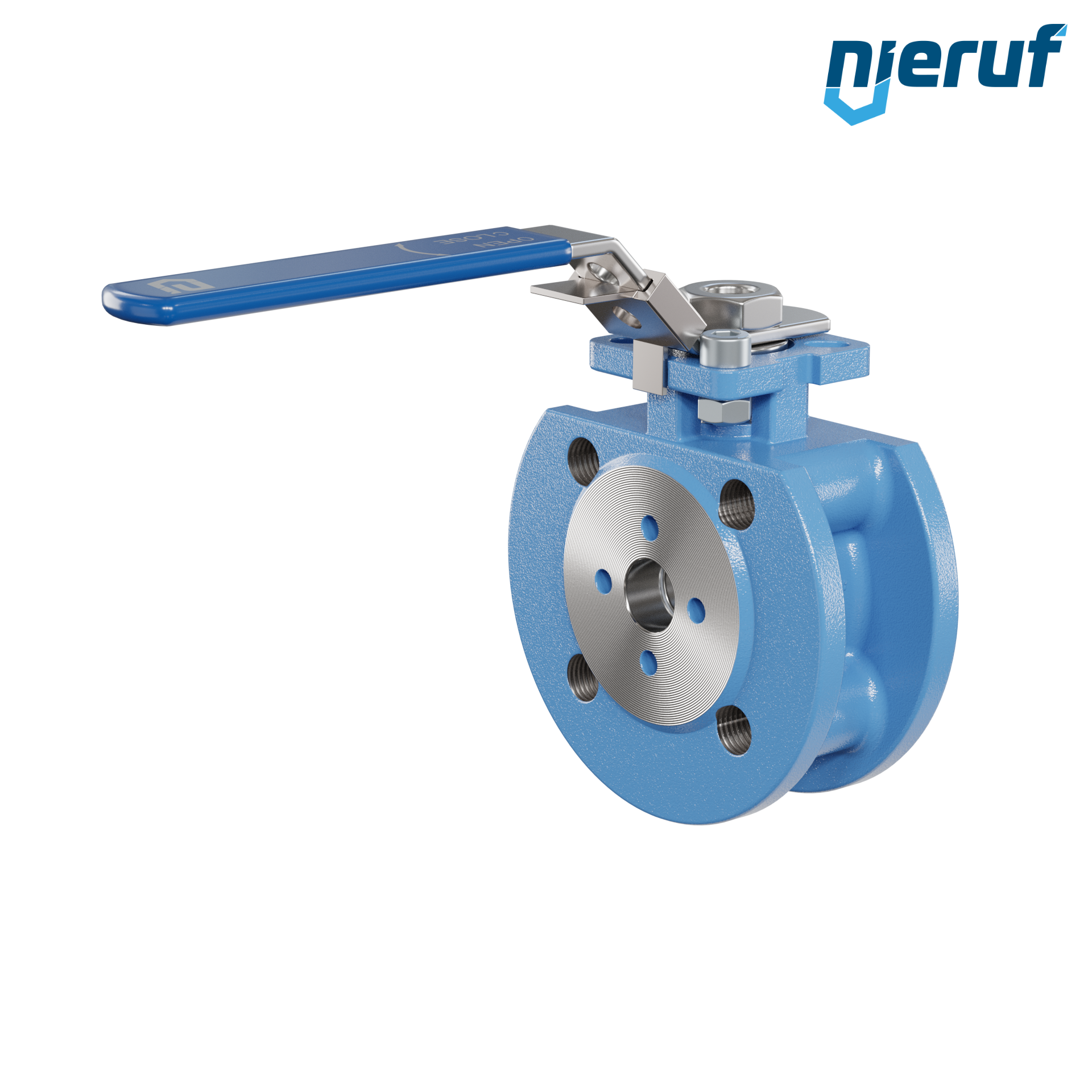

Compact ball valve DN15 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4408

FK03000003
quantity (pcs.):
51.90€ * 60.20€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Compact ball valve DN15 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4408
Compact ball valve DN15 PN16 FK03 body carbon steel 1.0619 ball stainless steel 1.4408 seal PTFE / TFM for liquid and gaseous media
diameter: DN15
connection: flange dimensions acc. DIN EN 1092-1
Seal steam: O-ring Viton
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: full port design
body material: carbon steel 1.0619
ball material: stainless steel 1.4408
ball seal: PTFE / TFM
length: 42mm
actuator: hand lever made of steel
installation position: any position
product description: This high quality ball valve is made of steel with blow out proof stem design and direct mounting of actuators is possible. Two-piece body valve with flange dimensions acc. to EN 1092-1 (DIN 2501-1)
Compact ball valve DN15 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4408

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Compact ball valve DN15 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4408
