FS02020214

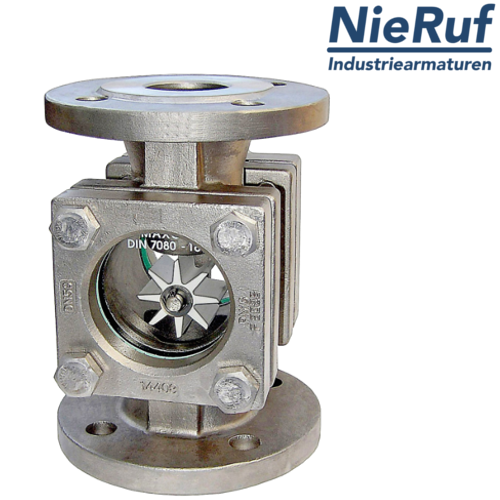

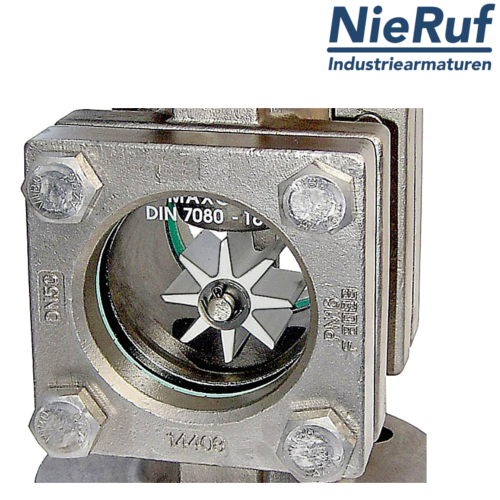

flange sight flow indicator DN200 GS - C25 borosilicate glass version with PTFE-spinner
- Lead time
- 3 - 4 weeks
Equipment
flange seal DN200 PN10/16 220x273x2 Klingersil C 4400
€10.71 VAT included.
joint set flange/flange DN200 - 8" Inch for flange PN10 steel
€36.18 VAT included.
Flange DN200 PN10 EN1092-1 11 B1 C22.8 / P250GH bare
€101.39 VAT included.
sight glass round SG01 Ø 200 x 30 mm round DIN 7080 - 16
€227.77 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN200 GS - C25 borosilicate glass version with PTFE-spinner
flange sight flow indicator DN200 cast iron PTFE-spinner Typ FS02 borosilicate glass max 16 bar
| product | flange sight flow indicator |
|---|---|
| type | FS02 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN200 |
| connection | flange PN16 |
| body material | carbon steel 1.0619 / WCB |
| cover material | carbon steel 1.0619 / WCB |
| glass | borosilicate glass |
| seal | graphit |
| media | liquid media |
| temperature | -10°C up to + 280°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
| product feature | version with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN200 GS - C25 borosilicate glass version with PTFE-spinner
Article no.
: FS02020214
product:
flange sight flow indicator
type:
FS02
manufacturer:
NieRuf
design:
straightway form
diameter:
DN200
connection:
flange PN16
body material:
carbon steel 1.0619 / WCB
cover material:
carbon steel 1.0619 / WCB
glass:
borosilicate glass
seal:
graphit
media:
liquid media
temperature:
-10°C up to + 280°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
any position
product feature:
version with PTFE-spinner
Equipment
flange seal DN200 PN10/16 220x273x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN200 - 8" Inch for flange PN10 steel
Lead time: in stock
