FS03010104

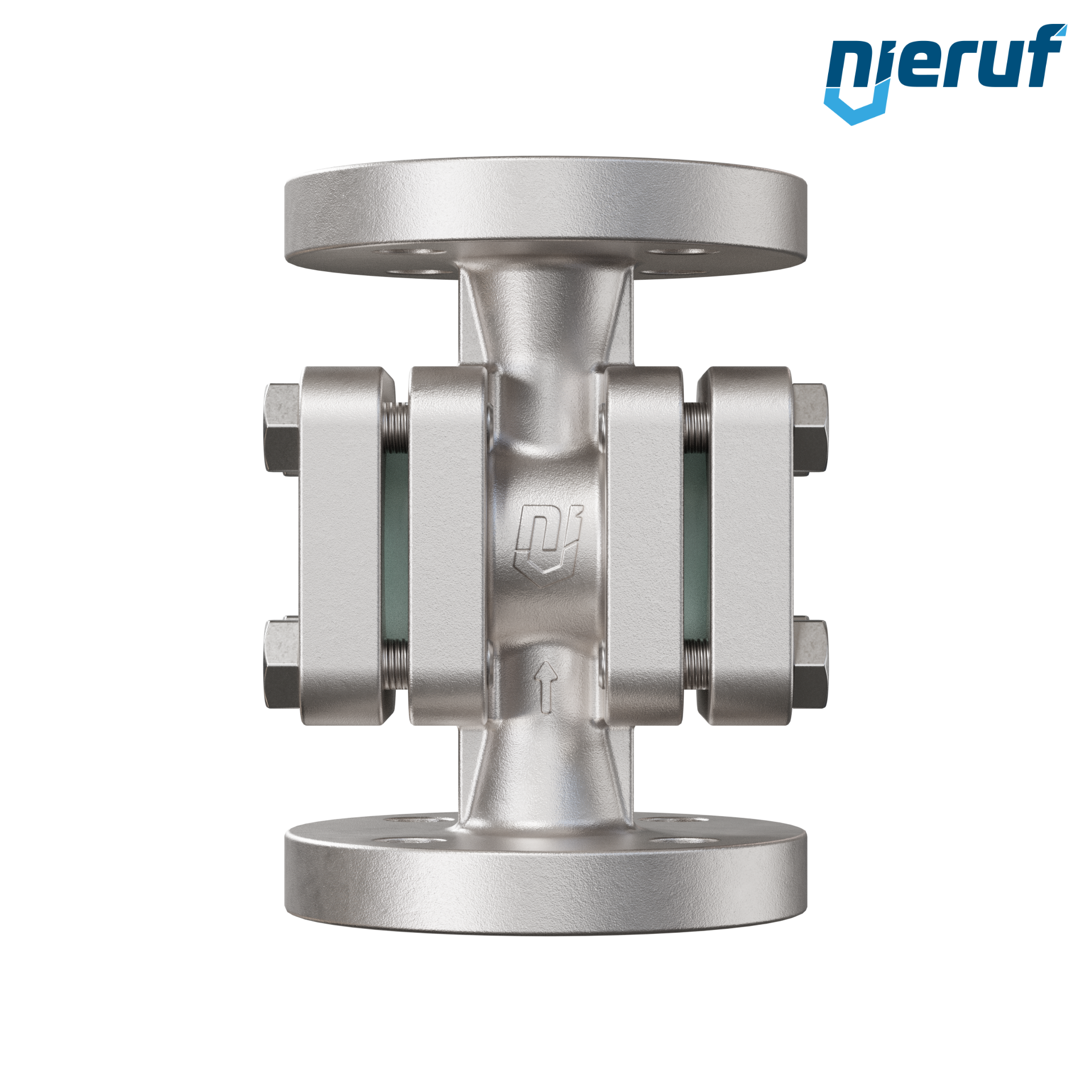

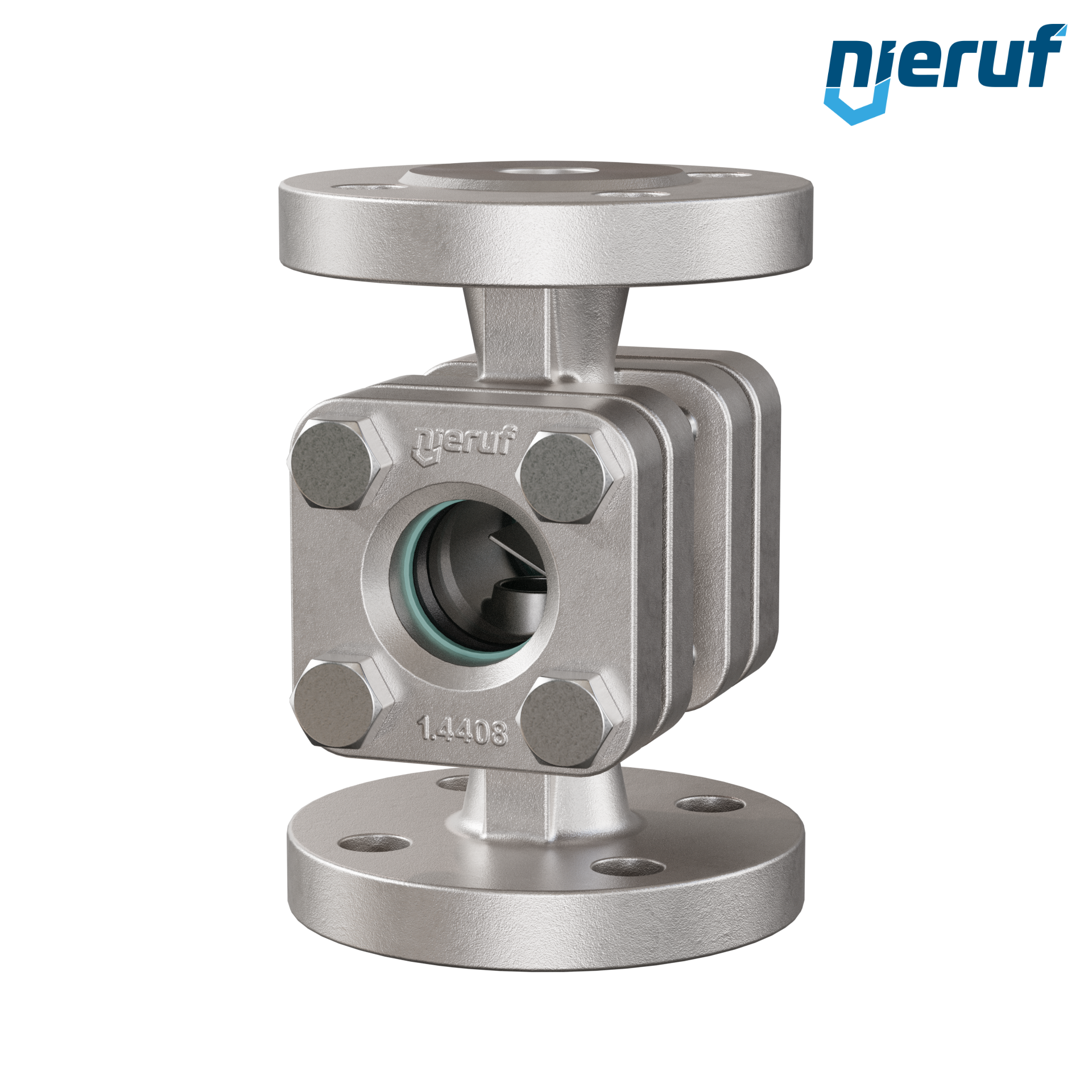

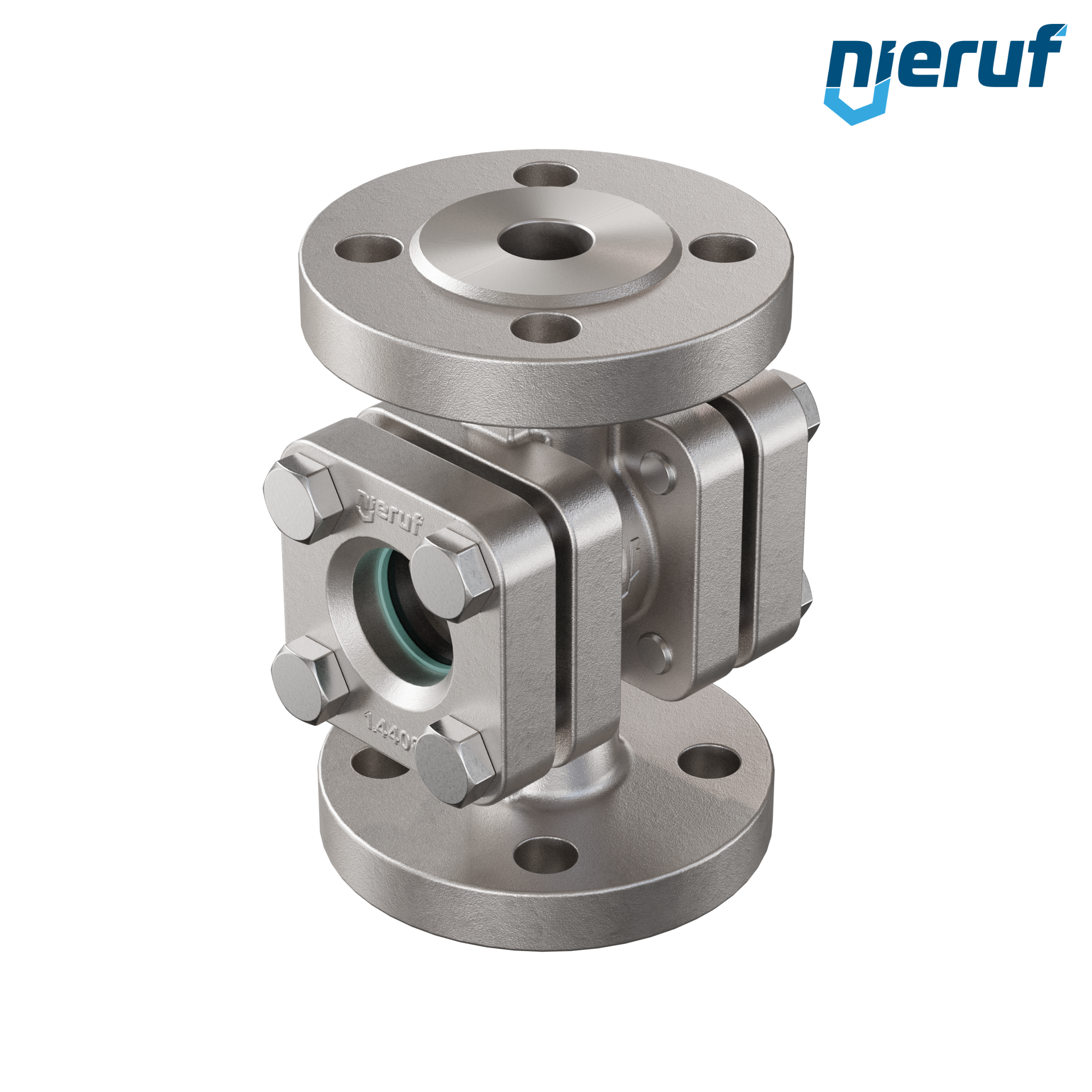

flange sight flow indicator DN20 stainless steel soda lime glass version with flap
- Lead time
- 3 - 4 weeks
Equipment
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541
€18.92 VAT included.
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 stainless steel
€4.28 VAT included.
flange seal DN20 PN10/16/25/40 27x61x2 Klingersil C 4400
€2.14 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN20 stainless steel soda lime glass version with flap
flange sight flow indicator DN20 stainless steel flap Typ FS03 soda lime glass max 16 bar version with flap
| product | flange sight flow indicator |
|---|---|
| type | FS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN20 |
| connection | flange PN16 |
| body material | stainless steel 1.4408 / CF8M |
| cover material | stainless steel 1.4408 / CF8M |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -60°C up to + 150°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | horizontal or vertical with direction of flow from the bottom up |
| product feature | version with flap |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN20 stainless steel soda lime glass version with flap
Article no.
: FS03010104
product:
flange sight flow indicator
type:
FS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN20
connection:
flange PN16
body material:
stainless steel 1.4408 / CF8M
cover material:
stainless steel 1.4408 / CF8M
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-60°C up to + 150°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
horizontal or vertical with direction of flow from the bottom up
product feature:
version with flap
Equipment
flange seal DN20 PN10/16/25/40 27x61x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
pipe bend (welded) 90° 26,9 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 33,7 x 2,0 to 21,3 x 1,6 stainless steel 1.4571
Lead time: in stock
