Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541

FL01000104
Preview: High pressure ball valve DN32 - 1 1/4" inch GK06 2 Preview: High pressure ball valve DN32 - 1 1/4" inch GK06 3 Preview: ball valve made of carbon steel DN25 - 1" inch GK06 1 Preview: ball valve made of carbon steel DN25 - 1" inch GK06 2
High pressure ball valve DN32 - 1 1/4" inch GK06 2
High pressure ball valve DN32 - 1 1/4" inch GK06 3
ball valve made of carbon steel DN25 - 1" inch GK06 1
ball valve made of carbon steel DN25 - 1" inch GK06 2

quantity (pcs.):
10.40€ * 12.06€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Friday, 23. October
Guaranteed delivery until Monday, 26. October, 12 Uhr:
order within 16 hours & 50 minutes via express shipping
Downloads:
datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Description Announcement Downloads
Description
more
Close menu
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541
Welding neck flange DN20 flange acc. DIN PN10/16/25/40 EN1092-1 Typ 11 B1 made of stainless steel 1.4541
diameter: DN20
connection: PN10/16/25/40
material: stainless steel
material nr.: 1.4541
norm: EN1092-1
norm-type: 11
surface: B1
Design: Welding neck flange
Ø A: 26,9
D: 105
C2: 18
K: 75
H2: 40
N1: 40
S: 2,3
R1: 4
d1: 58
f1: 2
screw: M12
Qty. Screws: 4
L: 14
Announcement
more
Close menu
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Downloads
Close menu
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541

datasheet 3D model
Accessories 6
Accessories 6
flange-safety vlave DN50/DN50 SF0101, cast iron EN-JL1040 metal, without lever 3

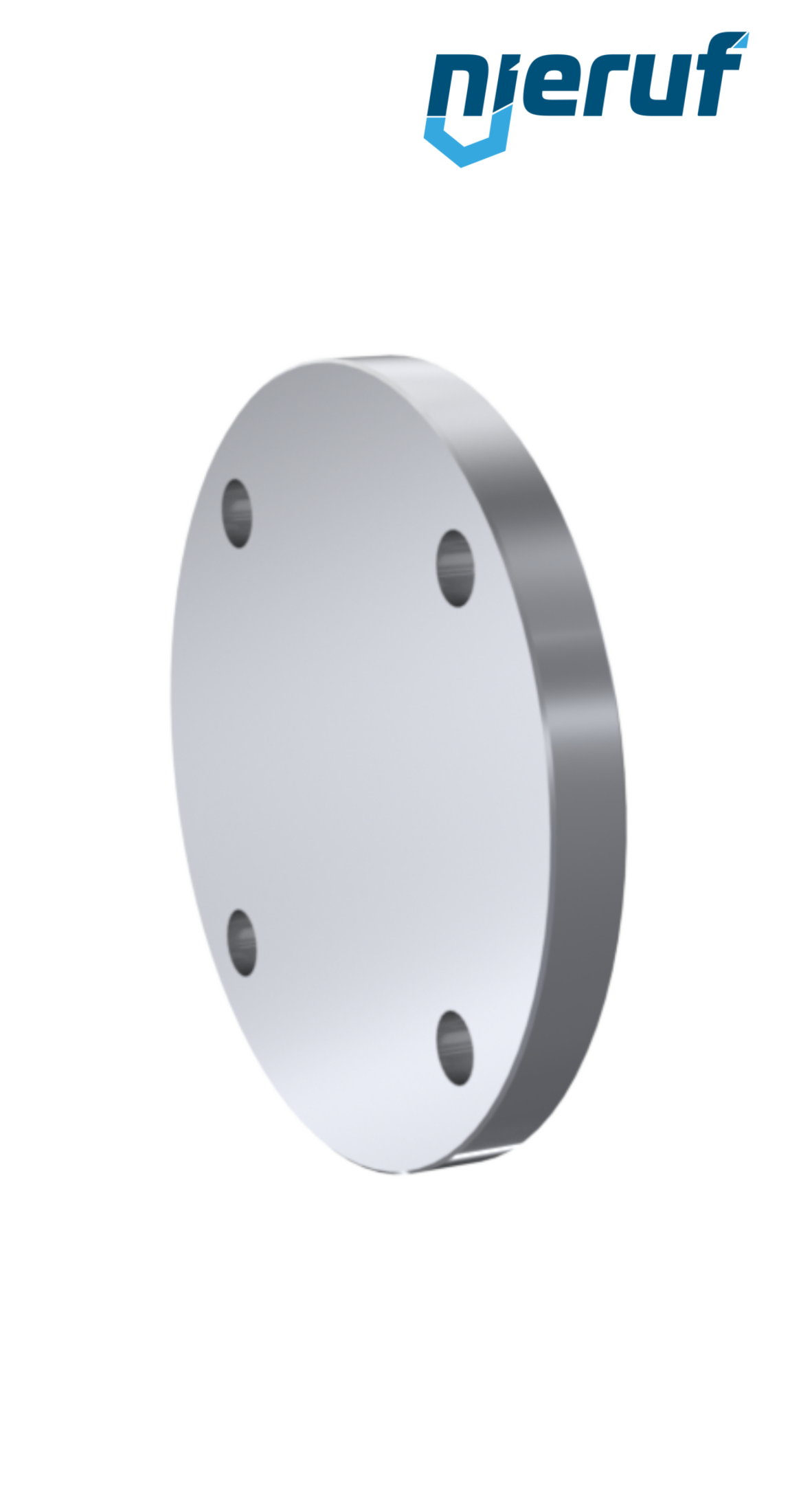

Blank flange DN20 PN10/16/25/40 EN1092-1 05 A 1.4541
