FS03020213

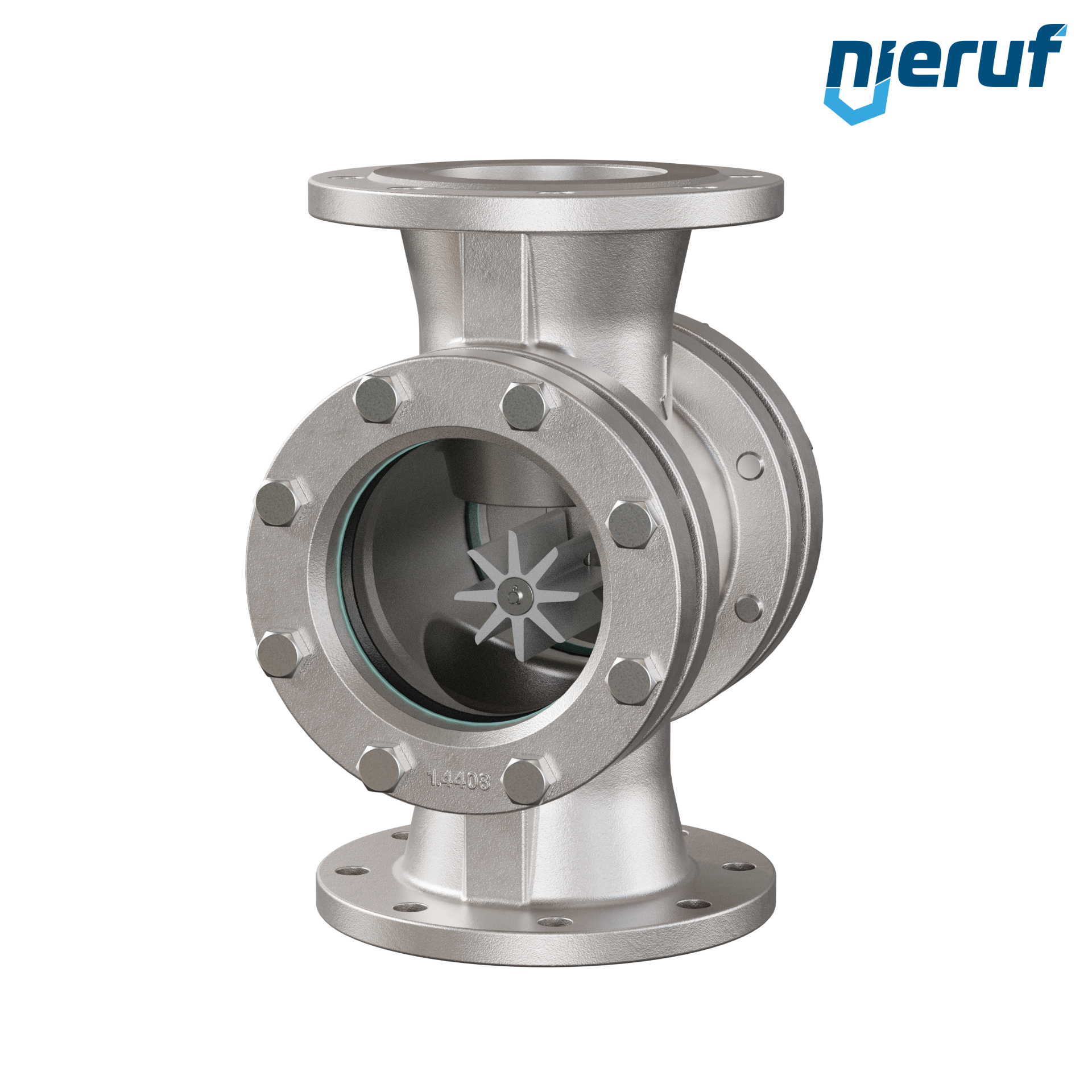

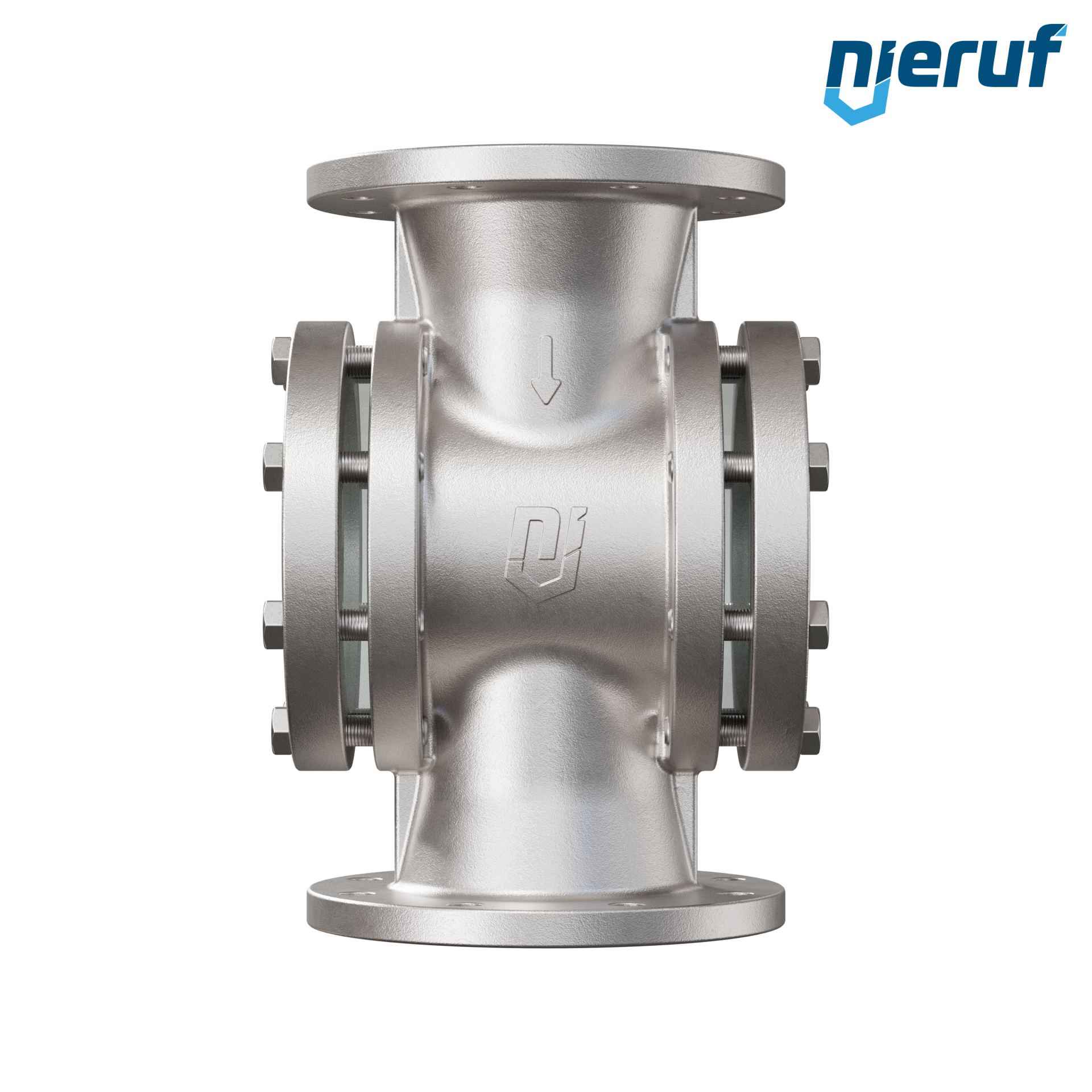

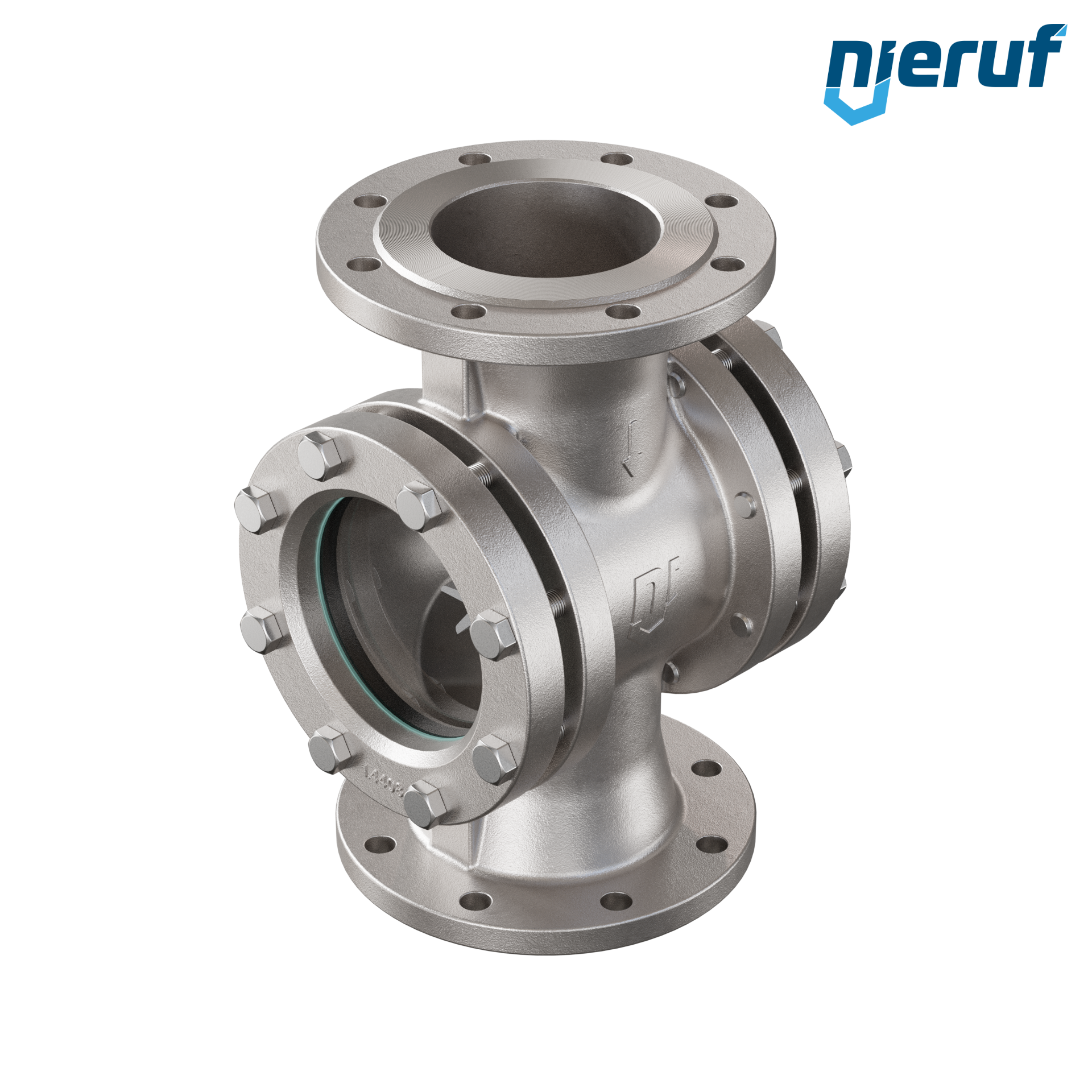

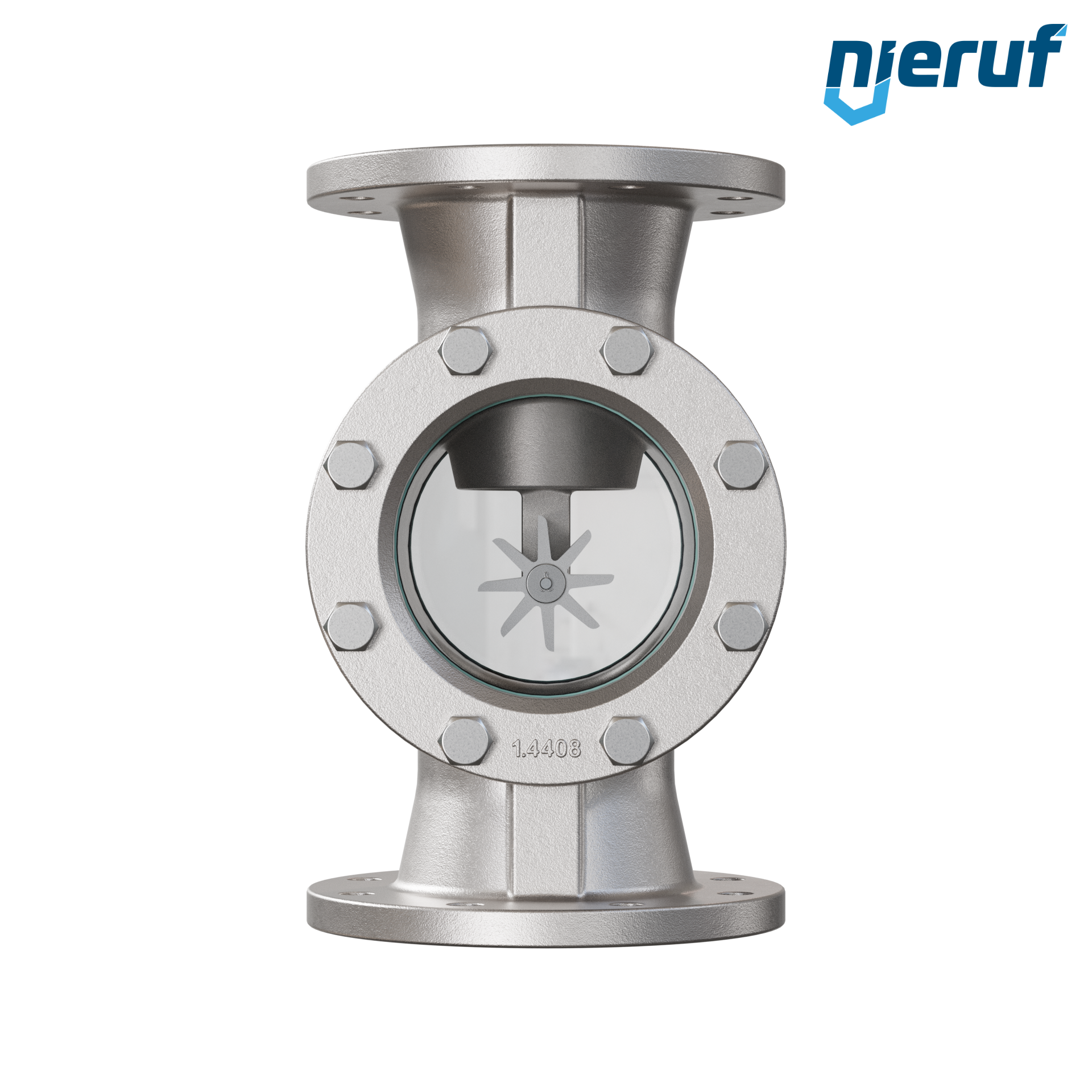

flange sight flow indicator DN150 stainless steel borosilicate glass version with PTFE-spinner
- Delivery time
- 2 - 3 weeks
Equipment
joint set flange/flange DN150 - 6" Inch for flange PN10/16/25 stainless steel
€25.70 VAT included.
Questions about the article?
Downloads
flange sight flow indicator DN150 stainless steel PTFE-spinner Typ FS03 borosilicate glass graphit max 16 bar
| product | flange sight flow indicator |
|---|---|
| type | FS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN150 |
| connection | flange PN16 |
| body material | stainless steel 1.4408 / CF8M |
| cover material | stainless steel 1.4408 / CF8M |
| glass | borosilicate glass |
| seal | graphit |
| media | liquid media |
| temperature | -60°C up to + 280°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
| product feature | design with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN150 stainless steel borosilicate glass version with PTFE-spinner
Article no.
: FS03020213
product:
flange sight flow indicator
type:
FS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN150
connection:
flange PN16
body material:
stainless steel 1.4408 / CF8M
cover material:
stainless steel 1.4408 / CF8M
glass:
borosilicate glass
seal:
graphit
media:
liquid media
temperature:
-60°C up to + 280°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
any position
product feature:
design with PTFE-spinner
