flange sight flow indicator DN125 - 5" Inch grey cast iron GG25 soda lime glass design with PTFE-spinner

FS01010212
quantity (pcs.):
945.20€ * 1,124.79€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

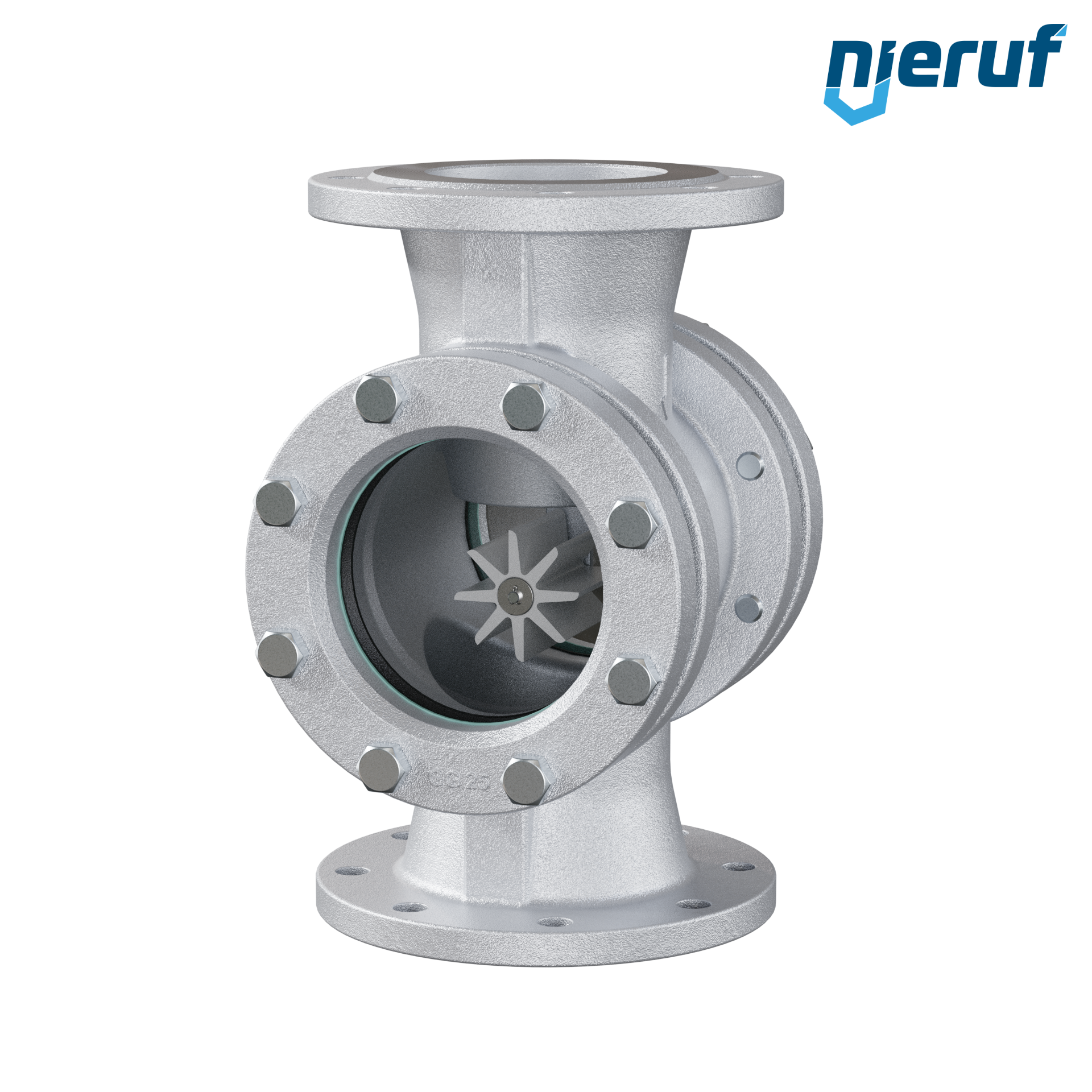

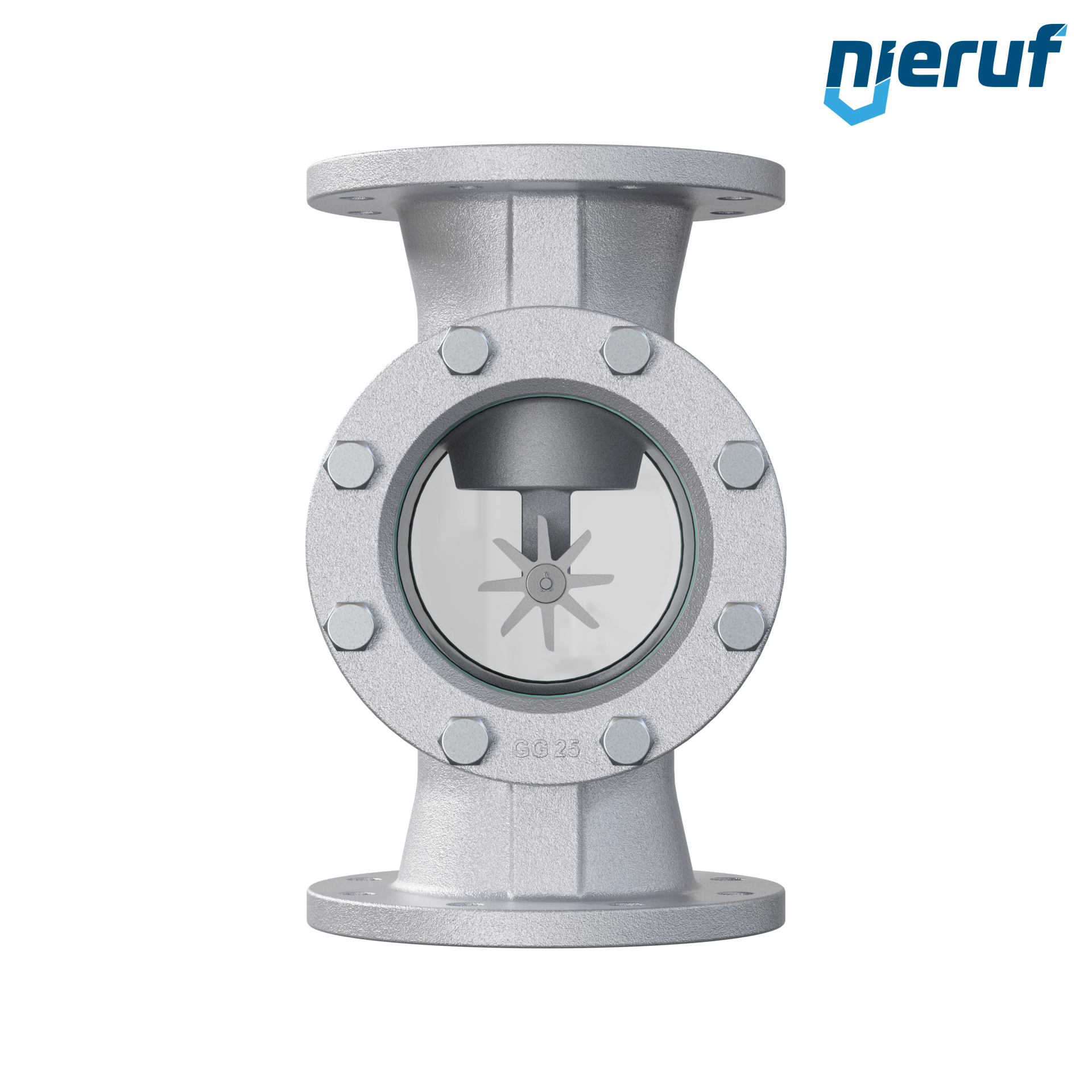

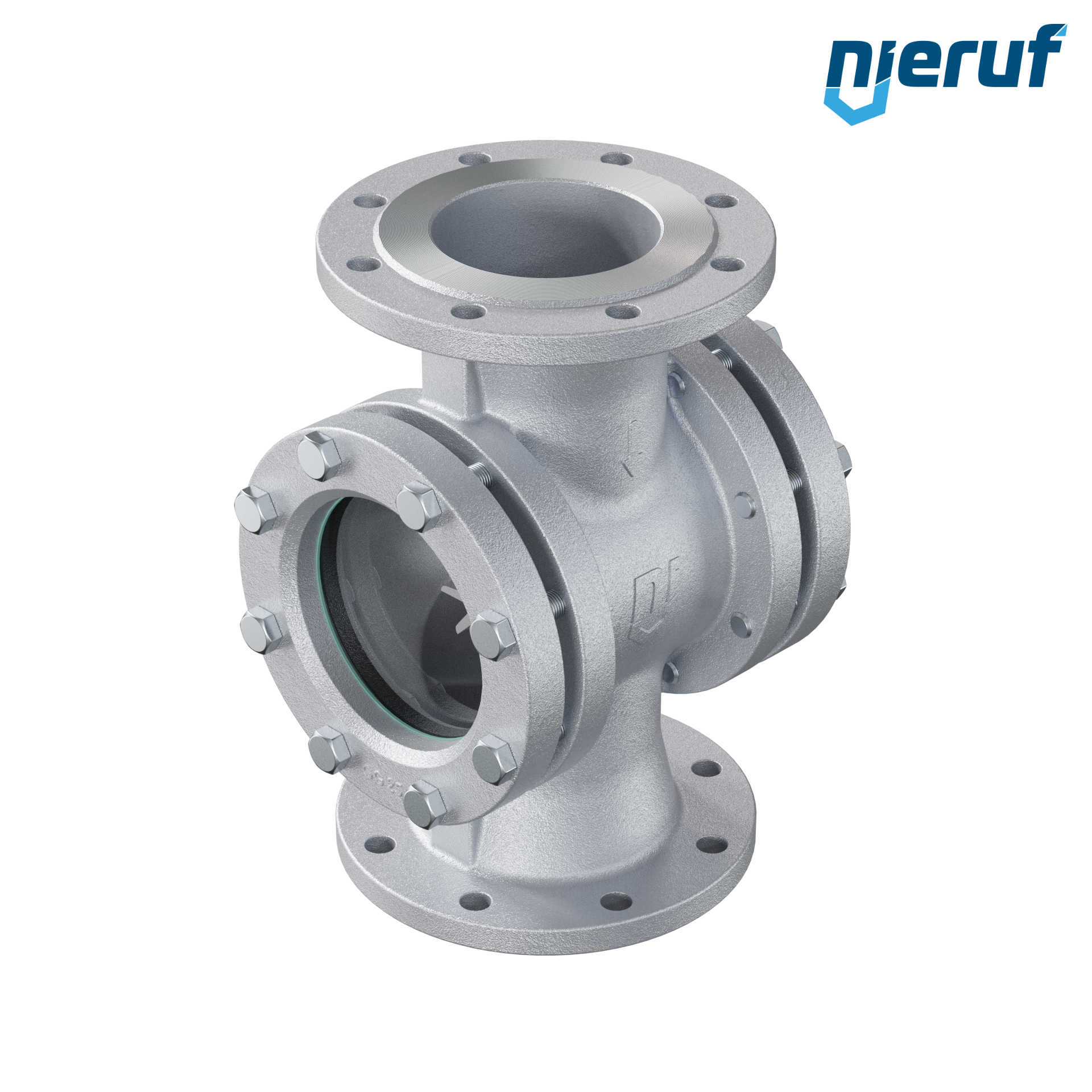

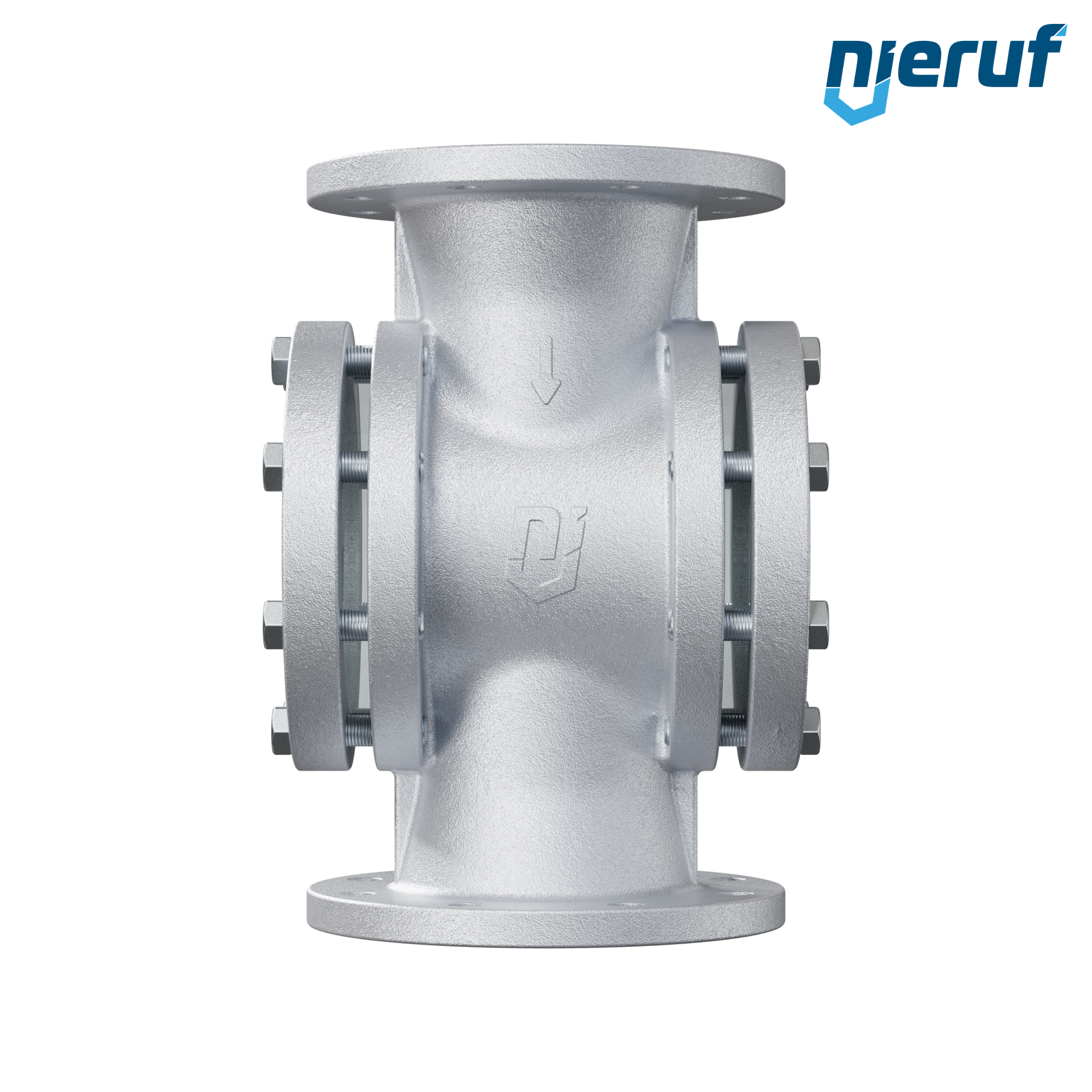

flange sight flow indicator DN125 - 5" Inch grey cast iron GG25 soda lime glass design with PTFE-spinner
flange sight flow indicator DN125 soda lime glass Typ FS01 grey cast iron GG25 graphit max 16 bar design with PTFE-spinner
design: straightway form
diameter: DN125 - 5" Inch
connection: flange PN16
body material: grey cast iron GG25
cover material: grey cast iron GG25
glass: soda lime glass
seal: graphit
media: liquid media
temperature: min -10°C up to max + 150°C
max. working pressure: max 16 bar
requirements: DIN 3237
installation position: any position
product feature: design with PTFE-spinner
flange sight flow indicator DN125 - 5" Inch grey cast iron GG25 soda lime glass design with PTFE-spinner

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

flange sight flow indicator DN125 - 5" Inch grey cast iron GG25 soda lime glass design with PTFE-spinner
