FS01010111

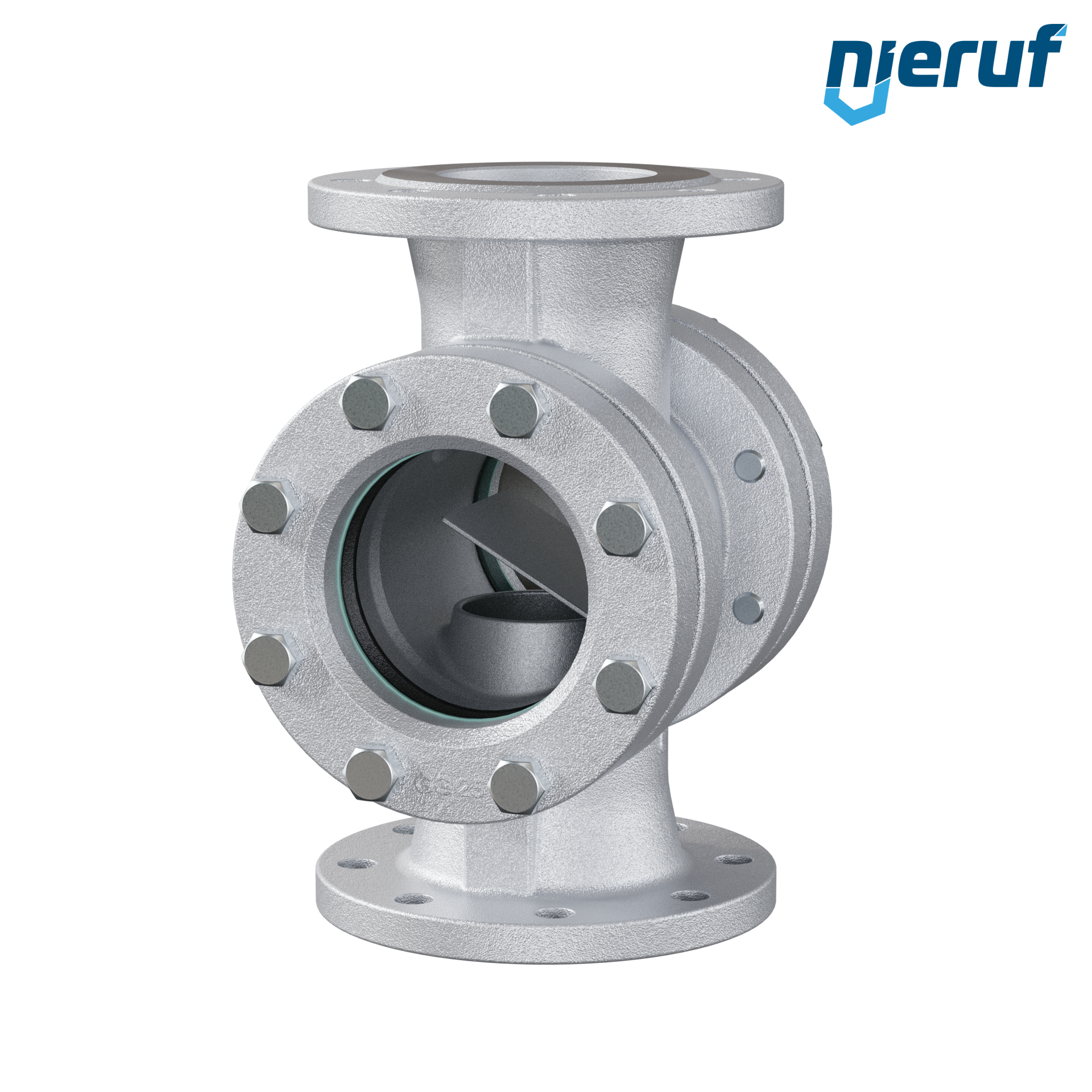

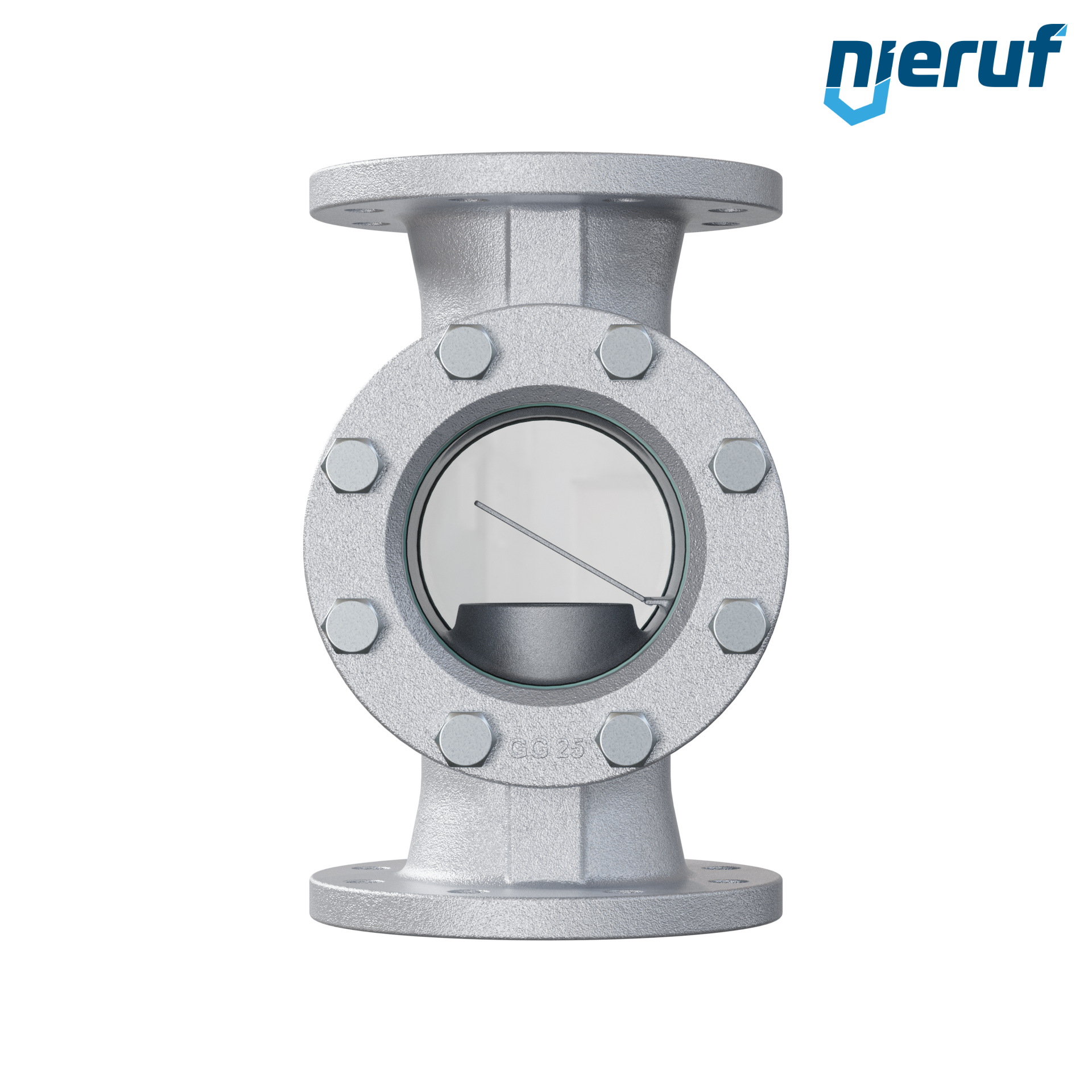

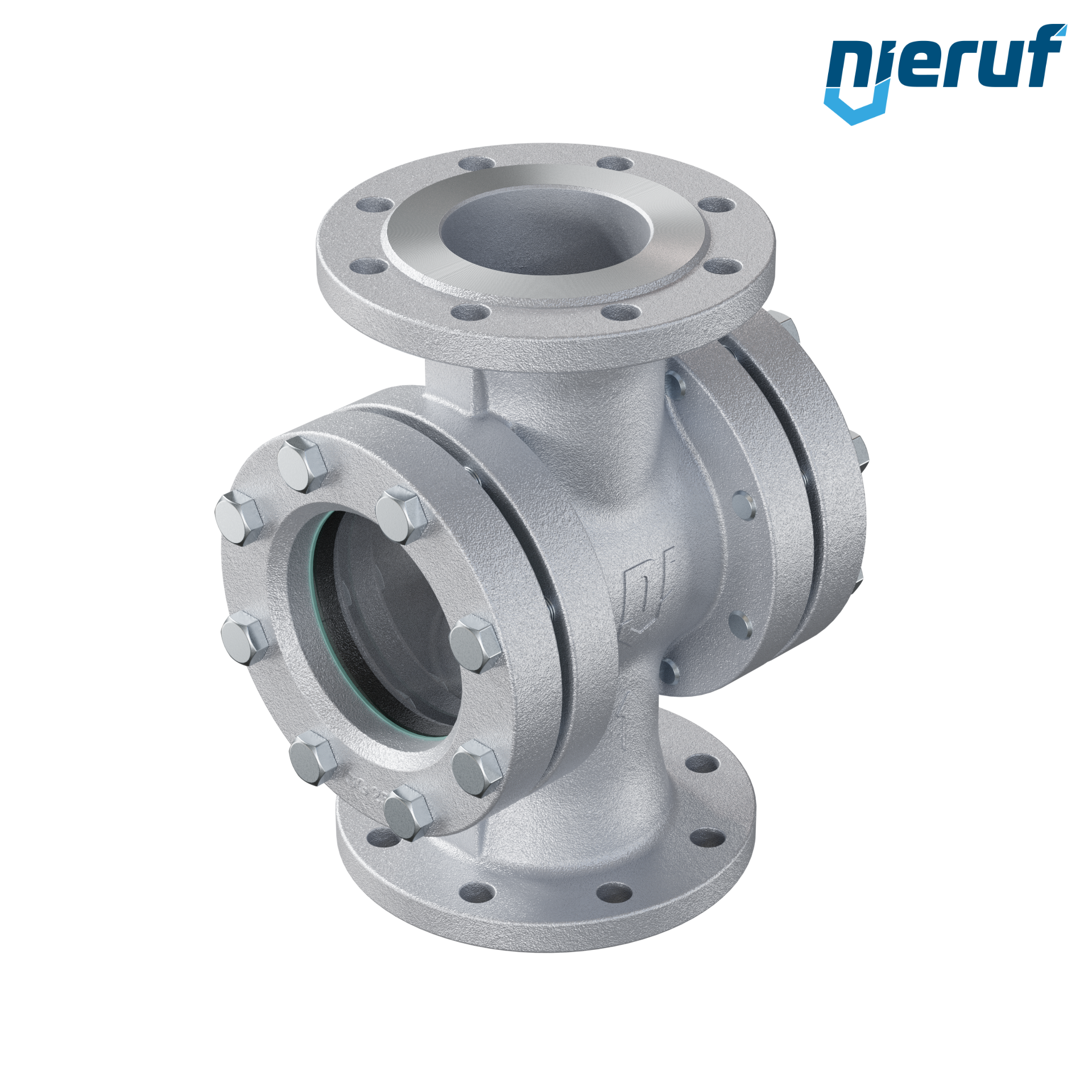

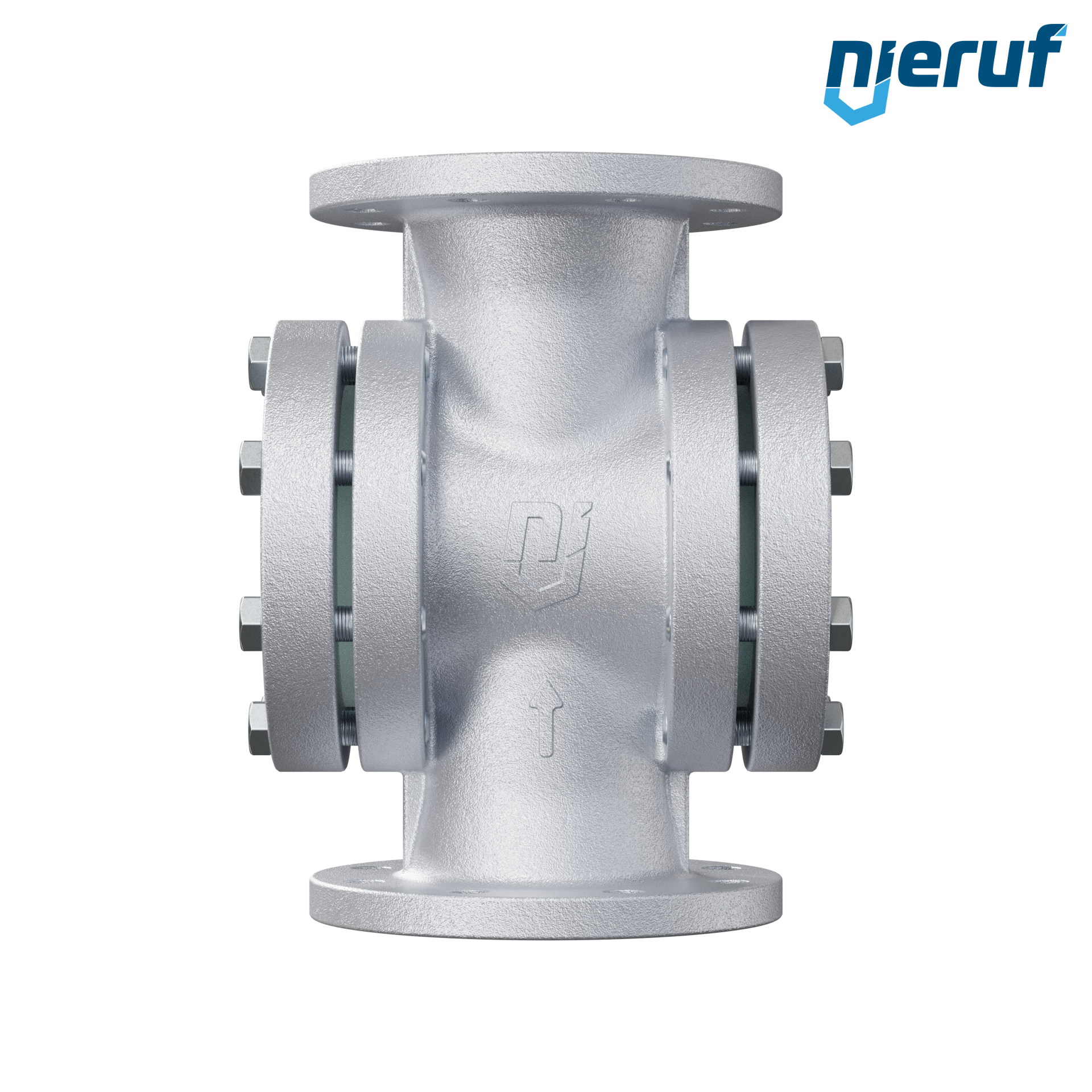

flange sight flow indicator DN100 grey cast iron GG25 soda lime glass version with flap
- Lead time
- 3 - 4 weeks
Equipment
Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€40.70 VAT included.
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
€4.88 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
€15.23 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN100 grey cast iron GG25 soda lime glass version with flap
flange sight flow indicator DN100 - 4" Inch grey cast iron GG25 Typ FS01 soda lime glass graphit max 16 bar version with flap
| product | flange sight flow indicator |
|---|---|
| type | FS01 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN100 |
| connection | flange PN16 |
| body material | grey cast iron GG25 |
| cover material | grey cast iron GG25 |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -10°C up to + 150°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | horizontal or vertical with direction of flow from the bottom up |
| product feature | version with flap |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN100 grey cast iron GG25 soda lime glass version with flap
Article no.
: FS01010111
product:
flange sight flow indicator
type:
FS01
manufacturer:
NieRuf
design:
straightway form
diameter:
DN100
connection:
flange PN16
body material:
grey cast iron GG25
cover material:
grey cast iron GG25
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-10°C up to + 150°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
horizontal or vertical with direction of flow from the bottom up
product feature:
version with flap
Equipment
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
Lead time: in stock
Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
Lead time: 3 - 5 working days
reducing bush (welded) 139,7 x 2,9 to 60,3 x 2,0 stainless steel 1.4571
Lead time: in stock
