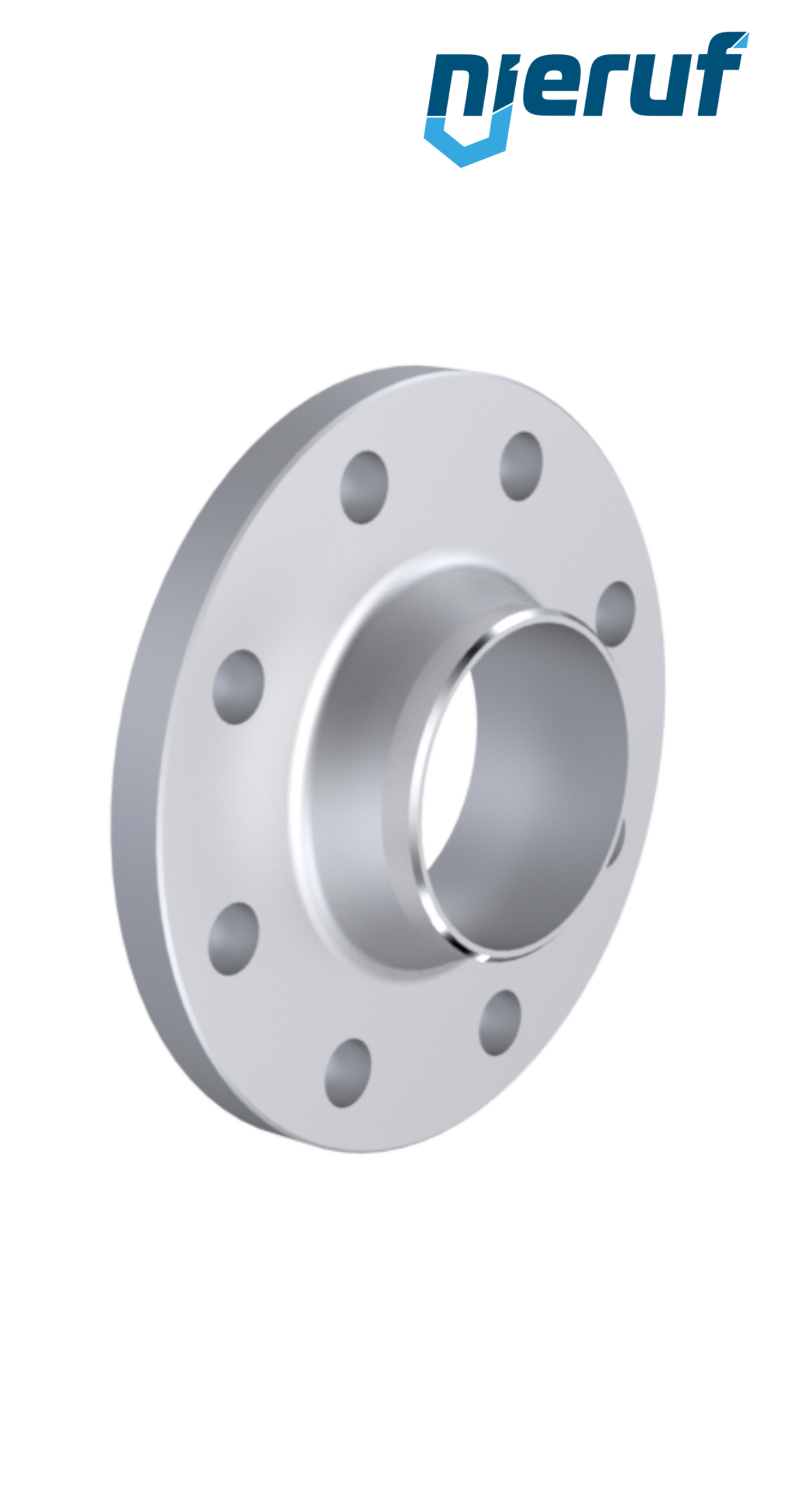

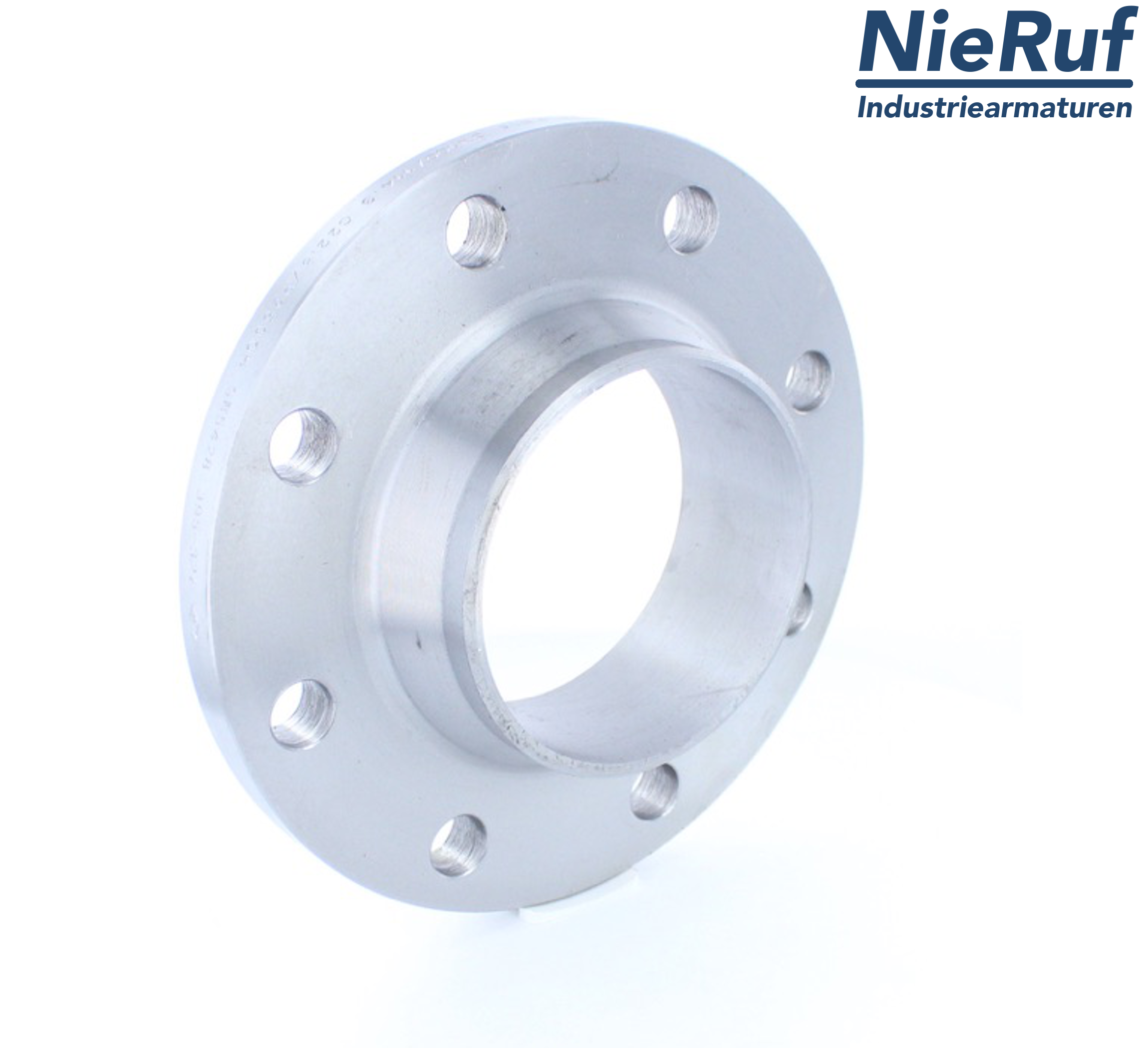

Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

FL01020111
quantity (pcs.):
15.90€ * 18.44€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Wednesday, 21. October
Guaranteed delivery until Thursday, 22. October, 12 Uhr:
order within 16 hours & 2 minutes via express shipping
datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Flange made of steel C22.8 / P250GH bare DN100 flange according DIN PN10/16 EN1092-1 Typ 11 B1
diameter: DN100
connection: PN10/16
material: steel
material nr.: C22.8 / P250GH bare
norm: EN1092-1
norm-type: 11
surface: B1
Design: Welding neck flange

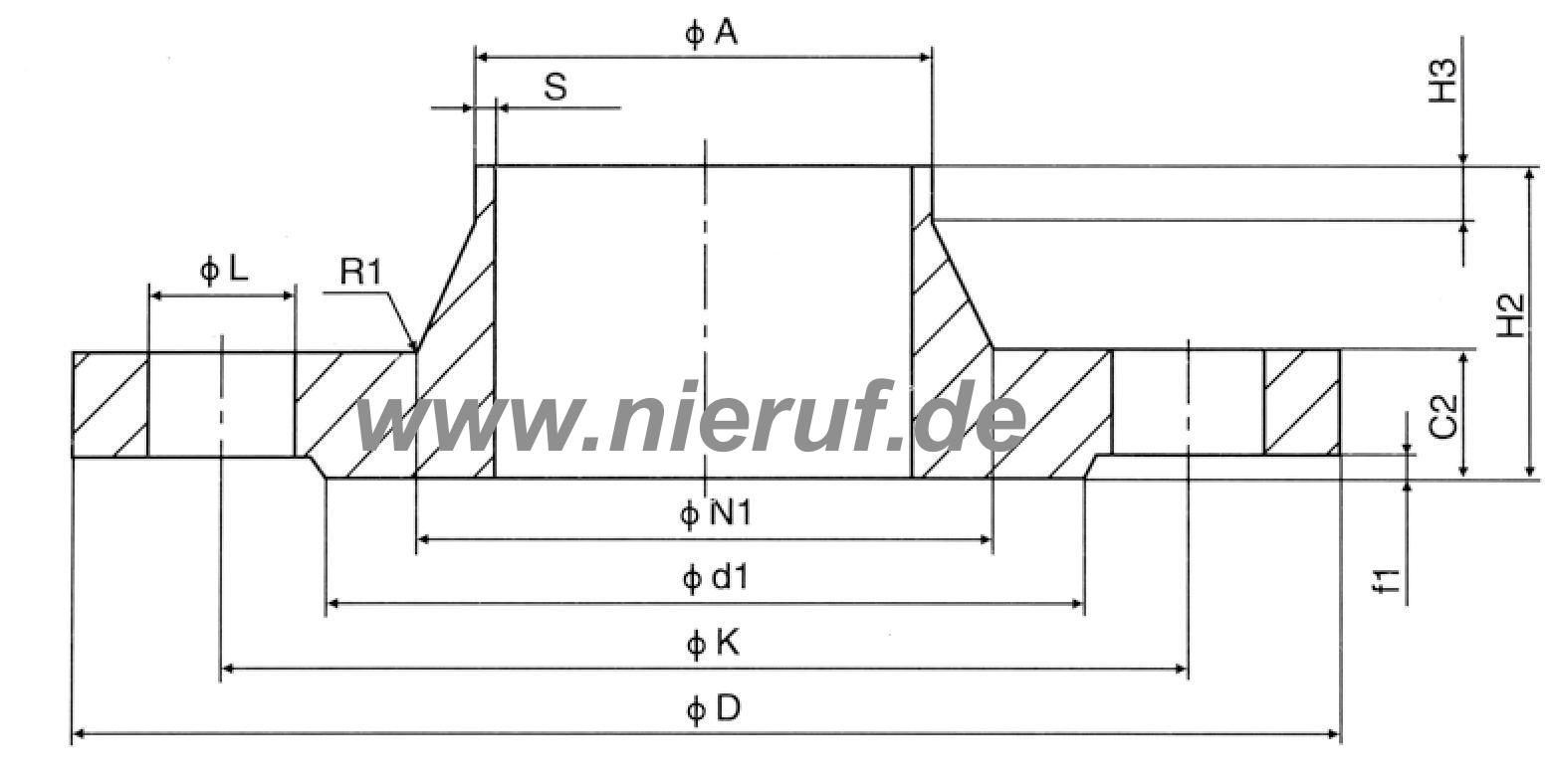

Ø A: 114,3
D: 220
C2: 20
K: 180
H2: 52
N1: 131
S: 3,6
R1: 8
d1: 158
f1: 3
screw: M16
Qty. Screws: 8
L: 18
Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
