FK12000012
flange ball valve DN125 FK12 carbon steel 1.0619
- Lead time
- 3 - 5 working days
Equipment
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
€6.55 VAT included.
stem extension hub length 100 mm square 27mm AD02 stainless steel
€234.31 VAT included.
joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 steel
€16.18 VAT included.
Flange DN125 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€62.59 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

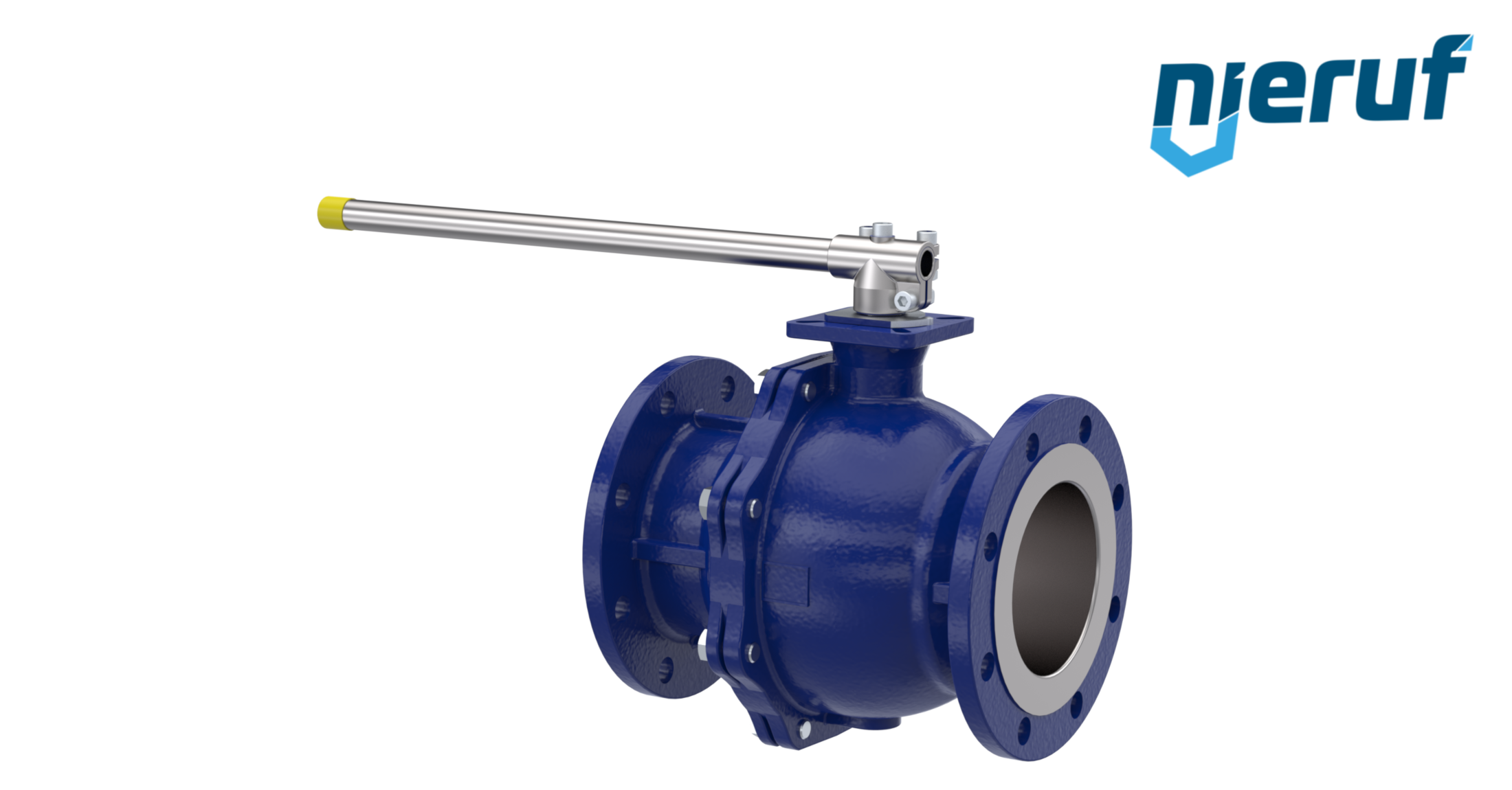

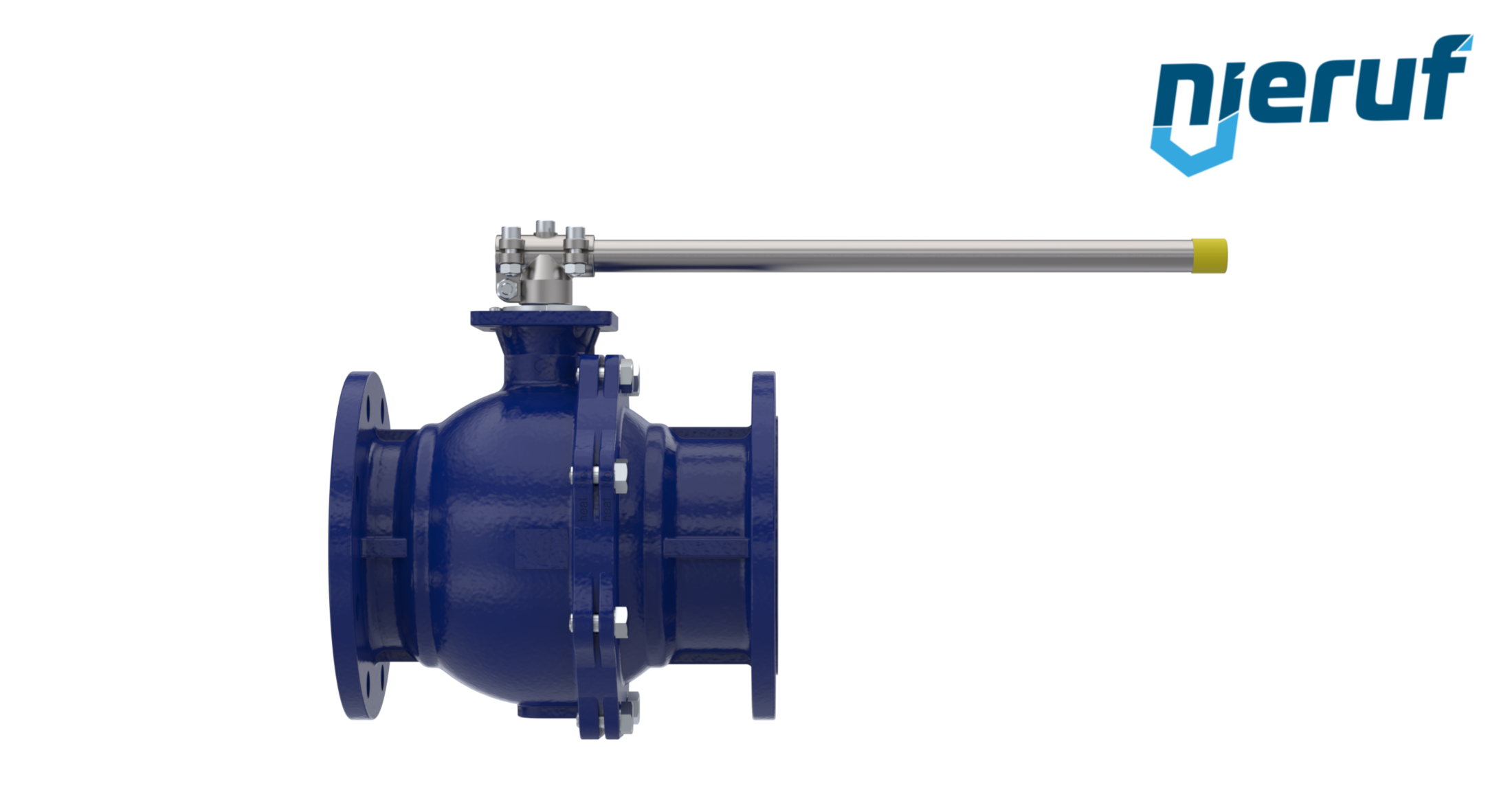

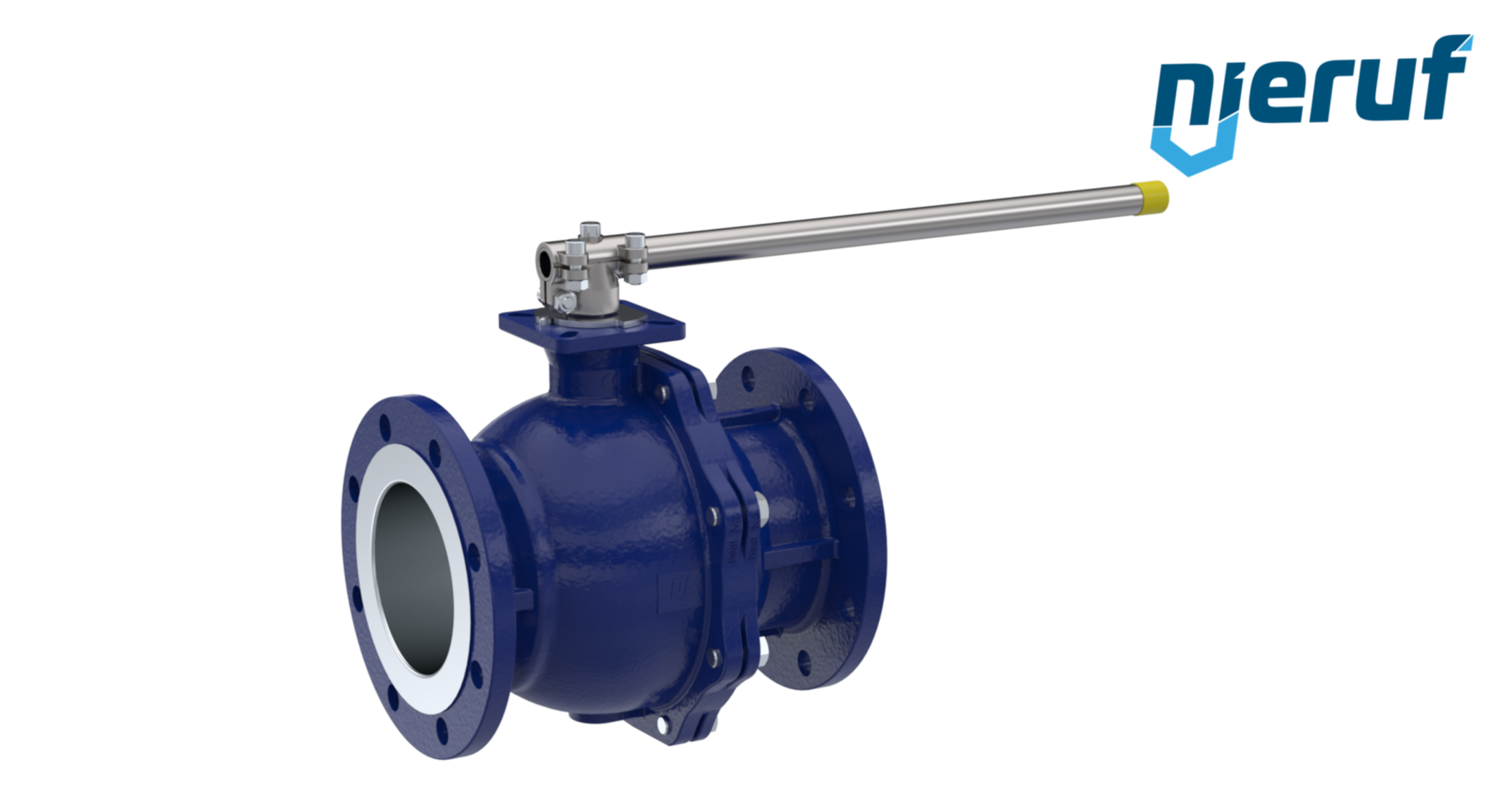

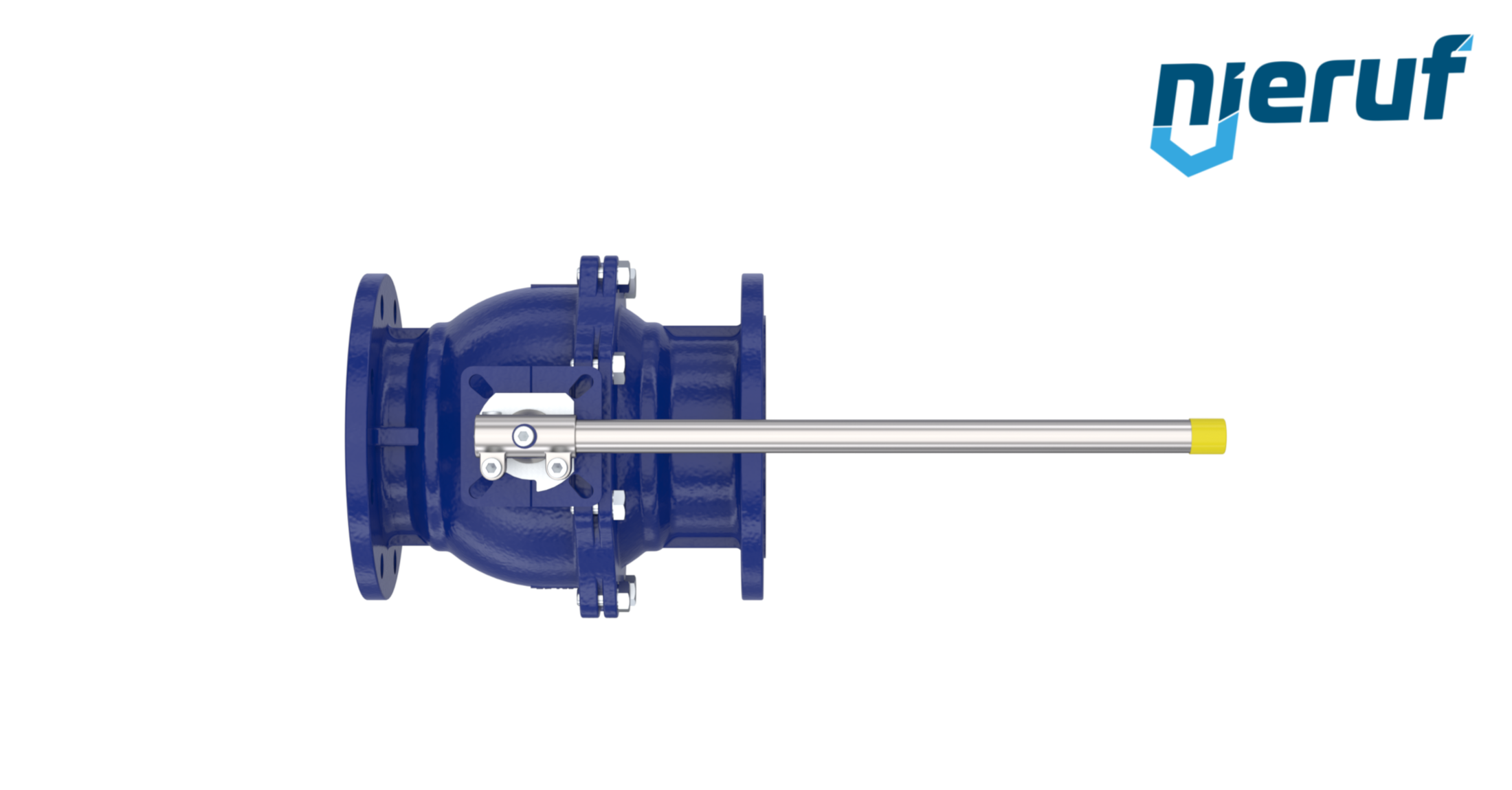

flange ball valve DN125 FK12 carbon steel 1.0619
flange ball valve DN125 PN16 FK12 body carbon steel 1.0619 ball stainless steel 1.4408 seal PTFE / GF for neutral liquid and gaseous media
| product | flange ball valve |
|---|---|
| type | FK12 |
| manufacturer | NieRuf |
| diameter | DN125 |
| connection | flange dimensions acc. to EN 1092-1 |
| Seal steam | PTFE / FKM |
| ball seal | PTFE / GF |
| media | neutral liquid and gaseous media |
| Leakage rate | B |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | full port design |
| body material | carbon steel 1.0619 |
| ball material | stainless steel 1.4408 / CF8M |
| length | DIN EN 558 R 27 |
| actuator | lever handle made of steel |
| installation position | any position |
| authorized for | TA Luft |
| product description | This high quality ball valve is made of carbon steel with blow out proof stem design. Two-piece body valve with mounting flange acc. to DIN ISO 5211. Stem extension is made of steel. The stem seal is 3 - side covered. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange ball valve DN125 FK12 carbon steel 1.0619
Article no.
: FK12000012
product:
flange ball valve
type:
FK12
manufacturer:
NieRuf
diameter:
DN125
connection:
flange dimensions acc. to EN 1092-1
Seal steam:
PTFE / FKM
ball seal:
PTFE / GF
media:
neutral liquid and gaseous media
Leakage rate:
B
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4408 / CF8M
length:
DIN EN 558 R 27
actuator:
lever handle made of steel
installation position:
any position
authorized for:
TA Luft
product description:
This high quality ball valve is made of carbon steel with blow out proof stem design. Two-piece body valve with mounting flange acc. to DIN ISO 5211. Stem extension is made of steel. The stem seal is 3 - side covered.
Equipment
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
Lead time: in stock
Flange DN125 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 steel
Lead time: 3 - 5 working days
stem extension hub length 100 mm square 27mm AD02 stainless steel
Lead time: 3 - 5 working days
