FK02020011
Flange ball valve DN100 FK02 GGG40 ball stainless steel 1.4404 DVGW-Gas
- Lead time
- 3 - 5 working days
Equipment
stem extension hub length 100 mm square 22mm AD02 stainless steel
€52.24 VAT included.
Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€40.70 VAT included.
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
€4.88 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
€15.23 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

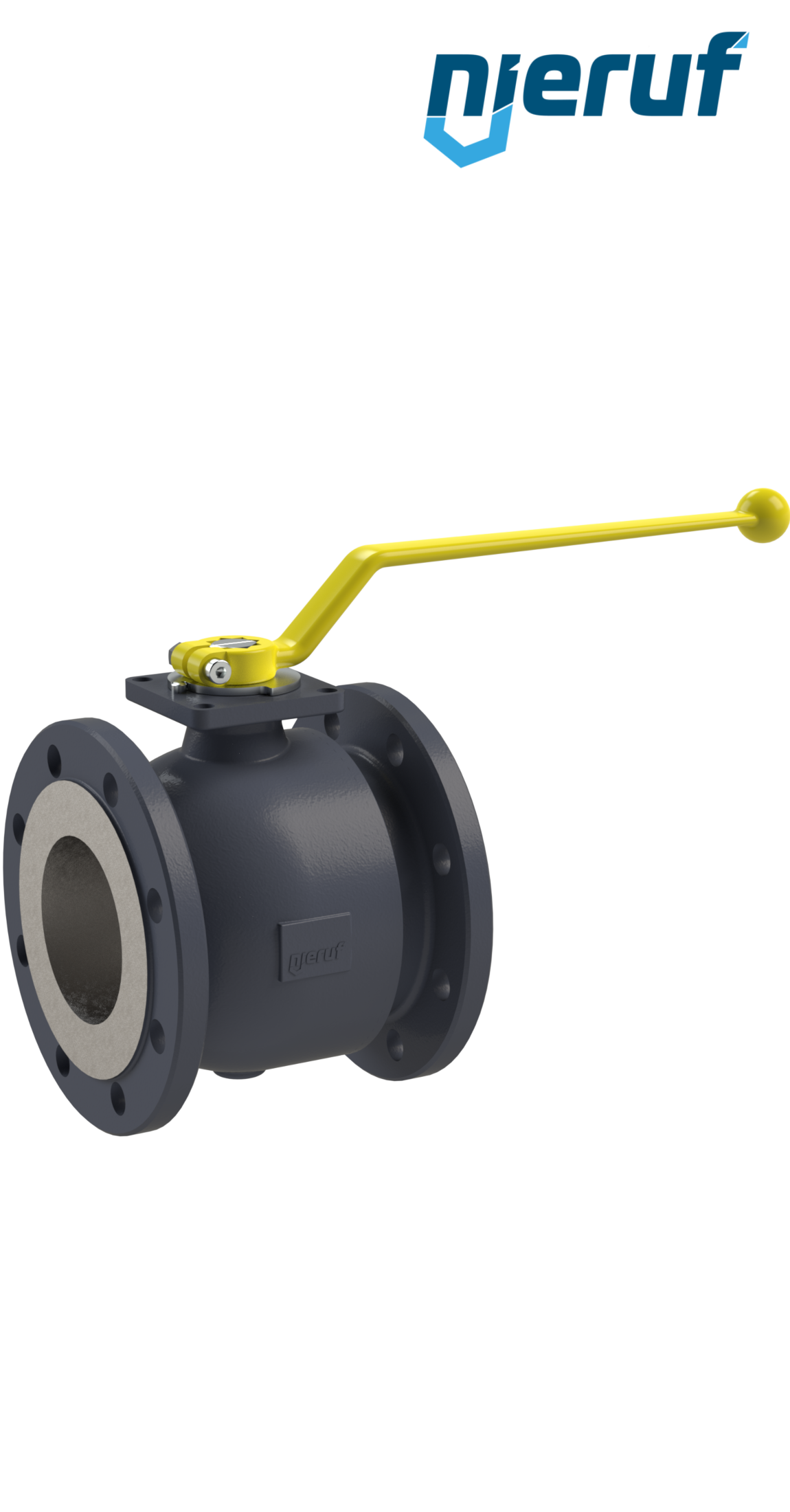

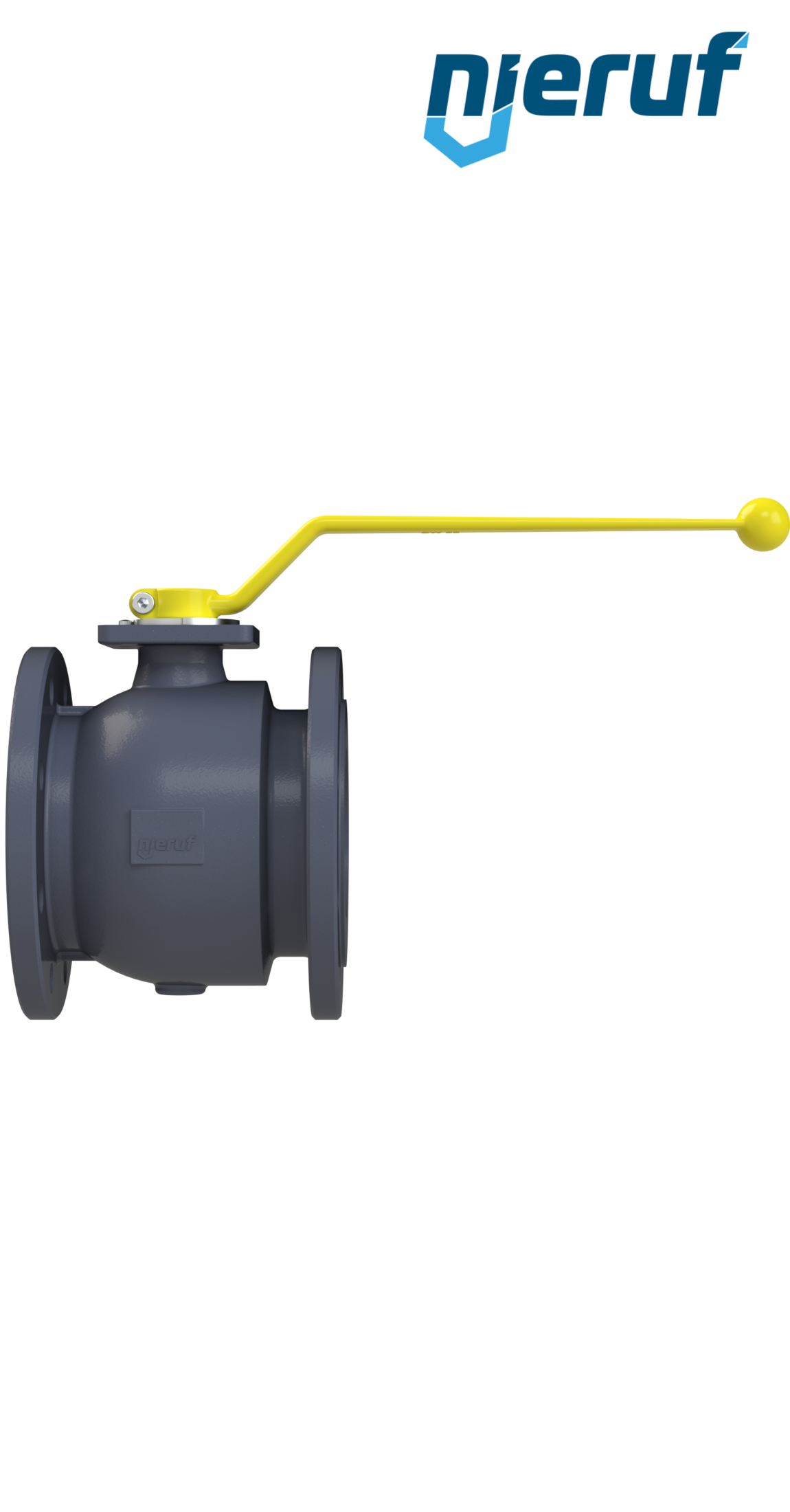

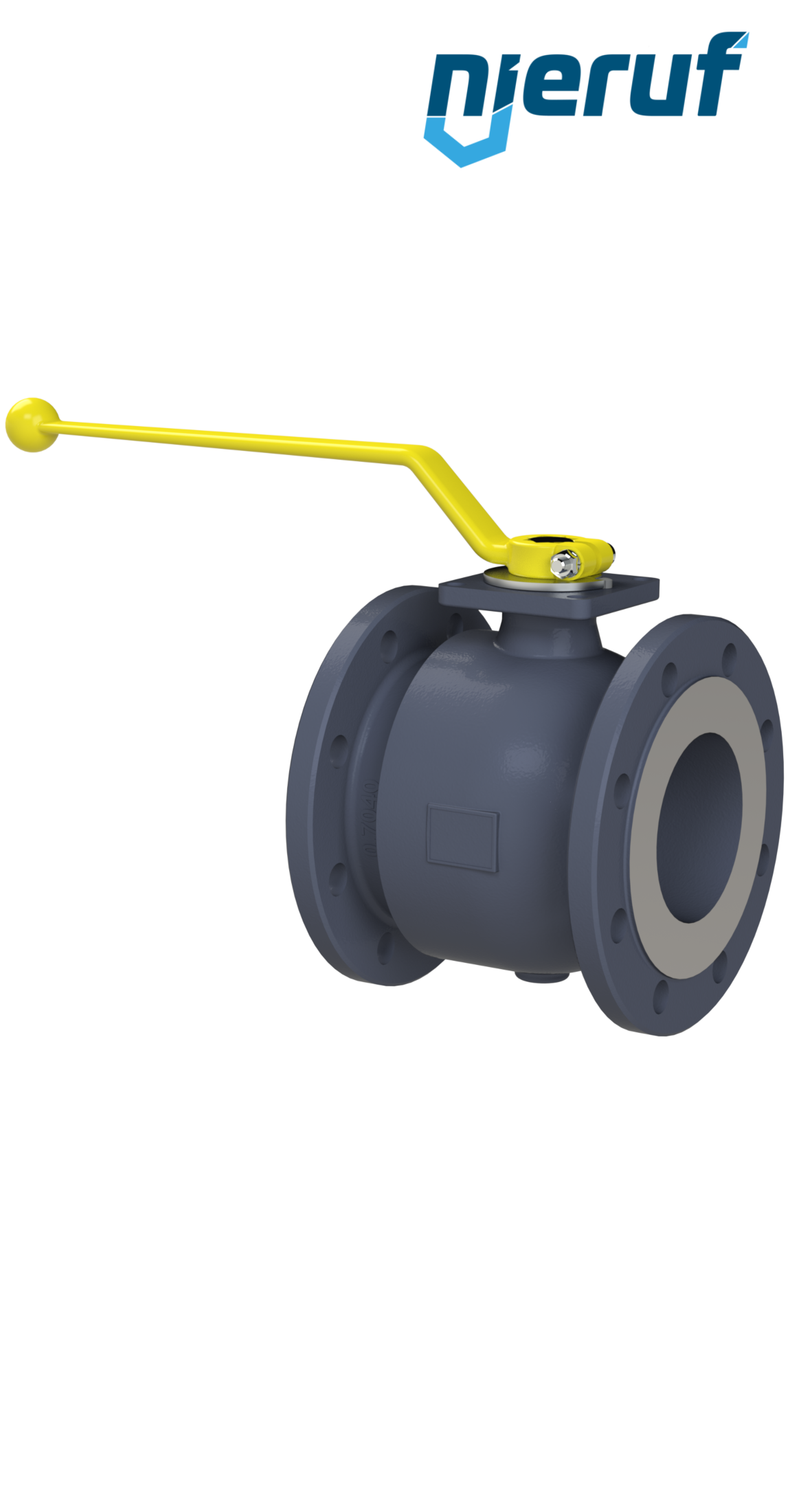

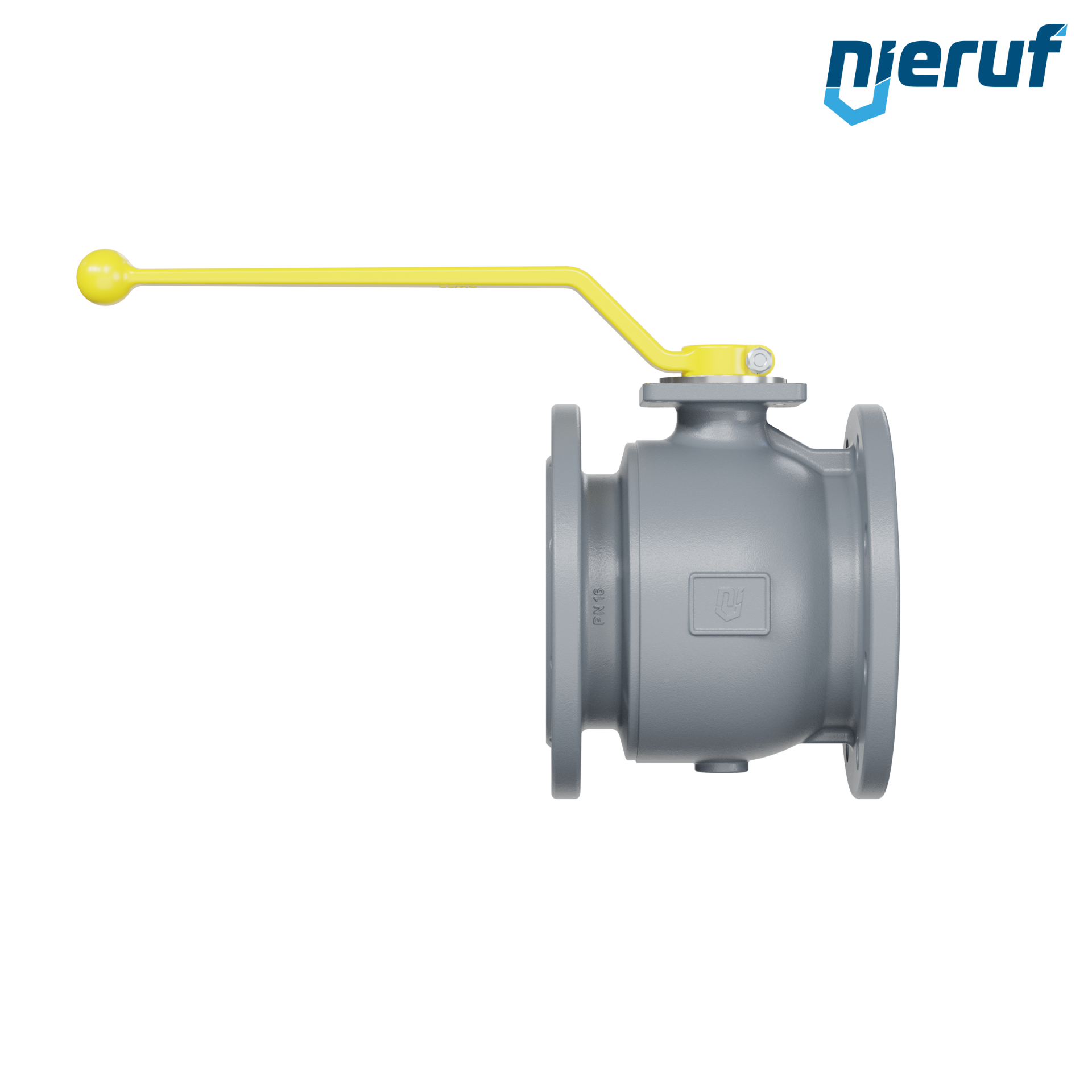

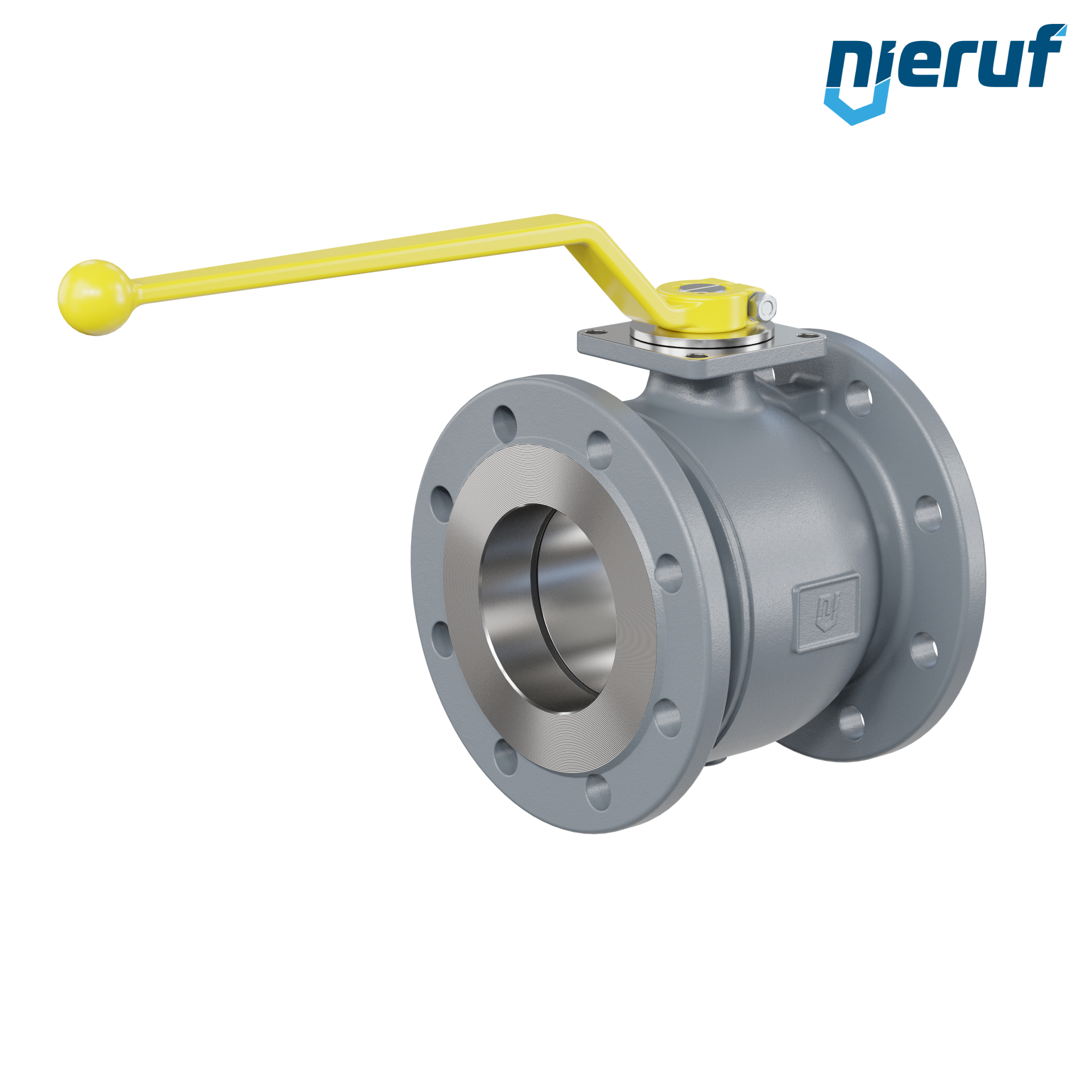

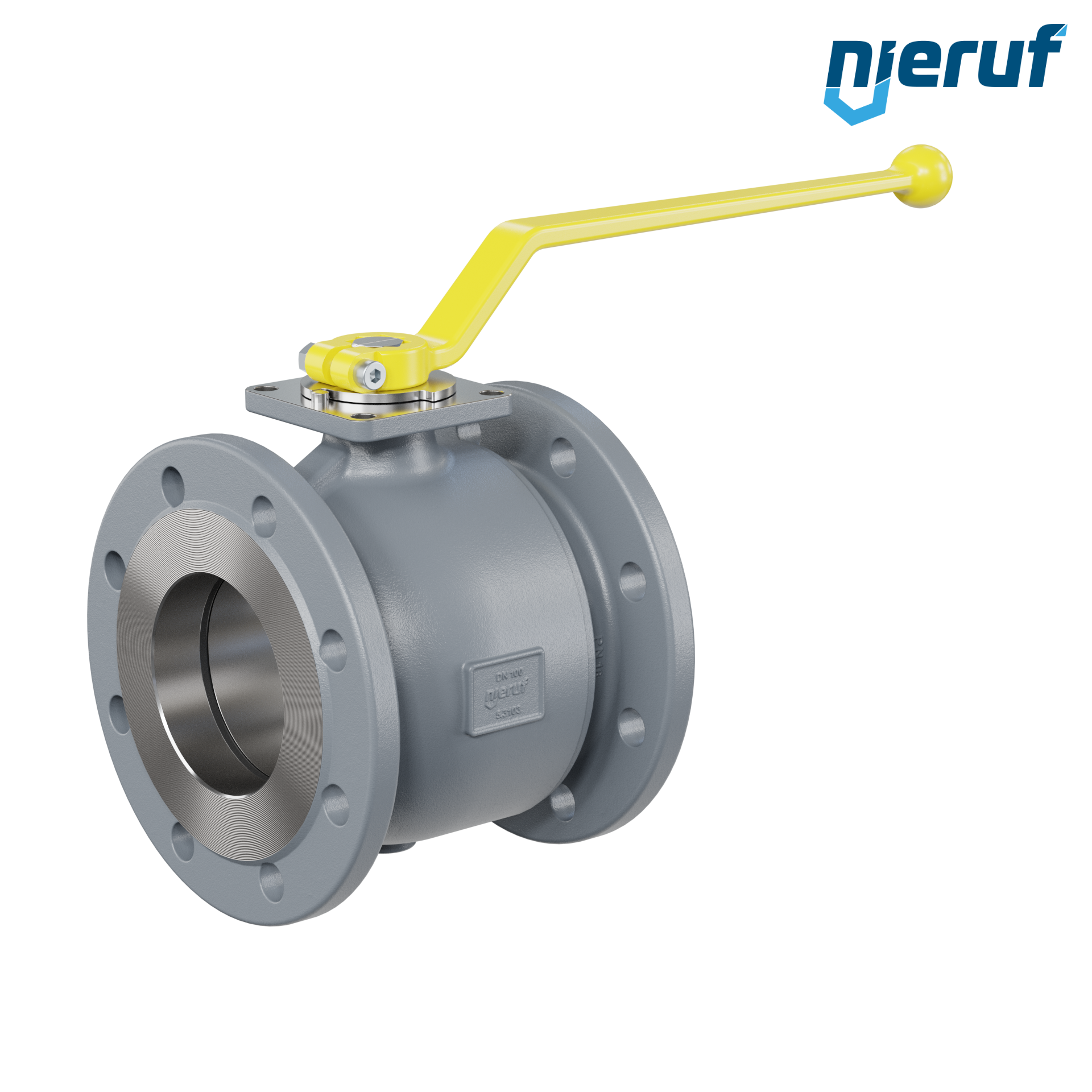

Flange ball valve DN100 FK02 GGG40 ball stainless steel 1.4404 DVGW-Gas
Flange ball valve DN100 FK02 body spheroidal graphite cast iron GJS 400-18 ball stainless steel 1.4404 seal PTFE approval DVGW gas
| product | Flange ball valve |
|---|---|
| type | FK02 |
| manufacturer | NieRuf |
| diameter | DN100 |
| connection | flange dimensions acc. DIN EN 1092-2 PN 16 |
| Seal steam | O-rings FKM |
| ball seal | PTFE |
| media | gas: 1., 2. and 3. gas category |
| temperature | -20°C up to +60°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | full port design |
| body material | spheroidal graphite cast iron 5.3103 / Gr. 60-40-18 |
| ball material | stainless steel 1.4404 / AISI 316L |
| length | DIN EN 558 R14 |
| actuator | hand lever made of alu with yellow cover |
| installation position | any position |
| authorized for | DVGW-Gas |
| product description | This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and a solid stainless steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange ball valve DN100 FK02 GGG40 ball stainless steel 1.4404 DVGW-Gas
Article no.
: FK02020011
product:
Flange ball valve
type:
FK02
manufacturer:
NieRuf
diameter:
DN100
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
O-rings FKM
ball seal:
PTFE
media:
gas: 1., 2. and 3. gas category
temperature:
-20°C up to +60°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design
body material:
spheroidal graphite cast iron 5.3103 / Gr. 60-40-18
ball material:
stainless steel 1.4404 / AISI 316L
length:
DIN EN 558 R14
actuator:
hand lever made of alu with yellow cover
installation position:
any position
authorized for:
DVGW-Gas
product description:
This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and a solid stainless steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16.
Equipment
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
Lead time: in stock
Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
Lead time: in stock
stem extension hub length 100 mm square 22mm AD02 stainless steel
Lead time: 3 - 5 working days
