FK01000011

Flange ball valve DN100 FK01 GGG40 ball steel chrome plated

€422.20*

€502.42 VAT included.

Delivery time: in stock

Delivery information

Express delivery*:

Shipping on: Monday, 14. October

Guaranteed delivery until Tuesday, 15. October, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

VS01010111

joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel

€13.60*

€16.18 VAT included.


FD01000111

flange seal DN100 PN10/16 115x162x2 Klingersil C 4400

€4.50*

€5.36 VAT included.


FL01020111

Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€34.20*

€40.70 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: FK01000011

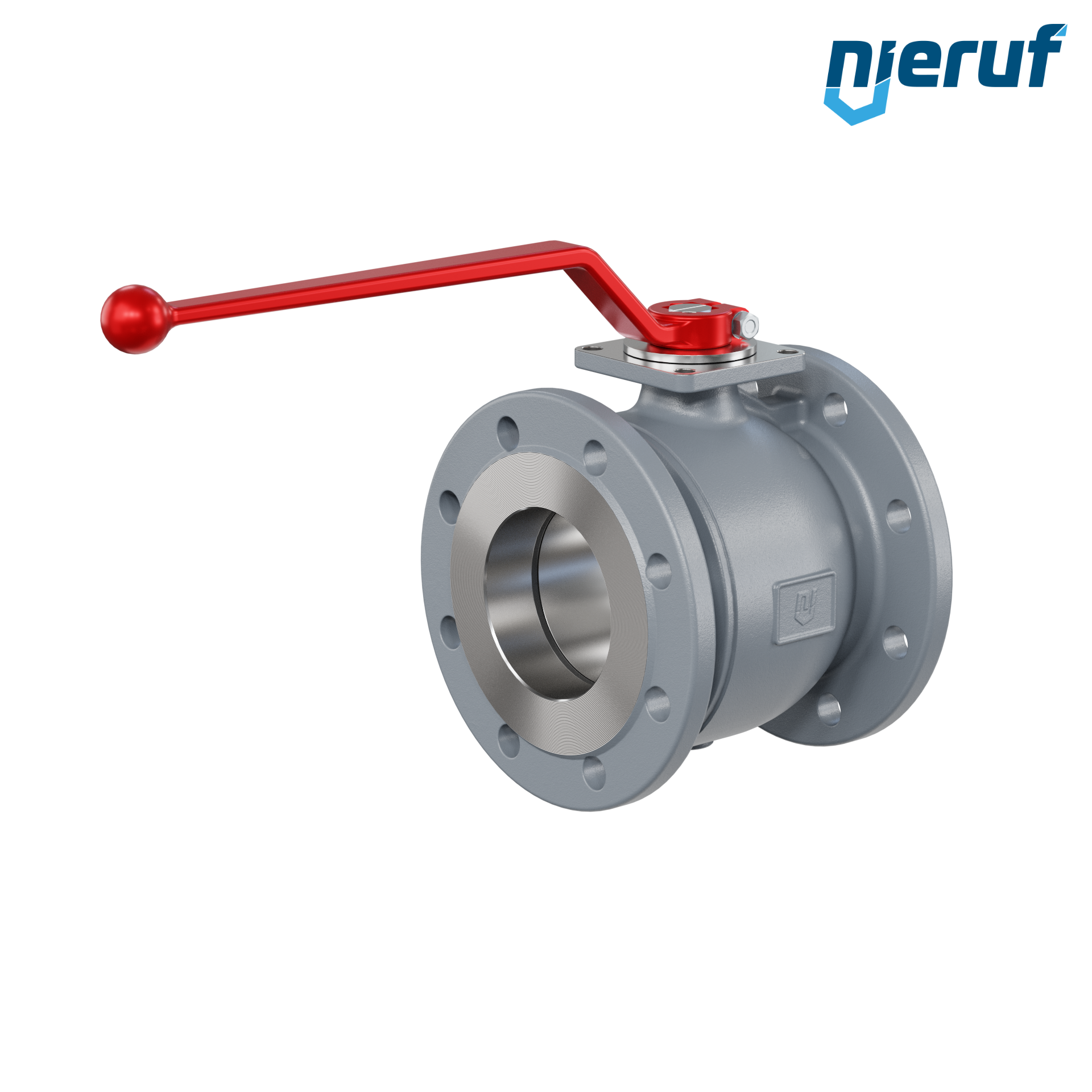

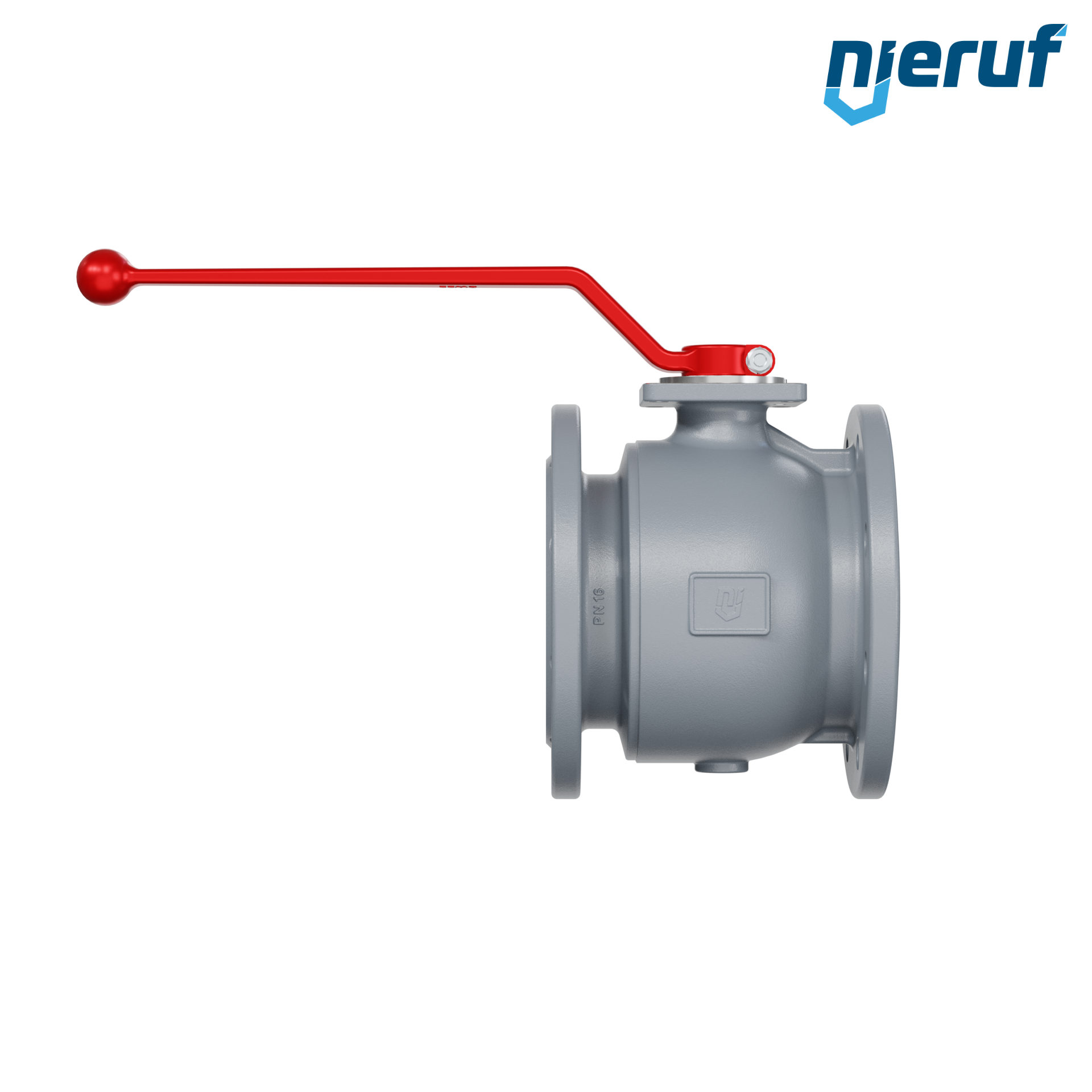

Flange ball valve DN100 FK01 GGG40 ball steel chrome plated

Flange ball valve DN100 FK01 body spheroidal graphite cast iron GJS 400-18 ball steel chrome plated seal PTFE / GF for liquid and gaseous media

product: Flange ball valve
type: FK01
manufacturer: NieRuf
diameter: DN100
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: O-rings FKM
ball seal: PTFE / GF
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: full port design with chrome plated steel ball
body material: spheroidal graphite cast iron 5.3103
ball material: steel chrome plated 1.0503
length: DIN EN 558-1 R14
actuator: hand lever made of alu in red
installation position: any position
product description: This high quality ball valve is made of spheroidal graphite cast iron with two-piece body and fire-safe-design. Full port design with floating chrome plated steel ball

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Flange ball valve DN100 FK01 GGG40 ball steel chrome plated

Article no. : FK01000011
product: Flange ball valve
type: FK01
manufacturer: NieRuf
diameter: DN100
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: O-rings FKM
ball seal: PTFE / GF
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: full port design with chrome plated steel ball
body material: spheroidal graphite cast iron 5.3103
ball material: steel chrome plated 1.0503
length: DIN EN 558-1 R14
actuator: hand lever made of alu in red
installation position: any position
product description: This high quality ball valve is made of spheroidal graphite cast iron with two-piece body and fire-safe-design. Full port design with floating chrome plated steel ball

No spare parts were found for the item number .
