PK06020011
compact-automatic-flange ball valve DN100 PK06 pneumatic actuator single acting normally open
- Lead time
- 3 - 5 working days
Equipment
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
€1,088.49 VAT included.
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
€4.88 VAT included.
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
€54.98 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
€15.23 VAT included.
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€86.99 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

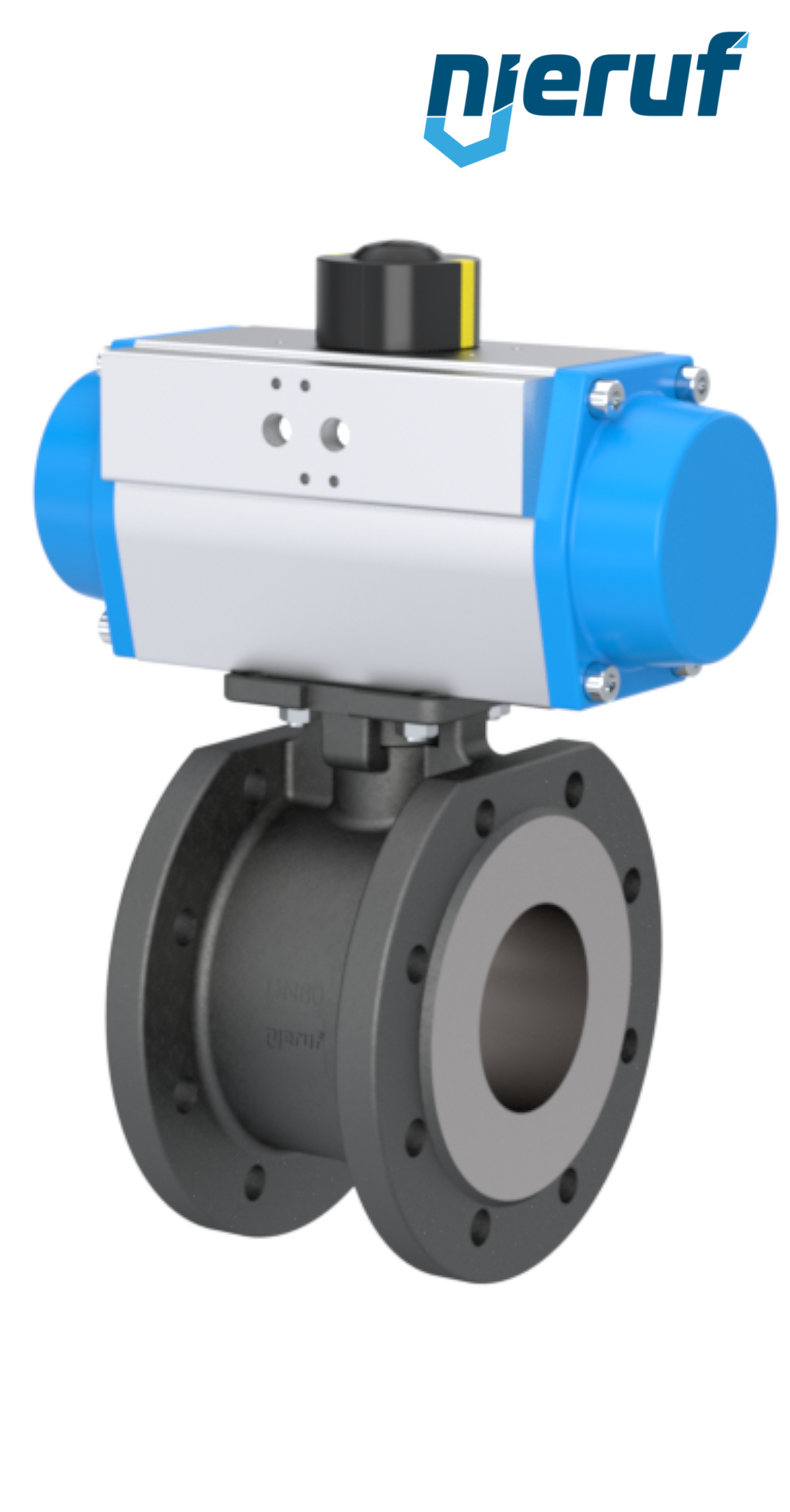

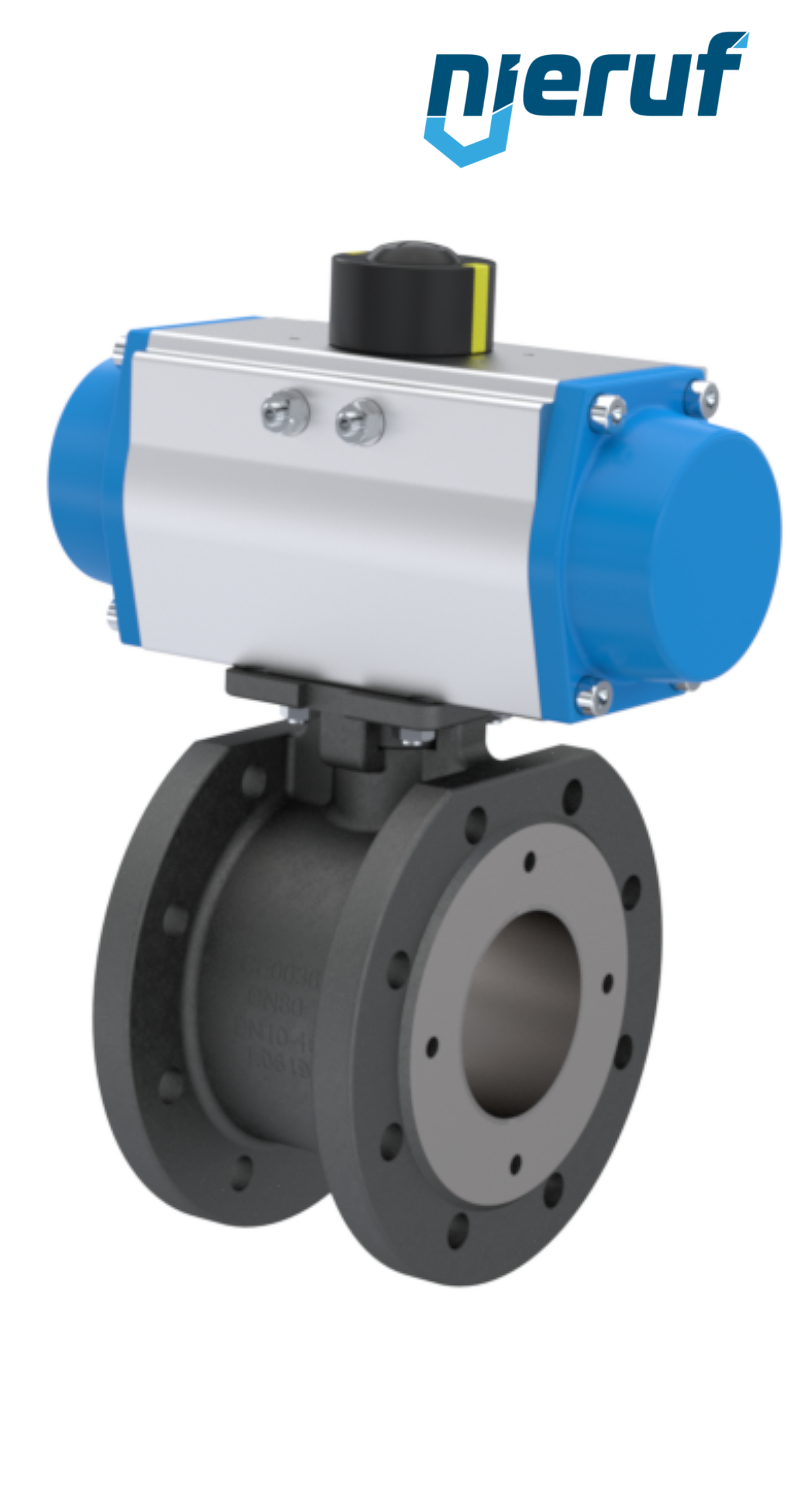

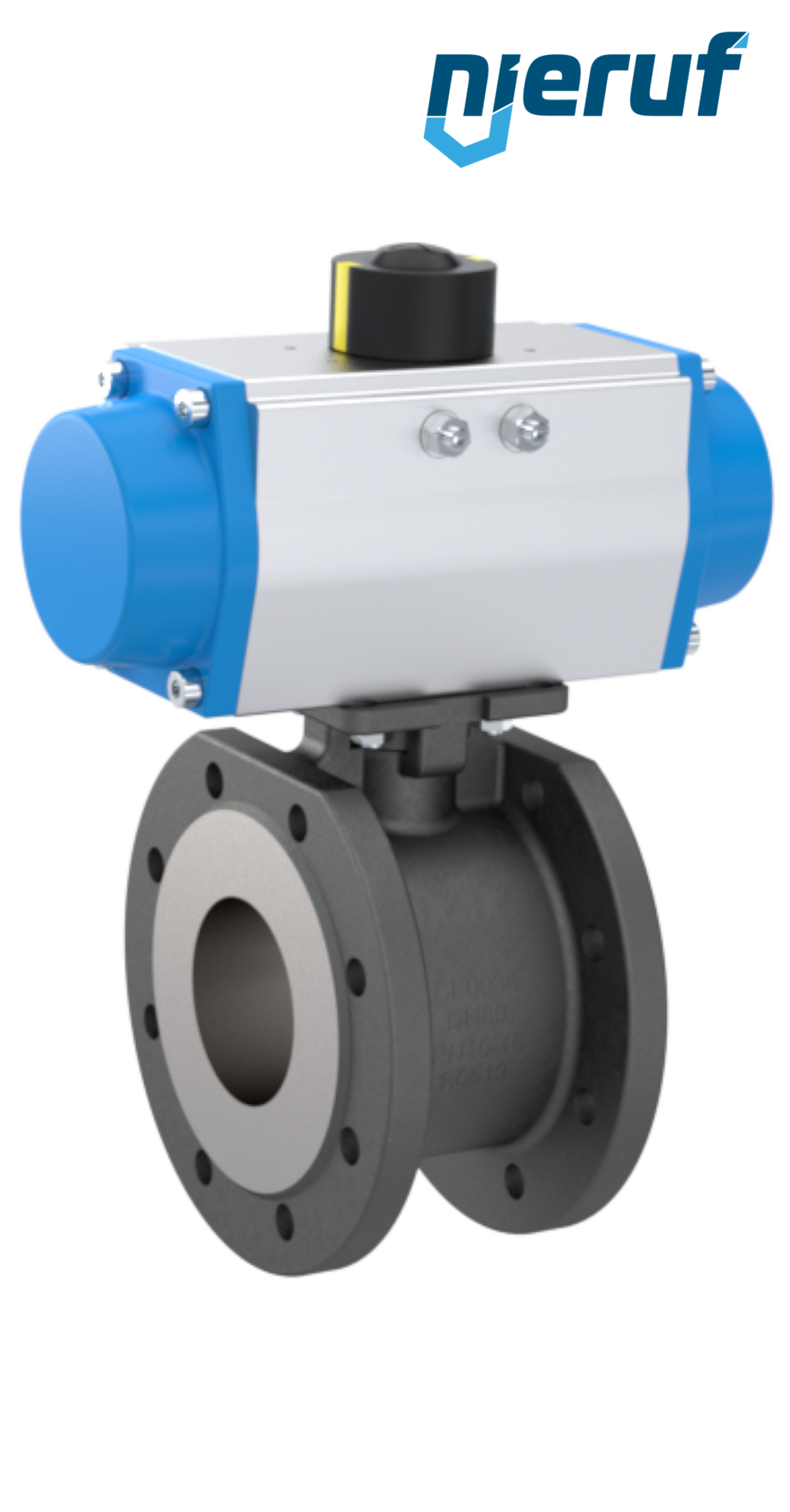

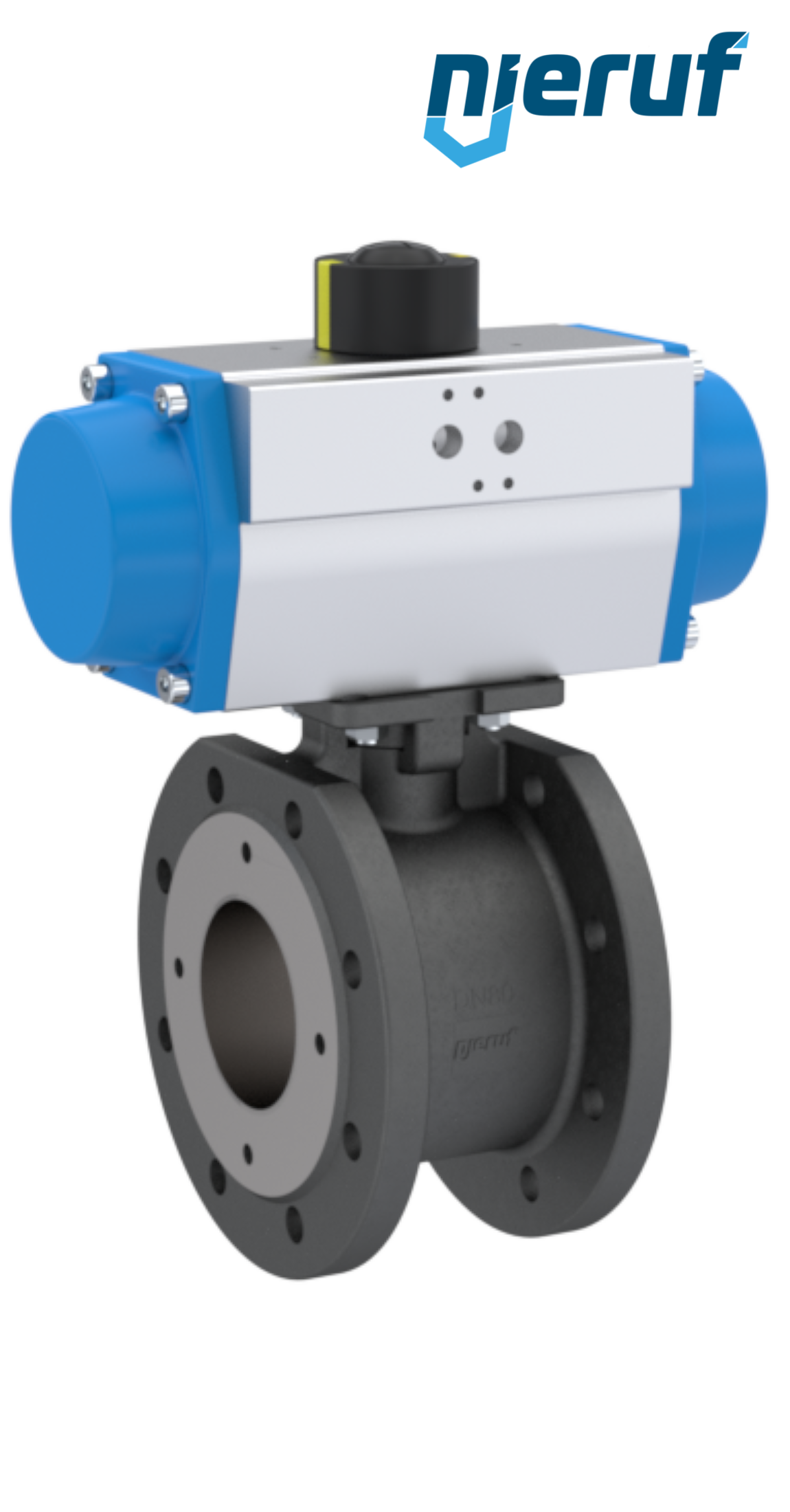

compact-automatic-flange ball valve DN100 PK06 pneumatic actuator single acting normally open
compact-automatic-flange ball valve DN100 carbon steel 1.0619 PK06 pneumatic actuator GS140 made of aluminium (mode of function: GS = single acting - normally open)
| product | compact-automatic-flange ball valve |
|---|---|
| type | PK06 |
| manufacturer | NieRuf |
| diameter | DN100 - 4" inch |
| connection | flange dimensions acc. DIN EN 1092-1 PN 16 |
| Seal steam | PTFE |
| media | liquid and gaseous media |
| temperature | ball valve: -10°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| max. pressure | PN16 |
| design | flange ball valve with pneumatic actuator (single acting normally open) |
| body material | carbon steel 1.0619 |
| ball material | stainless steel 1.4308 |
| ball seal | PTFE + TFM |
| length | 150mm |
| actuator | pneumatic actuator GS140 made of aluminium (mode of function: GS = single acting - normally open) |
| actuator informations | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| authorized for | TA Luft |
| product description | This high quality automatic-carbon steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
compact-automatic-flange ball valve DN100 PK06 pneumatic actuator single acting normally open
Article no.
: PK06020011
product:
compact-automatic-flange ball valve
type:
PK06
manufacturer:
NieRuf
diameter:
DN100 - 4" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve: -10°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN16
design:
flange ball valve with pneumatic actuator (single acting normally open)
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4308
ball seal:
PTFE + TFM
length:
150mm
actuator:
pneumatic actuator GS140 made of aluminium (mode of function: GS = single acting - normally open)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for:
TA Luft
product description:
This high quality automatic-carbon steel ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible.
Equipment
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
Lead time: in stock
Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
Lead time: in stock
rotary elbow male adaptor parallel EF07 brass NBR G1/4" D6mm
Lead time: in stock
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
Lead time: 3 - 5 working days
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
Lead time: in stock
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
Lead time: 2 - 3 weeks
