FL06000212

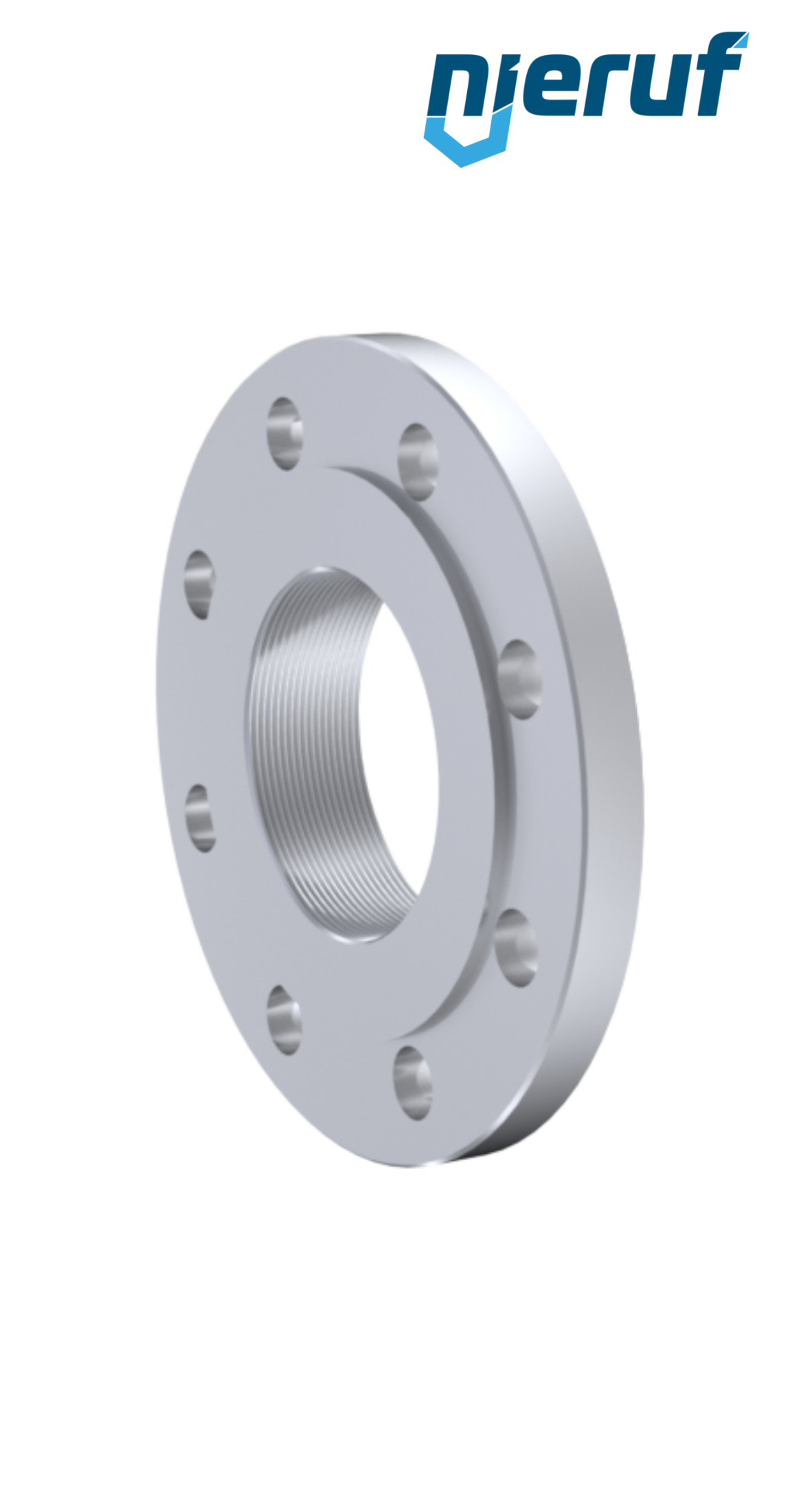

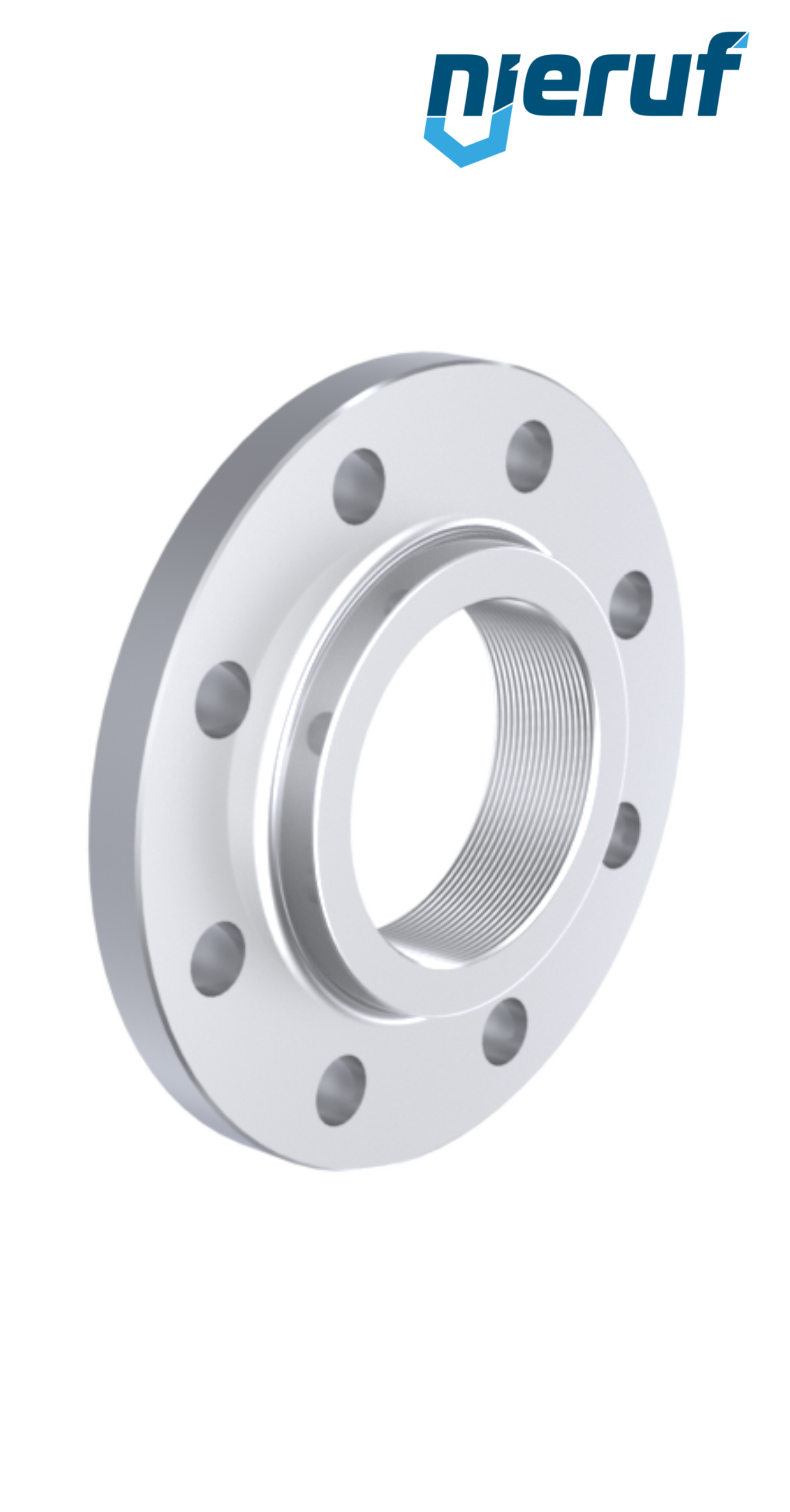

Threaded flange DN125 PN10/16 EN1092-1 13 B1 1.4571
- Lead time
- 3 - 5 working days
Equipment
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
€6.55 VAT included.
joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 stainless steel
€16.18 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Threaded flange DN125 PN10/16 EN1092-1 13 B1 1.4571
Threaded flange made of stainless steel 1.4571 DN125 flange according DIN PN10/16 EN1092-1 Typ 13 B1
| product | Threaded flange |
|---|---|
| type | FL06 |
| manufacturer | NieRuf |
| diameter | DN125 |
| connection | PN10/16 |
| material | stainless steel |
| material nr. | 1.4571 |
| norm | EN1092-1 |
| norm-type | 13 |
| surface | B1 |
| Design | Threaded flange with projection |
| pipe thread | 5" inch |

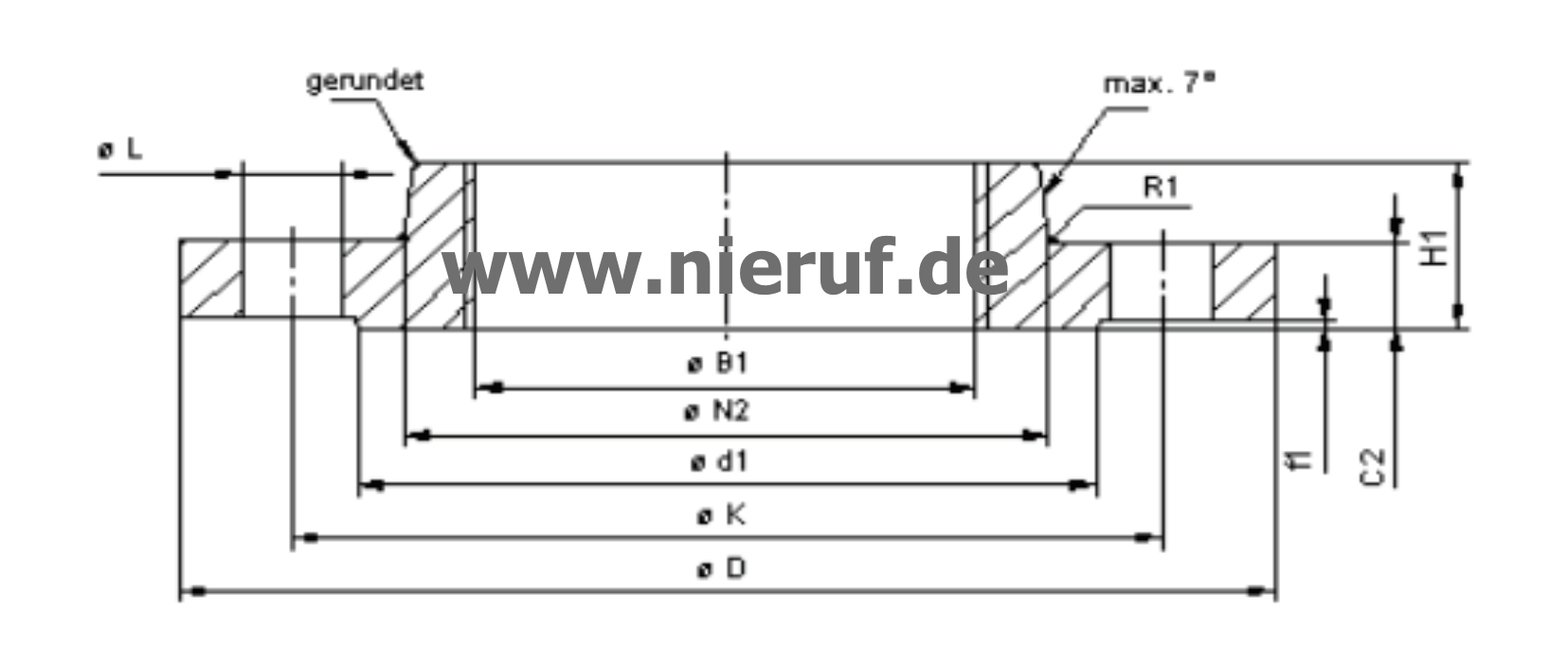

| D | 250 |
| C2 | 22 |
| K | 210 |
| H1 | 44 |
| N2 | 168 |
| R1 | 8 |
| d1 | 188 |
| f1 | 3 |
| screw | M16 |
| Qty. Screws | 8 |
| L | 18 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Threaded flange DN125 PN10/16 EN1092-1 13 B1 1.4571
Article no.
: FL06000212
product:
Threaded flange
type:
FL06
manufacturer:
NieRuf
diameter:
DN125
connection:
PN10/16
material:
stainless steel
material nr.:
1.4571
norm:
EN1092-1
norm-type:
13
surface:
B1
Design:
Threaded flange with projection
pipe thread:
5" inch
D:
250
C2:
22
K:
210
H1:
44
N2:
168
R1:
8
d1:
188
f1:
3
screw:
M16
Qty. Screws:
8
L:
18
