FV01221008
flange Solenoid valve DN50 stainless steel FV01 FKM 24V DC NO
- Lead time
- On request
Equipment
flange-strainer DN50 PN16 type SZ03 stainless steel
€530.15 VAT included.
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 stainless steel
€8.09 VAT included.
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
€3.69 VAT included.
Welding neck flange DN50 PN10/16 EN1092-1 11 B1 1.4541
€45.10 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

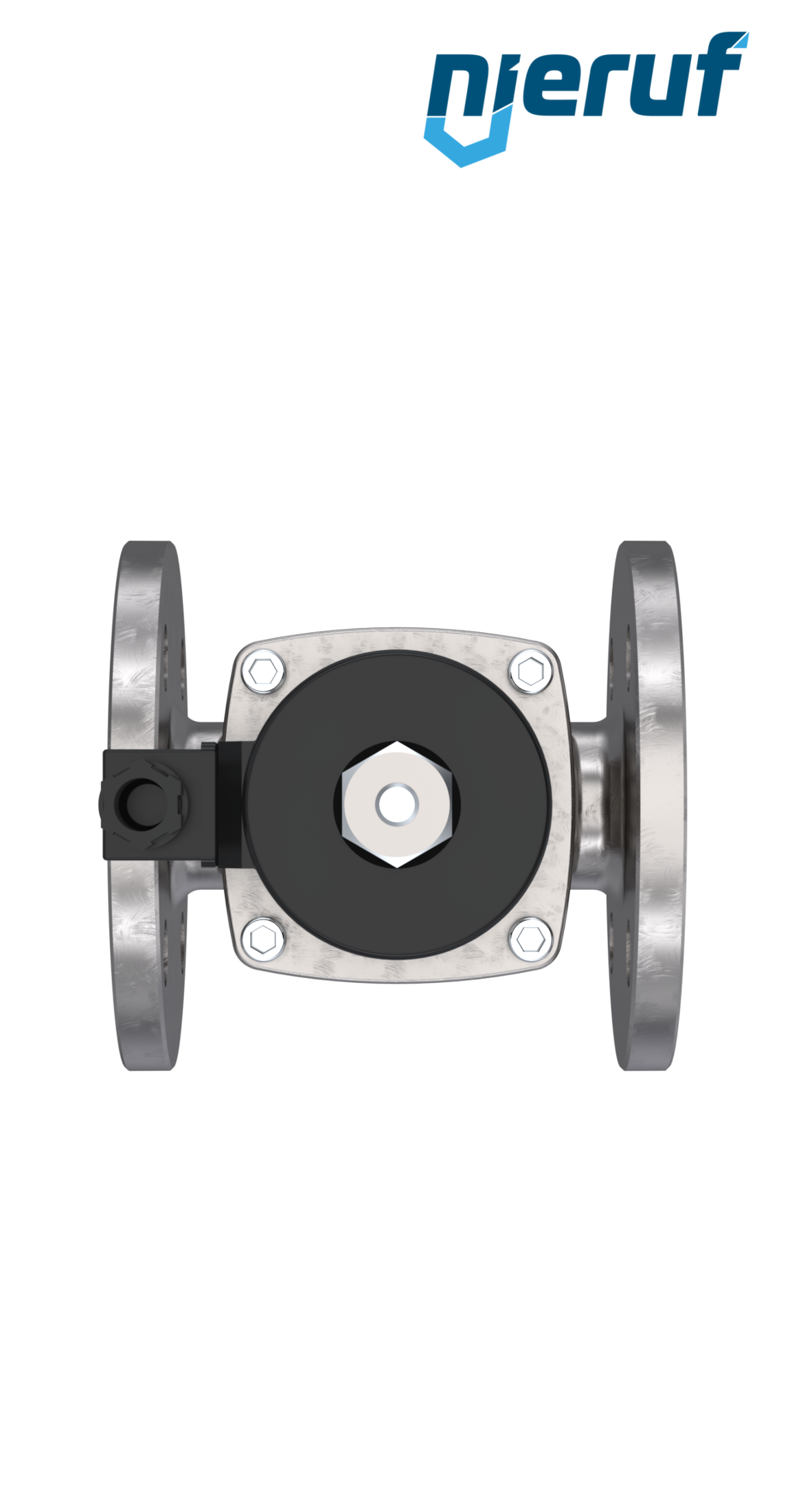

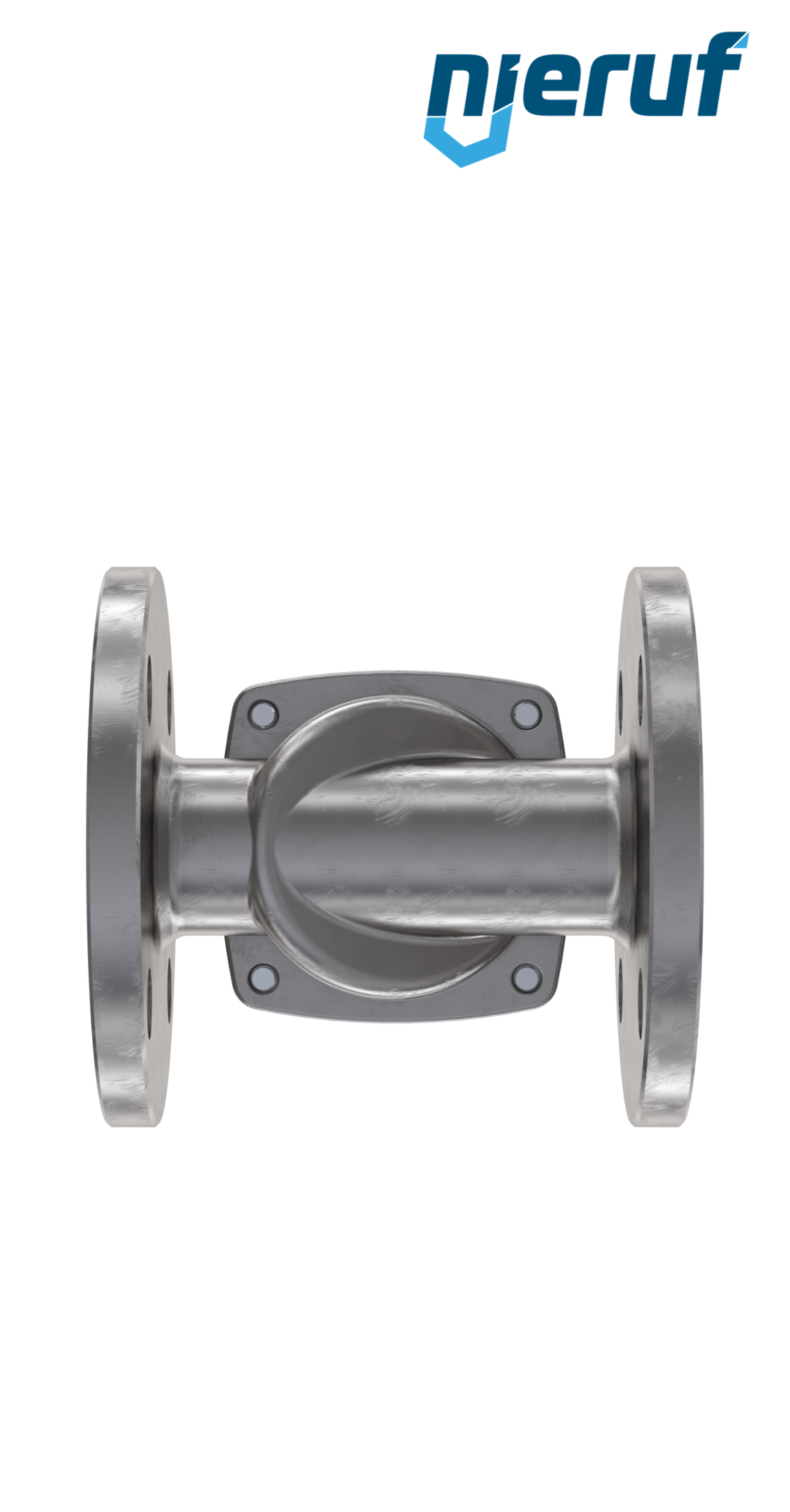

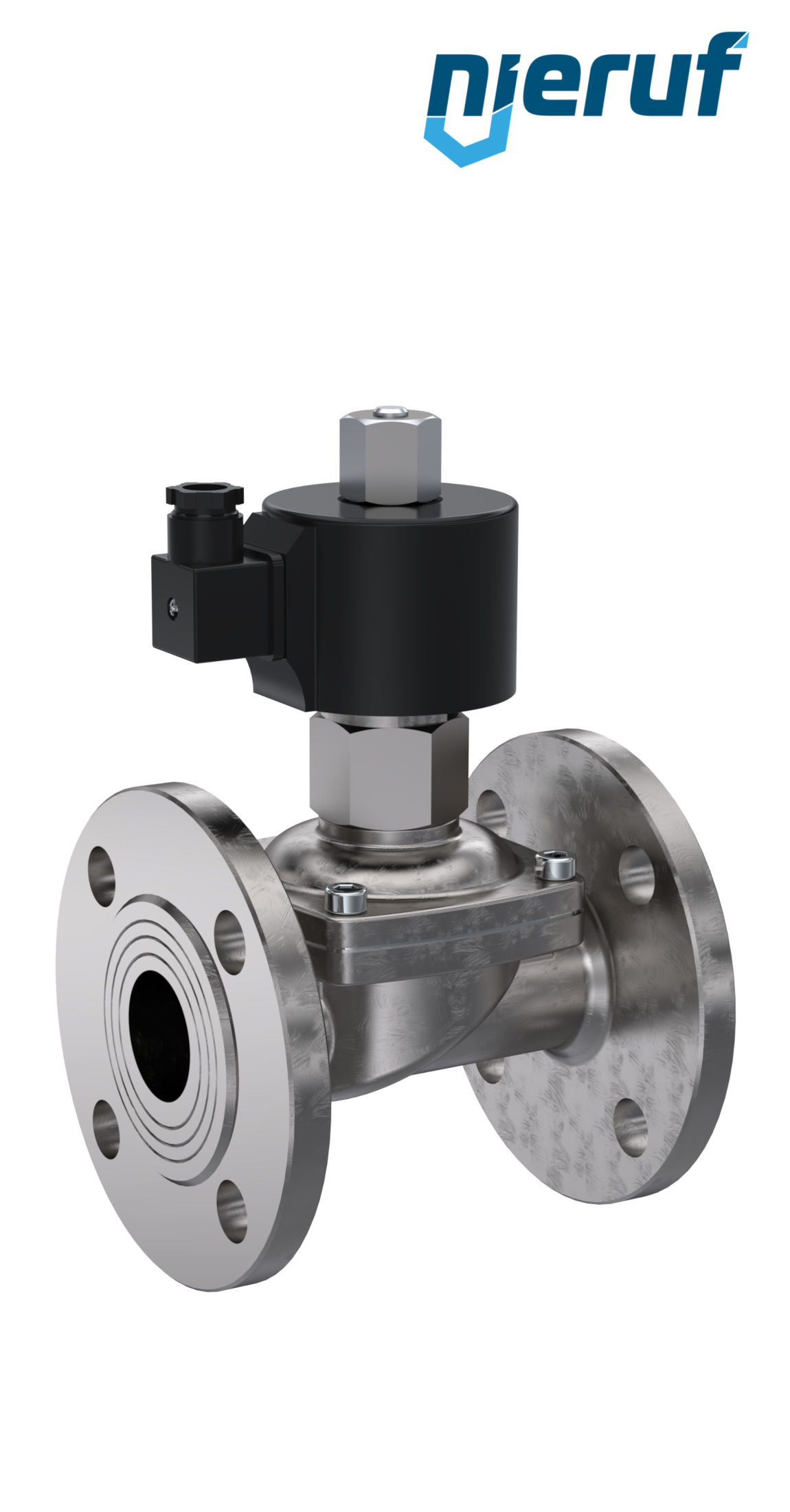

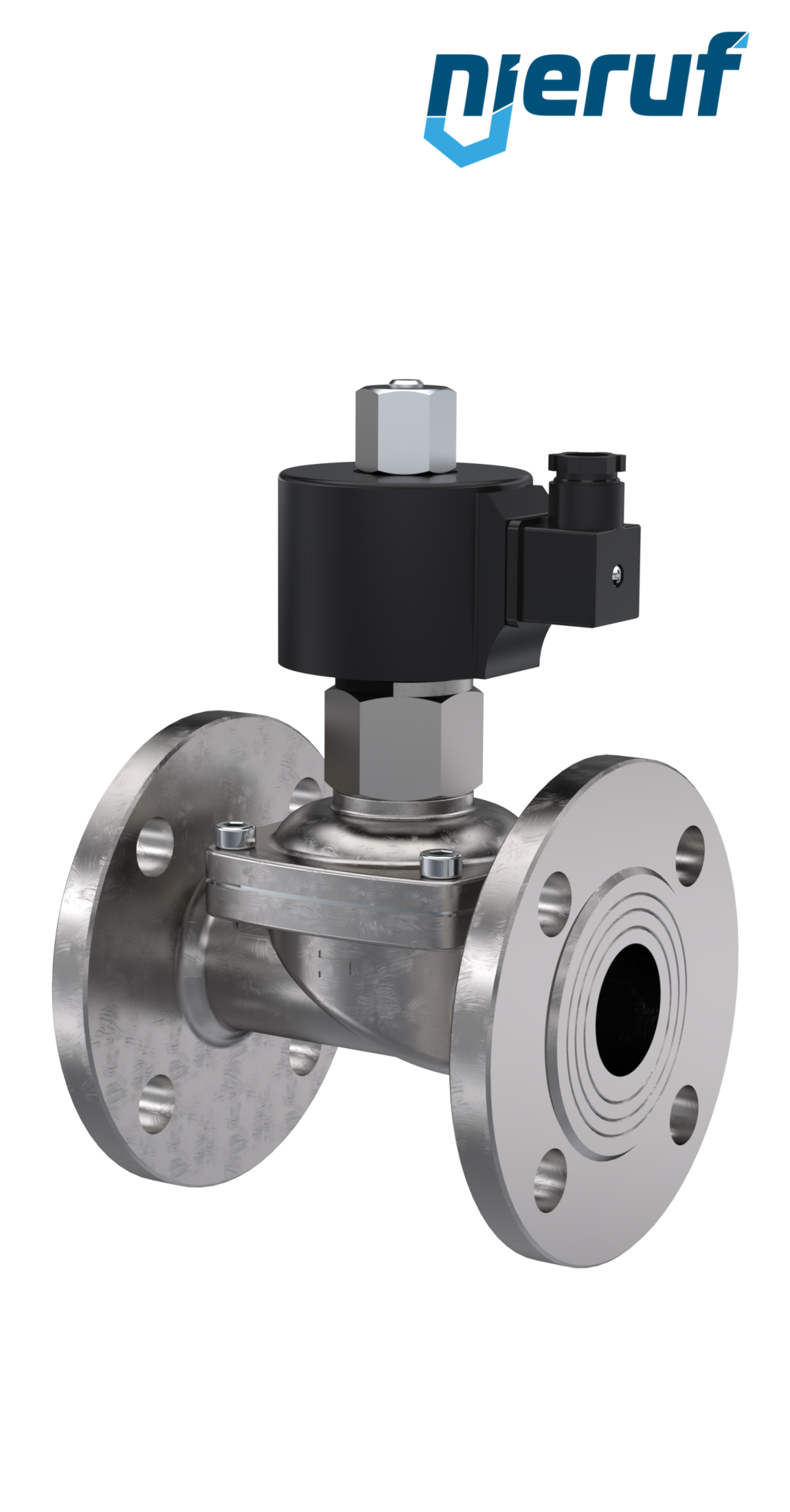

flange Solenoid valve DN50 stainless steel FV01 FKM 24V DC NO
2/2 Ways flange Solenoid valve FV01 DN50 made of stainless steel 1.4308 with FKM seal force pilot operated power consumption 24V DC NO pressure 0,0 - 5 bar
| product | Solenoid valve |
|---|---|
| type | FV01 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN50 |
| connection | flange |
| type of connection | flange |
| Type of design | 2/2 Ways |
| flow rate | 25.9 m³/h |
| function | NO - normally open |
| control | force pilot operated |
| material | stainless steel 1.4308 |
| seal | FKM |
| voltage | 24V DC |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 55 Watt |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | non-flammable, neutral gases and liquids |
| temperature media | -10°C up to +120°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0,0 - 5 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange Solenoid valve DN50 stainless steel FV01 FKM 24V DC NO
Article no.
: FV01221008
product:
Solenoid valve
type:
FV01
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN50
connection:
flange
type of connection:
flange
Type of design:
2/2 Ways
flow rate:
25.9 m³/h
function:
NO - normally open
control:
force pilot operated
material:
stainless steel 1.4308
seal:
FKM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
55 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
non-flammable, neutral gases and liquids
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0,0 - 5 bar
Outlet pressure:
0 bar (no counter pressure)
installation position:
any position, solenoid preferably standing
Equipment
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN50 PN10/16 EN1092-1 11 B1 1.4541
Lead time: in stock
flange-strainer DN50 PN16 type SZ03 stainless steel
Lead time: in stock
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
