EV06310007
Solenoid valve DN40 G 1 1/2" Inch EPDM 110V stainless steel 1.4308
- Lead time
- 3 - 5 working days
Equipment
strainer 1 1/2" inch stainless steel type SZ01
€49.15 VAT included.
hexagon nipple 1 1/2" inch male stainless steel 316
€9.04 VAT included.
hose nozzle 1 1/2" 38.1 mm stainless steel 1.4408 ST01
€15.83 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

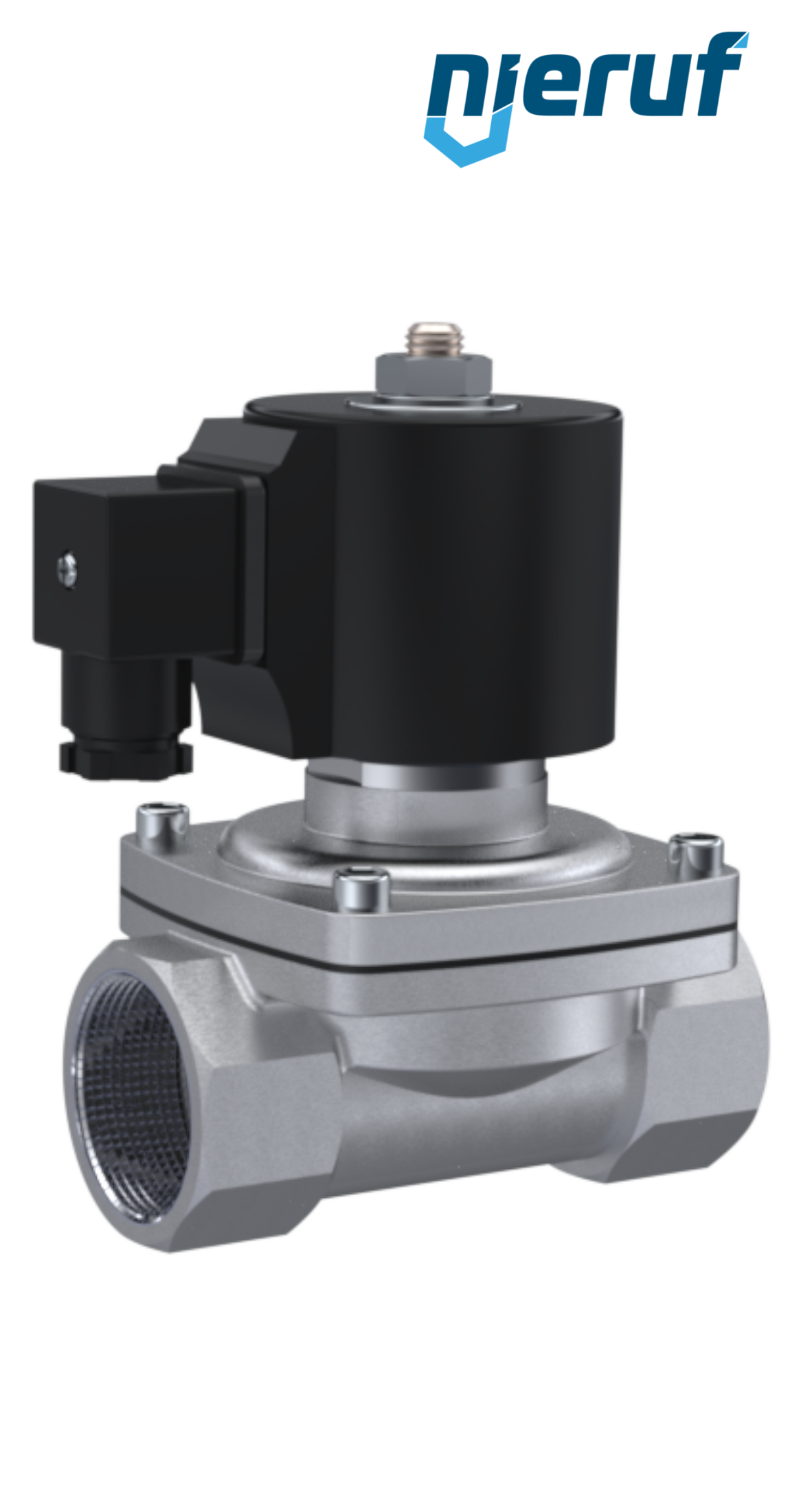

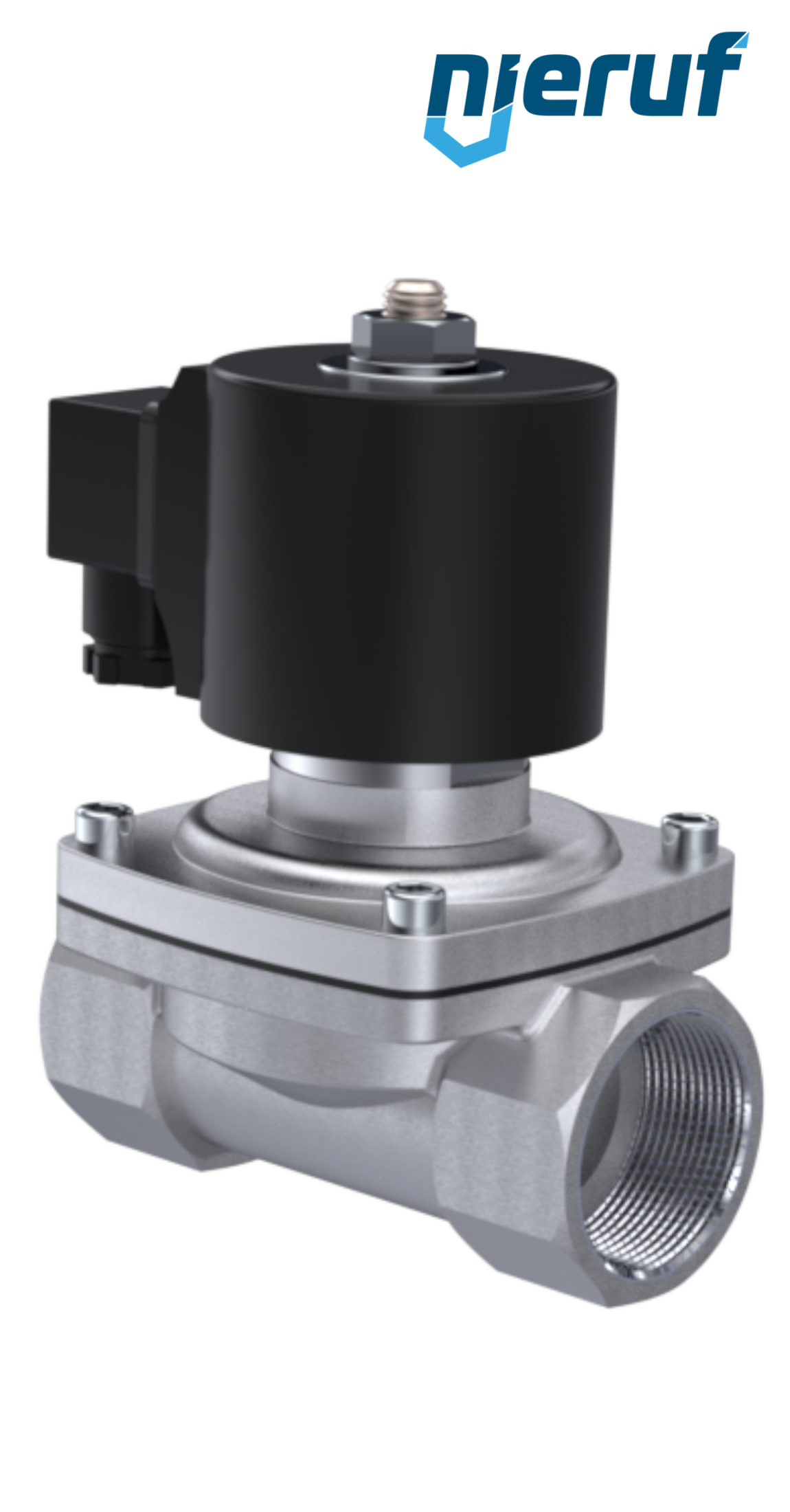

Solenoid valve DN40 G 1 1/2" Inch EPDM 110V stainless steel 1.4308
110V Solenoid valve DN40 G 1 1/2" Inch Type EV06 NC - normally closed stainless steel 1.4308 EPDM liquid and gaseous media
| product | Solenoid valve |
|---|---|
| type | EV06 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN40 |
| connection | G 1 1/2" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 14.7 m³/h |
| function | NC - normally closed |
| control | force pilot operated |
| material | stainless steel 1.4308 |
| seal | EPDM |
| voltage | 110V 50Hz |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 57 VA |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | non-flammable, neutral gases and liquids |
| temperature media | -10°C up to +130°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0,0 - 6 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve DN40 G 1 1/2" Inch EPDM 110V stainless steel 1.4308
Article no.
: EV06310007
product:
Solenoid valve
type:
EV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN40
connection:
G 1 1/2" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
14.7 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
stainless steel 1.4308
seal:
EPDM
voltage:
110V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
57 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
non-flammable, neutral gases and liquids
temperature media:
-10°C up to +130°C
temperature ambiente:
max up to +50°C
max. pressure:
0,0 - 6 bar
Outlet pressure:
0 bar (no counter pressure)
installation position:
any position, solenoid preferably standing
Equipment
hexagon nipple 1 1/2" inch male stainless steel 316
Lead time: in stock
hose nozzle 1 1/2" 38.1 mm stainless steel 1.4408 ST01
Lead time: in stock
pipe bend (welded) 90° 48,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 48,3 x 2,0 to 33,7 x 2,0 stainless steel 1.4571
Lead time: in stock
