EV06121003
Solenoid valve DN16 G 1/2" Inch stainless steel EV06 FKM 230V 50Hz NO
- Lead time
- 2 - 3 weeks
Equipment
hexagon nipple 1/2" inch male stainless steel 316
€2.26 VAT included.
hose nozzle 1/2" 12.7 mm stainless steel 1.4408 ST01
€3.45 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

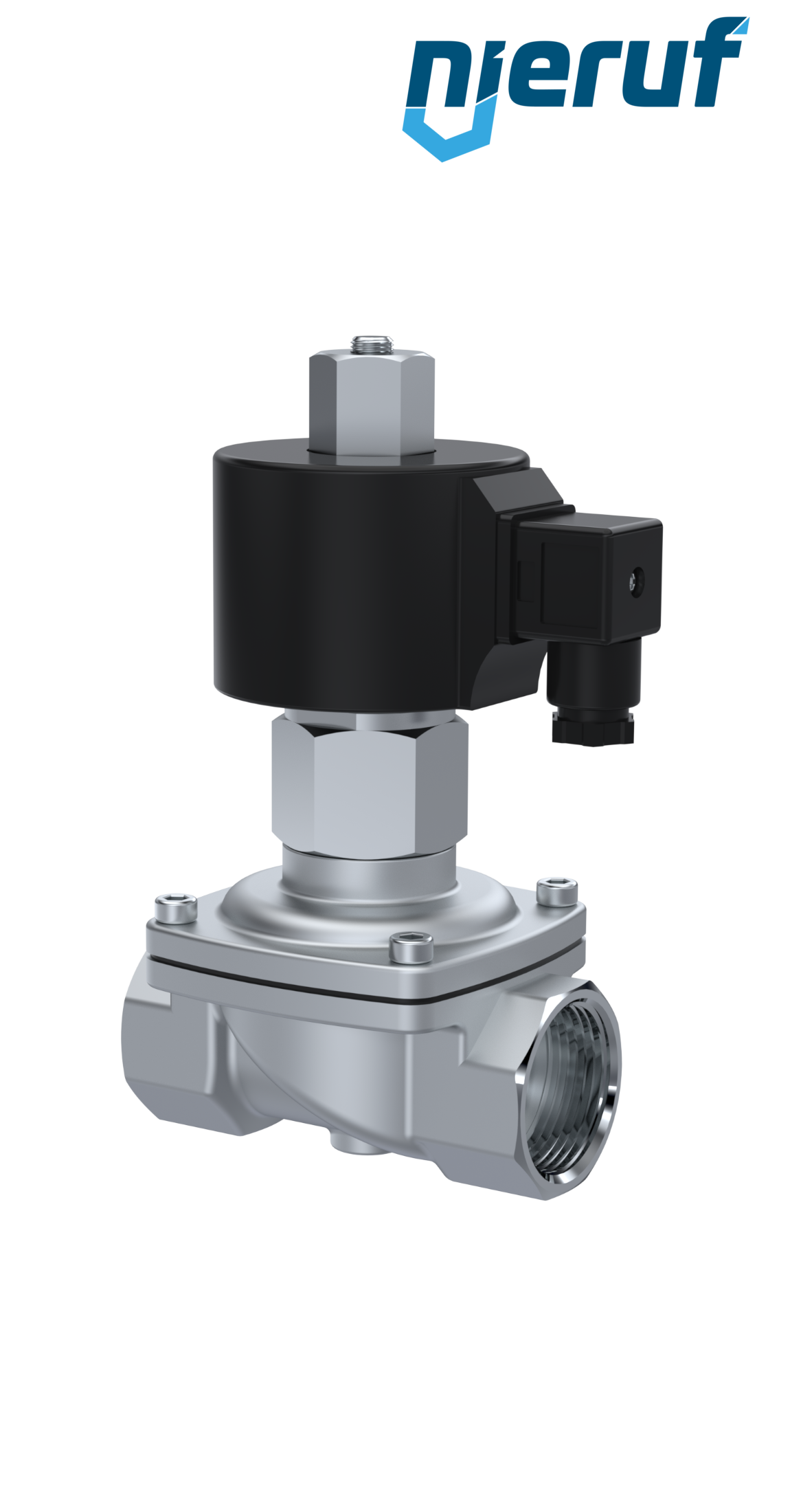

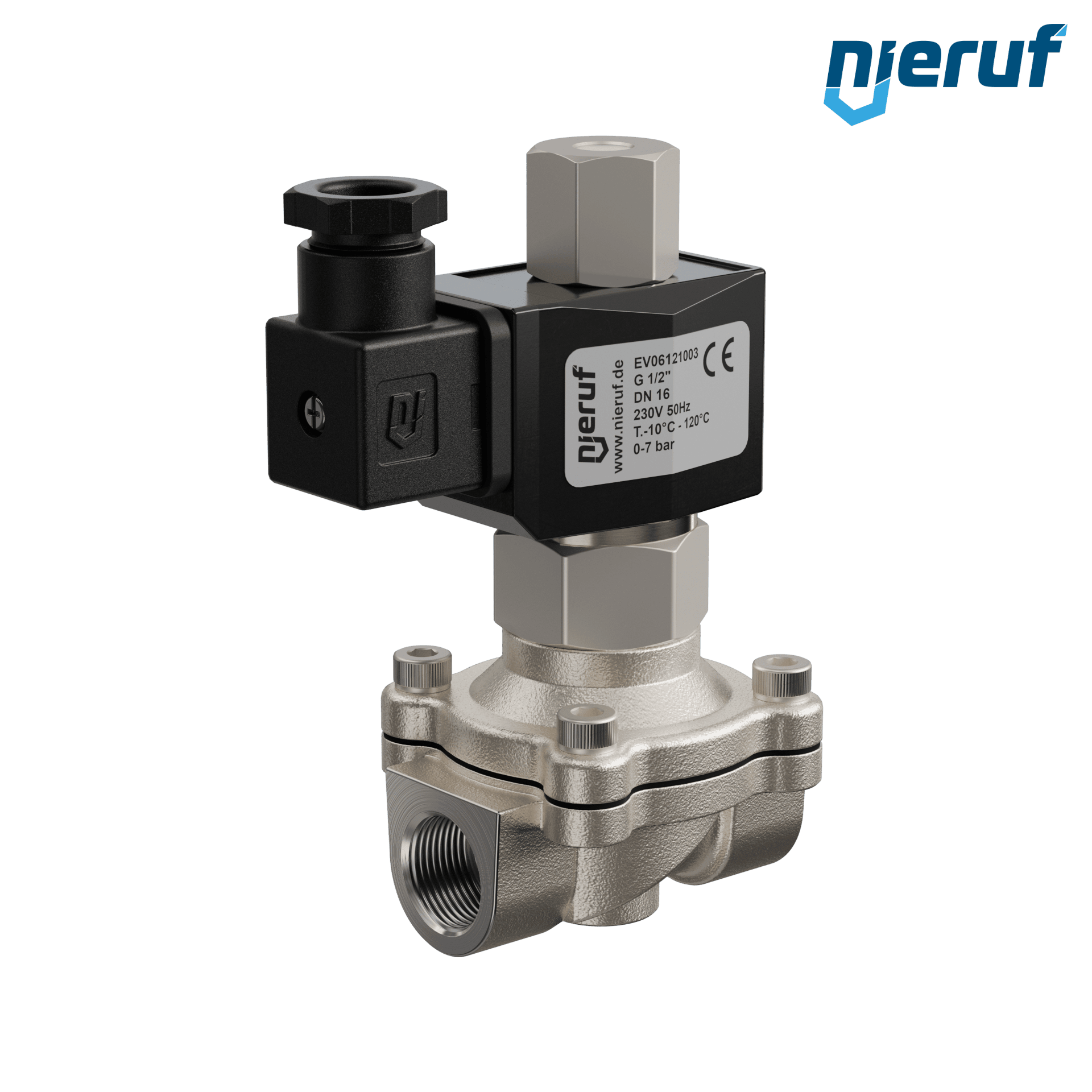

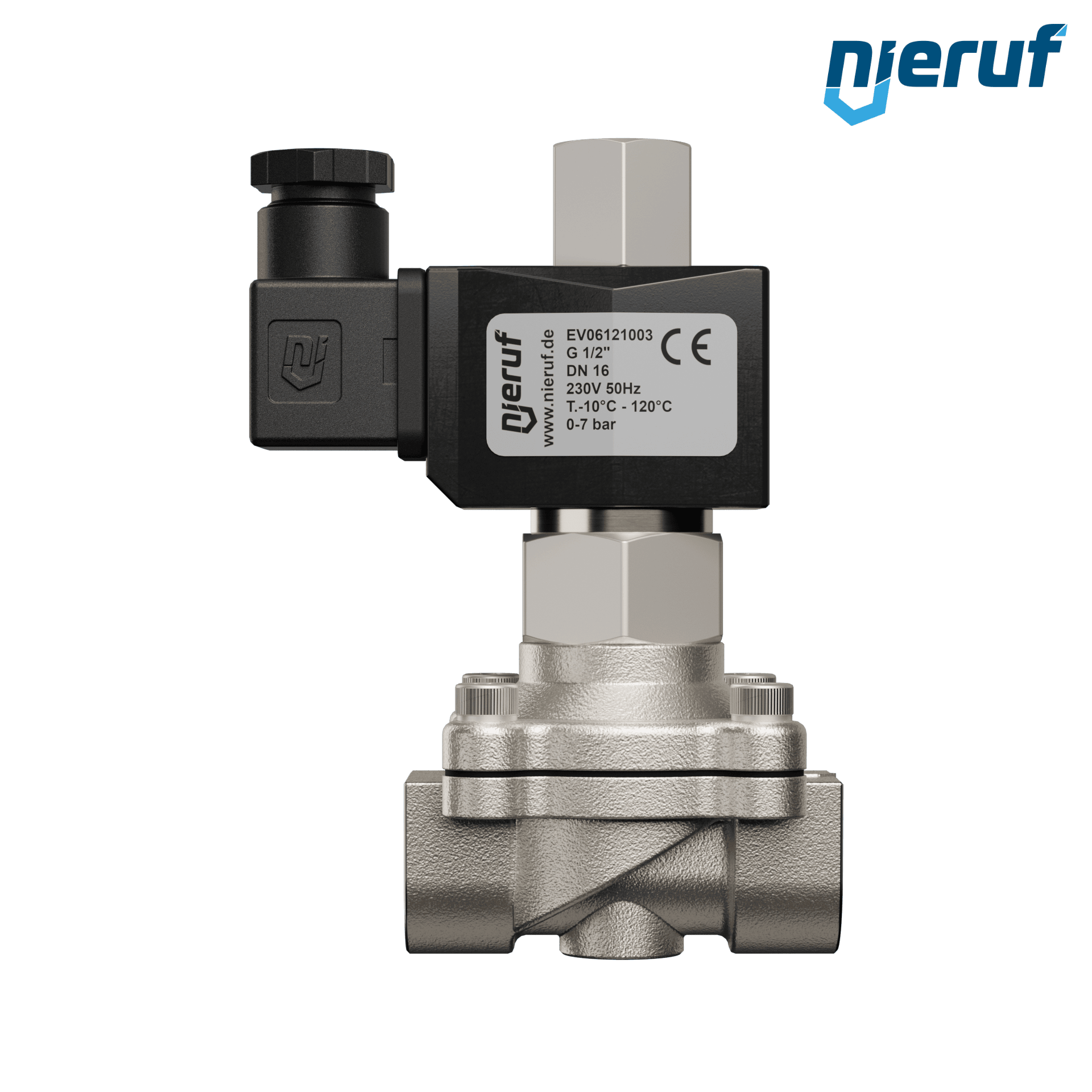

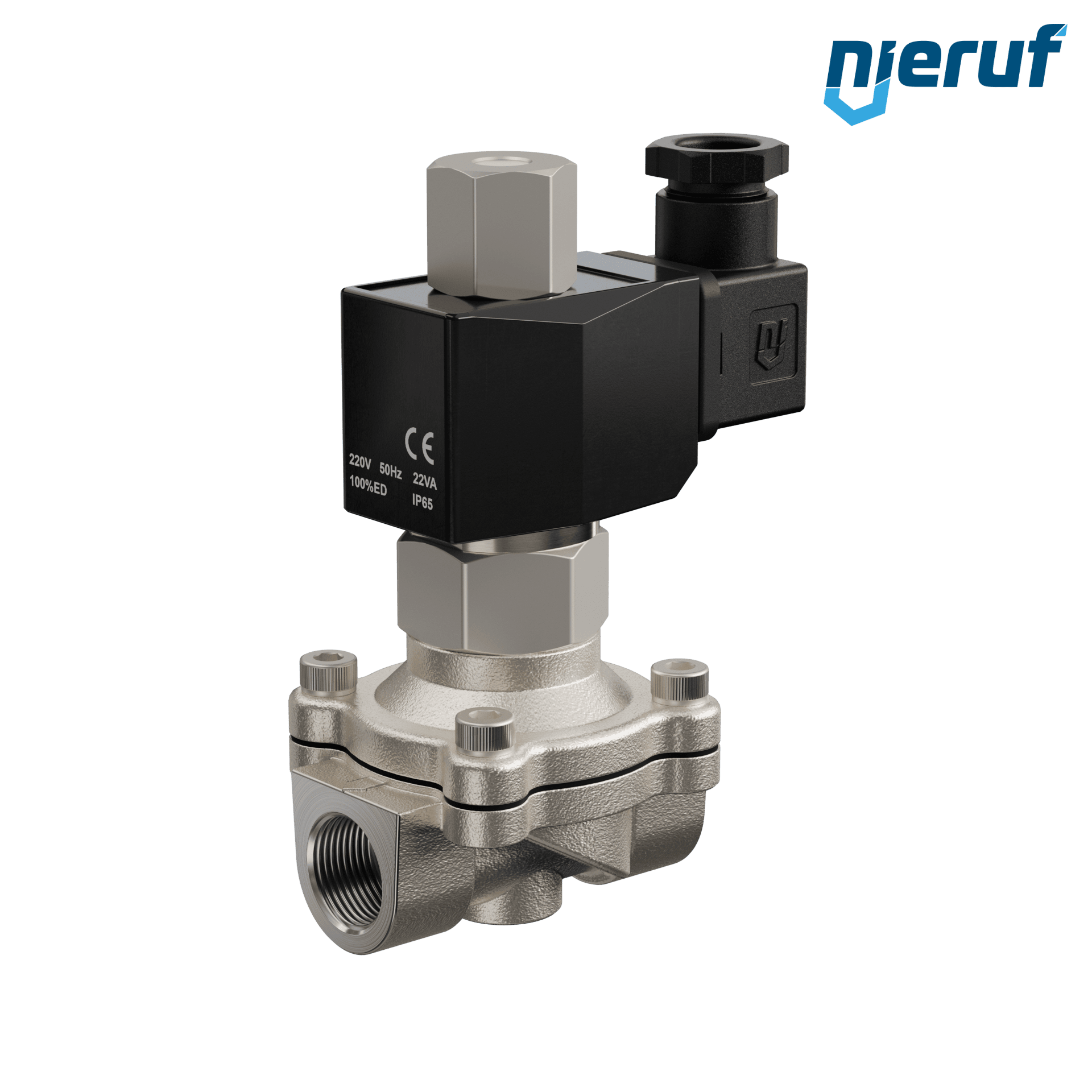

Solenoid valve DN16 G 1/2" Inch stainless steel EV06 FKM 230V 50Hz NO
Solenoid valve DN16 G 1/2" Inch NO - normally open Type EV06 force pilot operated stainless steel 1.4308 FKM 230V 50Hz liquid and gaseous media
| product | Solenoid valve |
|---|---|
| type | EV06 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN16 |
| connection | G 1/2" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 2.9 m³/h |
| function | NO - normally open |
| control | force pilot operated |
| material | stainless steel 1.4308 |
| seal | FKM |
| voltage | 230V 50Hz |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 20 VA |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | non-flammable, neutral gases and liquids |
| temperature media | -10°C up to +120°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0,0 - 7 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve DN16 G 1/2" Inch stainless steel EV06 FKM 230V 50Hz NO
Article no.
: EV06121003
product:
Solenoid valve
type:
EV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN16
connection:
G 1/2" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
2.9 m³/h
function:
NO - normally open
control:
force pilot operated
material:
stainless steel 1.4308
seal:
FKM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
20 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
non-flammable, neutral gases and liquids
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0,0 - 7 bar
Outlet pressure:
0 bar (no counter pressure)
installation position:
any position, solenoid preferably standing
