FV01120011
Solenoid valve DN100 stainless steel FV01 FKM 230V 50Hz
- Lead time
- 1 - 2 weeks
Equipment

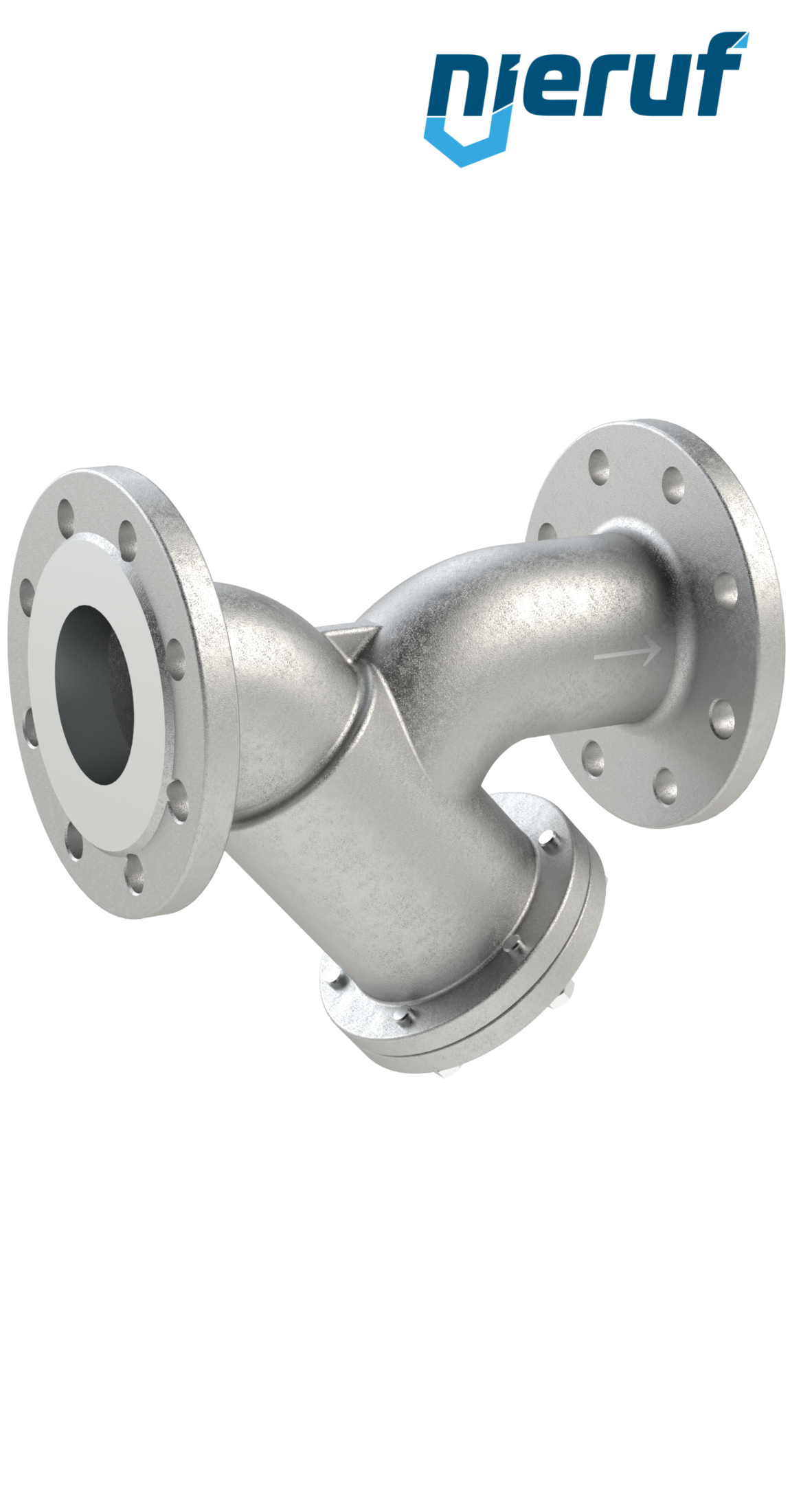

flange-strainer DN100 PN16 type SZ03 stainless steel
€1,360.88 VAT included.
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
€4.88 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
€16.18 VAT included.
Welding neck flange DN100 PN10/16 EN1092-1 11 B1 1.4541
€82.23 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

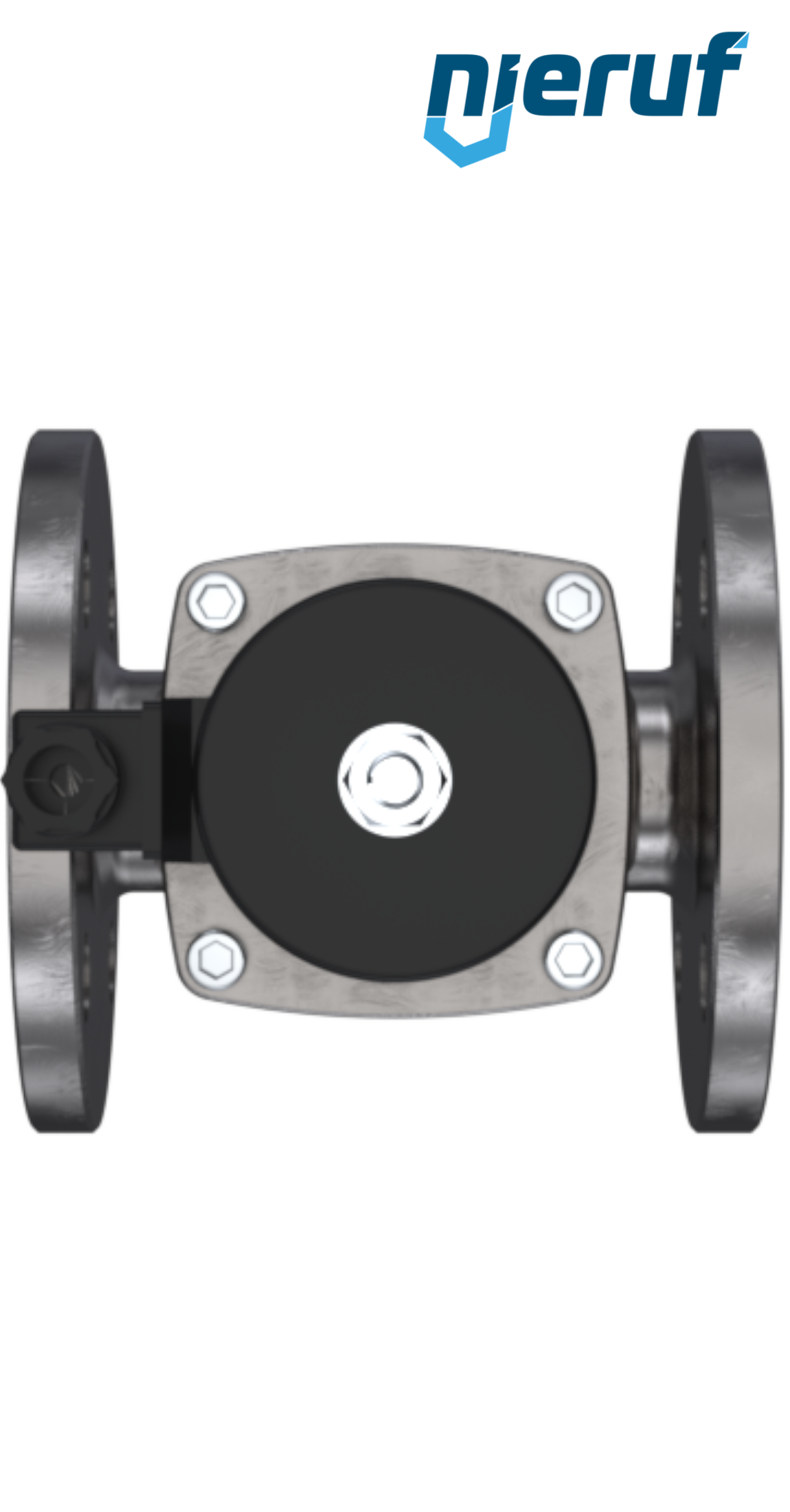

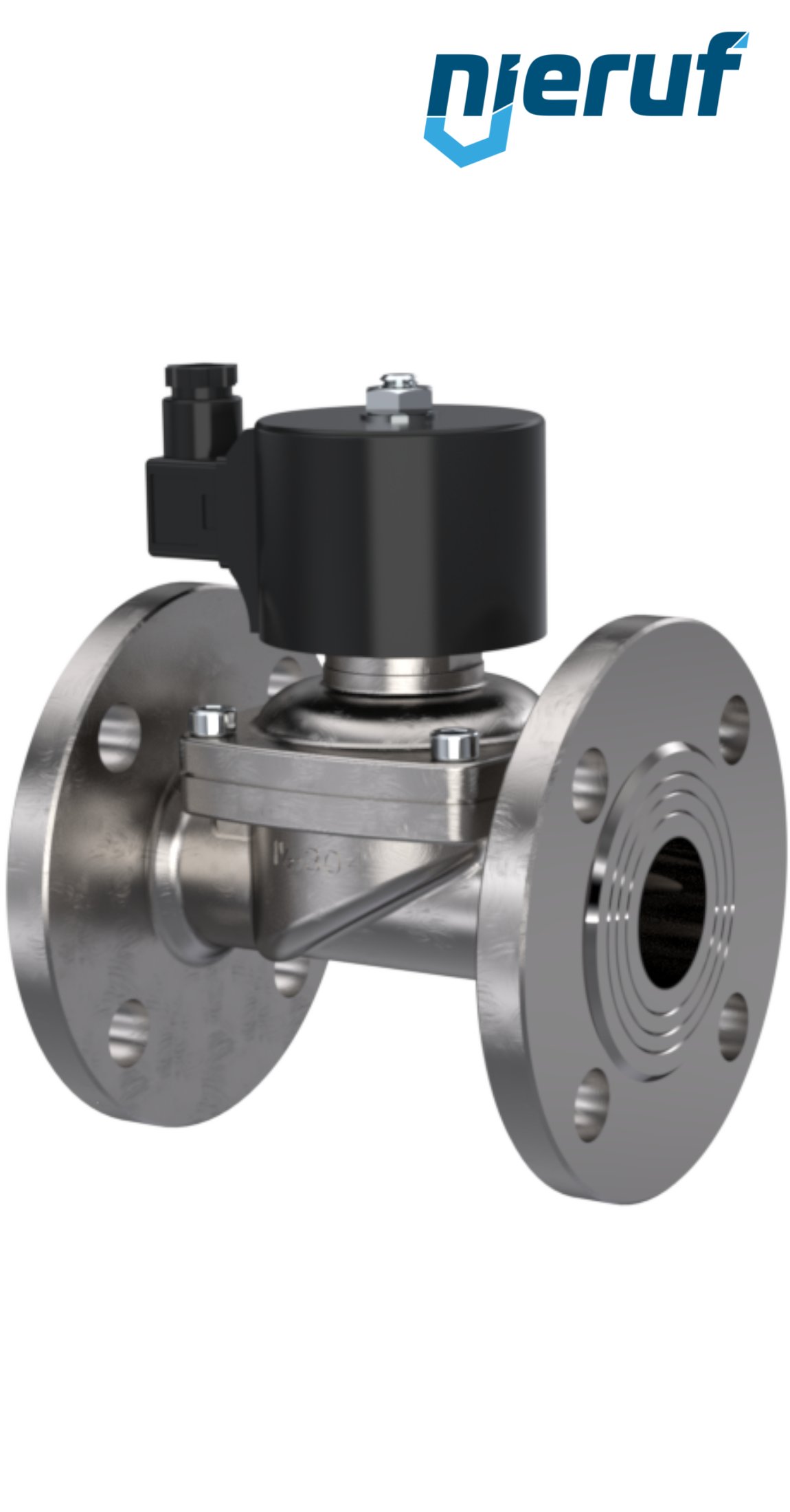

Solenoid valve DN100 stainless steel FV01 FKM 230V 50Hz
2/2 Ways Solenoid valve flange DN100 made of stainless steel 1.4308 seal FKM force pilot operated nominal voltage 230V 50Hz pressure 0,0 - 6,0 bar
| product | Solenoid valve |
|---|---|
| type | FV01 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN100 |
| connection | flange |
| type of connection | flange |
| Type of design | 2/2 Ways |
| flow rate | 90.9 m³/h |
| function | NC - normally closed |
| control | force pilot operated |
| material | stainless steel 1.4308 |
| seal | FKM |
| voltage | 230V 50Hz |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 57 VA |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | non-flammable, neutral gases and liquids |
| temperature media | -10°C up to +120°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0,0 - 6 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve DN100 stainless steel FV01 FKM 230V 50Hz
Article no.
: FV01120011
product:
Solenoid valve
type:
FV01
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN100
connection:
flange
type of connection:
flange
Type of design:
2/2 Ways
flow rate:
90.9 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
stainless steel 1.4308
seal:
FKM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
57 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
non-flammable, neutral gases and liquids
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0,0 - 6 bar
Outlet pressure:
0 bar (no counter pressure)
installation position:
any position, solenoid preferably standing
Equipment
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
Lead time: in stock
flange-strainer DN100 PN16 type SZ03 stainless steel
Lead time: in stock
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
Lead time: in stock
reducing bush (welded) 139,7 x 2,9 to 60,3 x 2,0 stainless steel 1.4571
Lead time: in stock
