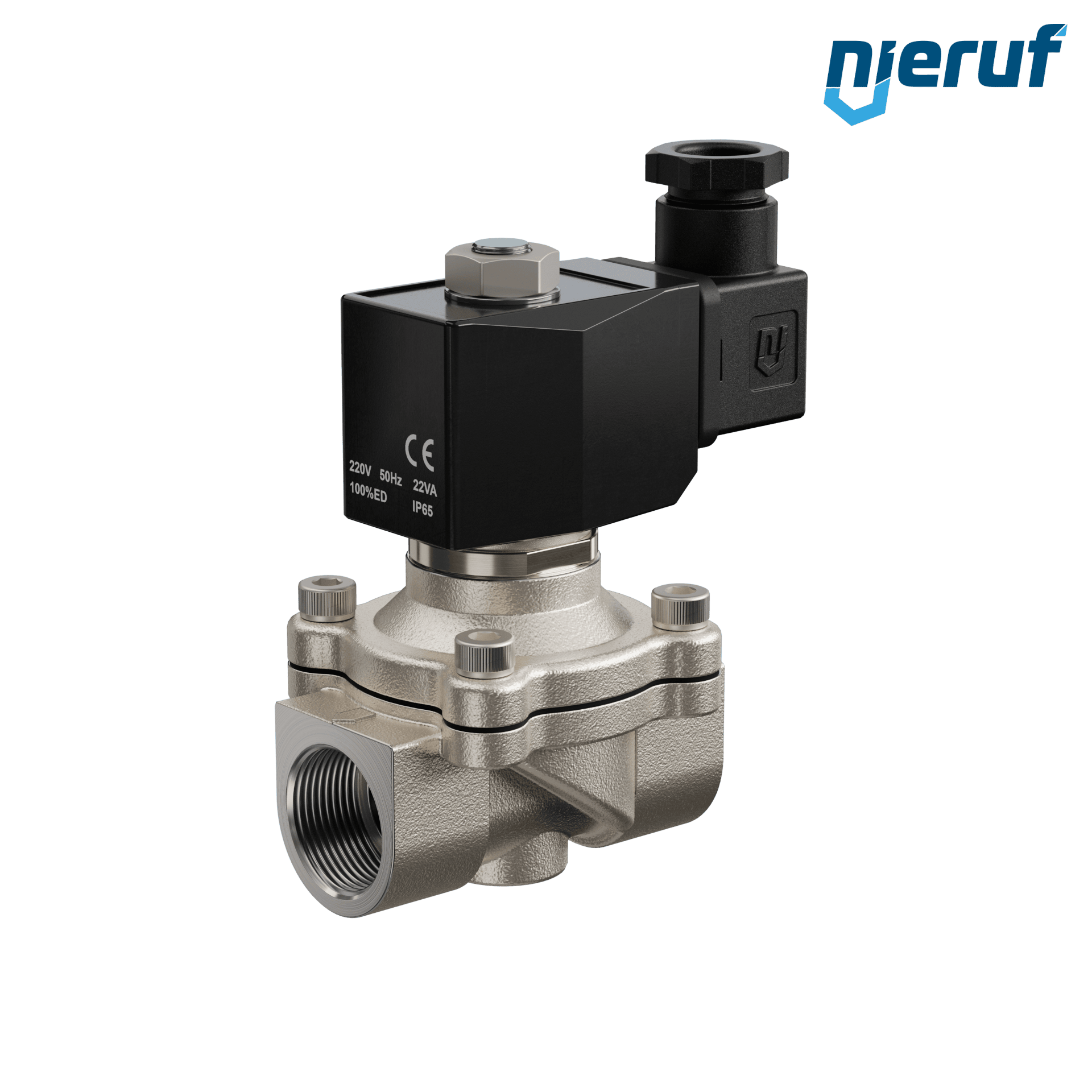

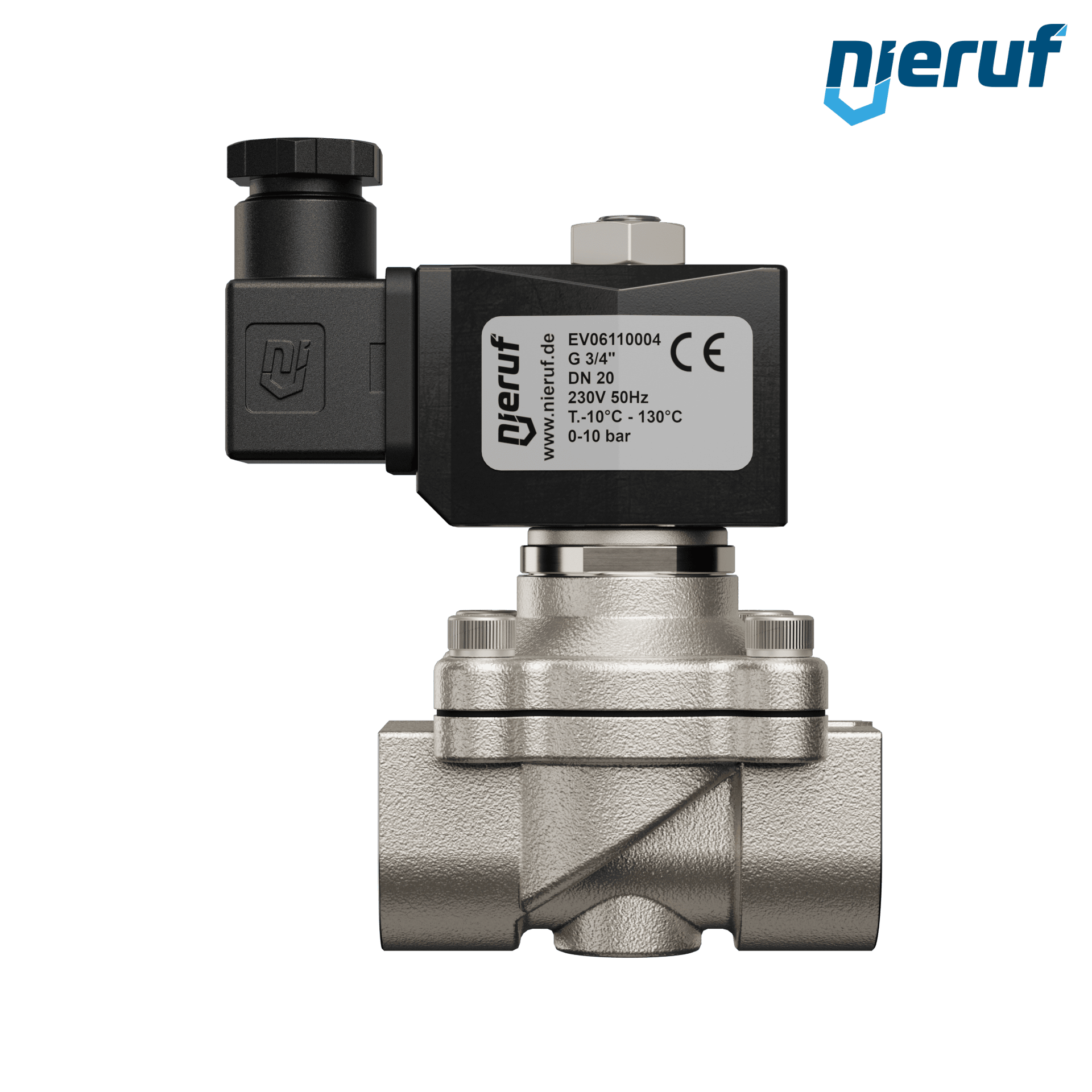

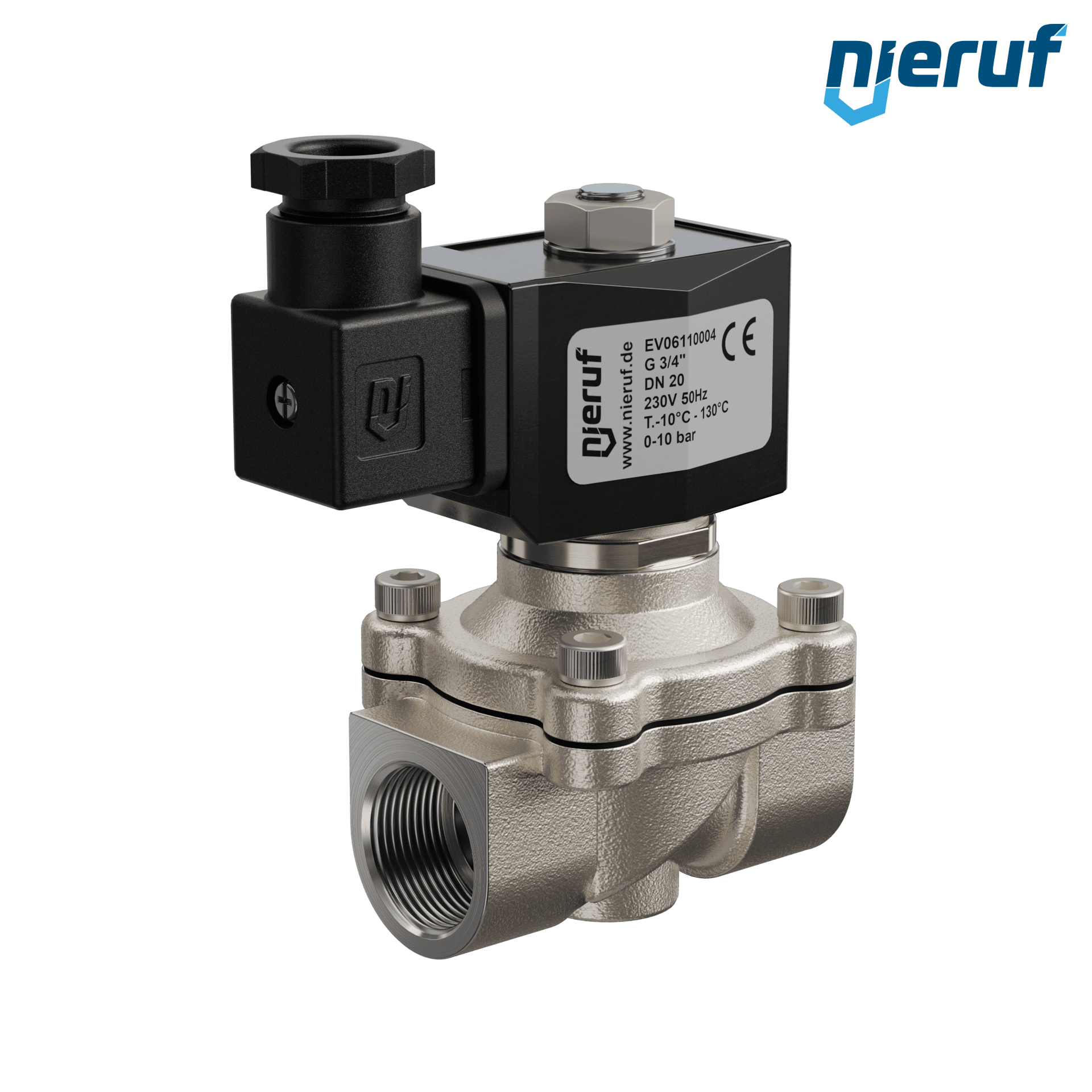

2/2 Ways Solenoid valve G 3/4" Inch DN20 made of stainless steel 1.4308 seal EPDM force pilot operated nominal voltage 230V 50Hz pressure 0.0 - 10 bar
| product | Solenoid valve |
|---|---|
| type | EV06 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN20 |
| connection | G 3/4" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 6.5 m³/h |
| function | NC - normally closed |
| control | force pilot operated |
| material | stainless steel 1.4308 |
| seal | EPDM |
| voltage | 230V 50Hz |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 20 VA |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | liquid and gaseous media |
| temperature media | -10°C up to +130°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0.0 - 10 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve G 3/4" Inch stainless steel EV06 EPDM 230V 50Hz
Article no.
: EV06110004
product:
Solenoid valve
type:
EV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN20
connection:
G 3/4" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
6.5 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
stainless steel 1.4308
seal:
EPDM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
20 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +130°C
temperature ambiente:
max up to +50°C
max. pressure:
0.0 - 10 bar
Outlet pressure:
0 bar (no counter pressure)
installation position:
any position, solenoid preferably standing
reducing bush (welded) 33,7 x 2,0 to 21,3 x 1,6 stainless steel 1.4571
