EV06210008
Solenoid valve G 2" Inch stainless steel EV06 EPDM 24V DC
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Tuesday, 06. October
Guaranteed delivery until Wednesday, 07. October, 12 o'clock
Equipment
LED plug 24V DC for solenoid valves for type EV03 / MV03 / EV04 / MV04 / EV05 / MV05 / EV06 / MV06 / EV07 / MV07
€11.78 VAT included.
hose nozzle 2" 50.8 mm stainless steel 1.4408 ST01
€22.61 VAT included.
hexagon nipple 2" inch male stainless steel 316
€14.64 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

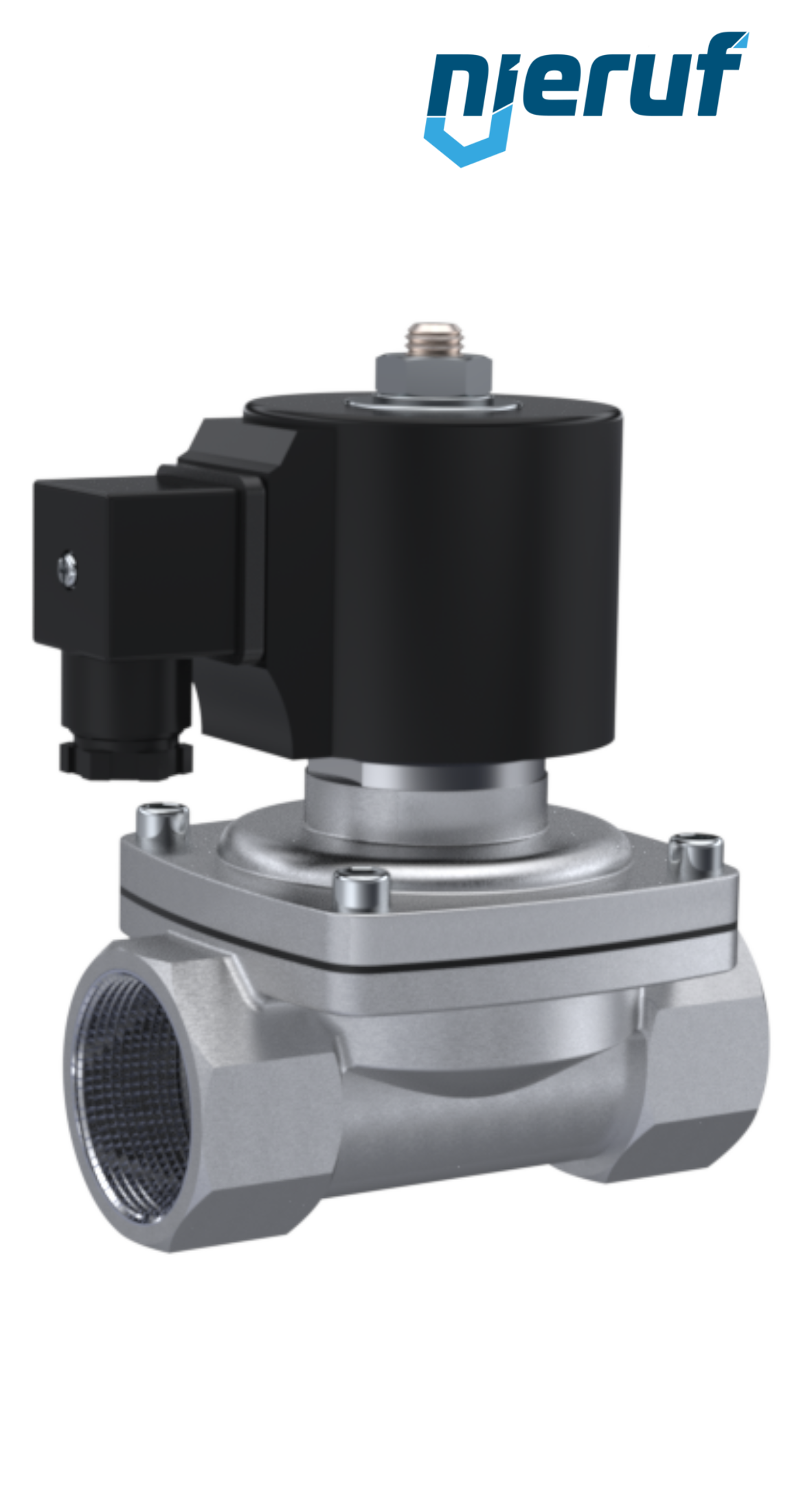

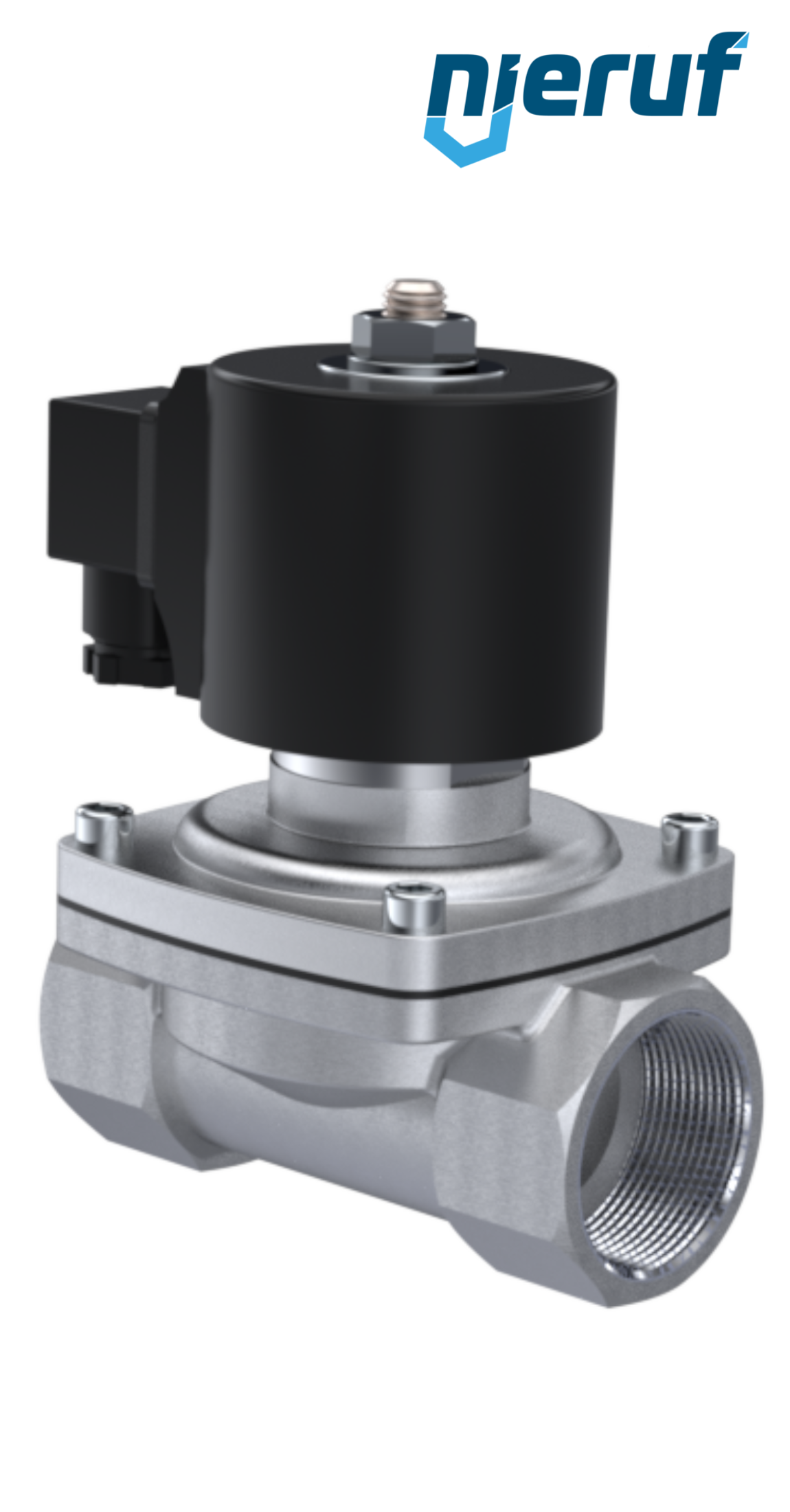

Solenoid valve G 2" Inch stainless steel EV06 EPDM 24V DC
2/2 Ways Solenoid valve G 2" Inch DN50 made of stainless steel 1.4308 seal EPDM force pilot operated nominal voltage 24V DC pressure 0,0 - 6 bar
| product | Solenoid valve |
|---|---|
| type | EV06 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN50 |
| connection | G 2" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 25.9 m³/h |
| function | NC - normally closed |
| control | force pilot operated |
| material | stainless steel 1.4308 |
| seal | EPDM |
| voltage | 24V DC |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 45 Watt |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | non-flammable, neutral gases and liquids |
| temperature media | -10°C up to +130°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0,0 - 6 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve G 2" Inch stainless steel EV06 EPDM 24V DC
Article no.
: EV06210008
product:
Solenoid valve
type:
EV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN50
connection:
G 2" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
25.9 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
stainless steel 1.4308
seal:
EPDM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
45 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
non-flammable, neutral gases and liquids
temperature media:
-10°C up to +130°C
temperature ambiente:
max up to +50°C
max. pressure:
0,0 - 6 bar
Outlet pressure:
0 bar (no counter pressure)
installation position:
any position, solenoid preferably standing
Equipment
pipe bend (welded) 90° 60,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 76,1 x 2,3 to 60,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
LED plug 24V DC for solenoid valves for type EV03 / MV03 / EV04 / MV04 / EV05 / MV05 / EV06 / MV06 / EV07 / MV07
Lead time: in stock
