MV06120005

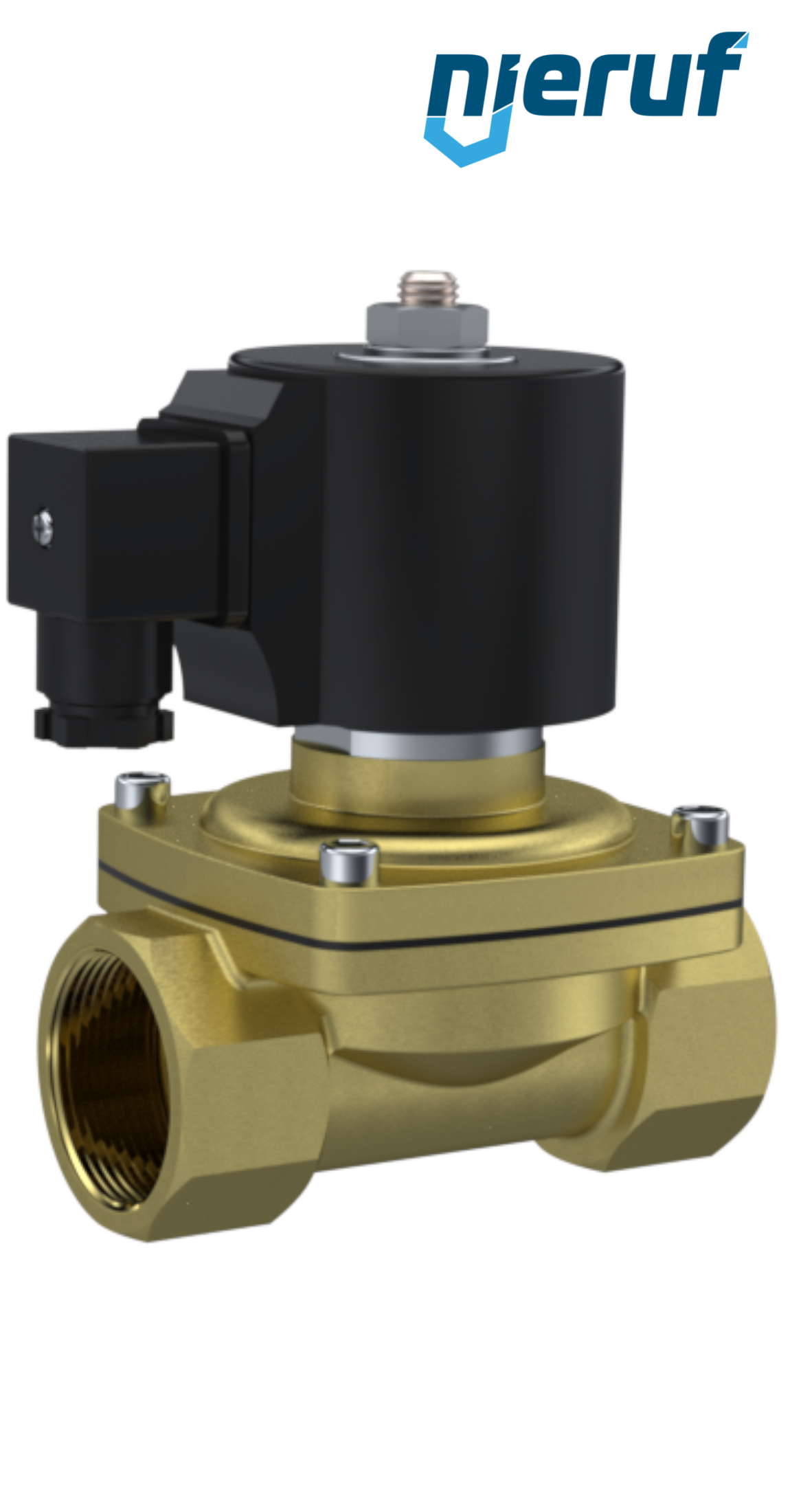

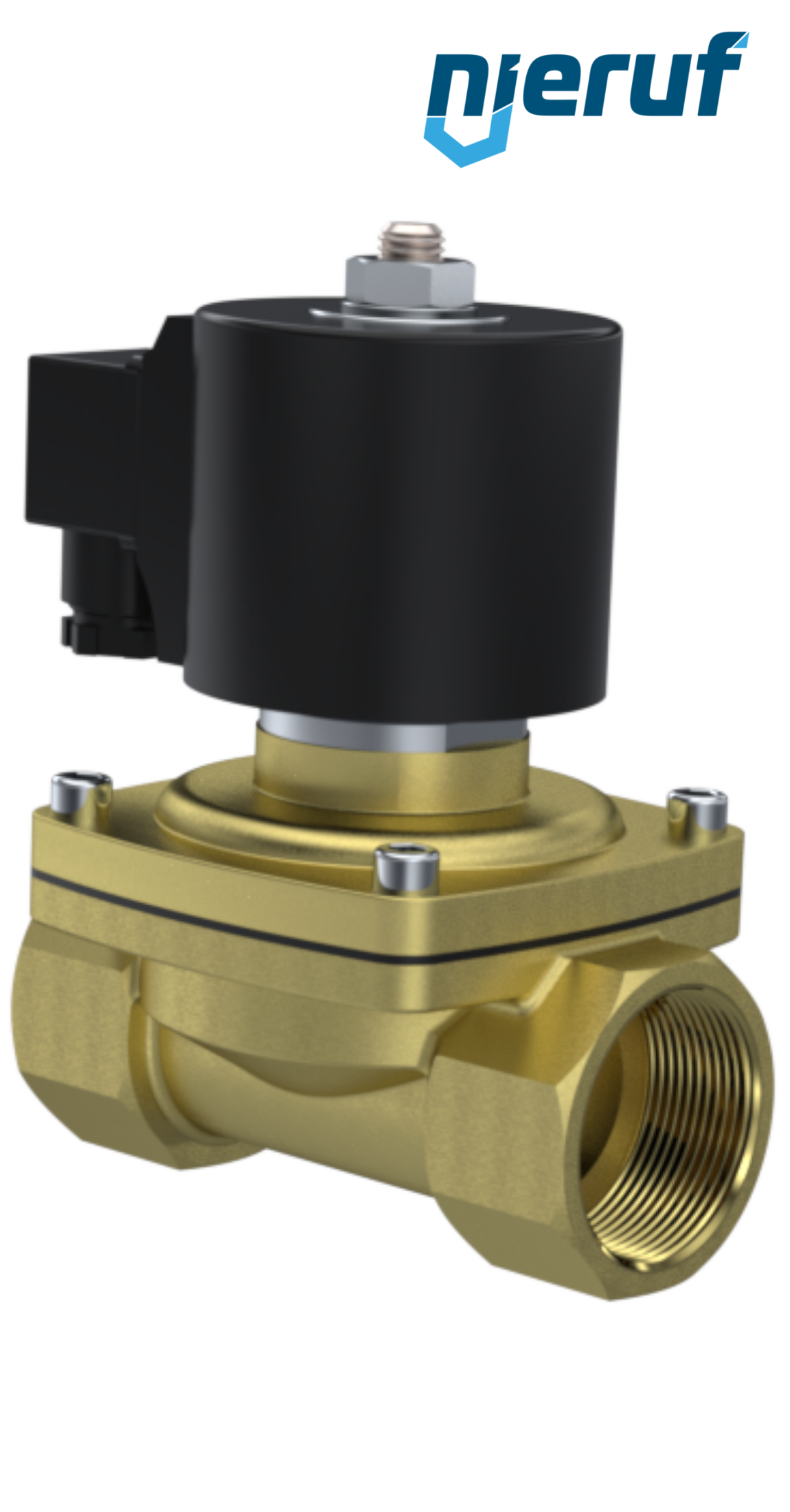

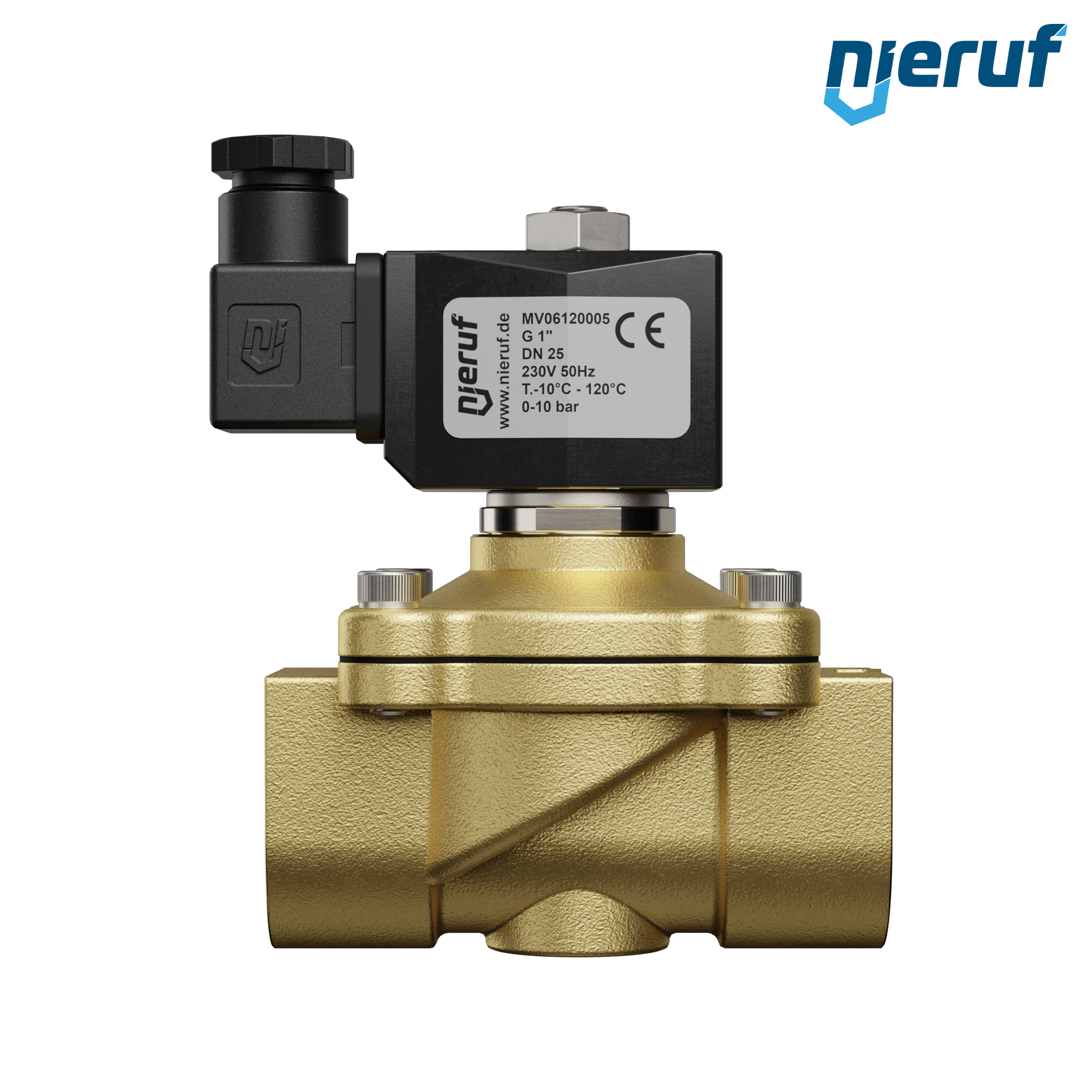

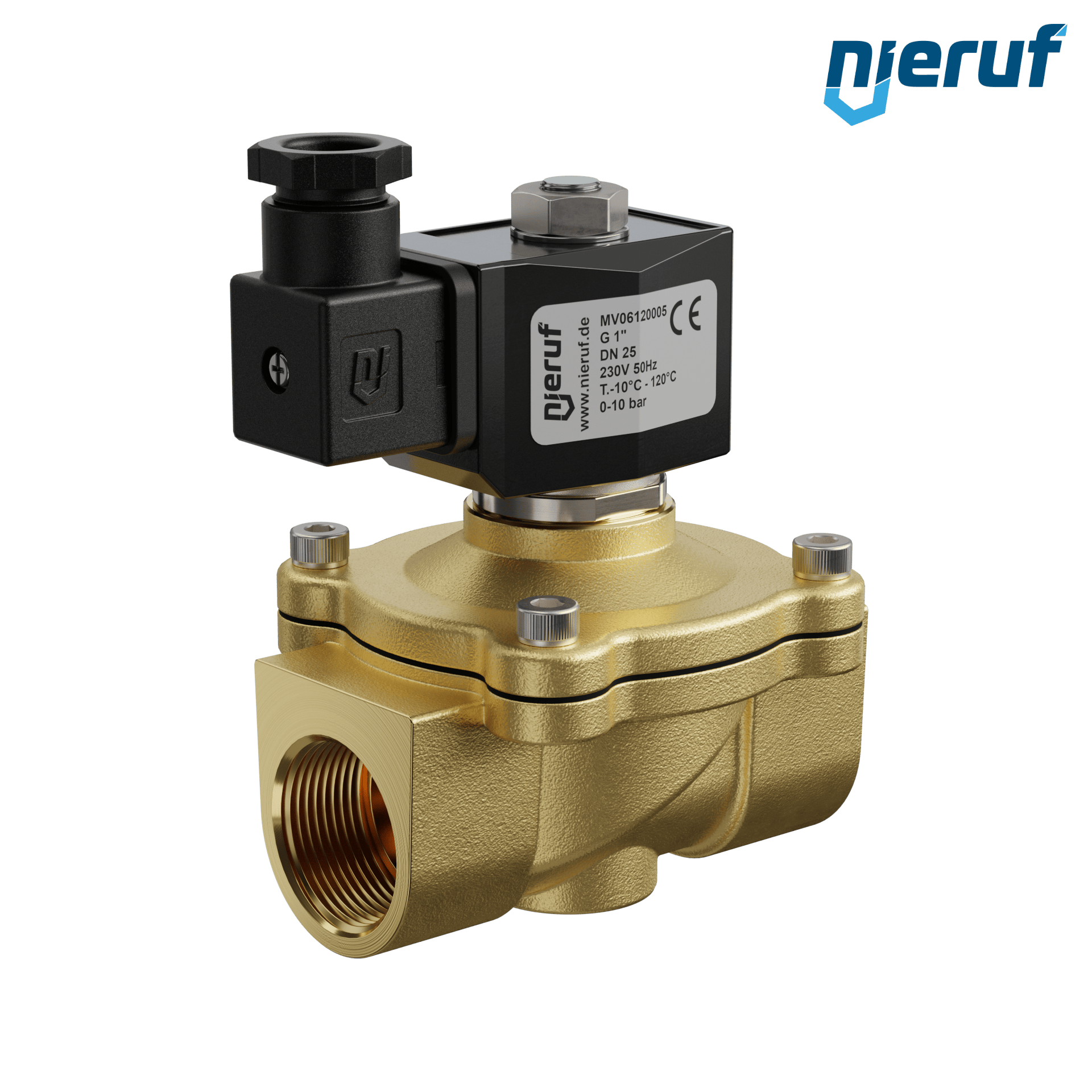

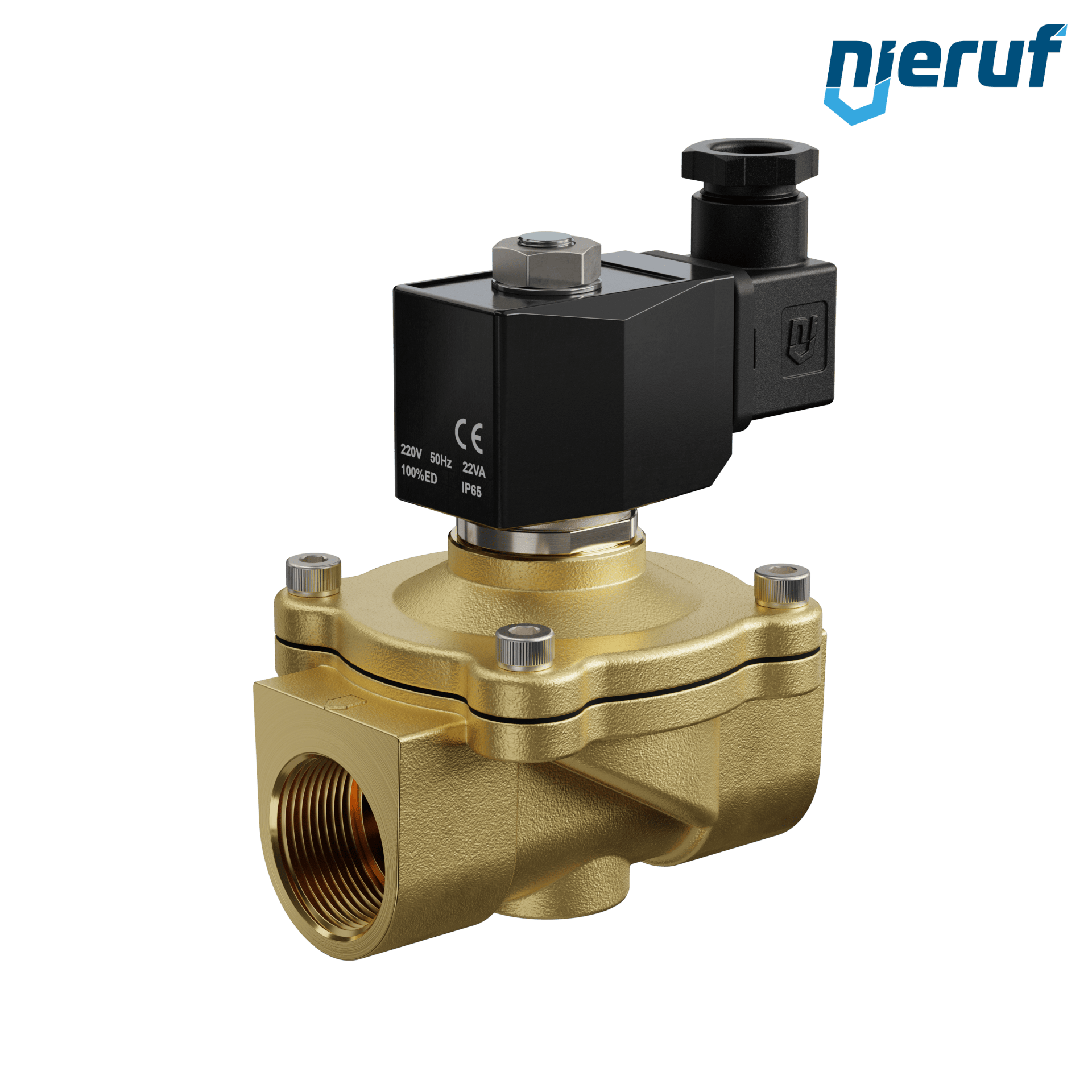

Solenoid valve G 1" Inch brass MV06 FKM 230V 50Hz
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Wednesday, 07. October
Guaranteed delivery until Thursday, 08. October, 12 o'clock
Equipment
hose nozzle 1" 25.4 mm stainless steel 1.4408 ST01
€6.90 VAT included.
hexagon nipple 1" inch male stainless steel 316
€5.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Solenoid valve G 1" Inch brass MV06 FKM 230V 50Hz
2/2 Ways Solenoid valve G 1" Inch DN25 made of brass seal FKM force pilot operated nominal voltage 230V 50Hz pressure 0.0 - 10 bar
| product | Solenoid valve |
|---|---|
| type | MV06 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN25 |
| connection | G 1" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 7.2 m³/h |
| function | NC - normally closed |
| control | force pilot operated |
| material | brass |
| seal | FKM |
| voltage | 230V 50Hz |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 20 VA |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | non-flammable, neutral gases and liquids |
| temperature media | -10°C up to +120°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0.0 - 10 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve G 1" Inch brass MV06 FKM 230V 50Hz
Article no.
: MV06120005
product:
Solenoid valve
type:
MV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN25
connection:
G 1" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
7.2 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
brass
seal:
FKM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
20 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
non-flammable, neutral gases and liquids
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0.0 - 10 bar
Outlet pressure:
0 bar (no counter pressure)
installation position:
any position, solenoid preferably standing
