EV06120005

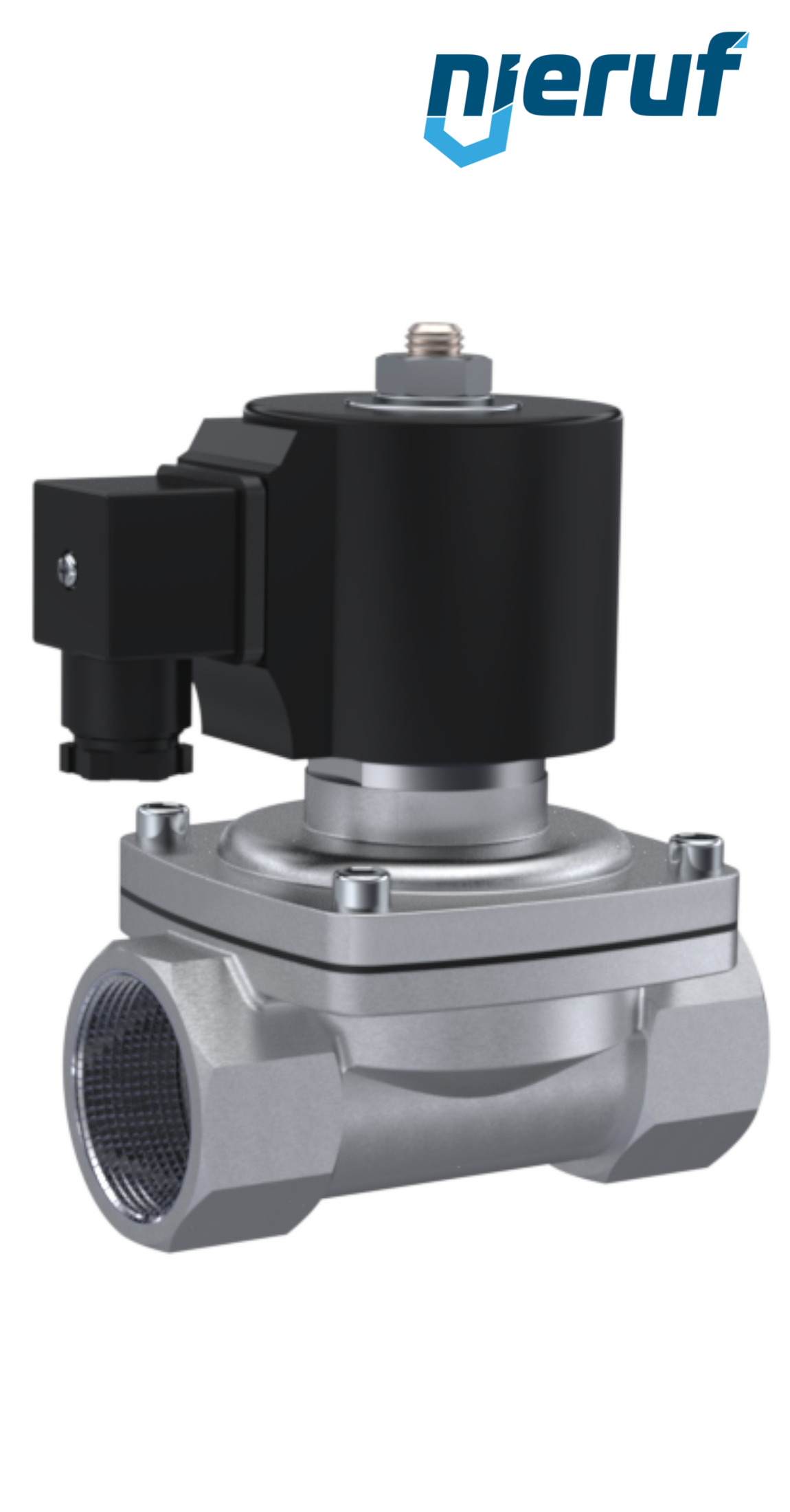

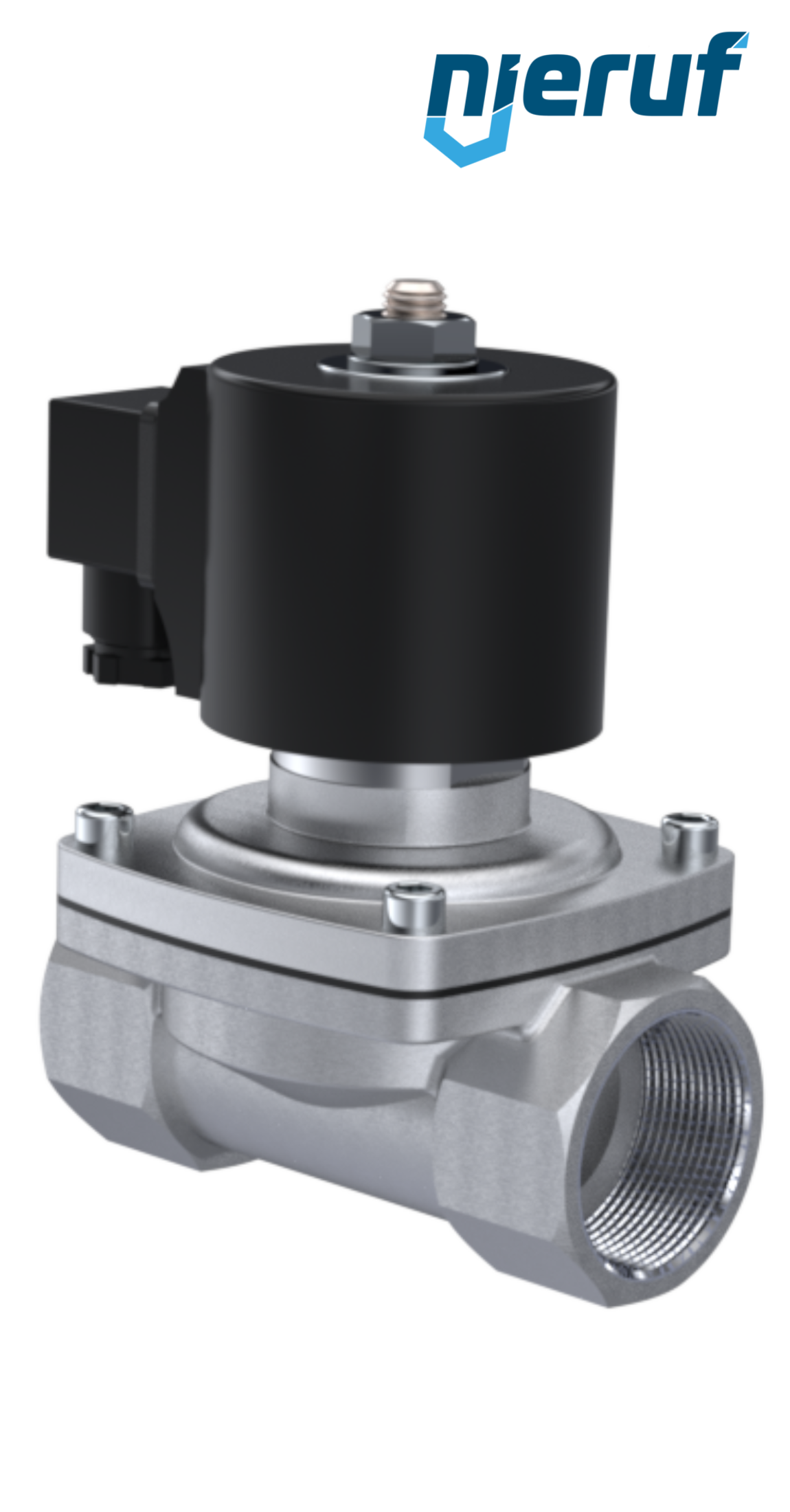

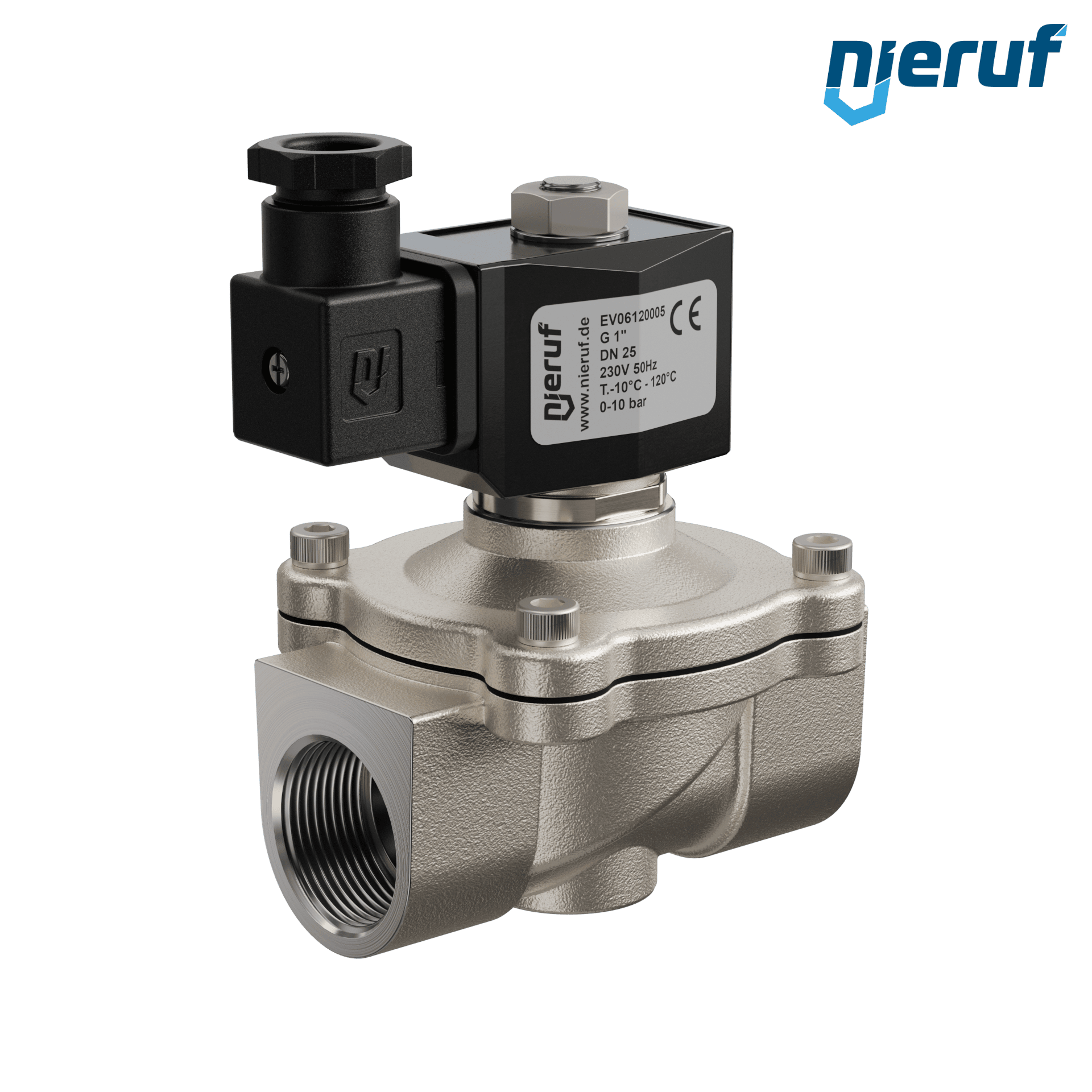

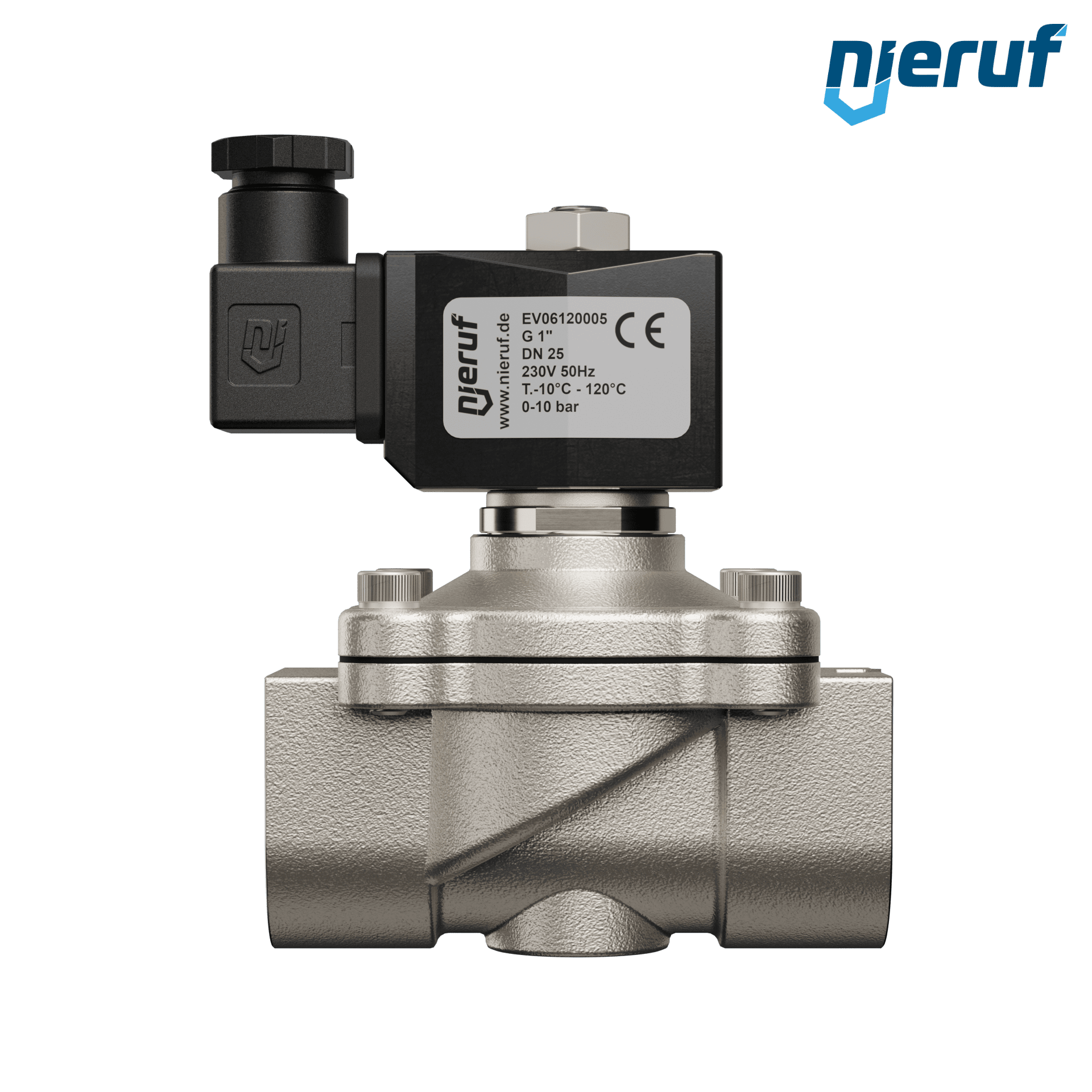

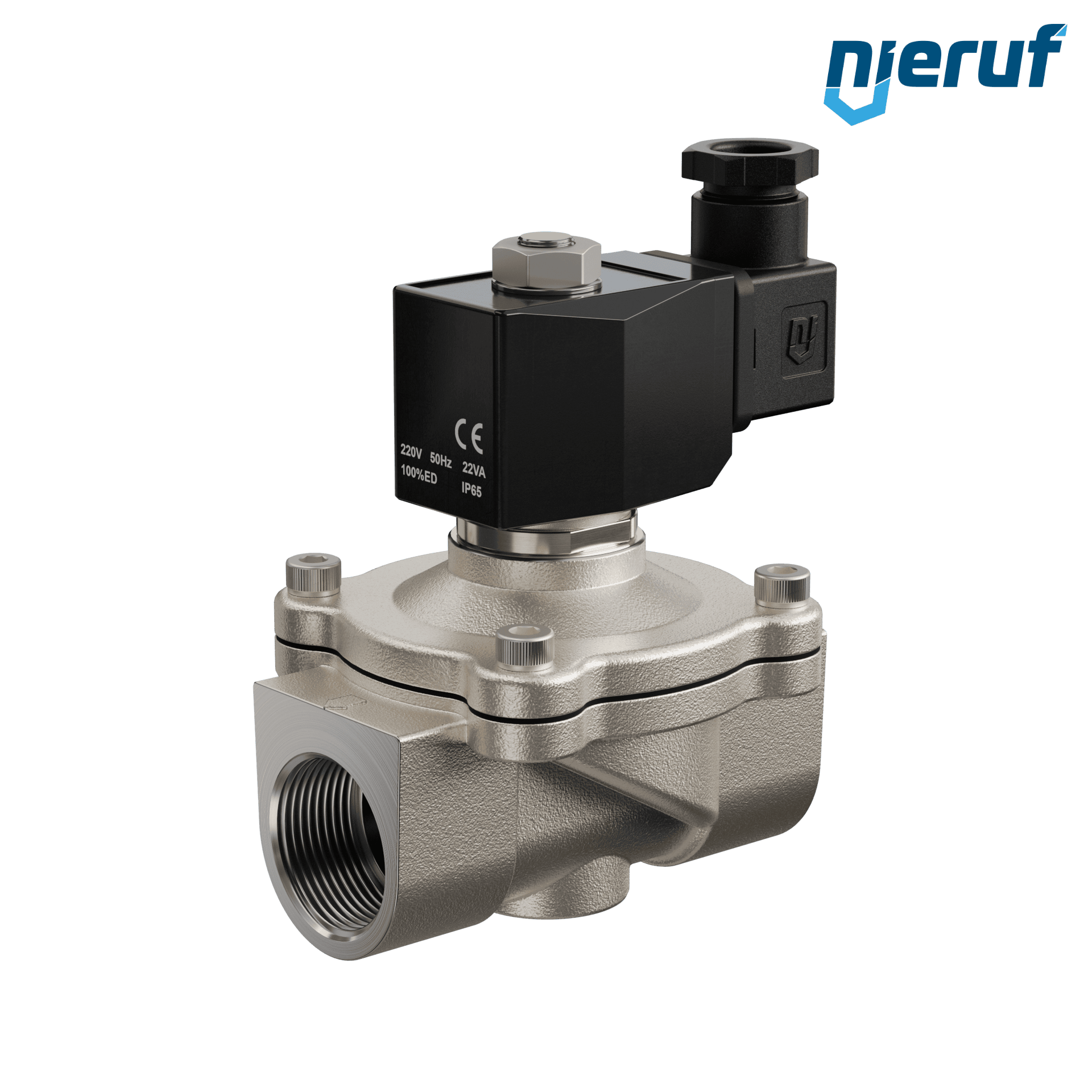

Solenoid valve G 1" Inch stainless steel EV06 FKM 230V 50Hz

€112.40*

€133.76 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: in stock

Express delivery*

Order in within by express delivery

Shipping on: Tuesday, 06. October

Guaranteed delivery until Wednesday, 07. October, 12 o'clock

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

SZ01000005

strainer 1" inch stainless steel type SZ01

€23.70*

€28.20 VAT included.

ST01000005

hose nozzle 1" 25.4 mm stainless steel 1.4408 ST01

€5.80*

€6.90 VAT included.

GF01300005

hexagon nipple 1" inch male stainless steel 316

€4.50*

€5.36 VAT included.

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

NieRuf-Exchange

24 months warranty

Certified

Downloads

3D model

Datasheet

Solenoid valve G 1" Inch stainless steel EV06 FKM 230V 50Hz

2/2 Ways Solenoid valve G 1" Inch DN25 made of stainless steel 1.4308 seal FKM force pilot operated nominal voltage 230V 50Hz pressure 0.0 - 10 bar

product	Solenoid valve
type	EV06
manufacturer	NieRuf
design	seat valve with membrane
diameter	DN25
connection	G 1" Inch
type of connection	female thread
Type of design	2/2 Ways
flow rate	7.2 m³/h
function	NC - normally closed
control	force pilot operated
material	stainless steel 1.4308
seal	FKM
voltage	230V 50Hz
voltage tolerance	+/- 10% acc. VDE 0580
power consumption	20 VA
duty	100% ED
plug socket	IP65 with plug socket mounted
media	non-flammable, neutral gases and liquids
temperature media	-10°C up to +120°C
temperature ambiente	max up to +50°C
max. pressure	0.0 - 10 bar
Outlet pressure	0 bar (no counter pressure)
installation position	any position, solenoid preferably standing

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Solenoid valve G 1" Inch stainless steel EV06 FKM 230V 50Hz

Article no. : EV06120005
product: Solenoid valve
type: EV06
manufacturer: NieRuf
design: seat valve with membrane
diameter: DN25
connection: G 1" Inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 7.2 m³/h
function: NC - normally closed
control: force pilot operated
material: stainless steel 1.4308
seal: FKM
voltage: 230V 50Hz
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 20 VA
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: non-flammable, neutral gases and liquids
temperature media: -10°C up to +120°C
temperature ambiente: max up to +50°C
max. pressure: 0.0 - 10 bar
Outlet pressure: 0 bar (no counter pressure)
installation position: any position, solenoid preferably standing
