MV03240020
Solenoid valve DN 2.0 brass MV03 NBR 24V DC
- Lead time
- 3 - 5 working days
Equipment
hose nozzle 1/4" 9.0 mm stainless steel 1.4408 ST01
€1.79 VAT included.
LED plug 24V DC for solenoid valves for type EV03 / MV03 / EV04 / MV04 / EV05 / MV05 / EV06 / MV06 / EV07 / MV07
€11.78 VAT included.
hexagon nipple 1/4" inch male stainless steel 316
€1.55 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads

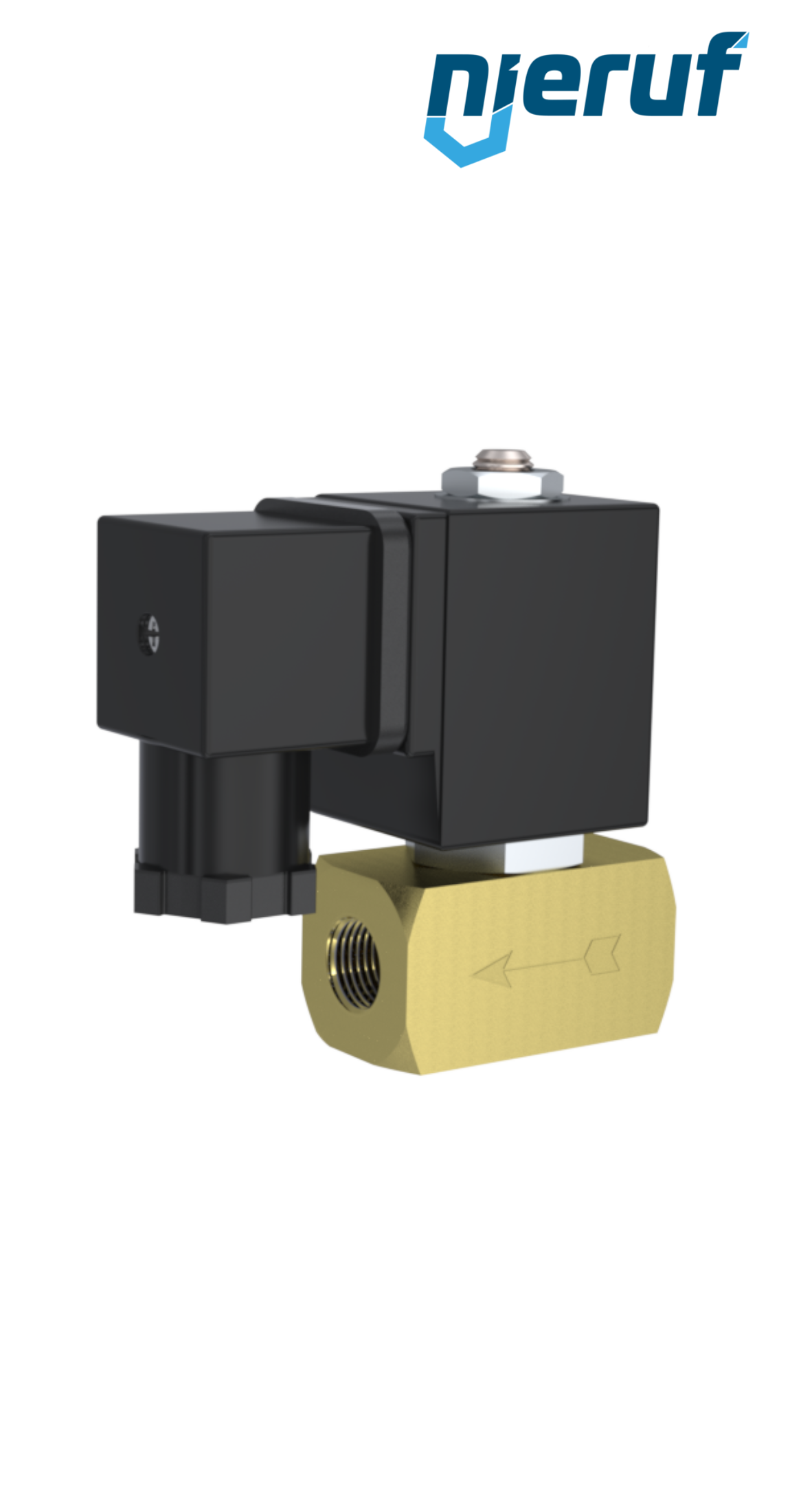

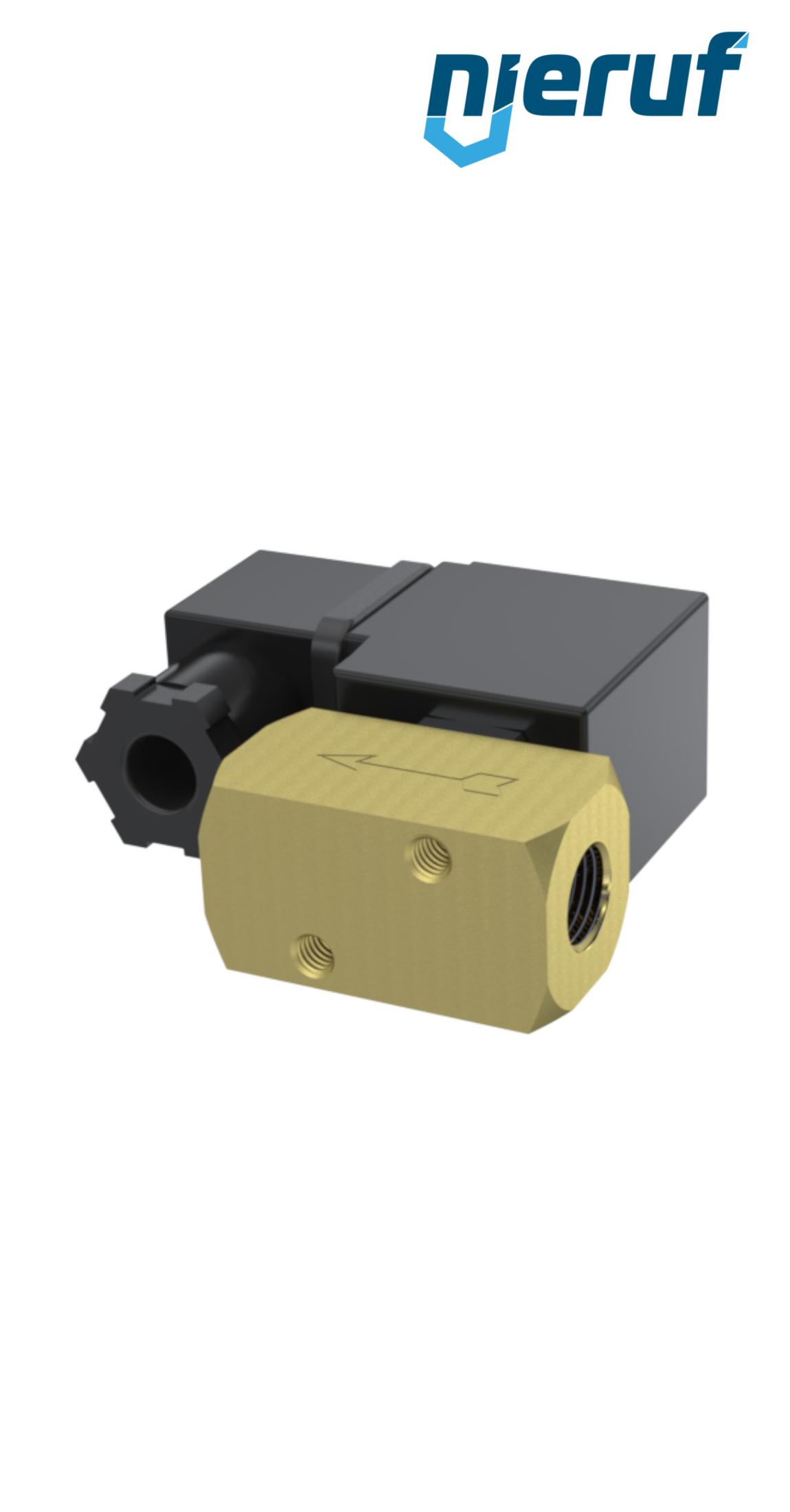

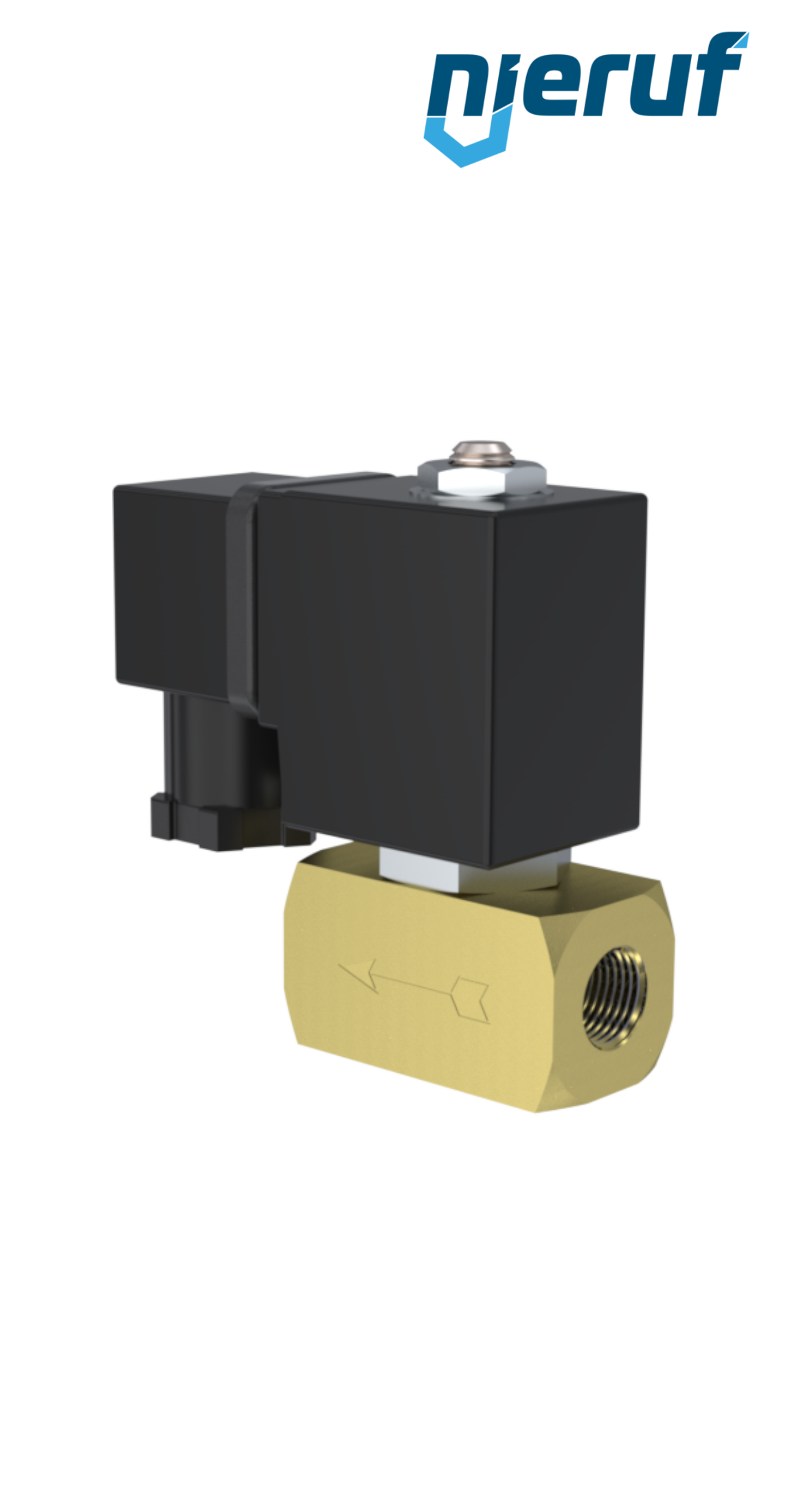

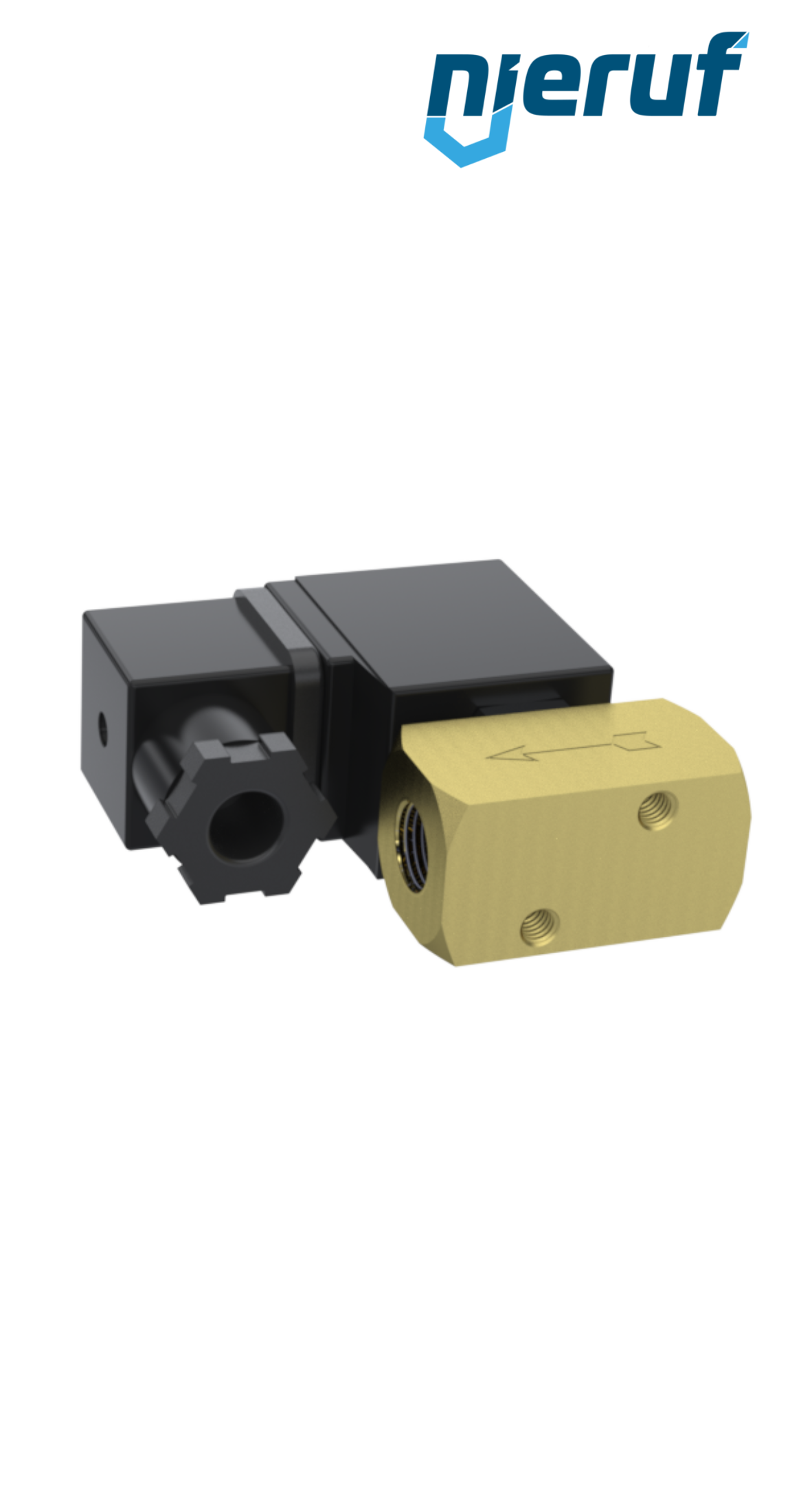

Solenoid valve DN 2.0 brass MV03 NBR 24V DC
2/2 Ways Solenoid valve G 1/4" Inch DN 2.0 made of brass seal NBR direct acting nominal voltage 24V DC pressure 0 - 38 bar
| product | Solenoid valve |
|---|---|
| type | MV03 |
| manufacturer | NieRuf |
| design | seat valve |
| diameter | DN 2.0 |
| connection | G 1/4" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 2.3 l/min |
| function | NC - normally closed |
| control | direct acting |
| material | brass |
| seal | NBR |
| voltage | 24V DC |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 18 Watt |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | non-flammable, neutral gases and liquids |
| temperature media | -10°C up to +90°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0 - 38 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve DN 2.0 brass MV03 NBR 24V DC
Article no.
: MV03240020
product:
Solenoid valve
type:
MV03
manufacturer:
NieRuf
design:
seat valve
diameter:
DN 2.0
connection:
G 1/4" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
2.3 l/min
function:
NC - normally closed
control:
direct acting
material:
brass
seal:
NBR
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
18 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
non-flammable, neutral gases and liquids
temperature media:
-10°C up to +90°C
temperature ambiente:
max up to +50°C
max. pressure:
0 - 38 bar
Outlet pressure:
0 bar (no counter pressure)
installation position:
any position, solenoid preferably standing
