DM05020003
Flange-pressure reducing valve DN 15 PN16 DM05 gunmetal/brass EPDM 1.0 - 8.0 bar
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Flange DN15 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€11.19 VAT included.
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
€2.38 VAT included.
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 10,0 bar
€12.61 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

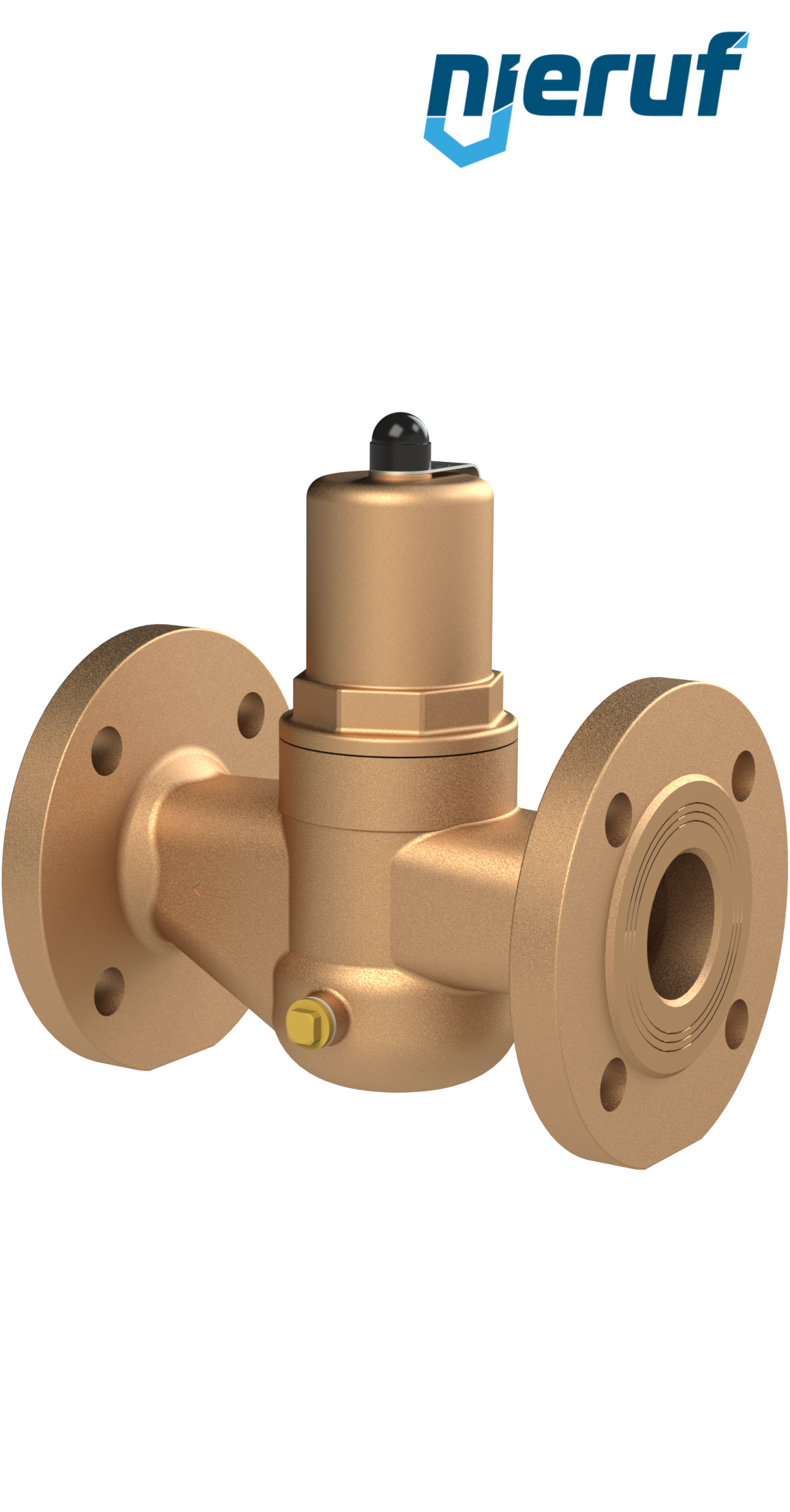

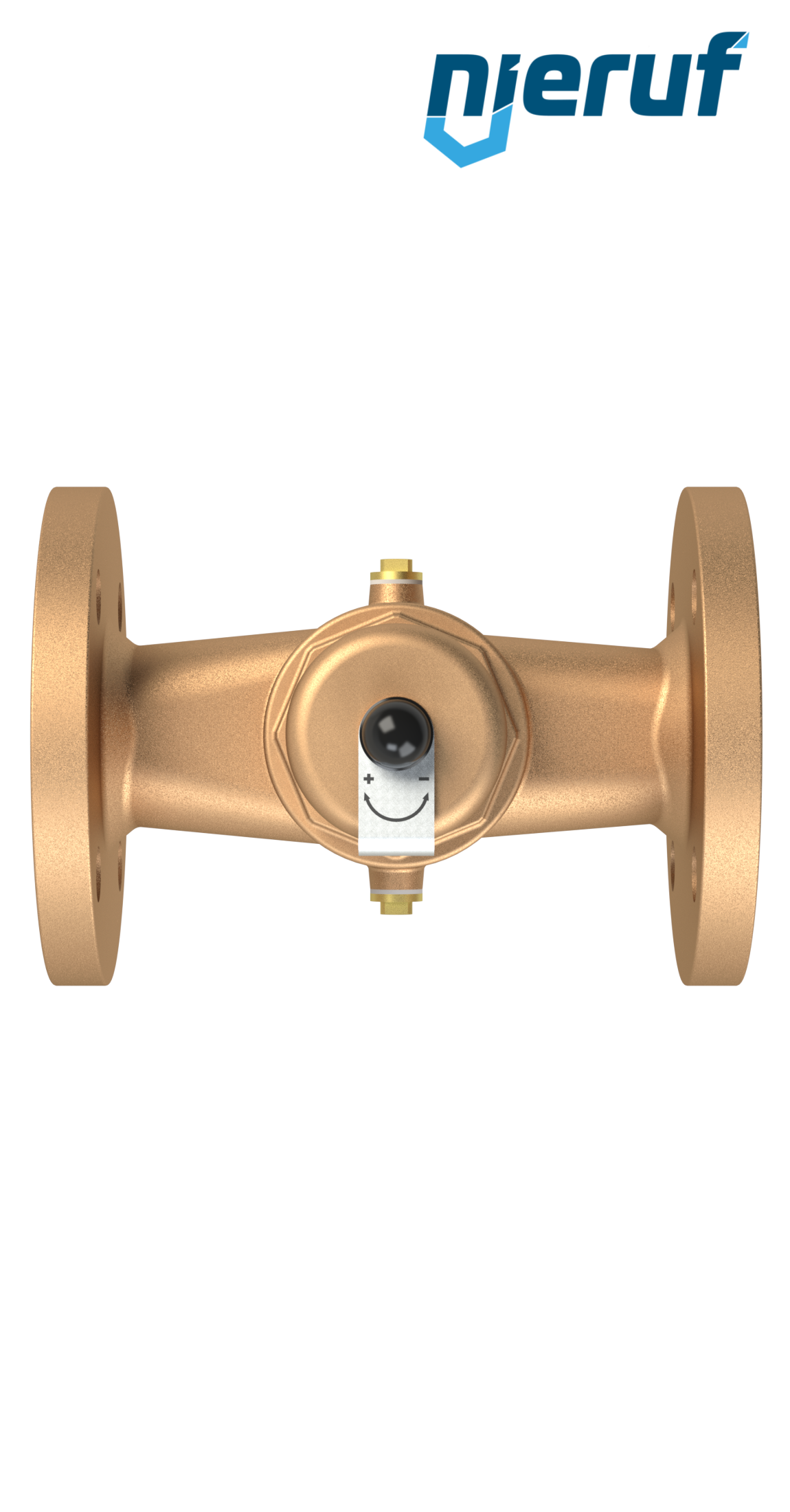

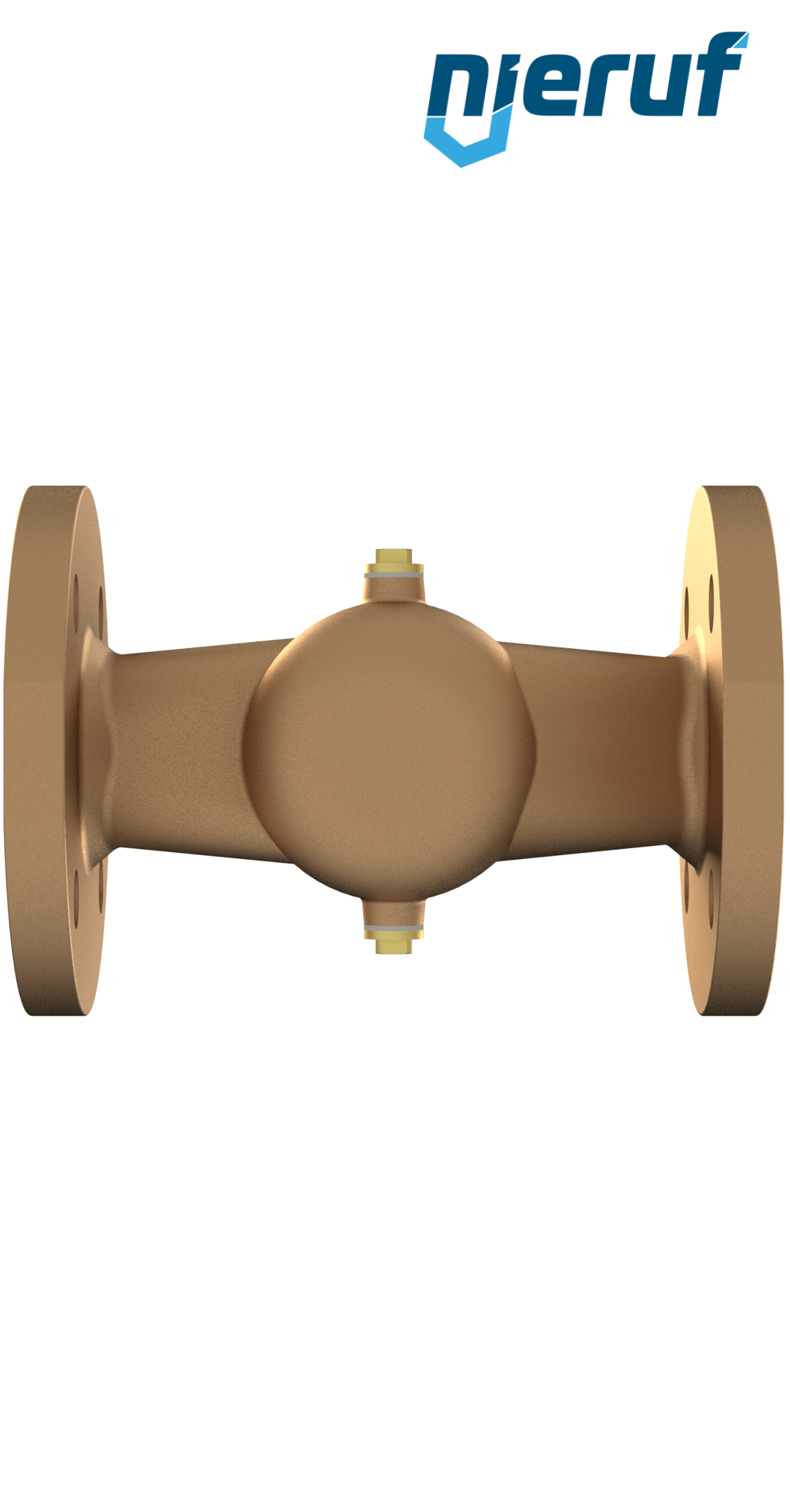

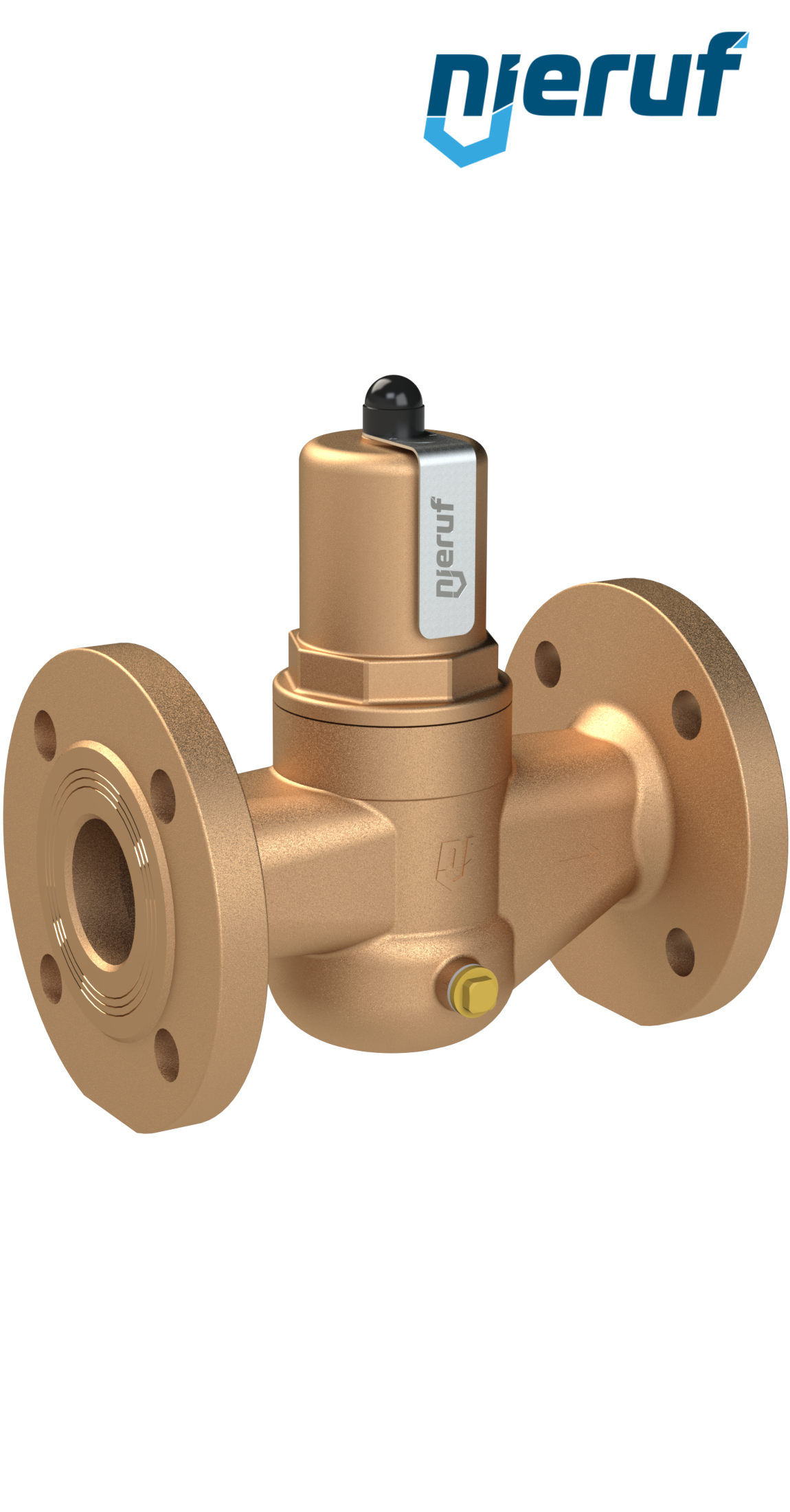

Flange-pressure reducing valve DN 15 PN16 DM05 gunmetal/brass EPDM 1.0 - 8.0 bar
Flange-pressure reducing valve DN 15 PN16 flange acc. DIN EN 1092 made of gunmetal/brass seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
| product | Flange-pressure reducing valve |
|---|---|
| type | DM05 |
| manufacturer | NieRuf |
| diameter | DN 15 PN16 |
| connection | flange acc. DIN EN 1092 |
| material | gunmetal/brass |
| seal | EPDM |
| media | liquid and gaseous media (no steam) |
| temperature | -20°C up to +120°C |
| range of adjustment | 1.0 - 8.0 bar |
| max. inlet pressure | 16 bar |
| design | straightway form |
| installation position | any position |
| SIL - safety integrity level | SIL 2 |
| product feature | High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange-pressure reducing valve DN 15 PN16 DM05 gunmetal/brass EPDM 1.0 - 8.0 bar
Article no.
: DM05020003
product:
Flange-pressure reducing valve
type:
DM05
manufacturer:
NieRuf
diameter:
DN 15 PN16
connection:
flange acc. DIN EN 1092
material:
gunmetal/brass
seal:
EPDM
media:
liquid and gaseous media (no steam)
temperature:
-20°C up to +120°C
range of adjustment:
1.0 - 8.0 bar
max. inlet pressure:
16 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle.
Equipment
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
Lead time: in stock
Flange DN15 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
Compact ball valve DN15 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4308
Lead time: 3 - 5 working days
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 10,0 bar
Lead time: in stock
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 steel
Lead time: in stock
