DM08030011
Flange-pressure reducing valve DN 100 PN16 DM08 stainless steel FKM 5.0 - 13.0 bar
- Lead time
- 3 - 5 working days
Equipment
Welding neck flange DN100 PN25/40 EN1092-1 11 B1 1.4541
€114.95 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN40 steel
€36.18 VAT included.
pressure gauge 0 - 16,0 bar G 1/4" axial 50 mm stainless steel MM05
€103.89 VAT included.
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
€4.88 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Flange-pressure reducing valve DN 100 PN16 DM08 stainless steel FKM 5.0 - 13.0 bar

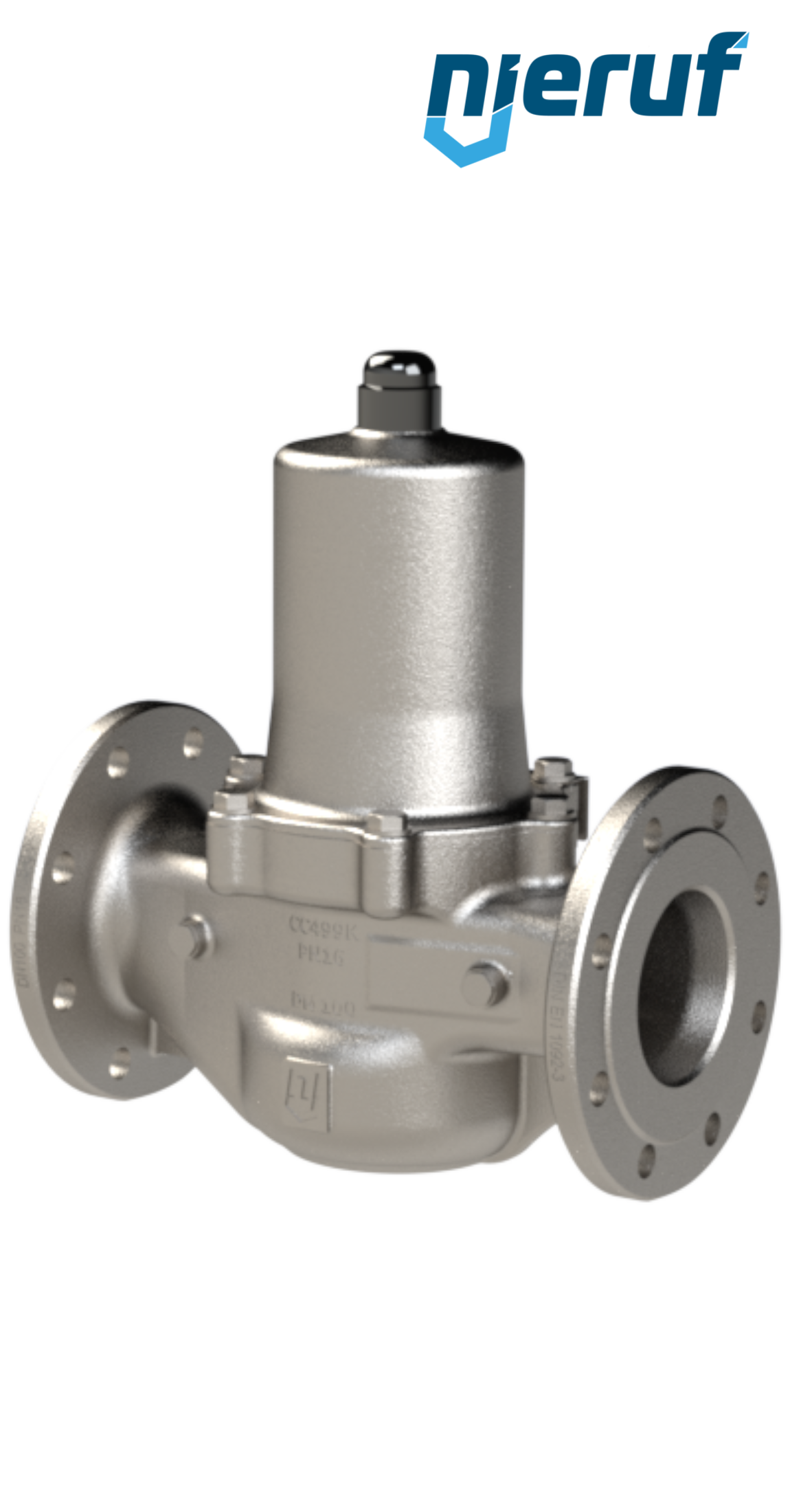

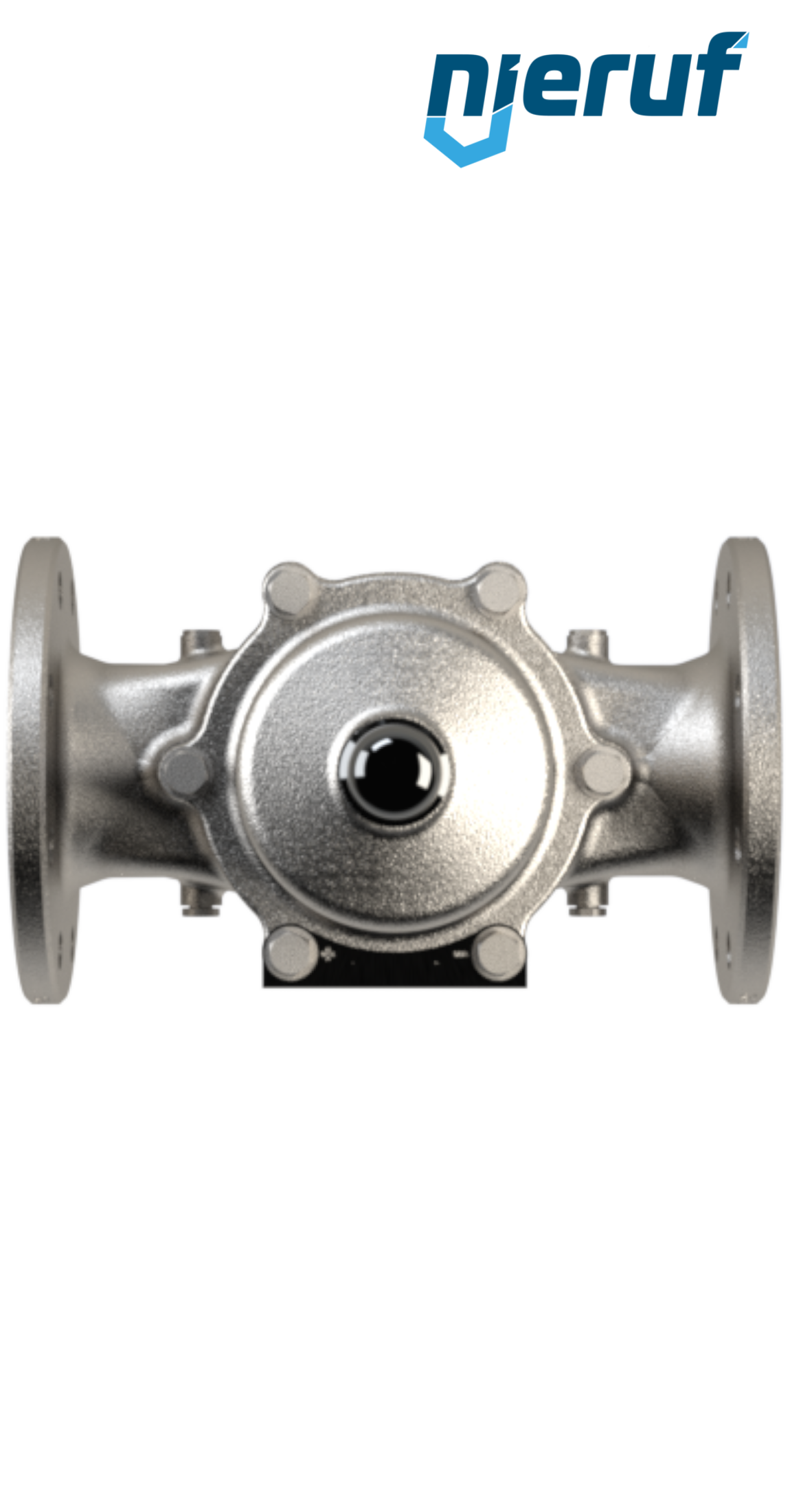

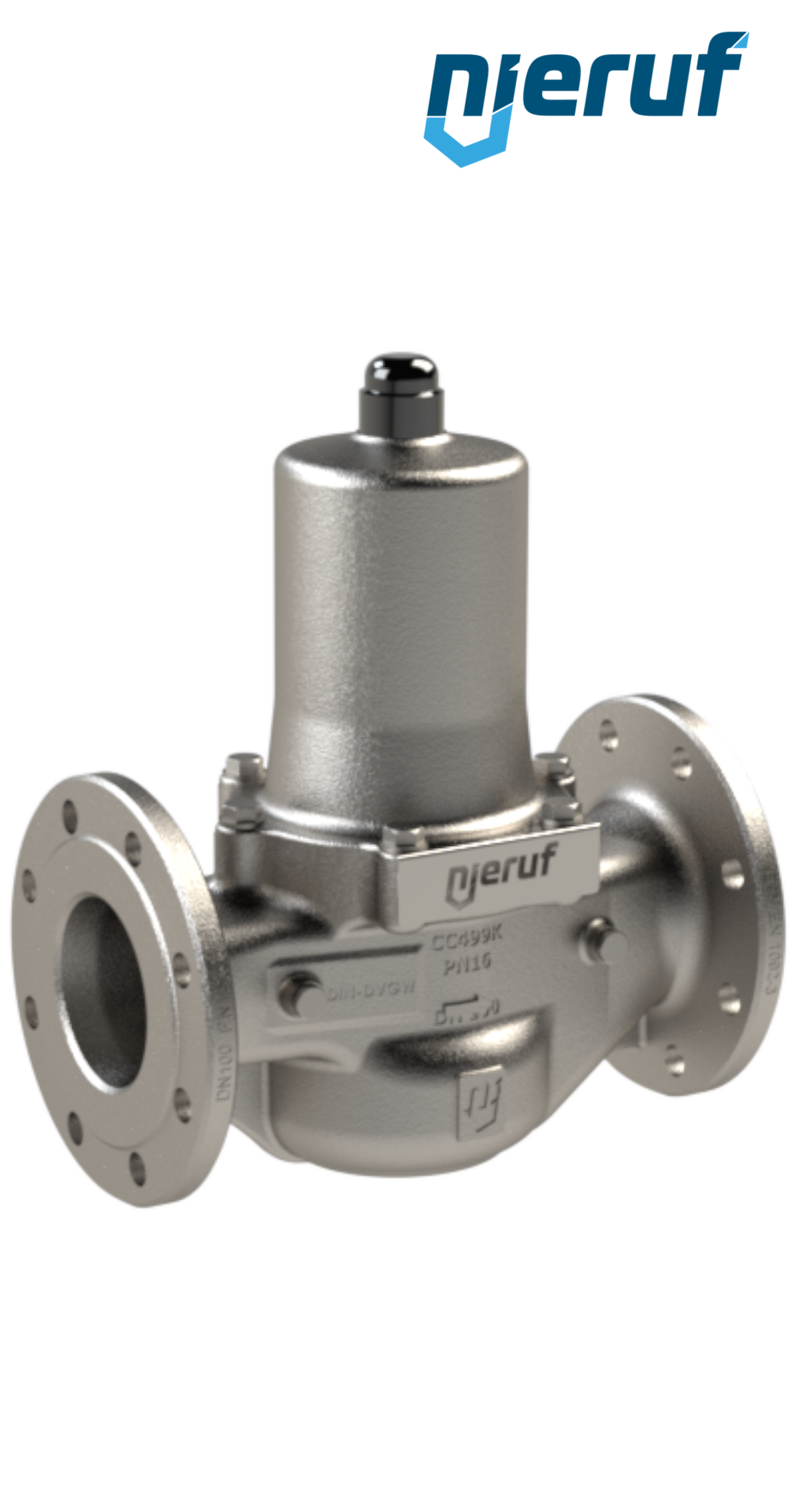

Flange-pressure reducing valve DN 100 PN16 flange acc. DIN EN 1092 made of stainless steel seal FKM for liquid and gaseous media (no steam), set pressure 5.0 - 13.0 bar
| product | Flange-pressure reducing valve |
|---|---|
| type | DM08 |
| manufacturer | NieRuf |
| diameter | DN 100 PN16 |
| connection | flange acc. DIN EN 1092 |
| material | stainless steel |
| seal | FKM |
| media | liquid and gaseous media (no steam) |
| temperature | -10°C up to +120°C (back pressure starting 8 bar max. +95°C) |
| range of adjustment | 5.0 - 13.0 bar |
| max. inlet pressure | 16 bar |
| design | straightway form |
| installation position | any position |
| SIL - safety integrity level | SIL 2 |
| product feature | High-quality pressure reducing valve with Stainless steel piston. Adjustment by means of non-rising spindle. Balanced single seat valve |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange-pressure reducing valve DN 100 PN16 DM08 stainless steel FKM 5.0 - 13.0 bar
Article no.
: DM08030011
product:
Flange-pressure reducing valve
type:
DM08
manufacturer:
NieRuf
diameter:
DN 100 PN16
connection:
flange acc. DIN EN 1092
material:
stainless steel
seal:
FKM
media:
liquid and gaseous media (no steam)
temperature:
-10°C up to +120°C (back pressure starting 8 bar max. +95°C)
range of adjustment:
5.0 - 13.0 bar
max. inlet pressure:
16 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
High-quality pressure reducing valve with Stainless steel piston. Adjustment by means of non-rising spindle. Balanced single seat valve
Equipment
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN100 PN25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
pressure gauge 0 - 16,0 bar G 1/4" axial 50 mm stainless steel MM05
Lead time: in stock
joint set flange/flange DN100 - 4" Inch for flange PN40 stainless steel
Lead time: in stock
