FK04000011
Compact ball valve DN100 PN16 FK04 stainless steel 1.4408
- Lead time
- 3 - 5 working days
Equipment
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
€4.88 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
€16.18 VAT included.
Welding neck flange DN100 PN10/16 EN1092-1 11 B1 1.4541
€82.23 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

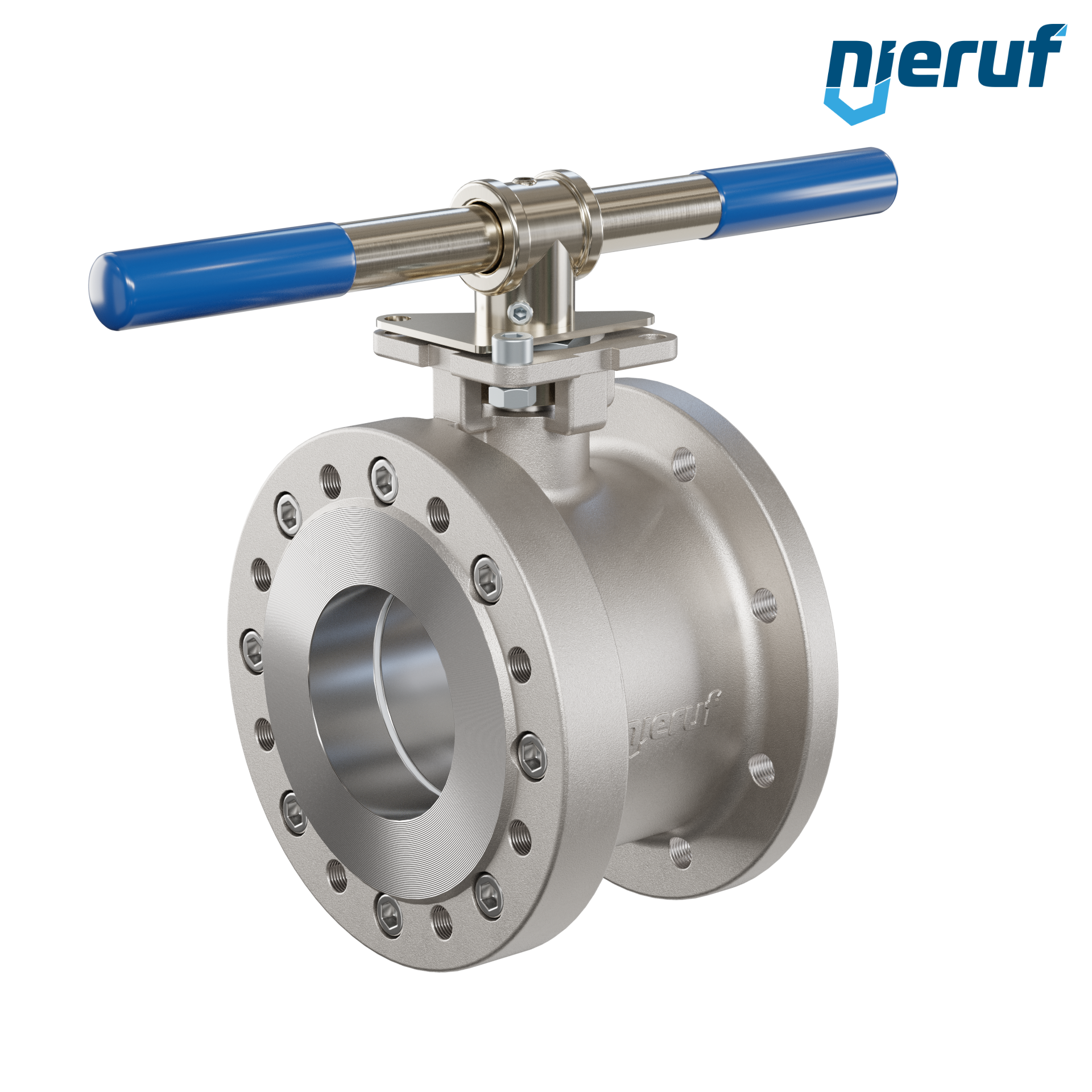

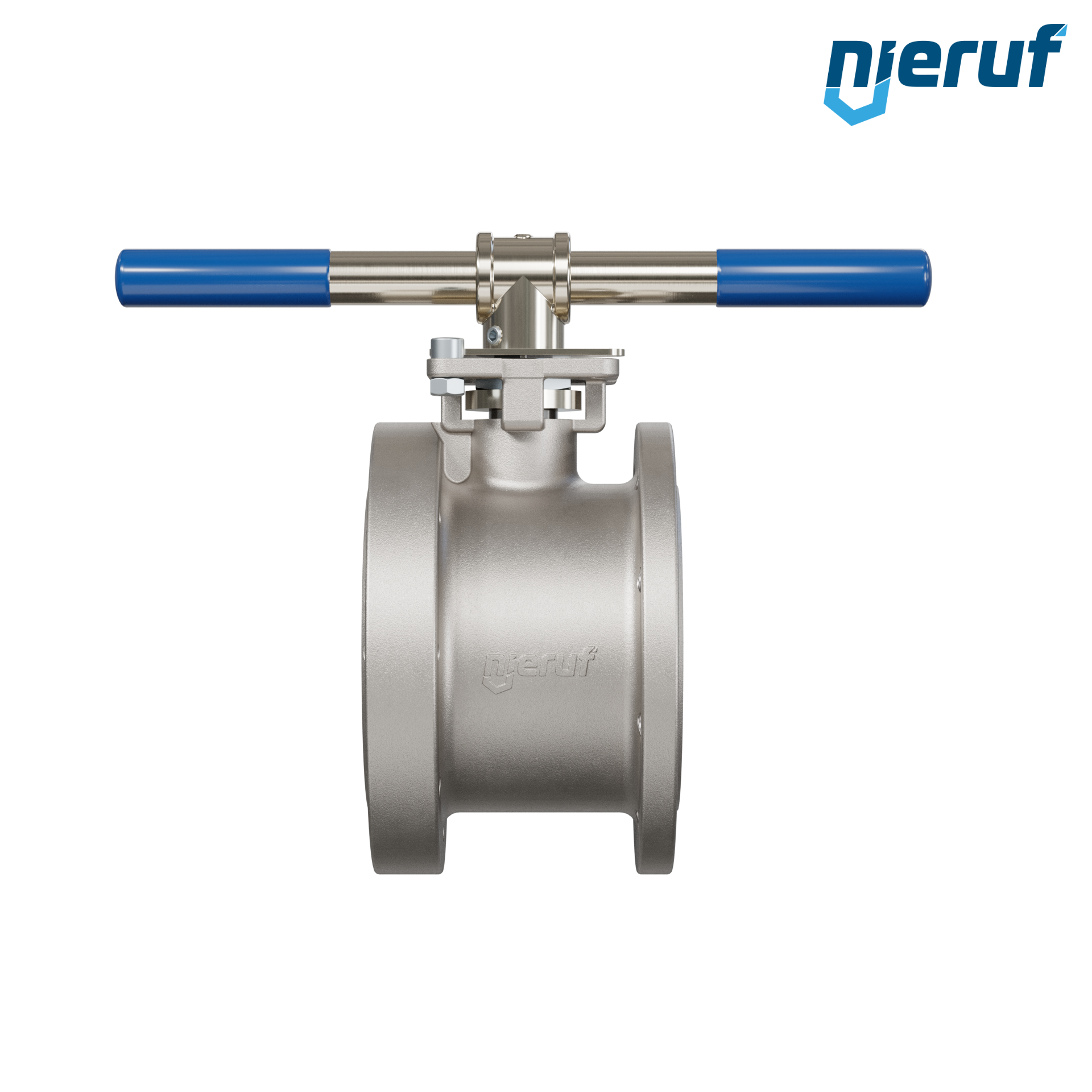

Compact ball valve DN100 PN16 FK04 stainless steel 1.4408
Compact ball valve DN100 PN16 FK04 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE / TFM for liquid and gaseous media
| product | Compact ball valve |
|---|---|
| type | FK04 |
| manufacturer | NieRuf |
| diameter | DN100 |
| connection | flange dimensions acc. DIN EN 1092-1 |
| Seal steam | O-ring FKM/FPM (Viton) |
| body seal | PTFE |
| ball seal | PTFE / TFM 1600 |
| media | liquid and gaseous media |
| temperature | -29°C up to +200°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | full port design |
| body material | stainless steel 1.4408 / CF8M |
| ball material | stainless steel 1.4408 / CF8M |
| length | 150mm |
| actuator | hand lever made of steel (zinc plated) with blue cover |
| installation position | any position |
| authorized for | TA Luft, Fire-safe API 607/4 |
| product description | This high quality stainless steel ball valve in the compact version consists of a 1-piece body with screw-in part. Full bore, ISO 5211 mounting flange and flange connection on both sides in accordance with EN 1092-1. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Compact ball valve DN100 PN16 FK04 stainless steel 1.4408
Article no.
: FK04000011
product:
Compact ball valve
type:
FK04
manufacturer:
NieRuf
diameter:
DN100
connection:
flange dimensions acc. DIN EN 1092-1
Seal steam:
O-ring FKM/FPM (Viton)
body seal:
PTFE
ball seal:
PTFE / TFM 1600
media:
liquid and gaseous media
temperature:
-29°C up to +200°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design
body material:
stainless steel 1.4408 / CF8M
ball material:
stainless steel 1.4408 / CF8M
length:
150mm
actuator:
hand lever made of steel (zinc plated) with blue cover
installation position:
any position
authorized for:
TA Luft, Fire-safe API 607/4
product description:
This high quality stainless steel ball valve in the compact version consists of a 1-piece body with screw-in part. Full bore, ISO 5211 mounting flange and flange connection on both sides in accordance with EN 1092-1.
Equipment
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
Lead time: in stock
