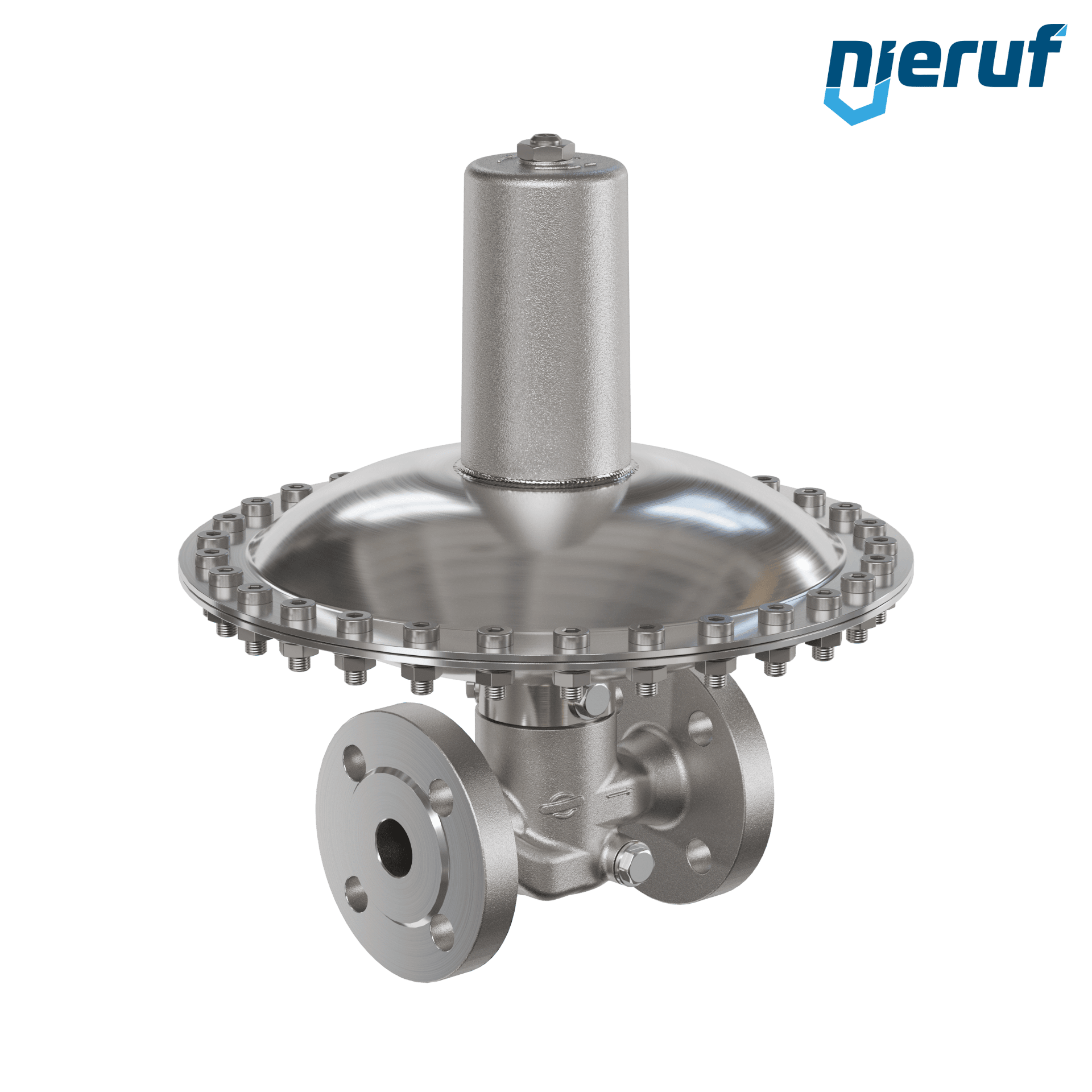

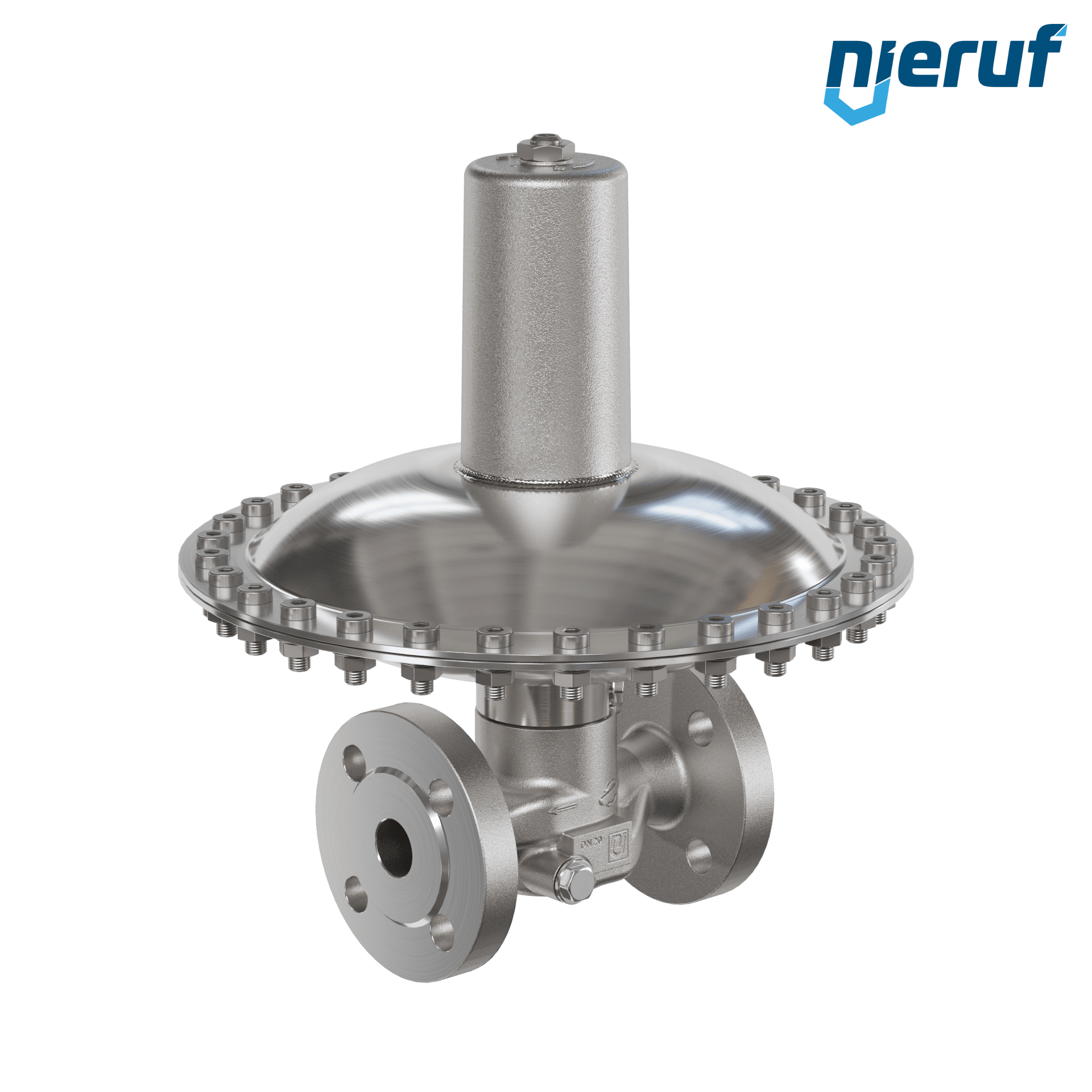

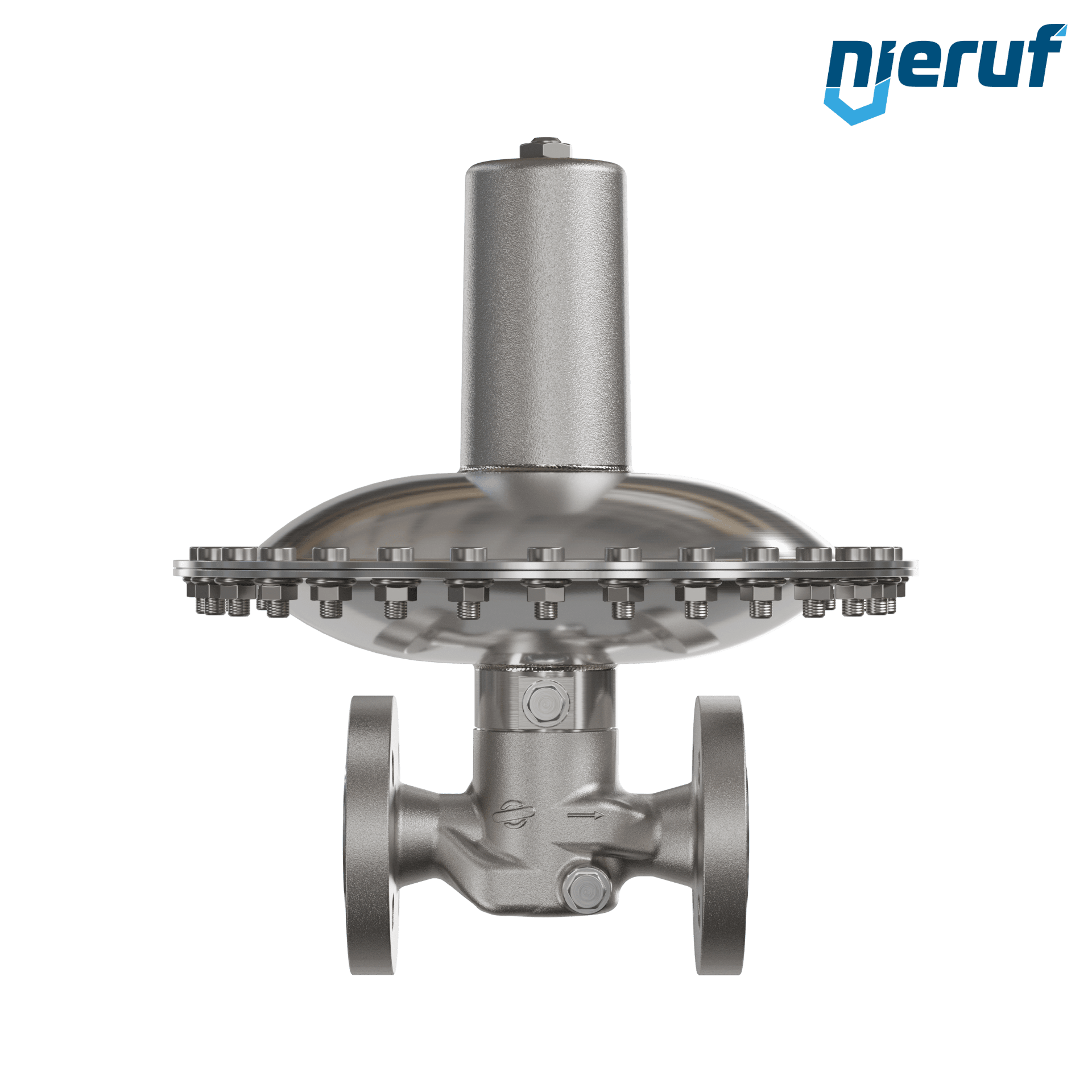

Millibar overflow valve DN20 flange type UV18 stainless steel 50 - 500 mbar seal EPDM / PTFE for neutral gaseous media
| product | Millibar overflow valve |
|---|---|
| type | UV18 |
| manufacturer | NieRuf |
| diameter | DN20 |
| connection | flange acc. DIN EN 1092 |
| seal | EPDM / PTFE |
| media | neutral gaseous media |
| temperature | -30°C to +120°C |
| range of adjustment | 50 - 500 mbar |
| max. inlet pressure | 1,5 bar |
| design | straightway form |
| material | stainless steel 1.4408 / AISI 316L |
| installation position | horizontal |
| product feature | Diaphragm-controlled overflow valve with continously adjustable pressure setting and double-ended G 1/4" manometer fitting. Ideal for tank blanketing applications. This version meets the requirements of EU regulation EG1935/2004 and is therefore suitable for use in the food sector. The EPDM seals are FDA-compliant. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Millibar overflow valve flange DN20 UV18 stainless steel EPDM / PTFE 50 - 500 mbar
Article no.
: UV18010204
product:
Millibar overflow valve
type:
UV18
manufacturer:
NieRuf
diameter:
DN20
connection:
flange acc. DIN EN 1092
seal:
EPDM / PTFE
media:
neutral gaseous media
temperature:
-30°C to +120°C
range of adjustment:
50 - 500 mbar
max. inlet pressure:
1,5 bar
design:
straightway form
material:
stainless steel 1.4408 / AISI 316L
installation position:
horizontal
product feature:
Diaphragm-controlled overflow valve with continously adjustable pressure setting and double-ended G 1/4" manometer fitting. Ideal for tank blanketing applications. This version meets the requirements of EU regulation EG1935/2004 and is therefore suitable for use in the food sector. The EPDM seals are FDA-compliant.
